CEC (Consolidated Engineering Company) Batch Furnace
Sold
CEC (Consolidated Engineering Company) Batch Furnace
Description

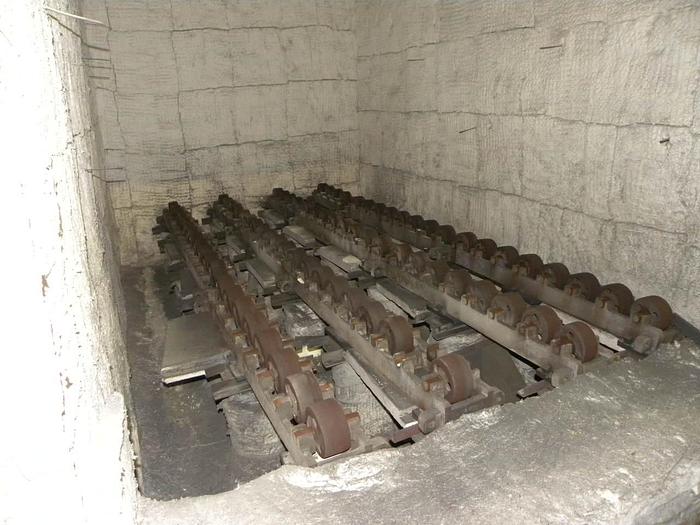

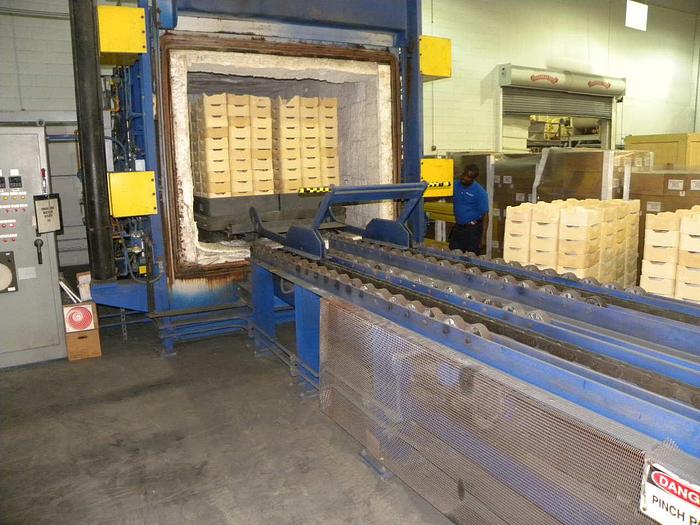

Front loading direct fired box furnace with air operated vertical lift door and roller rail hearth rated for 13,000 pounds. Powered loader and tray assembly is included. A total of ten (10) Eclipse ThermJet burners, five (5) on each side. Shipping Dimensions: 11' wide x 11'4" high x 15' long - 25,000 pounds (Furnace) Misc. will require step deck 9' wide. 10,000 pounds
Specifications
| Manufacturer | CEC (Consolidated Engineering Company) |
| Model | Batch Furnace |
| Condition | Used |
| Serial Number | 02-2775 |
| Stock Number | 7631 |
| Work area | 84"W x 72"H x 132"L (11') |
| Heated | Natural Gas - 5.0 MBTU's/Hr. |
| Max temperature | 1700°F (720°C to 920°C) |
| Voltage | 460/3/60/30 Amps |
| External dimensions | 14' wide x 20' high x 35'L - Includes Loader |
| Controls | Mounted and wired in a free standing panel with disconnect includes five (5) Honeywell UDC 3300 digital controllers (one for each zone), one (1) Honeywell UDC 2300 digital high limit and a Honeywell DR 4300 digital round chart recorder. There are ten (10) Honeywell burner controllers mounted inside the panel. |
| Availability | Immediate |
