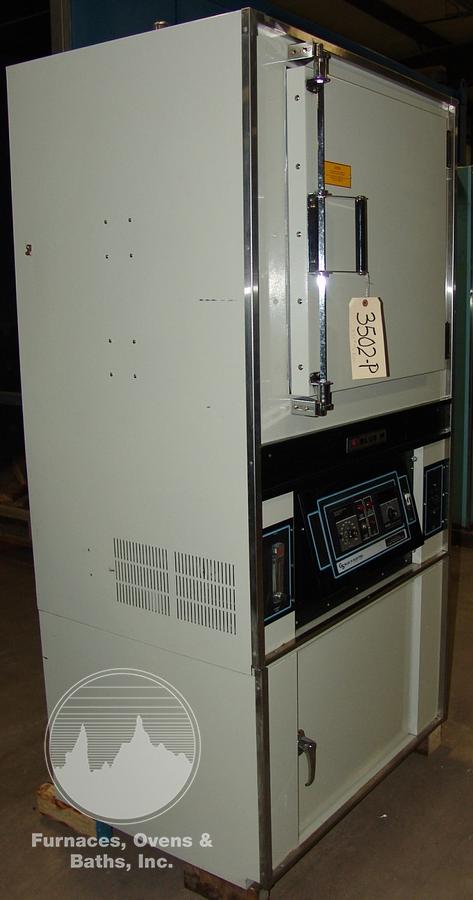

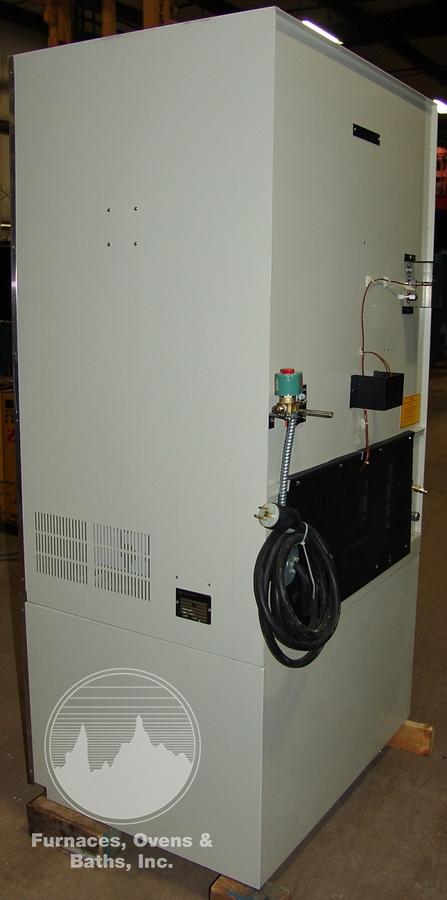

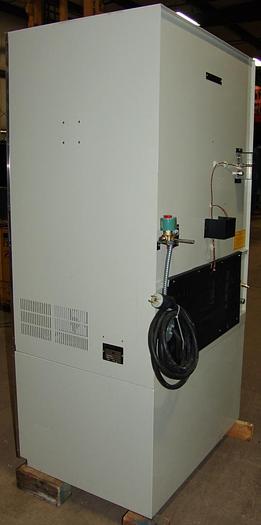

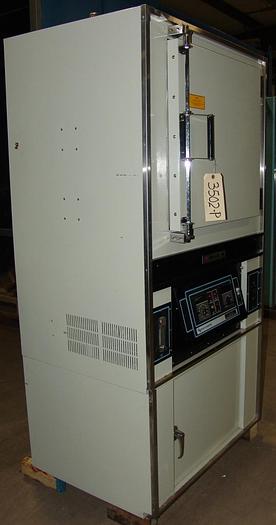

16.5''W x 19.7"H x 18"L Blue M 206 Inert Gas Clean Room Cabinet Oven, 500°F, 208V Single Phase

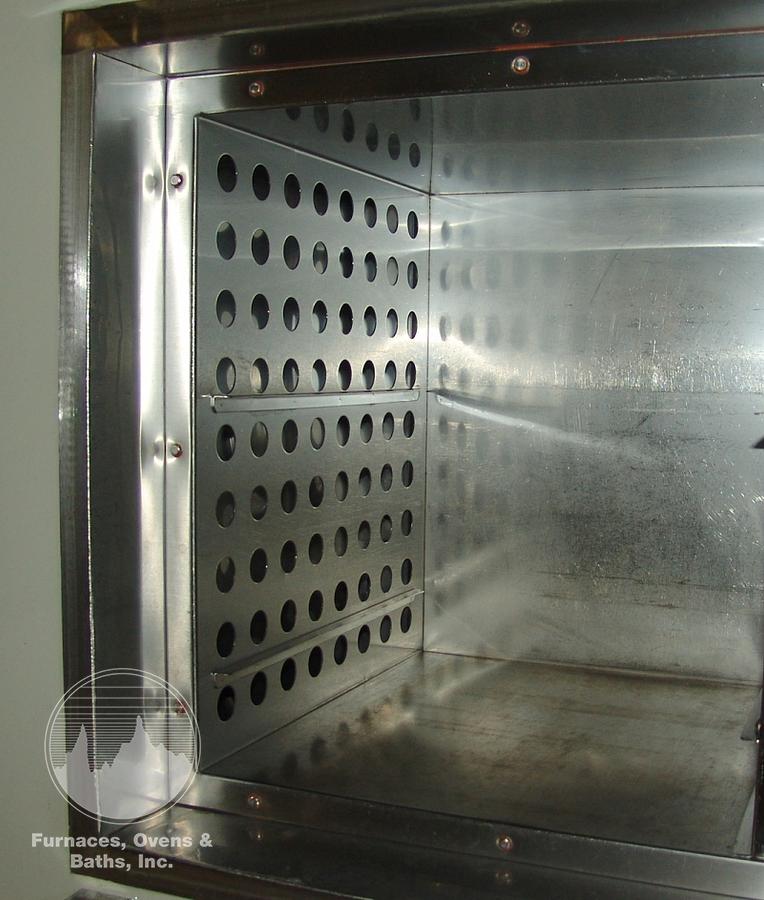

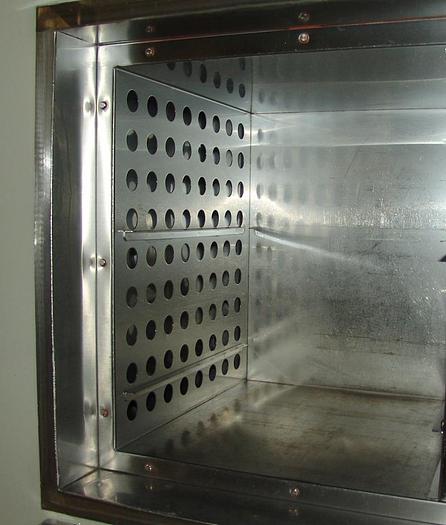

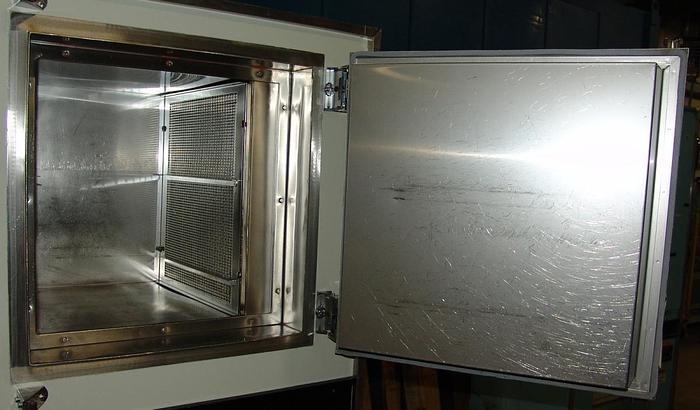

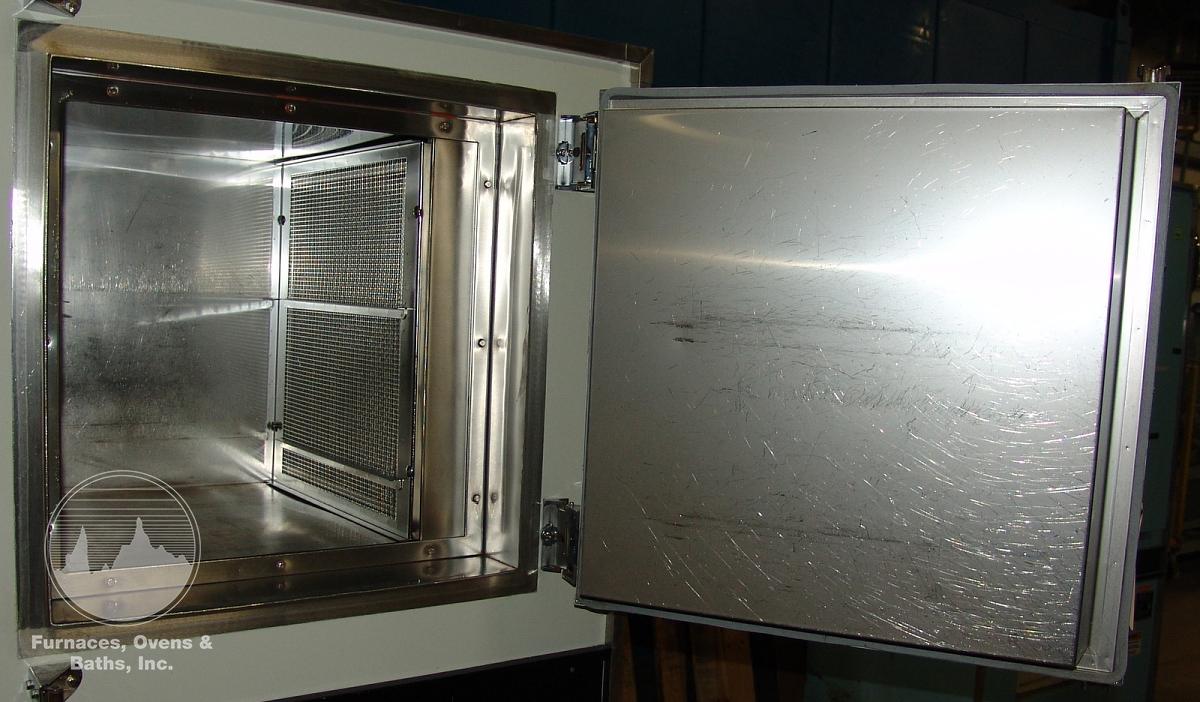

Single door with 2 point cam action latch and a silicon rubber gasket for a good tight door seal. Stainless steel interior with 2 shelf brackets, no shelves are supplied. Easily removable HEPA air filter located on the right side to filter continuously filtering circulated air. Direct driven circulating fan and coiled style heating elements are located under the floor pan. Heated air is circulated horizontally across the chamber. Inert gas is introduced at the fan shaft for good distribution. Chamber vent port for exhausting moisture or particulate is provided. Close this port when using inert gas atmosphere. Water cooled coil under the floor pan for more rapid cooling and temperature control under 100 C.

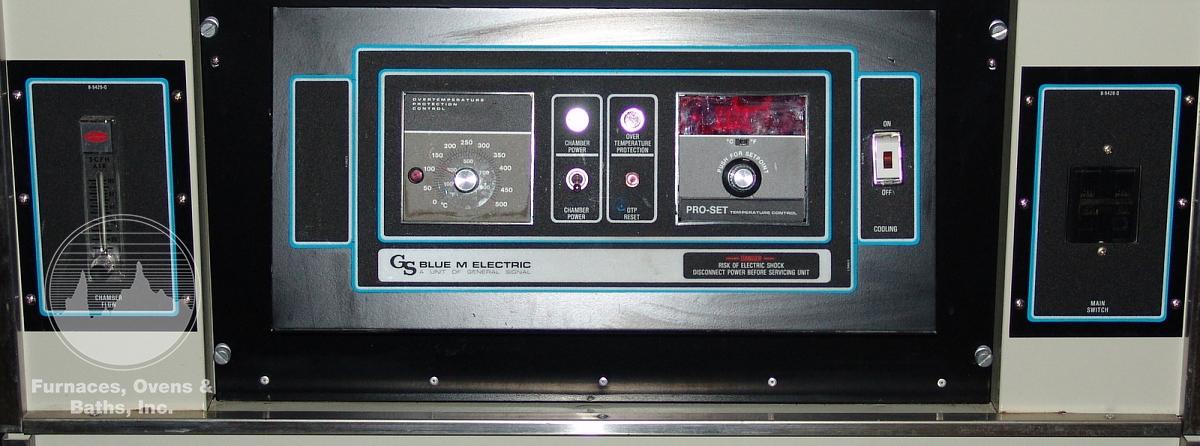

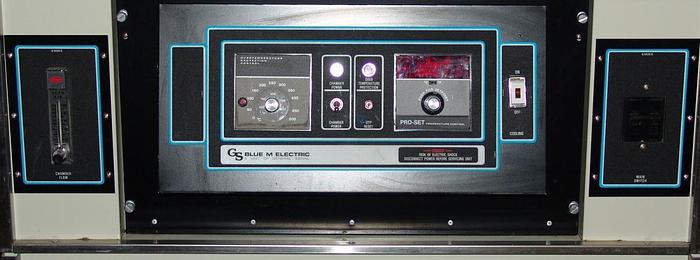

Controls are mounted in a slide out console located directly under the work area. Blue M Pro Set digital programmable temperature controller, United Electric non indicating high limit and control power switch with indicating light are flush mounted in the front panel of the console. A main power circuit breaker and a 0 - 100 CFH flow meter are also mounted on the front of the oven.
