Grieve B4-450
Sold
Grieve B4-450
Description

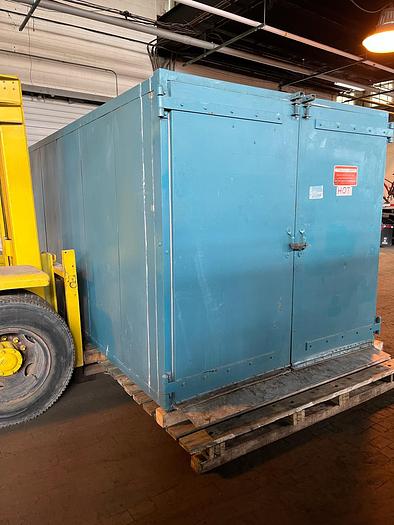

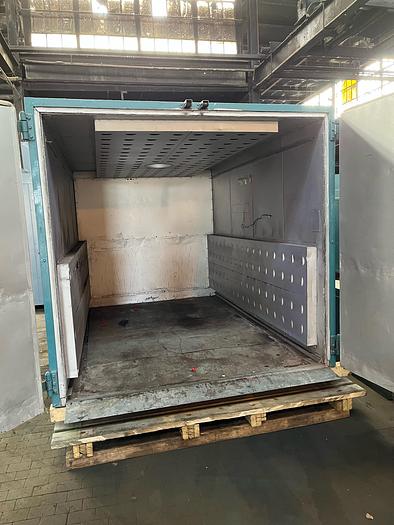

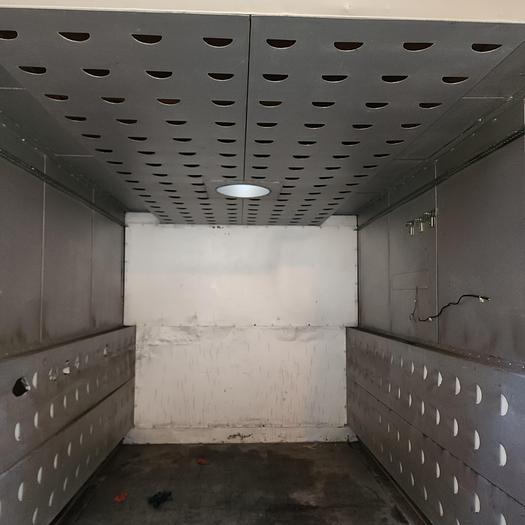

Double doors on one end. Doors have a woven fiberglass gasket and a spring tension latch for a good door seal. Aluminized steel interior with a steel plate floor. Punched louvered air duct panels on both side walls and the roof. Heating elements are located behind the work area. Belt driven circulating fan is mounted through the rear wall. Heated air is circulated out both side wall air ducts and returns through the roof creating a combination airflow pattern for good uniform heating. An exhaust vent is located on top of the oven.
Specifications
| Manufacturer | Grieve |
| Model | B4-450 |
| Condition | Used |
| Serial Number | 13933 |
| Stock Number | 7628 |
| Work area | 72"W x 75"H x 120"L |
| Heated | Electric |
| Max temperature | 450°F |
| Voltage | 208/3/60/60 kW/154 AMPS |
| External dimensions | 95"W x 83"H x 14' 7"L |
| Controls | Controls are located in an enclosure attached to the side of the oven. There is a Honeywell AR-100 recording controller and a Partlow non-indicating high limit. A high / low heat switch allows the oven to be operated at full power or half power. Control switches for the main power and circulating fan are flush mounted in the enclosure. |
| Availability | Immediate |
