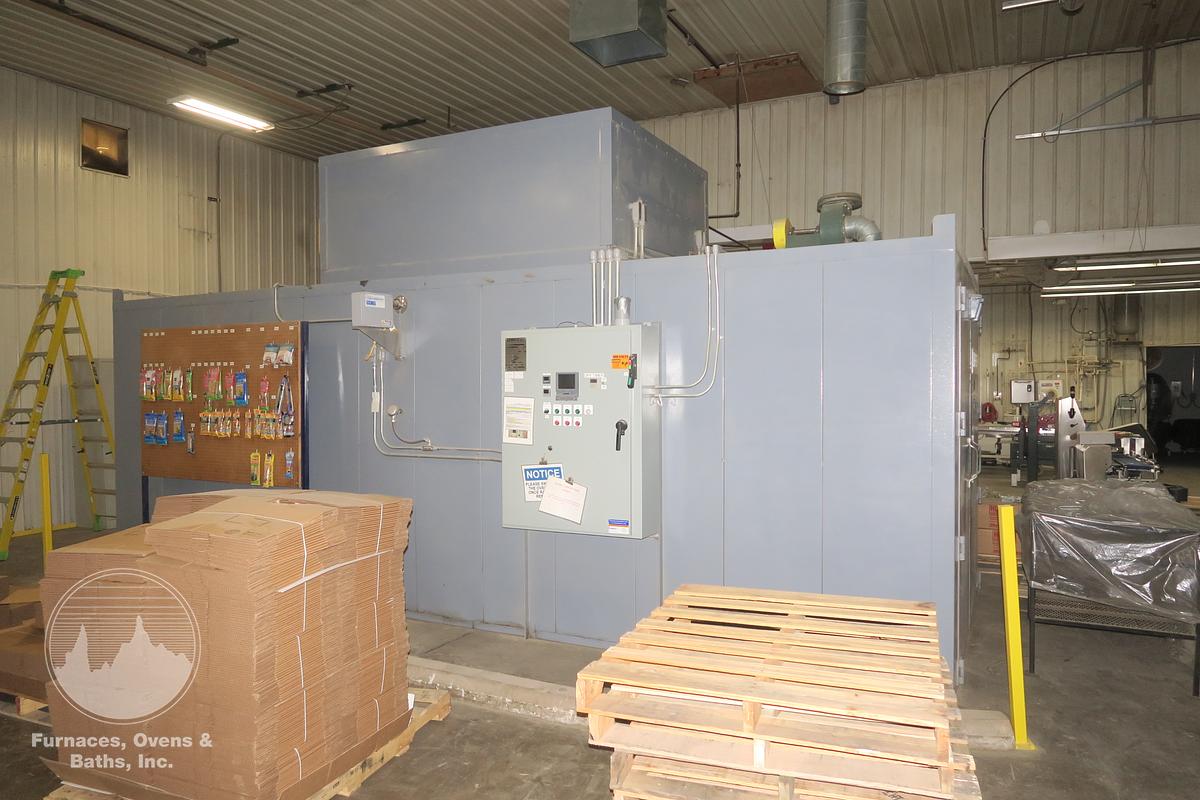

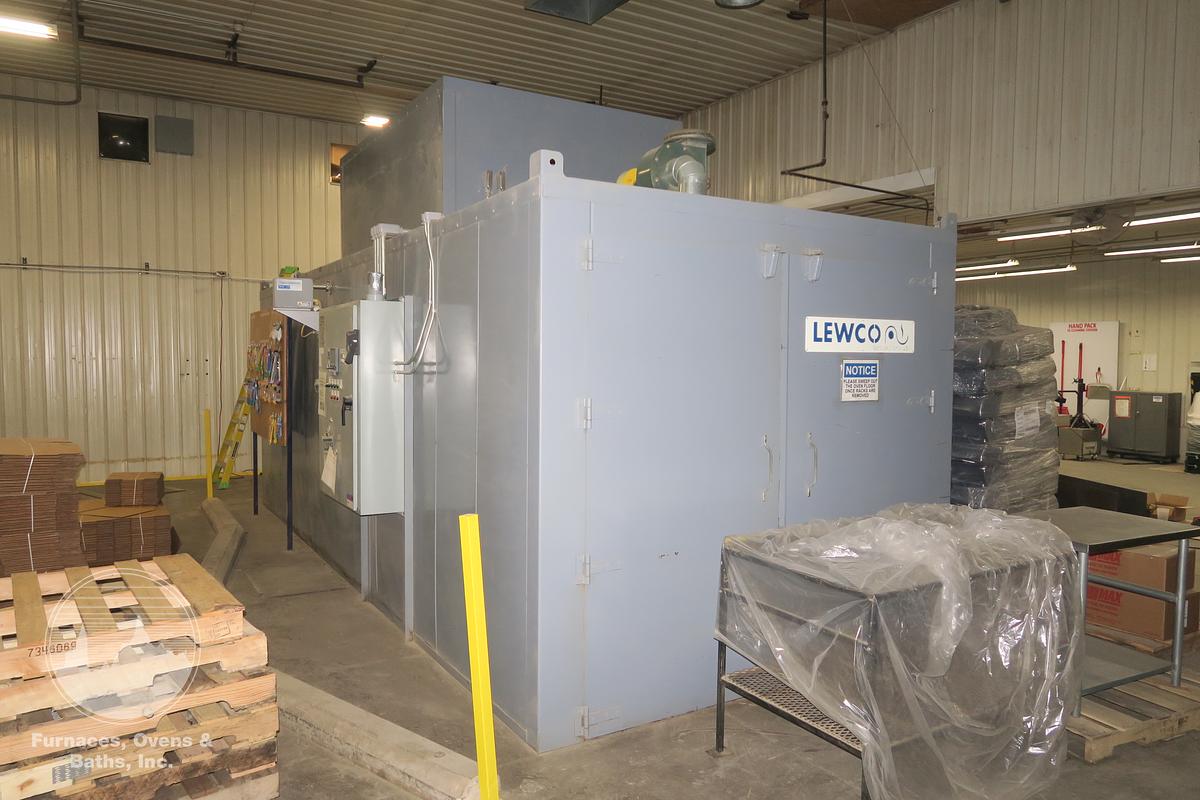

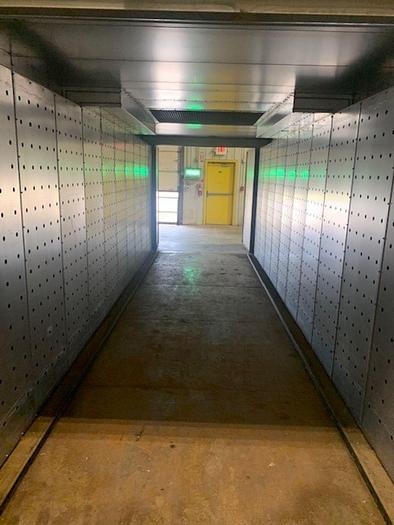

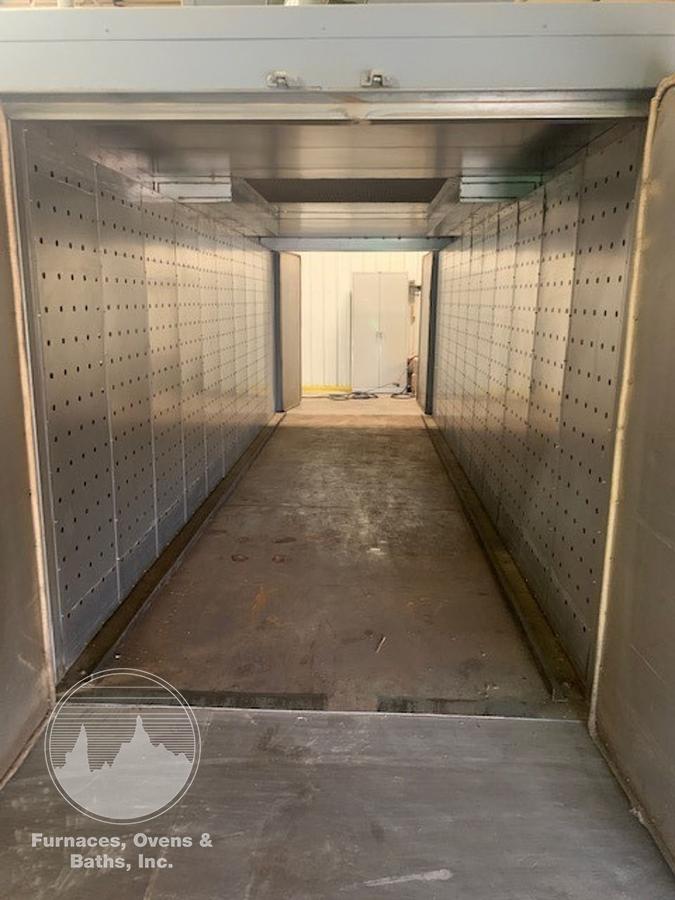

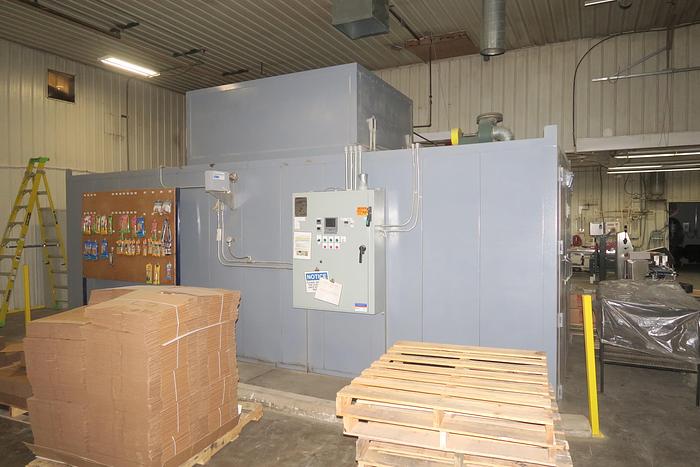

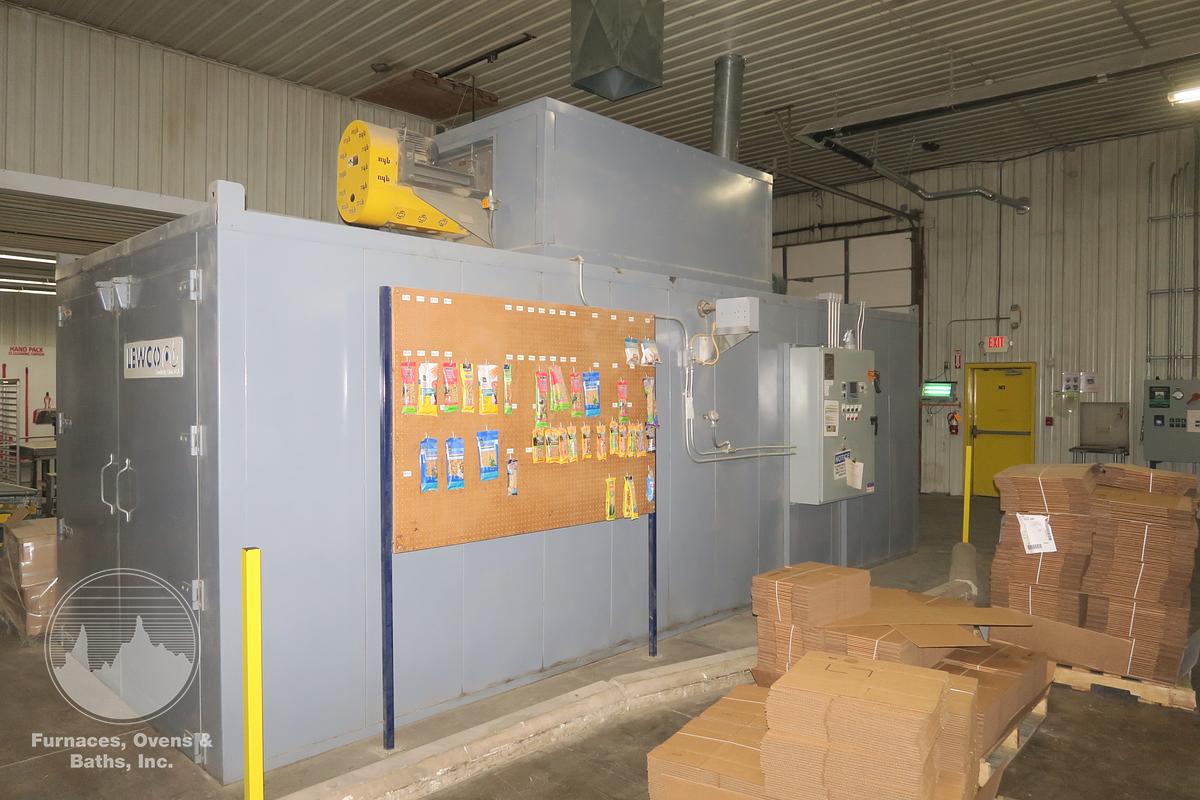

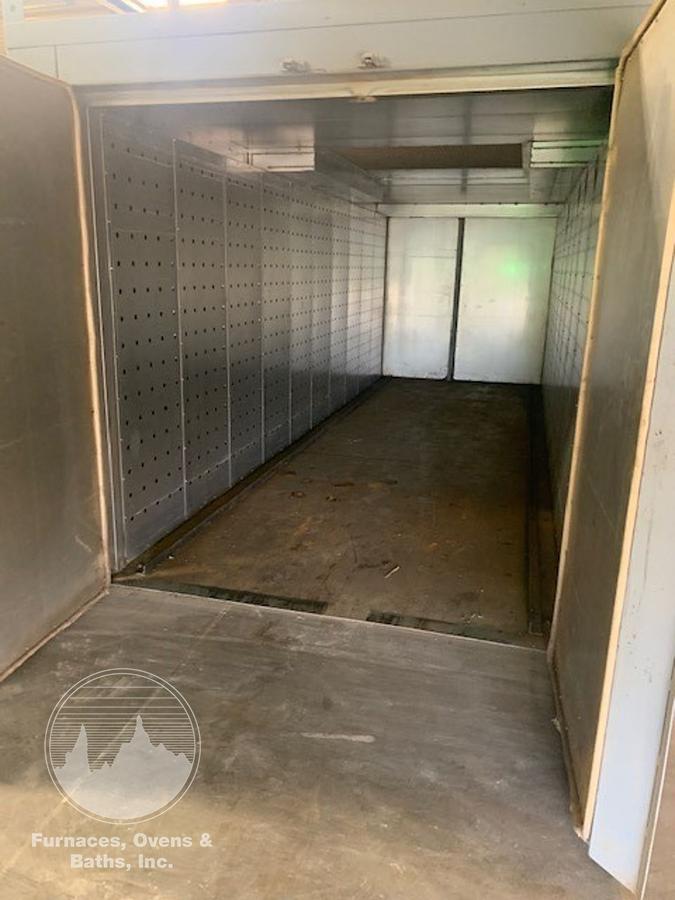

84"W x 84"H x 264"L (22'L), Lewco, Electric Walk-In Oven, 500°F, Double Ended

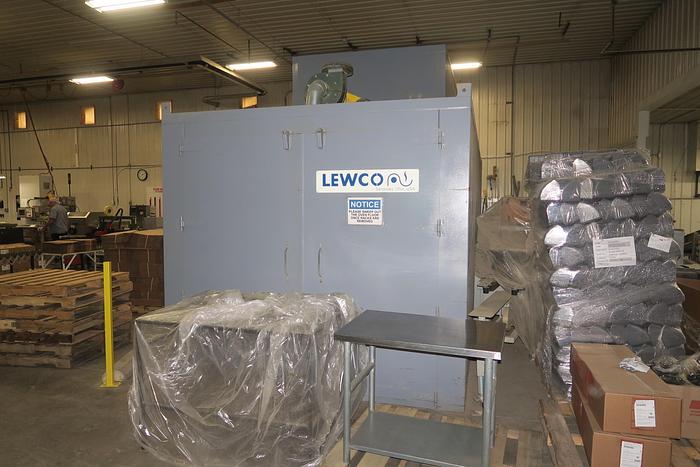

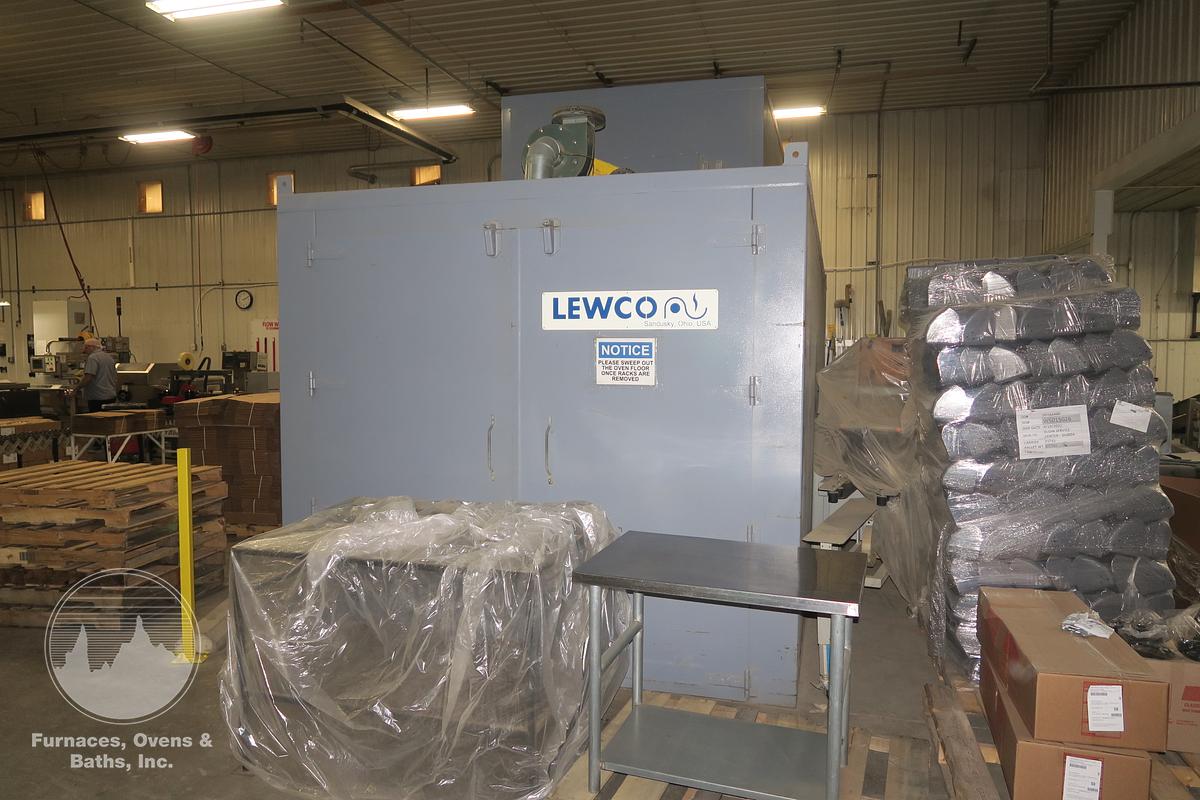

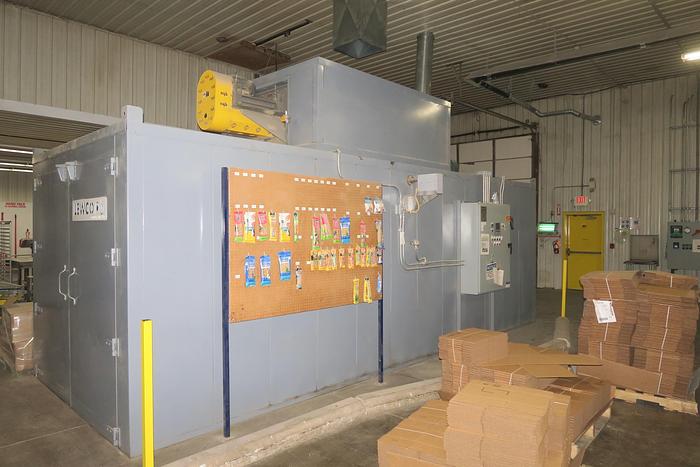

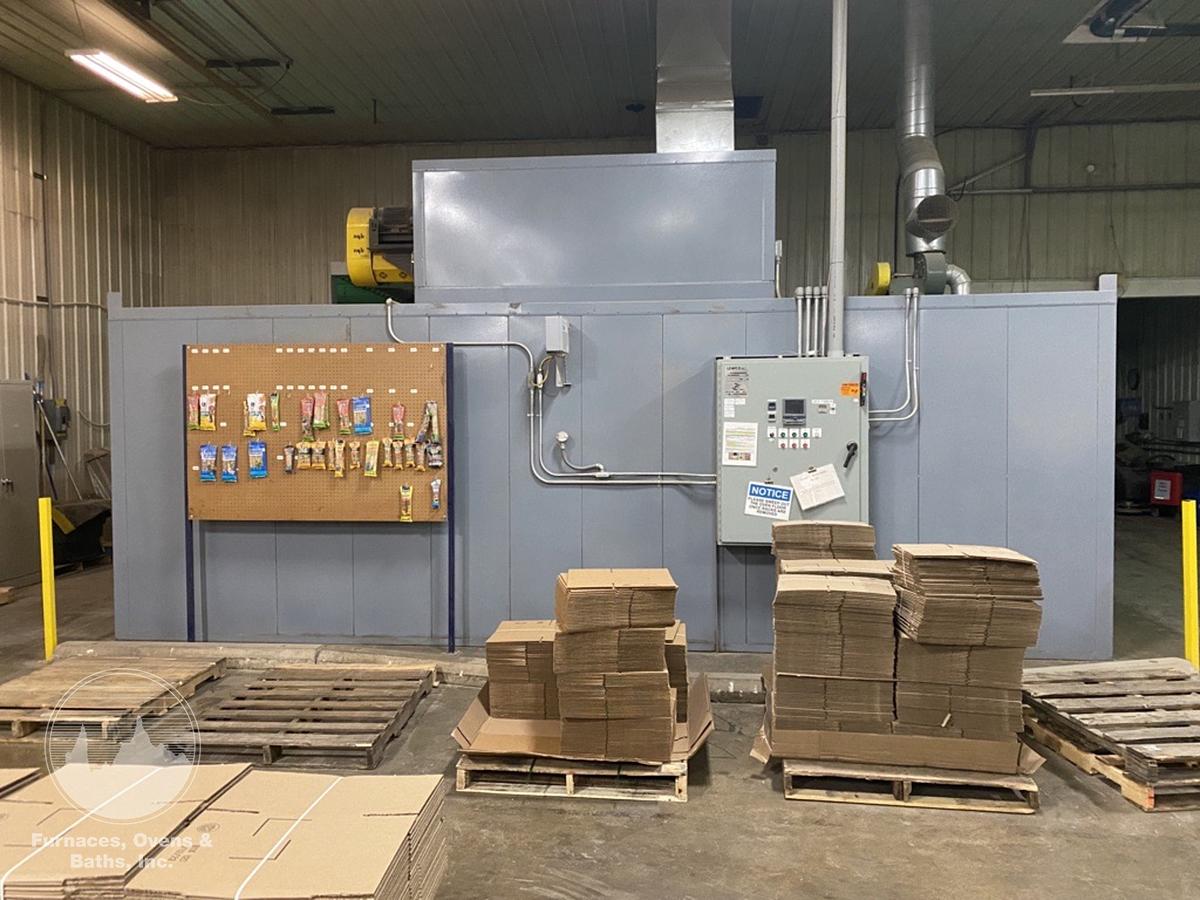

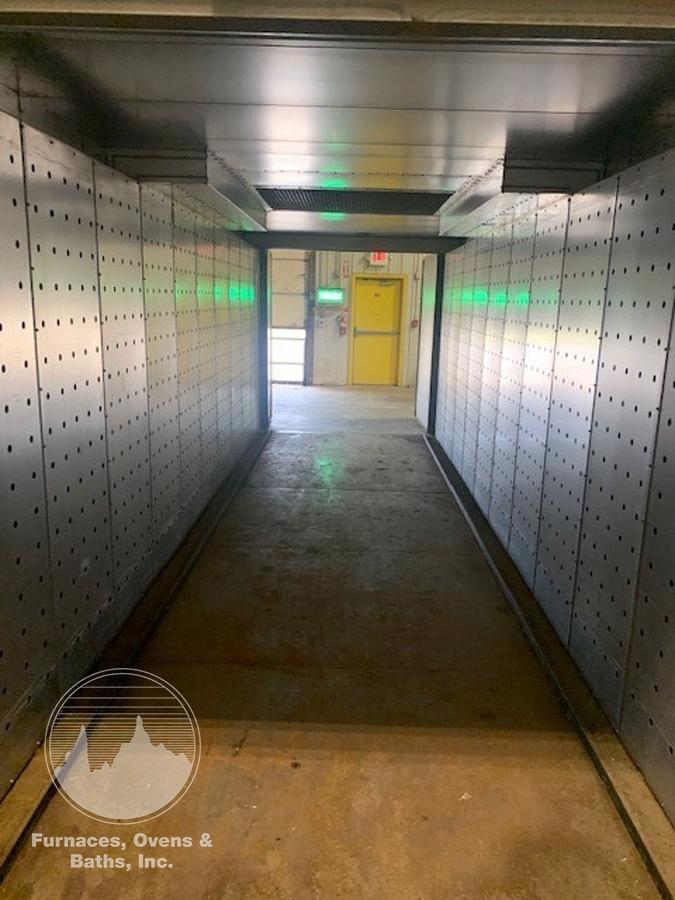

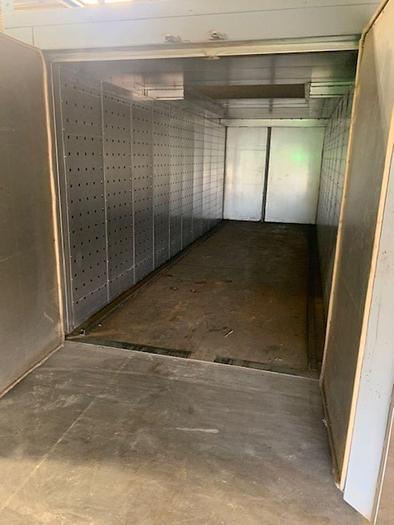

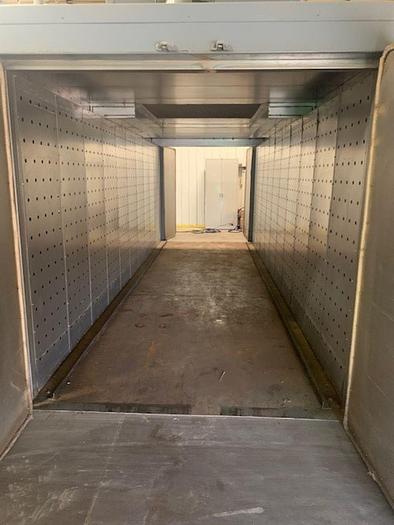

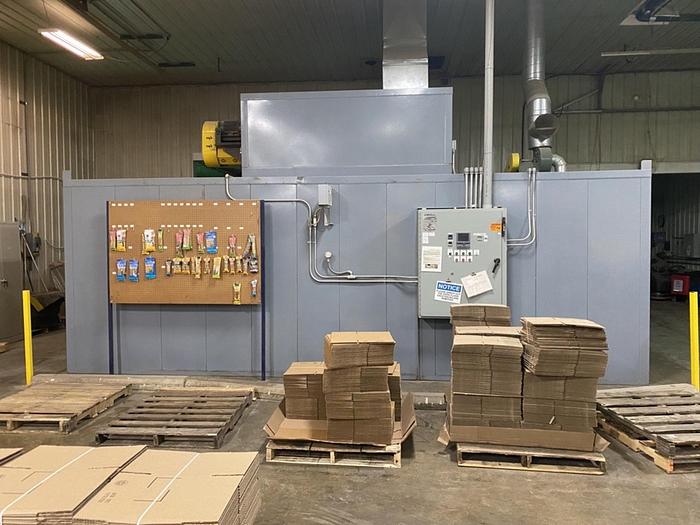

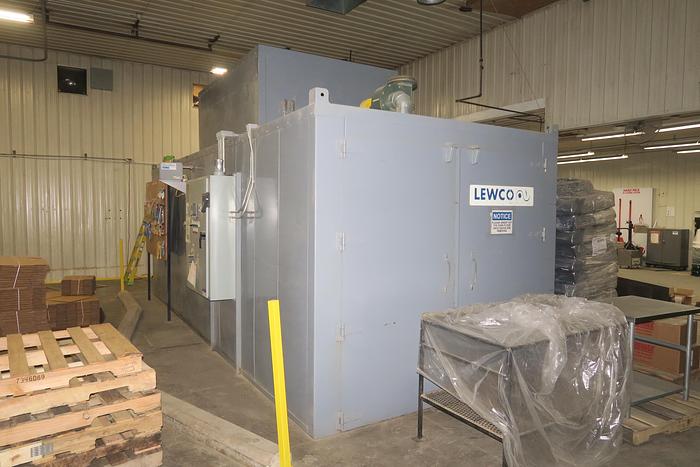

This oven has double doors on each end. "Brixon" spring tension doors latches and fiber tadpole gasketing provide a good seal. A top mounted heater box with 10 H.P. fan provides combination horizontal and vertical air flow. Top mounted exhaust fan rated for 1000 CFM.

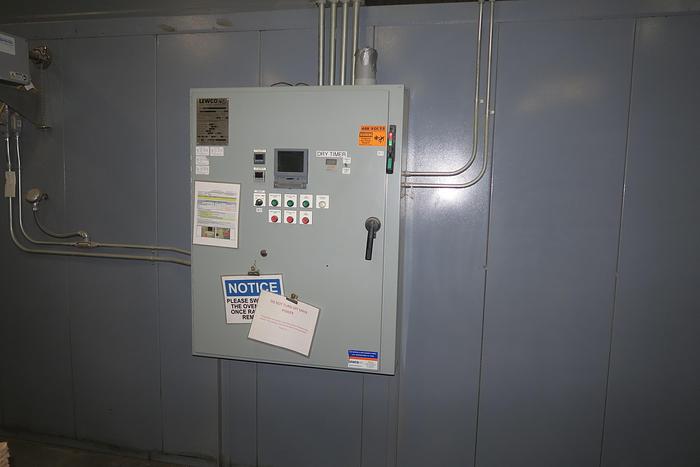

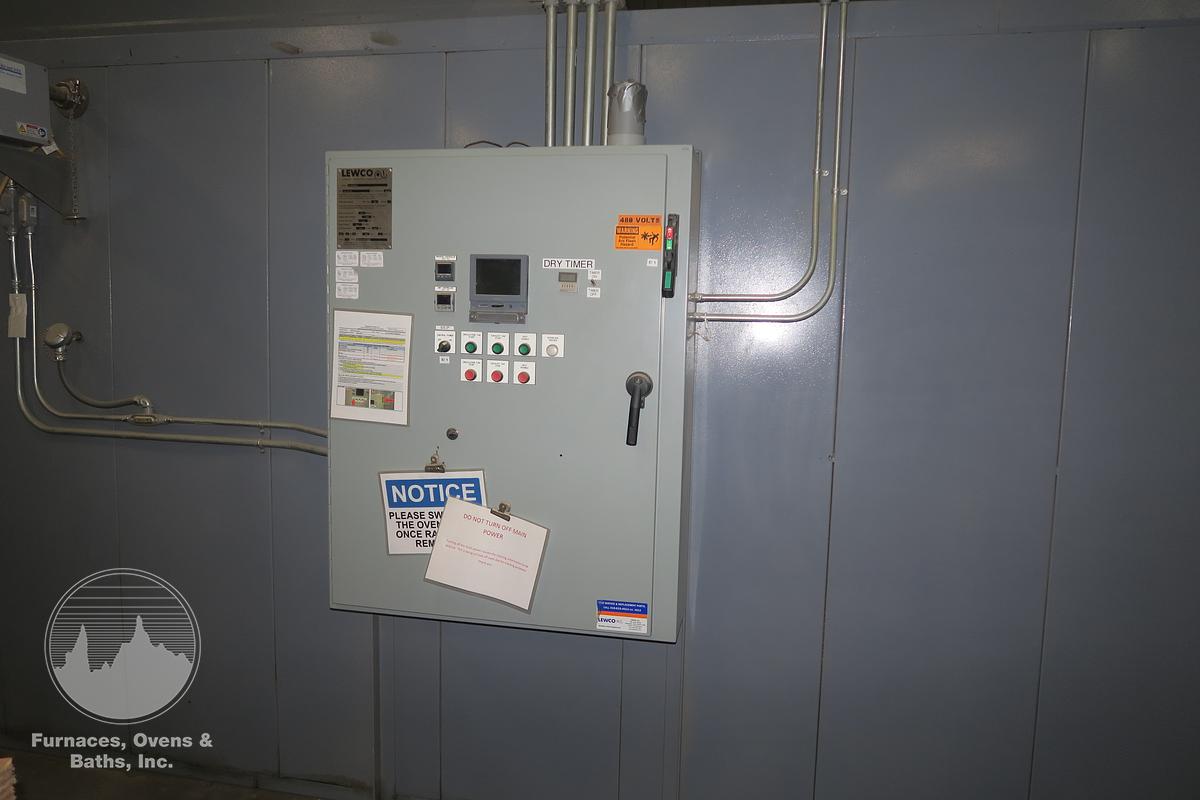

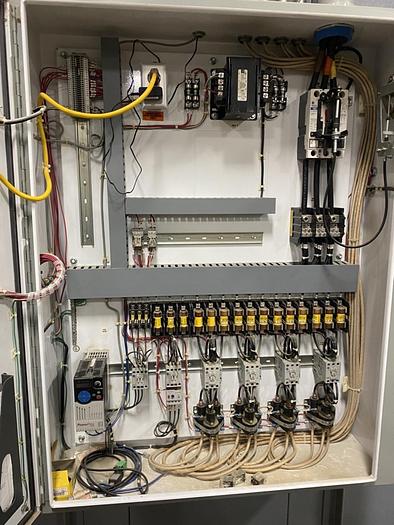

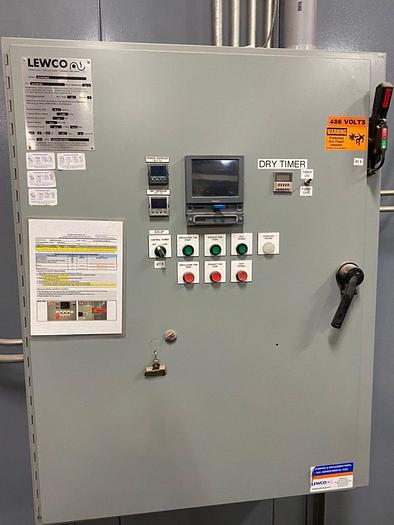

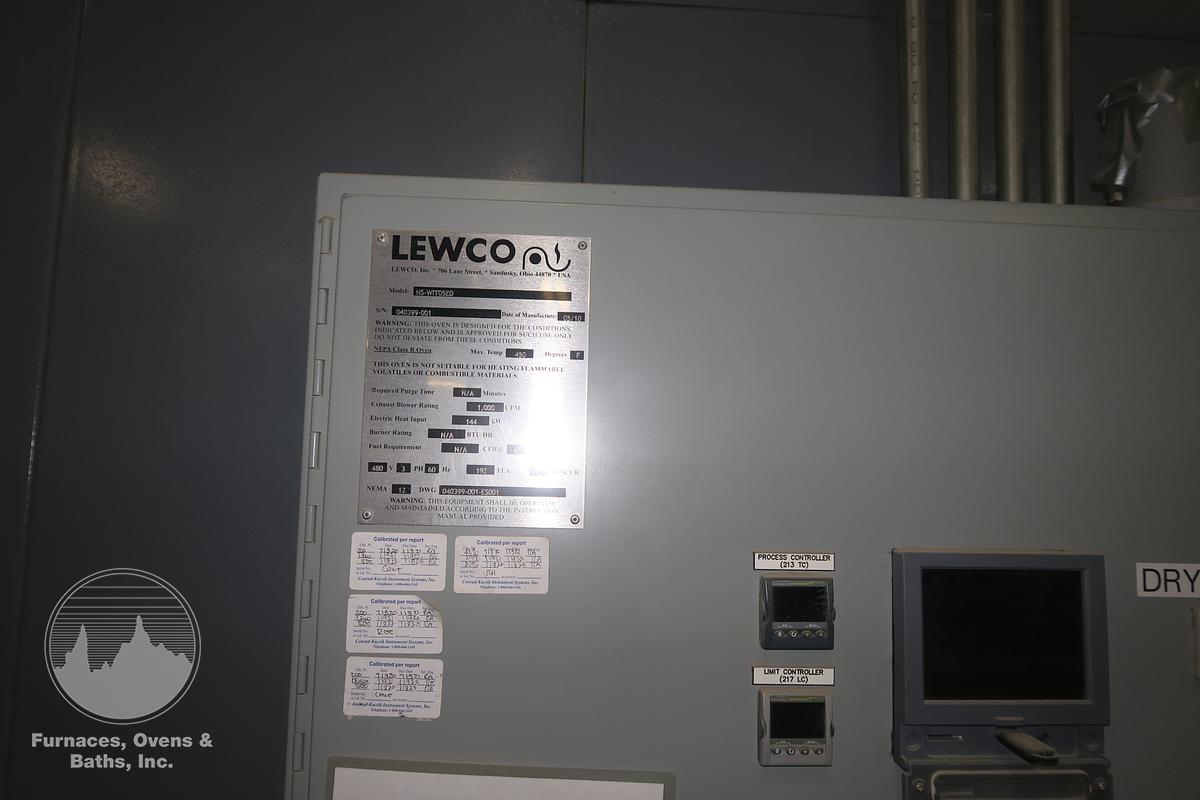

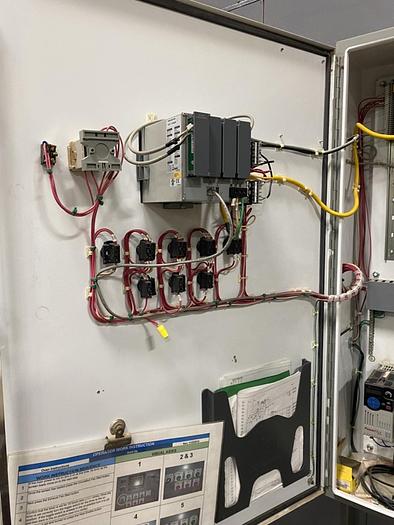

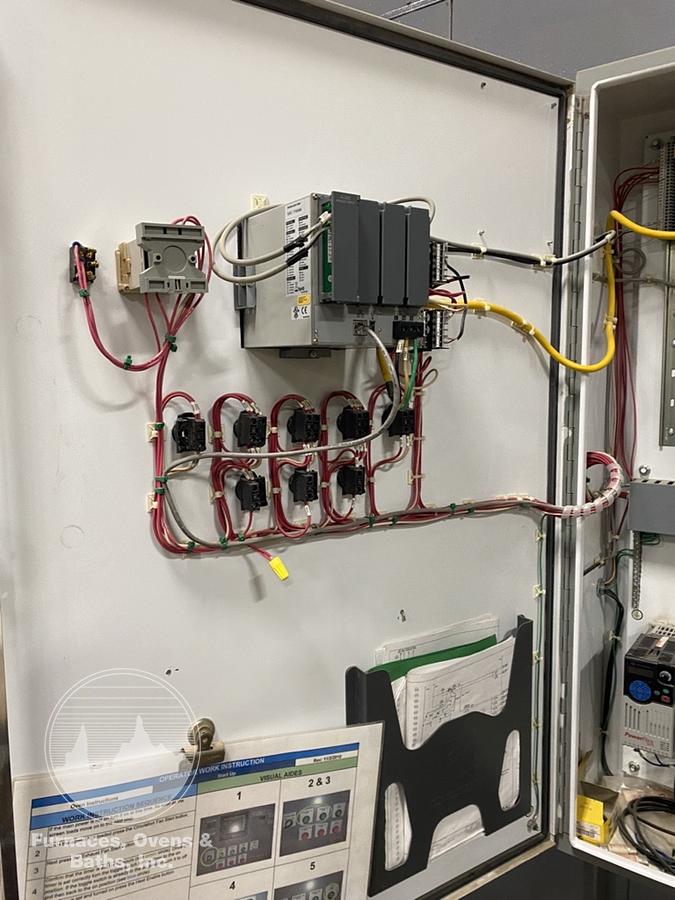

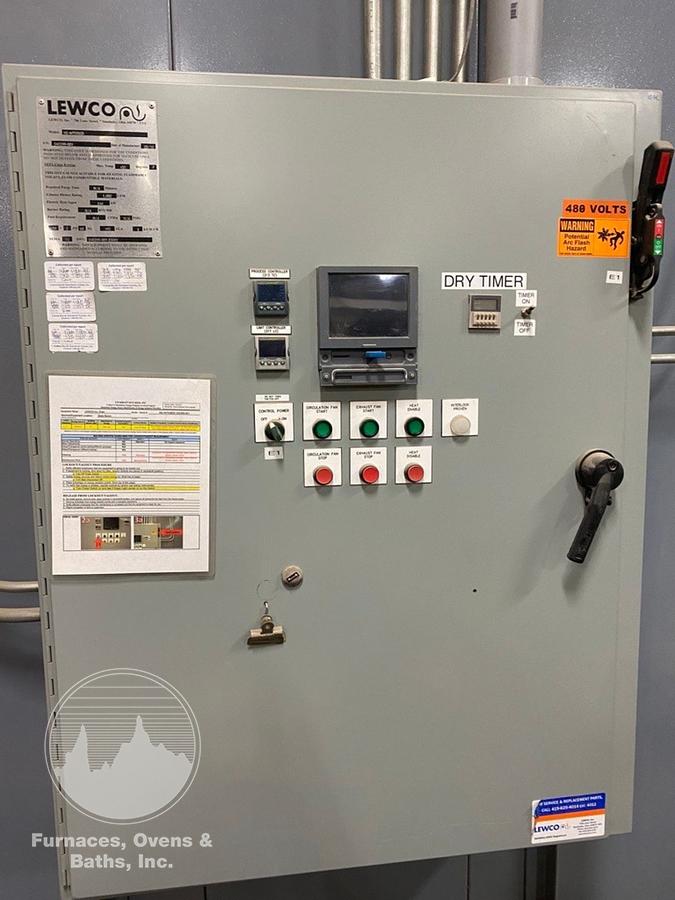

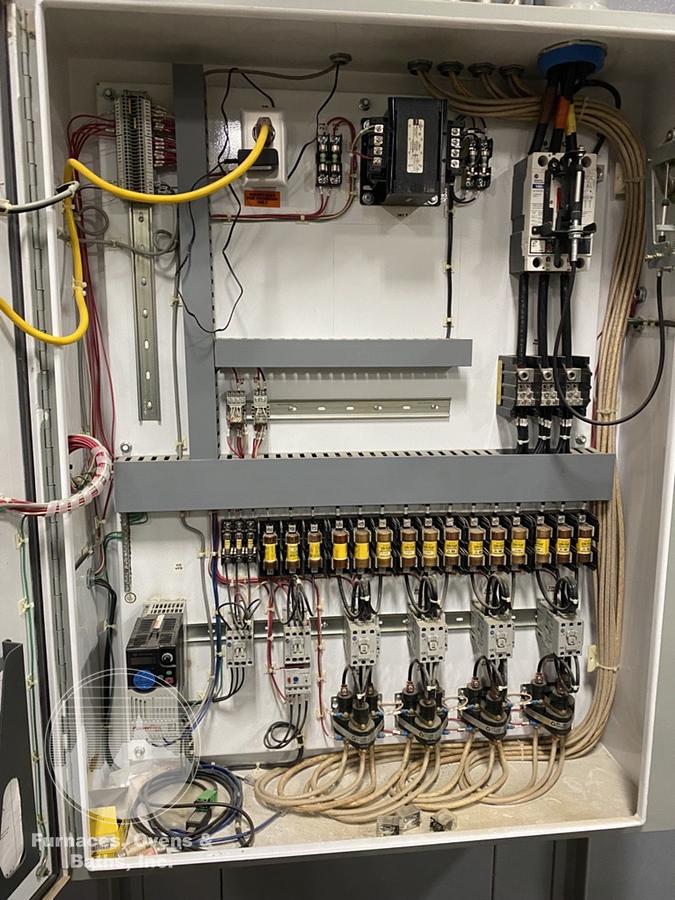

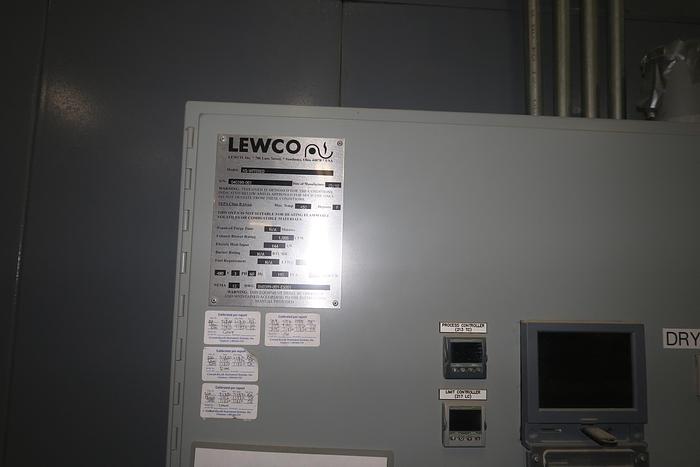

Controls are attached to the side of the oven is an enclosure with fused disconnect. This enclosure includes Eurotherm digital controllers for temperature and high limit. Also, there is a Eurotherm digital paperless recorder. Control switches and signal lights for control power, circulating fan, exhaust fan and heat are mounted to the face of the enclosure.
