48"W x 36"H x 24"L Blue M DC-1406 Cabinet Oven, 662°F, Electric
48"W x 36"H x 24"L Blue M DC-1406 Cabinet Oven, 662°F, Electric
Description

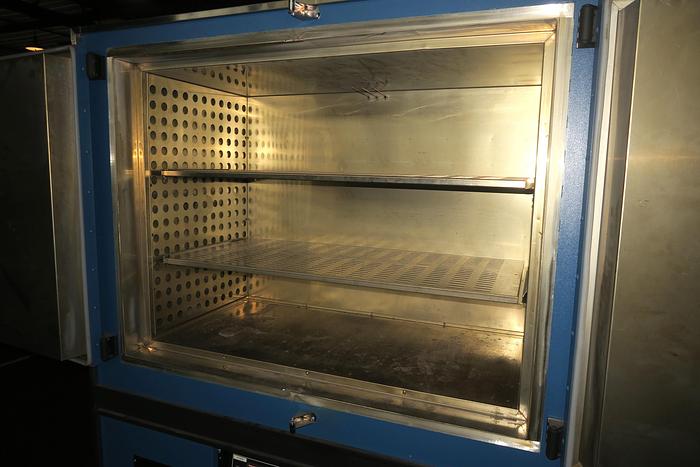

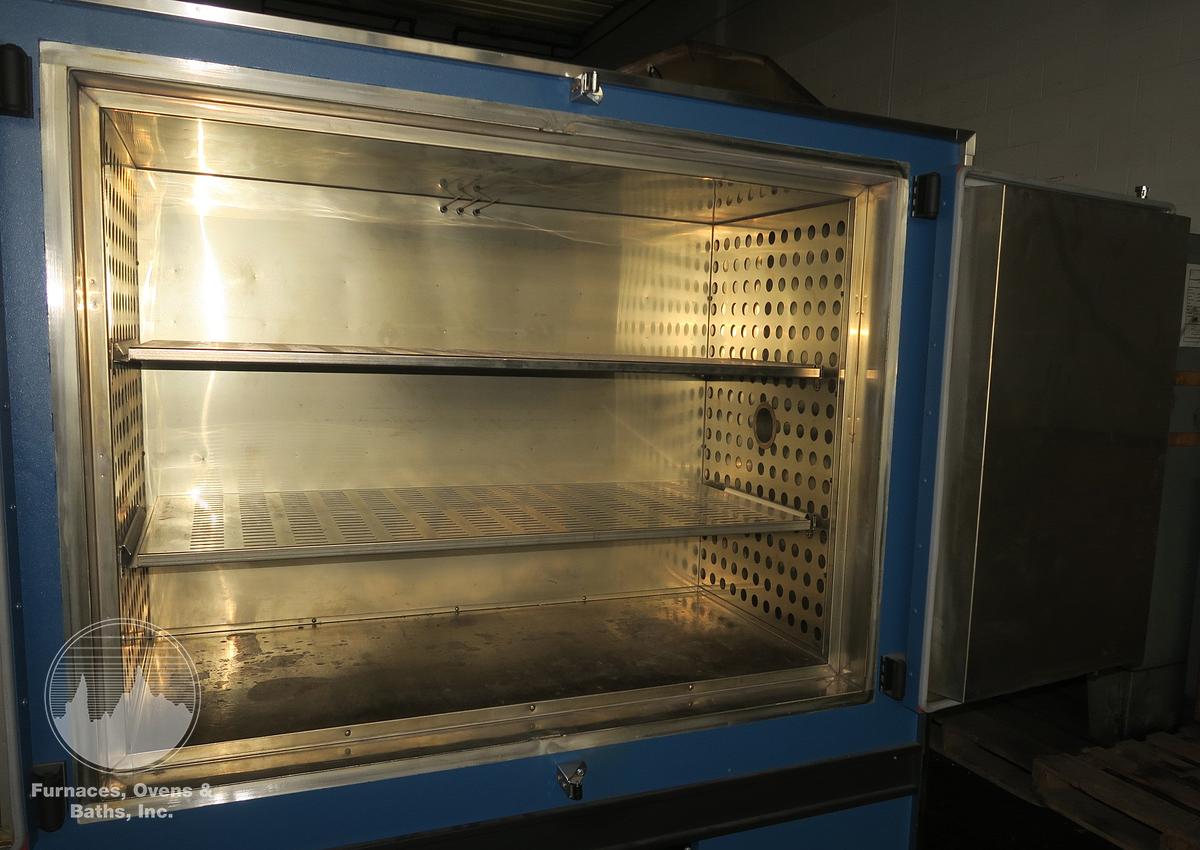

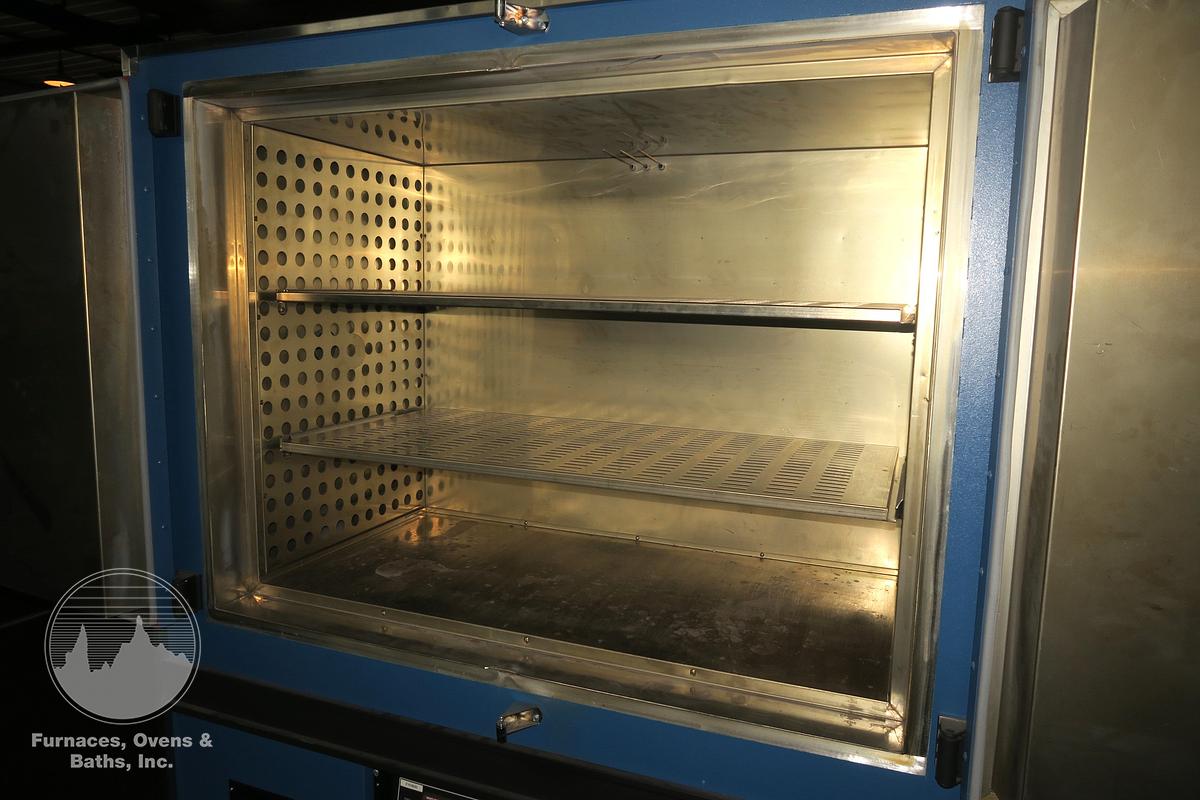

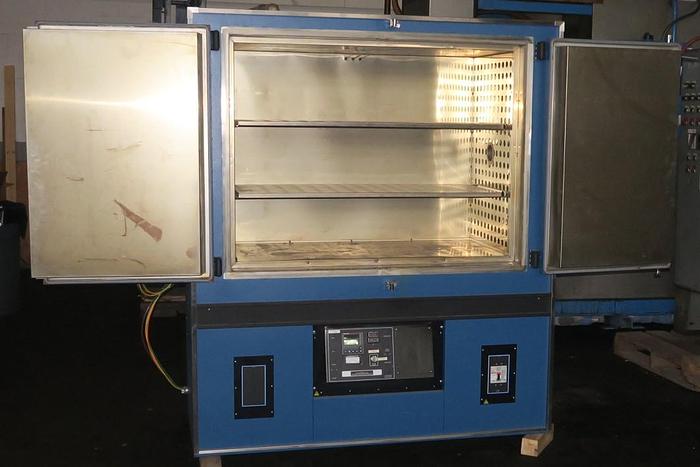

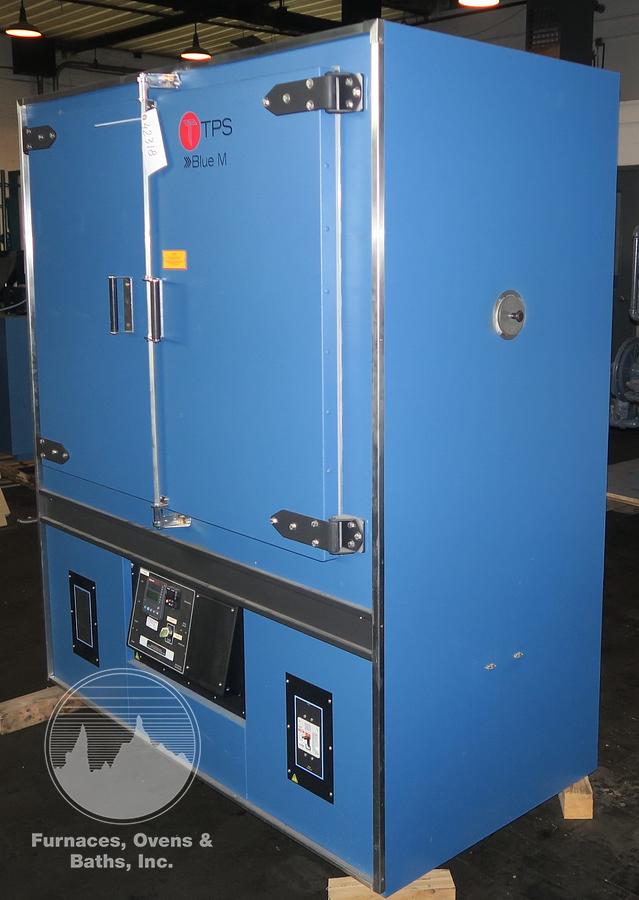

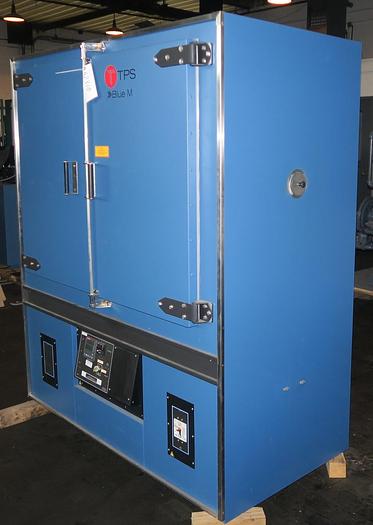

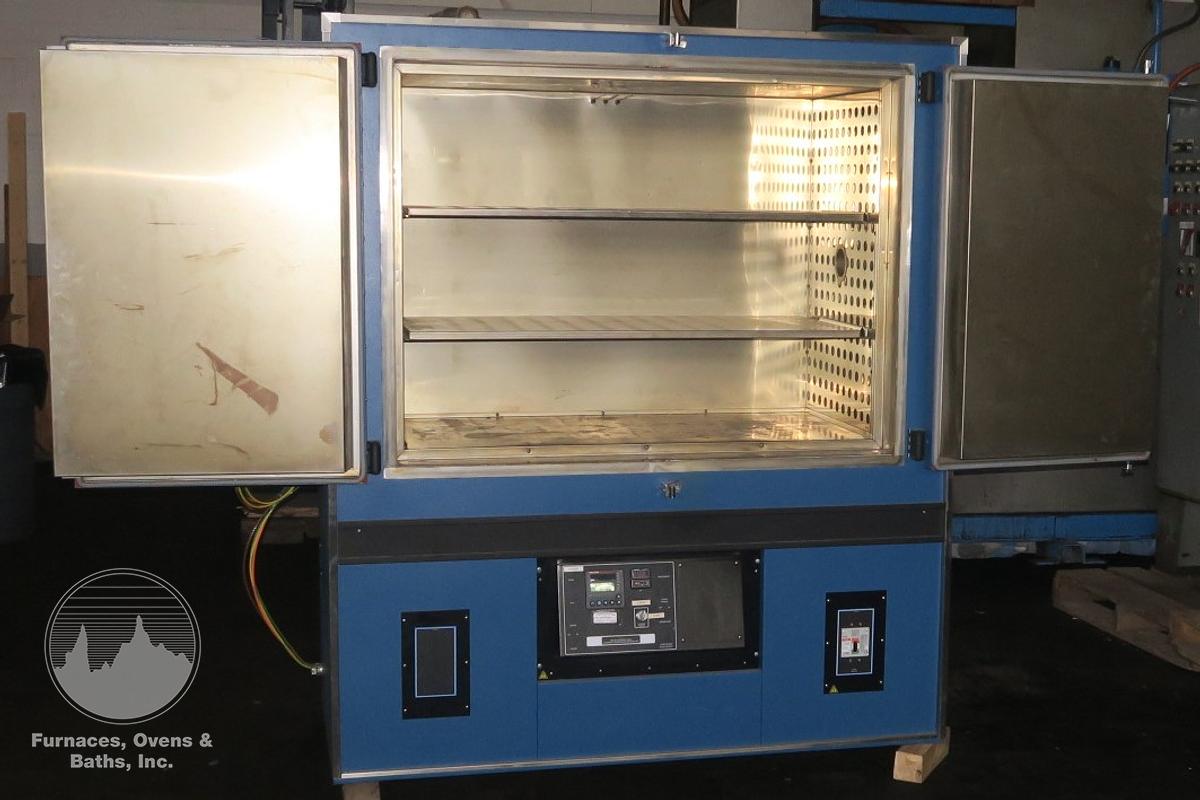

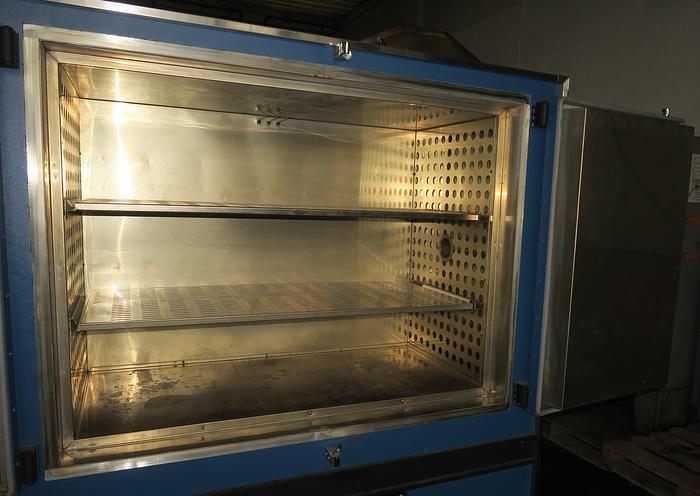

Double doors with 2-point cam action positive seal latch and silicone rubber gasket. Stainless steel interior with two (2) adjustable stainless steel shelves. Coiled style heating elements and direct drive circulating fan are located under the floor. Heated air is circulated in a horizontal pattern across the chamber. Oven is in LIKE NEW condition and will be tested prior to shipping.

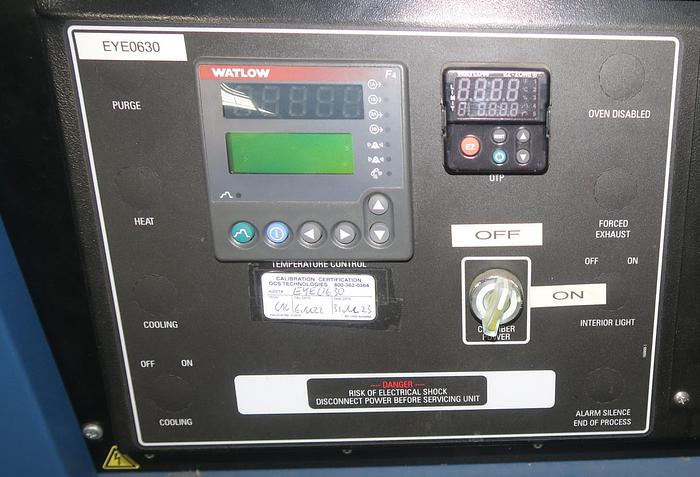

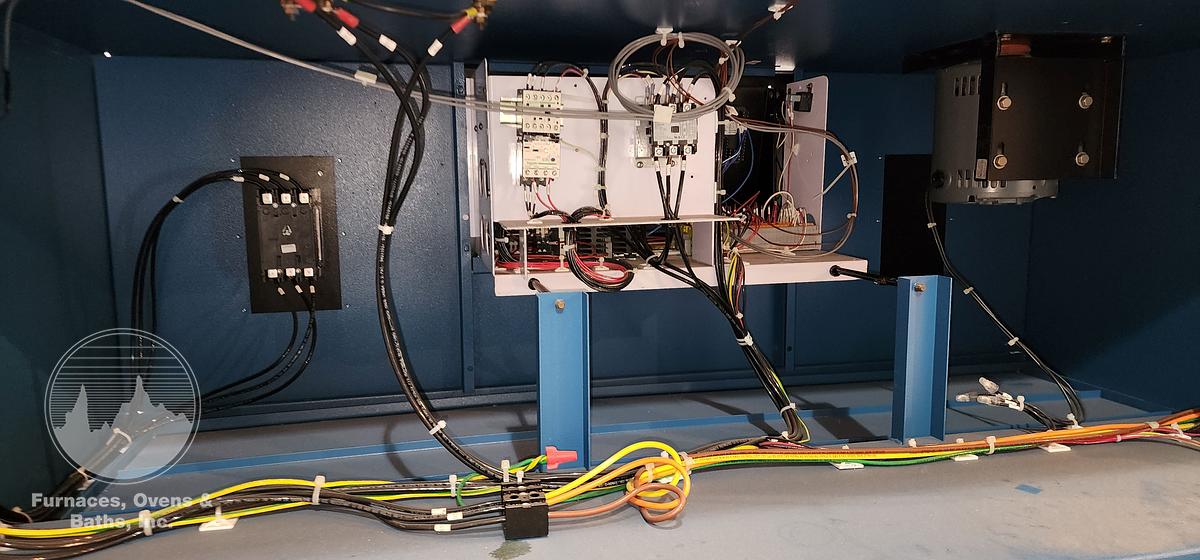

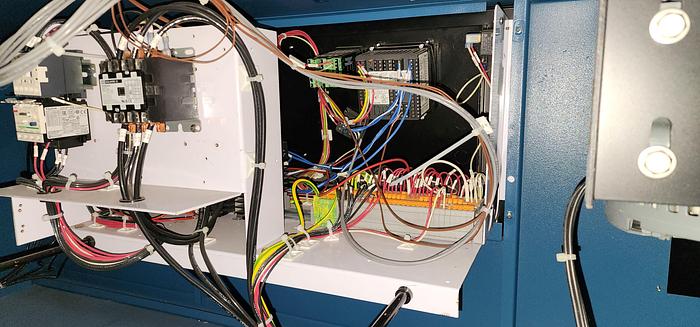

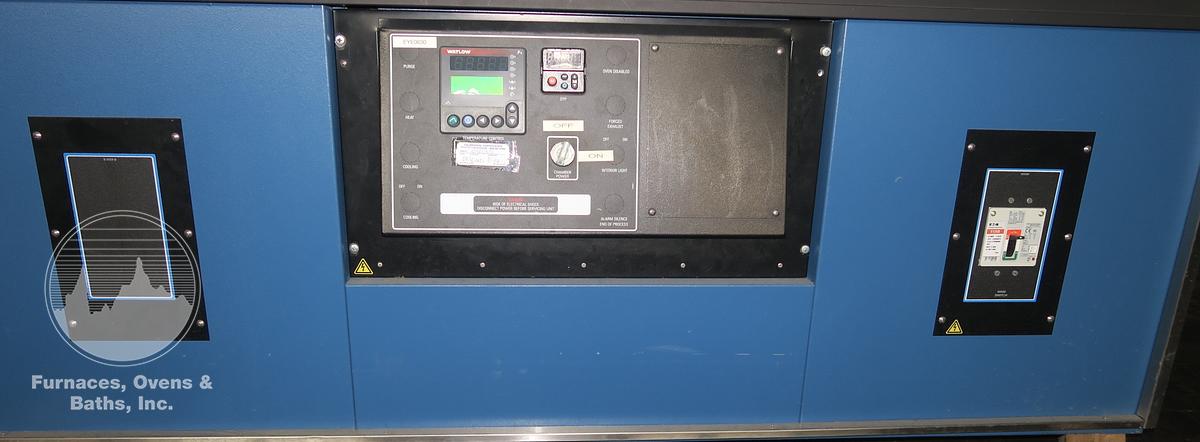

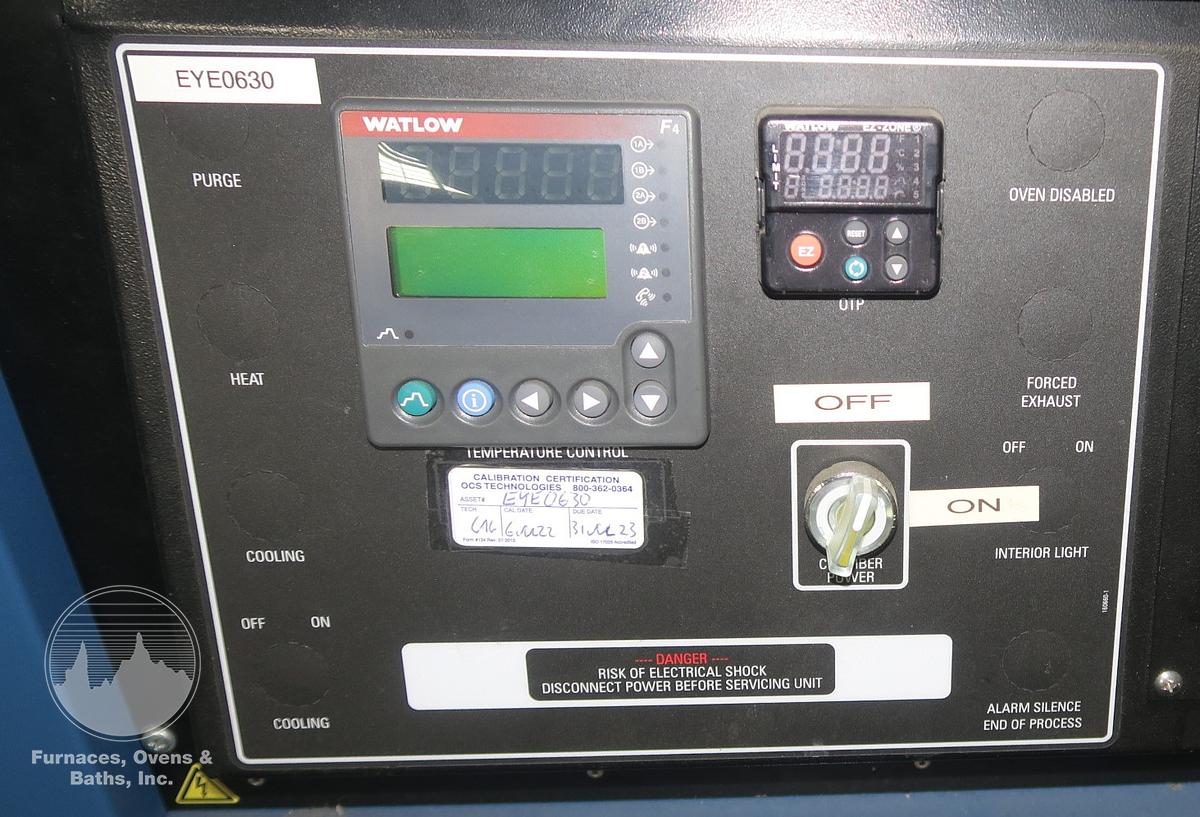

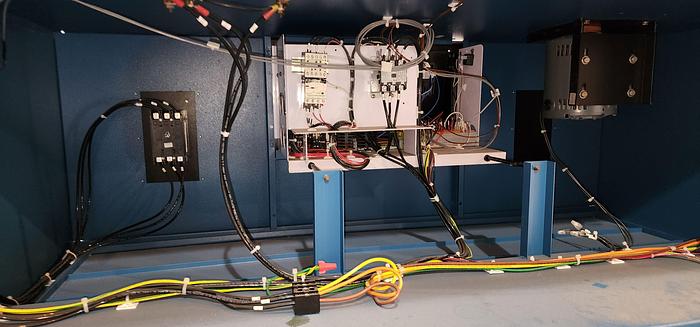

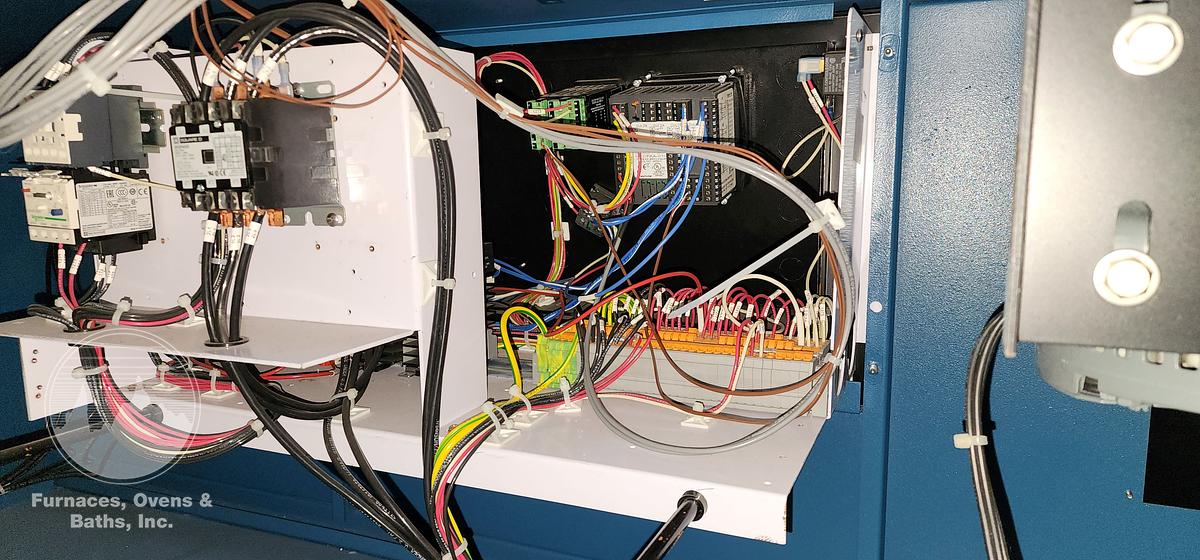

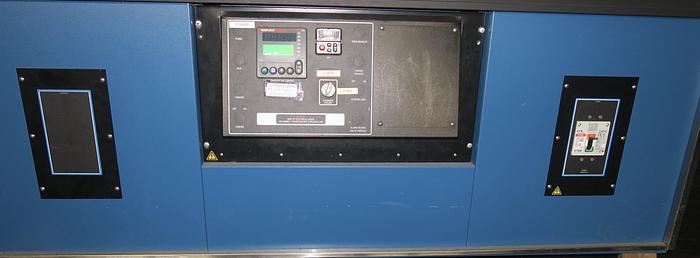

Controls are located in a slide out console located directly under the work chamber. A Watlow F4 digital programmable temperature controller, a Partlow EZ Zone digital high limit control and chamber power control switch with indicating light is flush mounted in the face of the console. Solid State Relays and high limit contactor. A circuit breaker disconnect switch is mounted on the front panel - right side.
Specifications

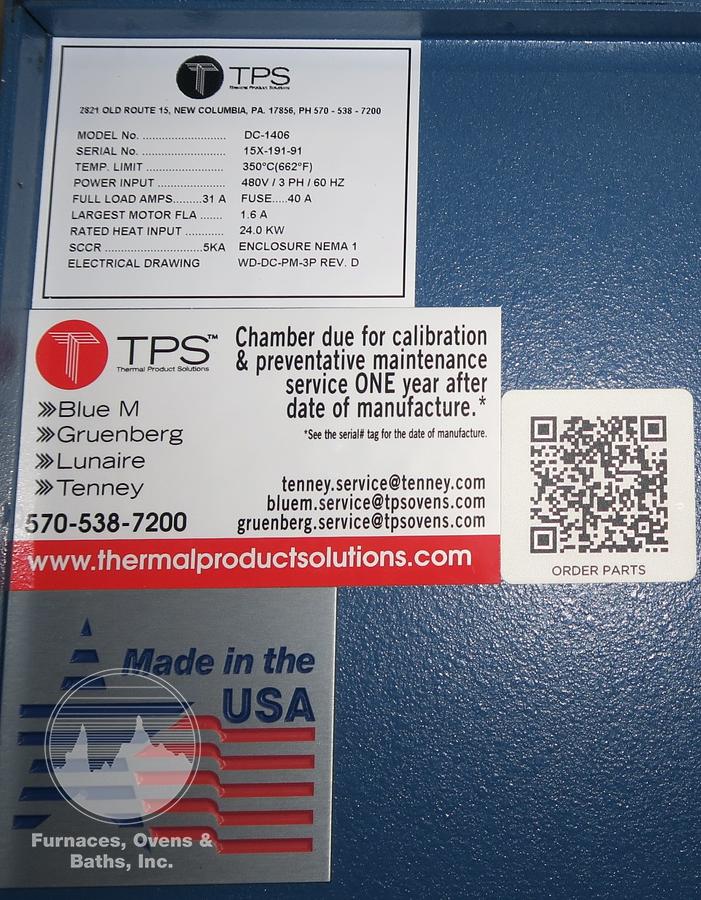

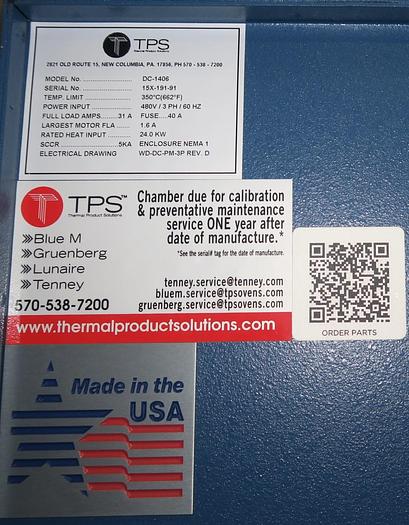

Manufacturer | Blue M |
Model | DC-1406 |
Condition | Used |
Serial Number | 15X-191-91 |
Stock Number | 7668 |
Work area | 48"W x 36"H x 24"L |
Heated | Electric |
Max temperature | 350°C / 662°F |
Voltage | 480/3/60/24 kW/31 F.L.A. |
External dimensions | 68" wide x 74" high x 40" long |
Availability | Immediate |
