98"W x 80"H x 96"L, Jensen Industries, 500-F, Gas Fired, Solvent Rated
![Used 98"W x 80"H x 96"L, Jensen Industries, 500-F, Gas Fired, Solvent Rated](https://i.machineryhost.com/f0873a91b499e265ff6d78ff6e8985a0/216153486ad74fbfea02c1887ec0769c/large-used-98-w-x-80-h-x-96-l-jensen-industries-500-f-gas-fired-solvent-rated.jpg)
98"W x 80"H x 96"L, Jensen Industries, 500-F, Gas Fired, Solvent Rated
Description

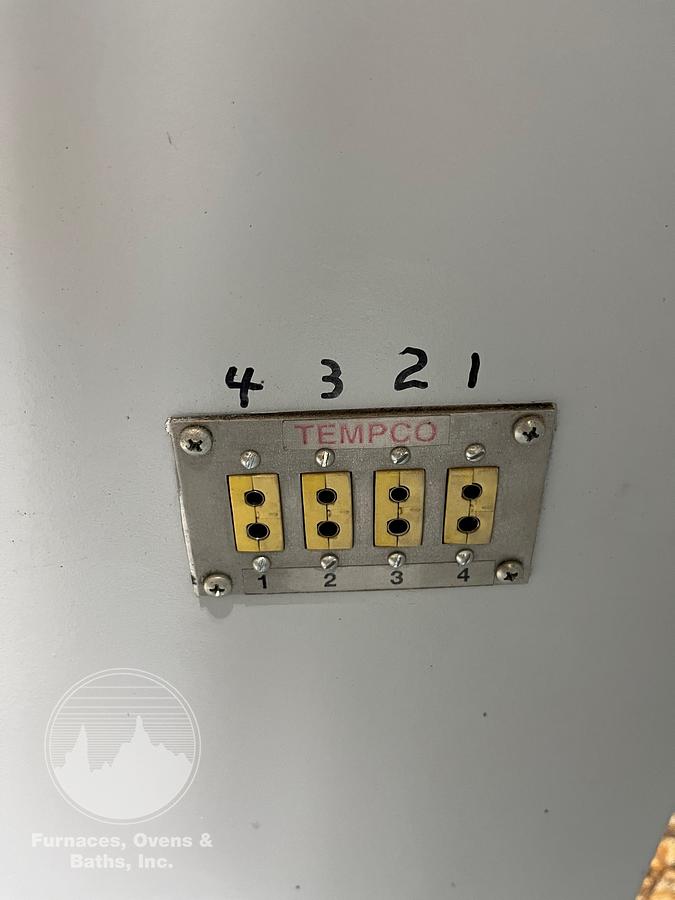

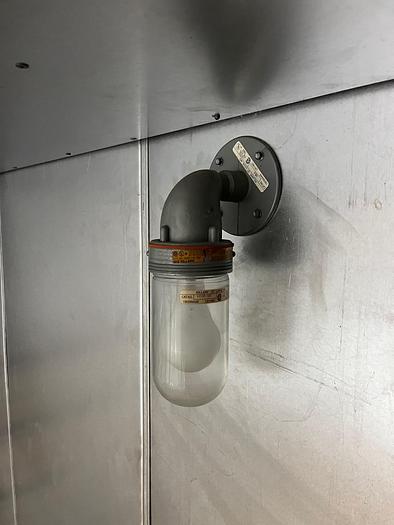

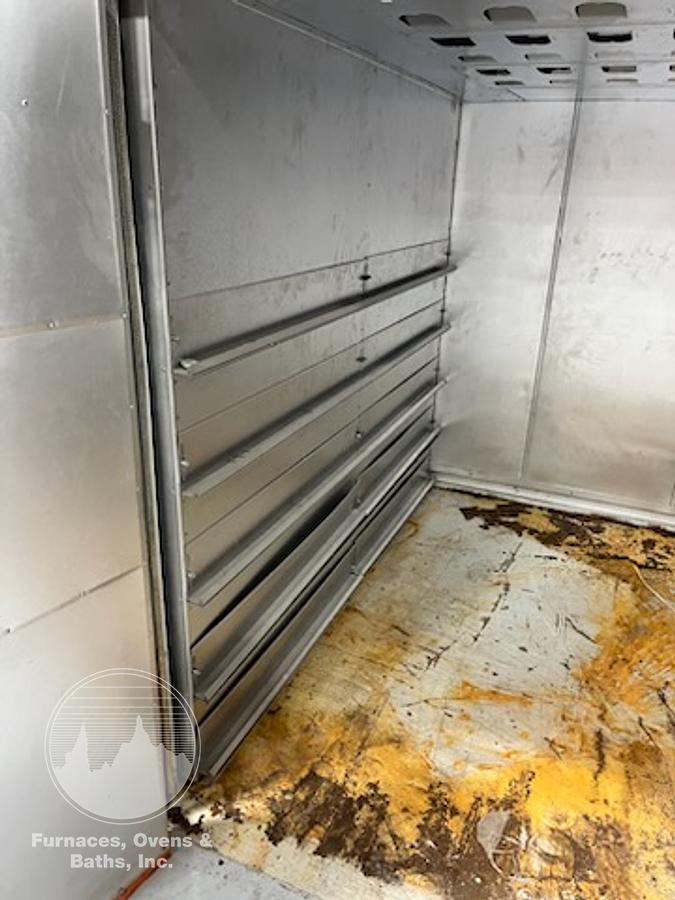

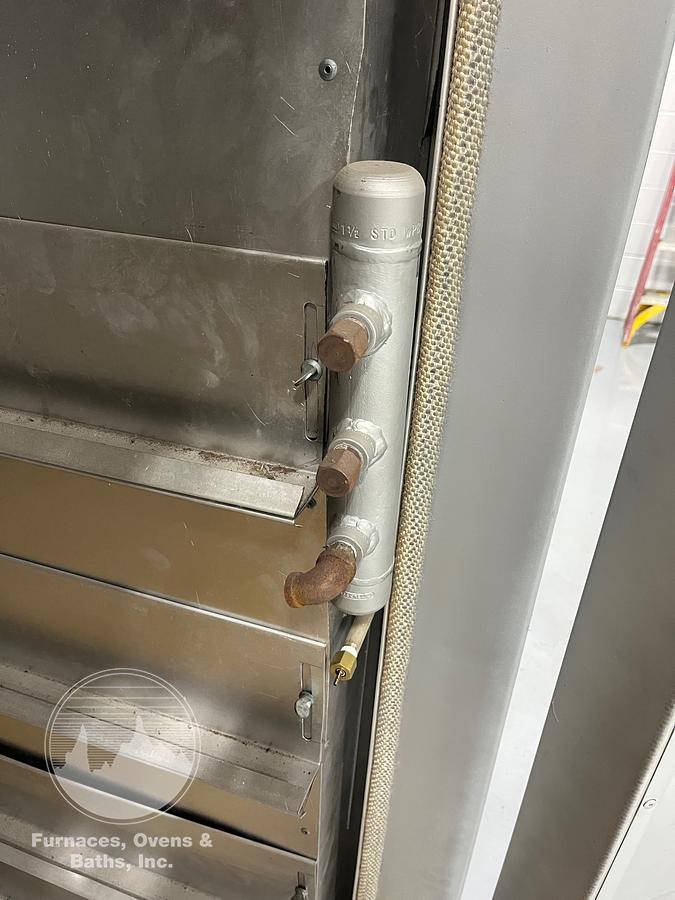

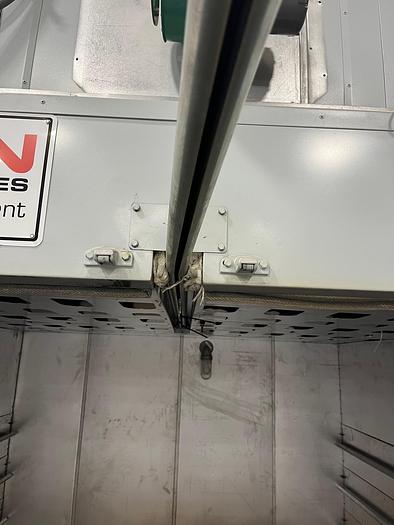

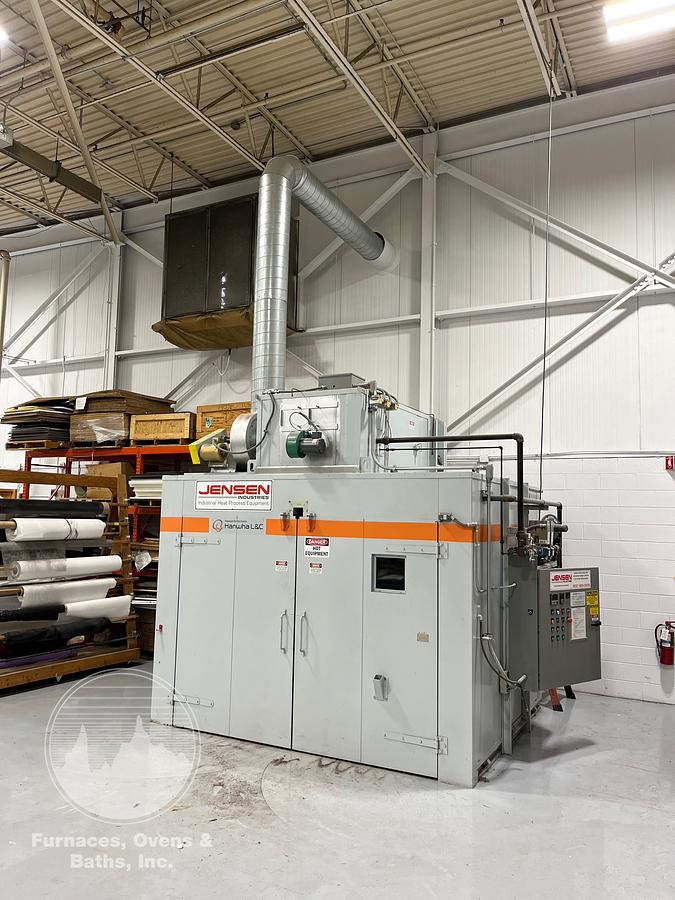

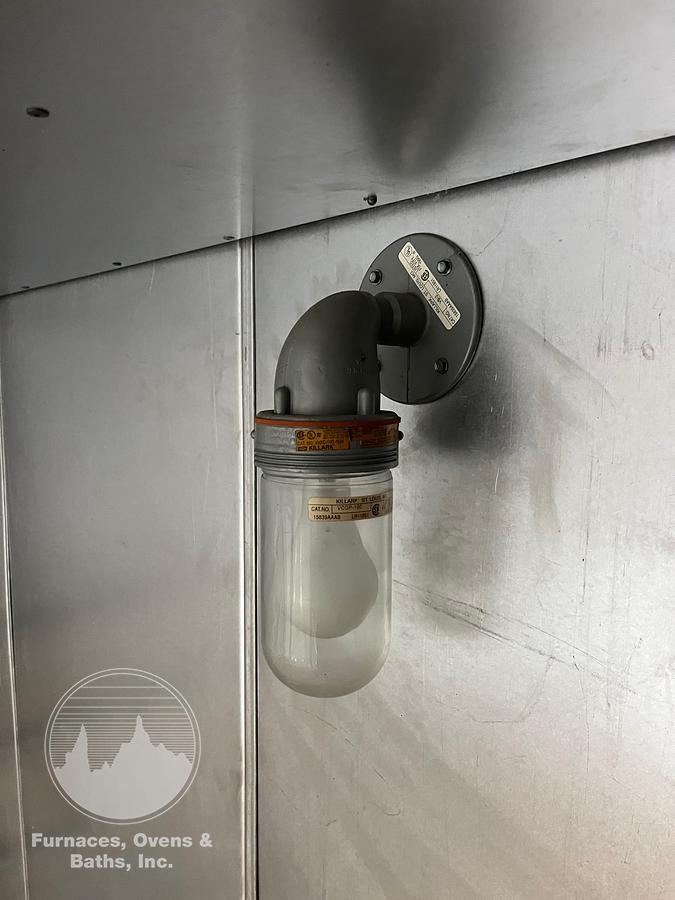

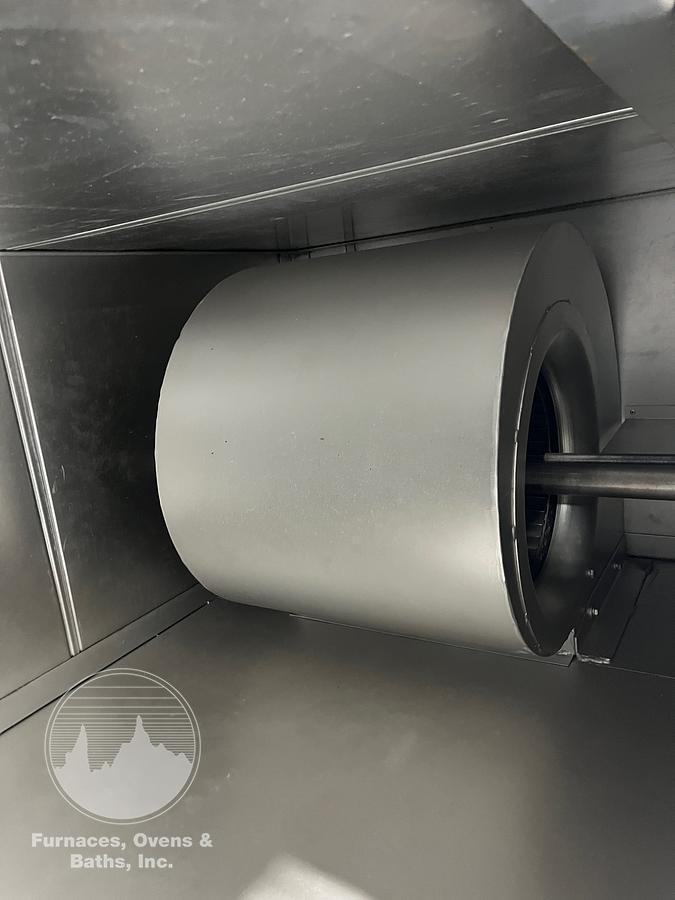

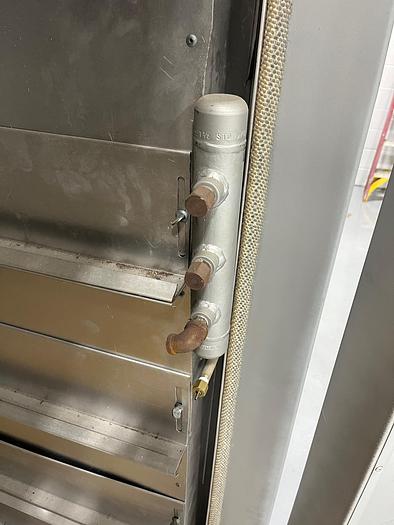

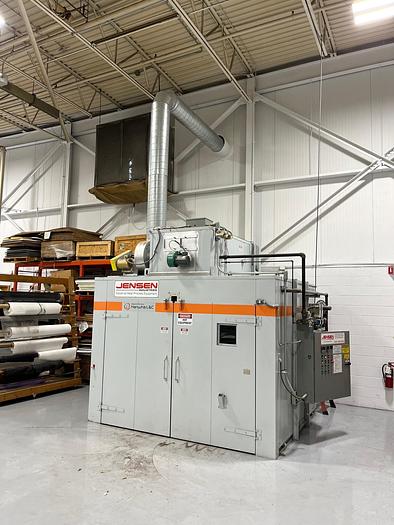

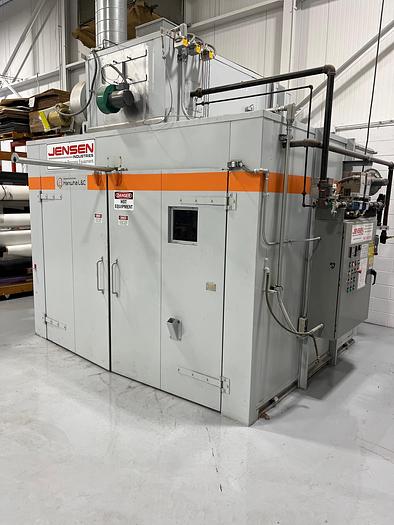

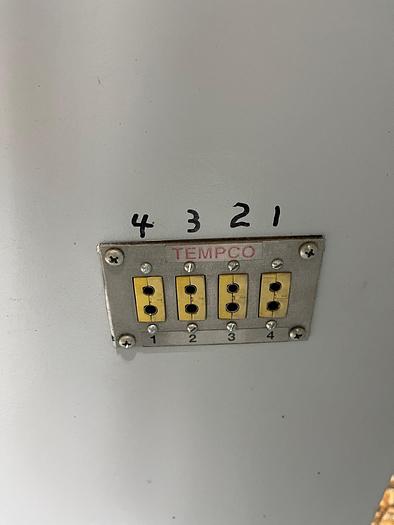

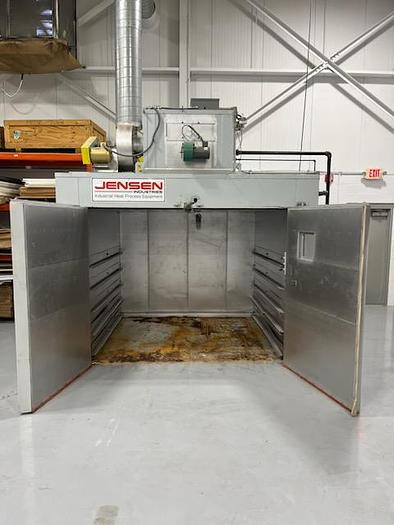

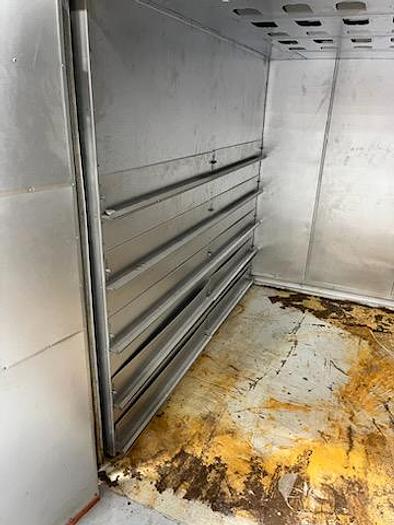

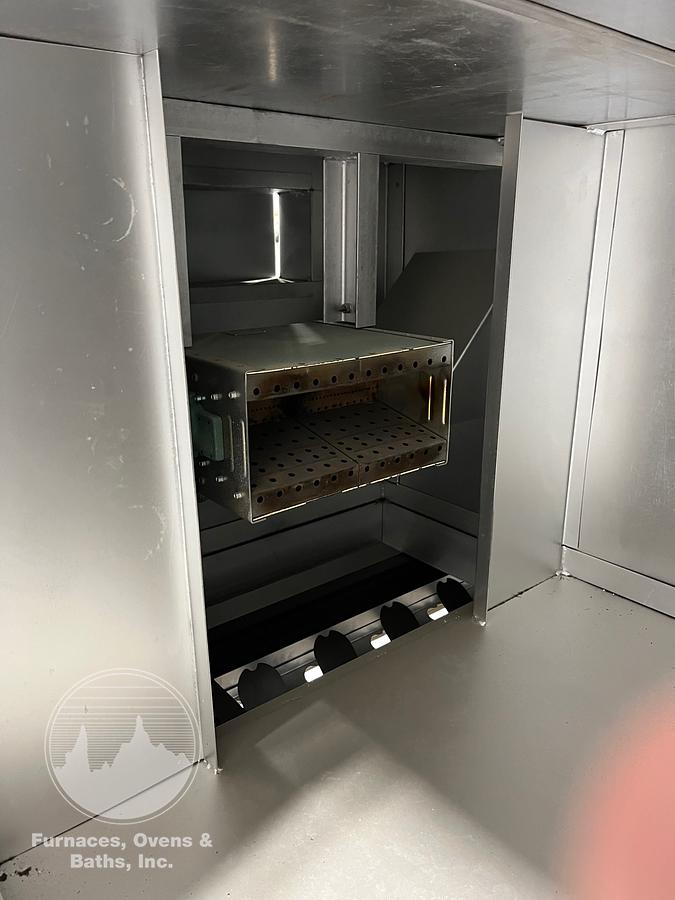

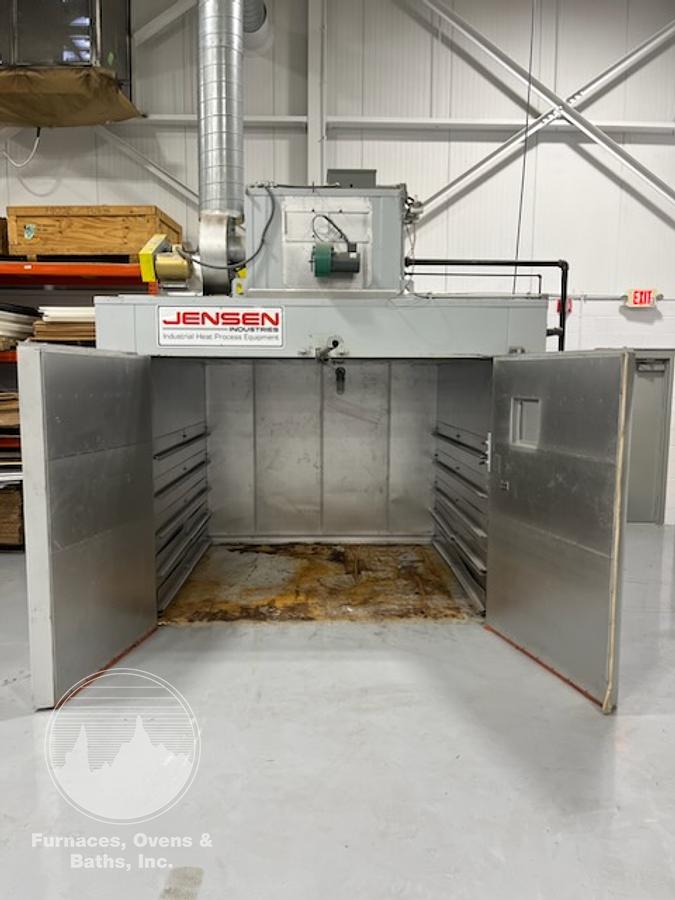

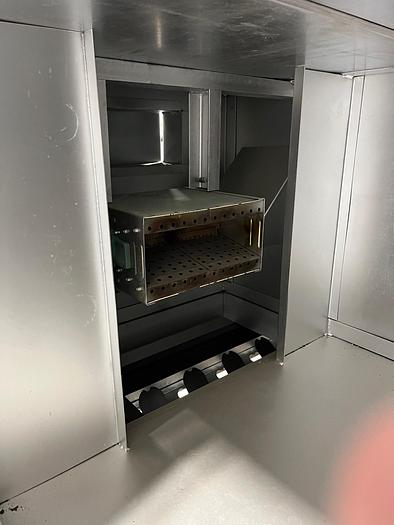

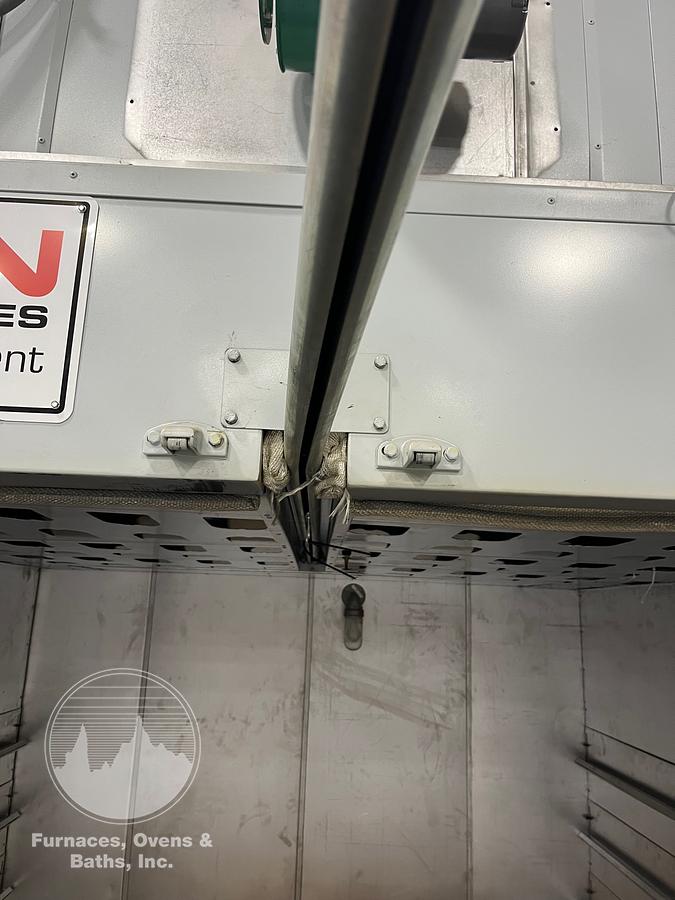

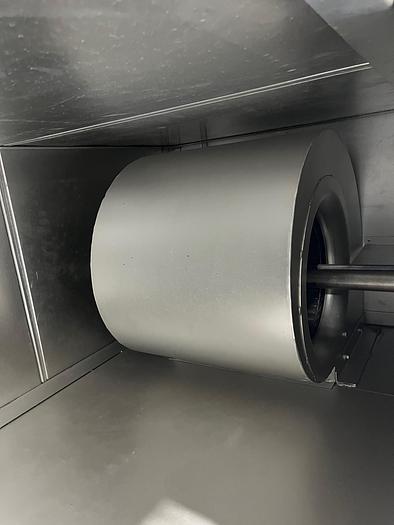

Double doors on one end with overhead trolly and roll-in cart. Each door has heavy gauge strap hinges and Brixon spring tension latches. Right hand door has a viewing window with an interior light. High temperature gaskets provide a good door seal. Aluminized steel interior with a steel plate floor. Adjustable louvered air duct panels on both side walls. The belt driven high volume (10,000 CFM) circulating fan, Eclipse AH package burner is mounted in a separate burner box on top of the oven. Heated air is circulated in a full horizontal pattern across the work area for good uniform heating. A powered exhaust fan is located on top of the oven. Oven also has TC jacks for multi-point temperature readings and vacuum port manifold.

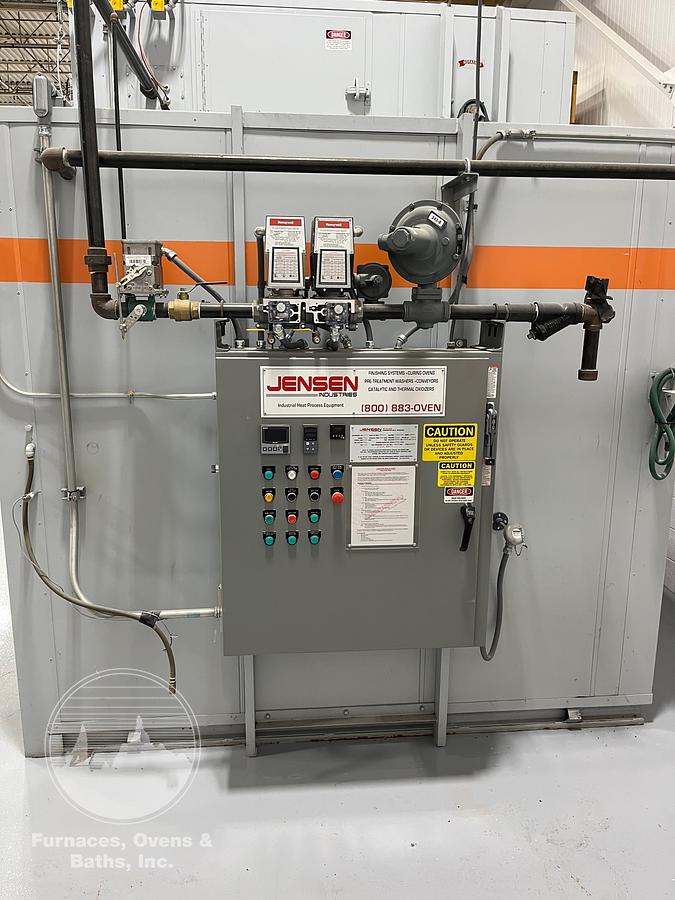

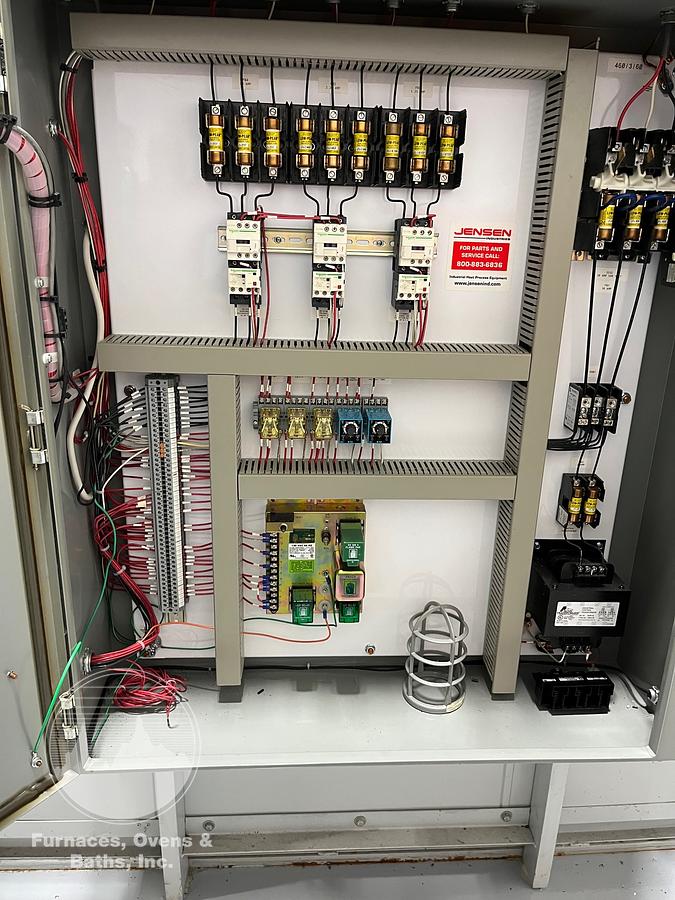

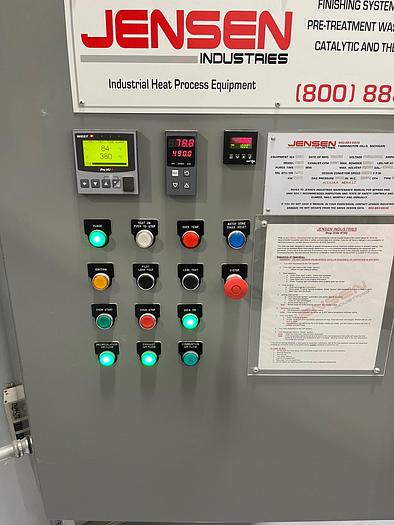

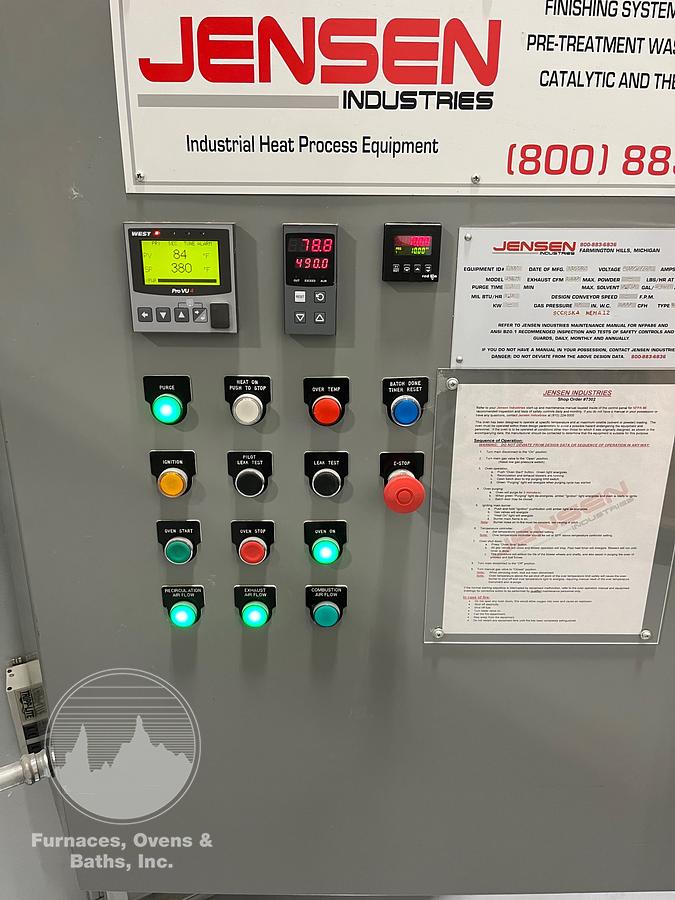

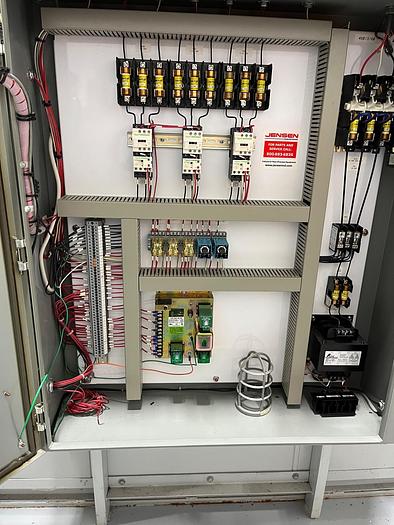

Controls are mounted and wired in an enclosure with fused disconnect attached to the right hand side of the oven. There is a West Pro Vu 4 digital programmable temperature controller and a West digital high limit safety control with digital process timer. Control switches with indicating lights are flush mounted in the side of the enclosure. Motor starters, fuses, relays, protection controls UV flame safety are mounted inside the control cabinet.
Specifications
Manufacturer | Jensen Industries |
Model | BATCH |
Year | 2012 |
Condition | Used |
Serial Number | 7302 |
Stock Number | 7701 |
Work area | 98"W x 80"H x 96"L (add 8” to width if doors are opened fully) |
Heated | Natural Gas - 1.0 MBTU's/Hour |
Max temperature | 500°F |
Voltage | 480/3/60 |
Availability | Immediate |
