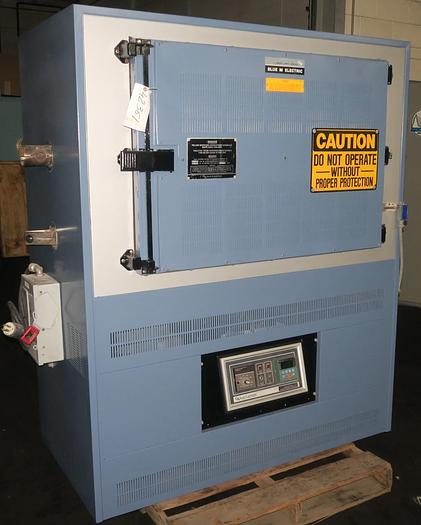

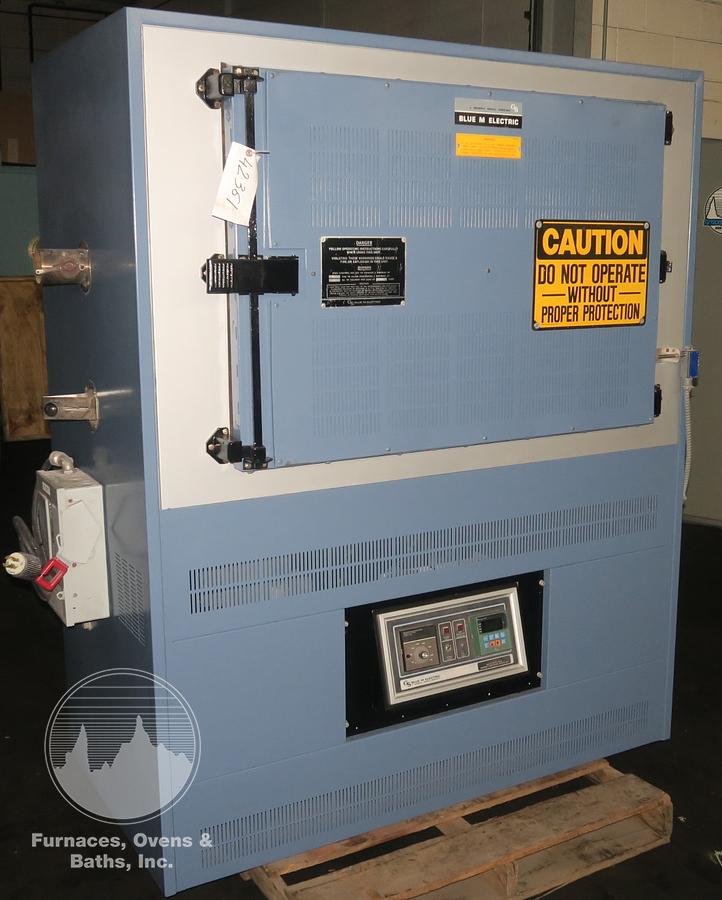

38"W x 25"H x 20"L, Blue M CW-8880G, 1300-F, Electric
38"W x 25"H x 20"L, Blue M CW-8880G, 1300-F, Electric
Description

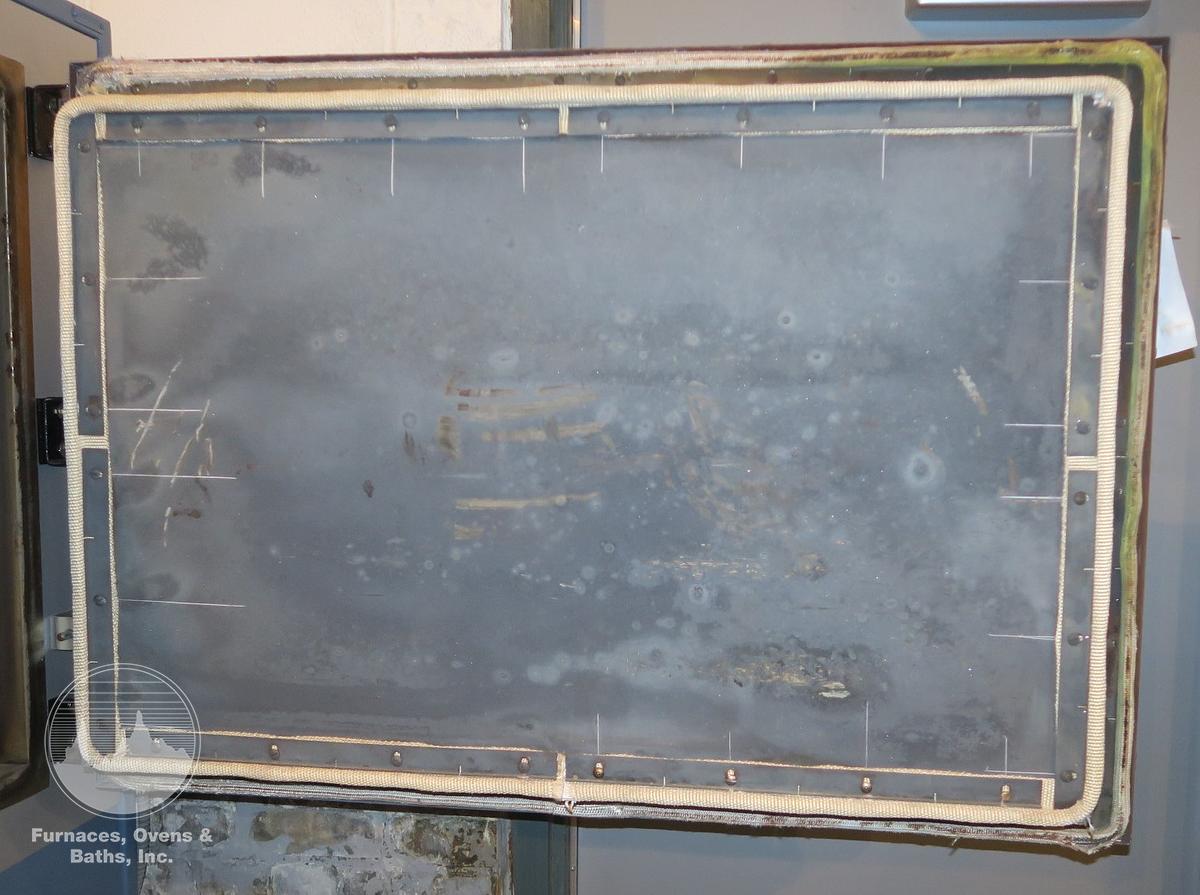

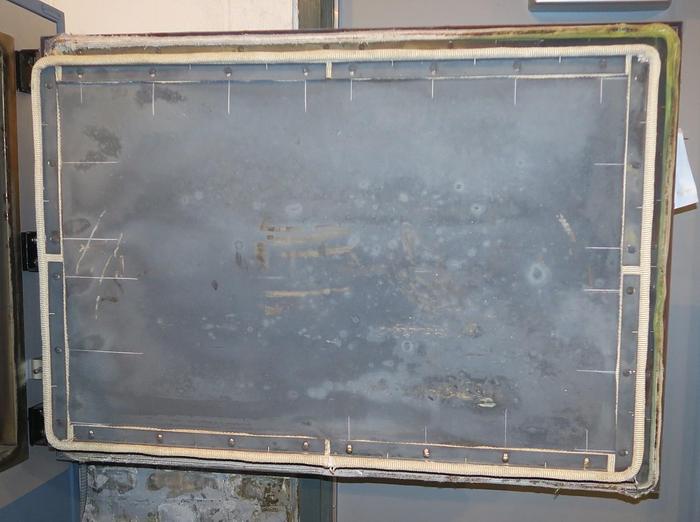

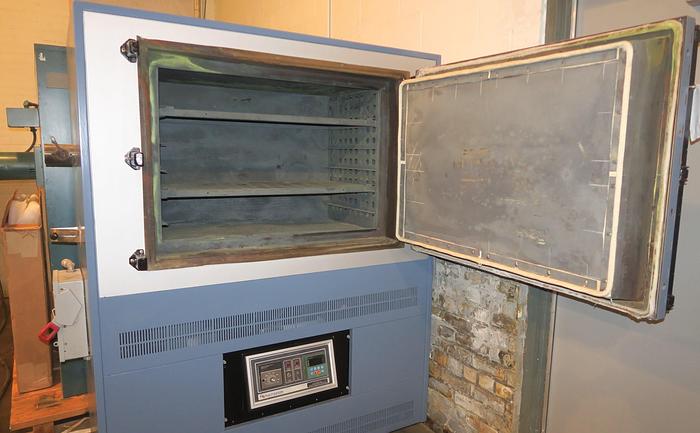

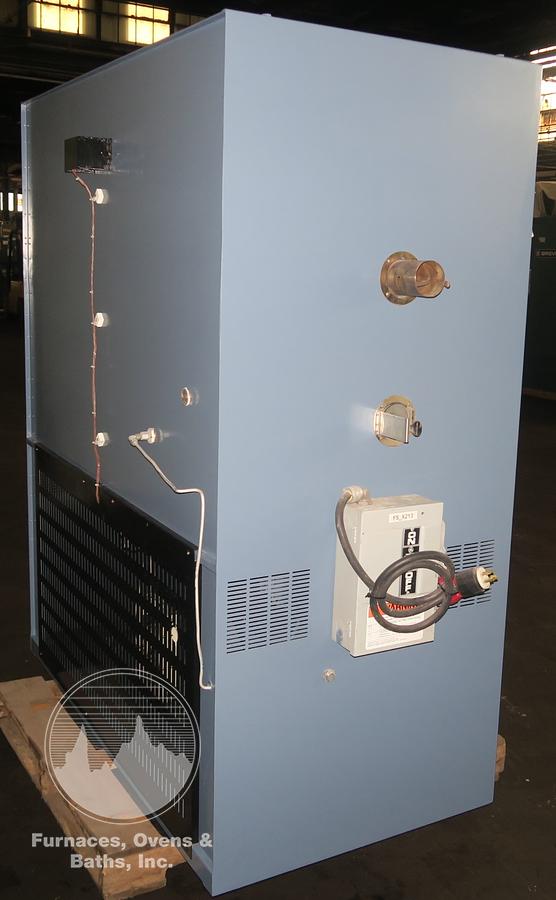

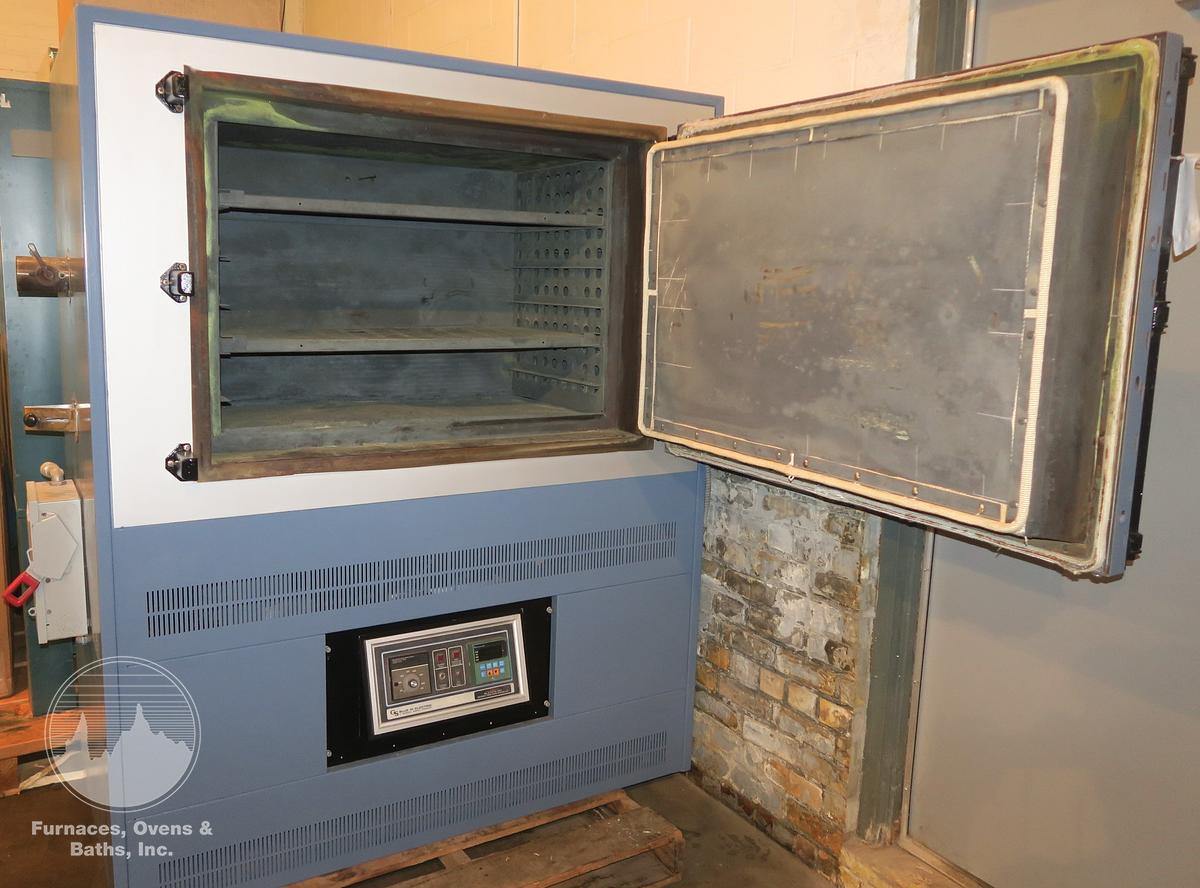

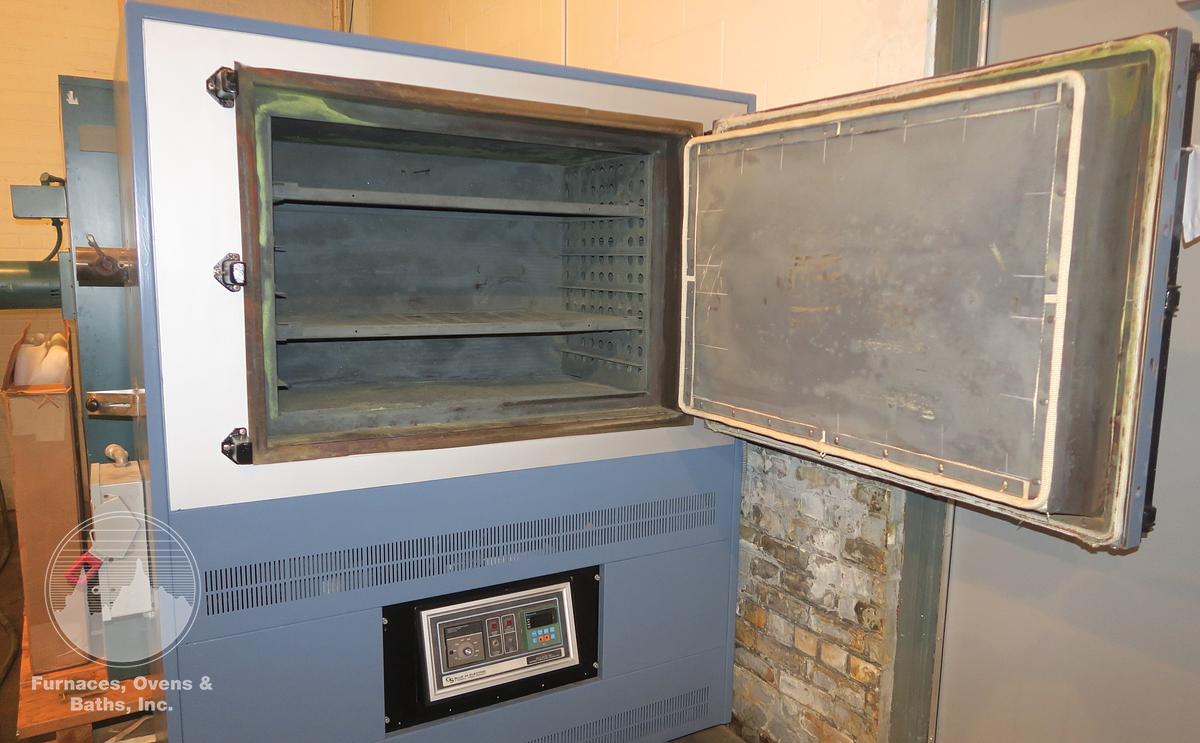

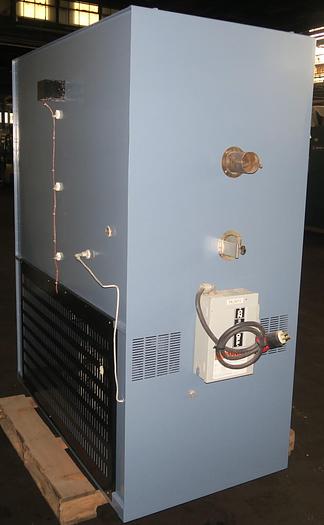

Single door with 2 cam action positive seal latches with inner/outer stainless steel door gasket for a good seal. Stainless steel interior with 5 shelf brackets on 5" centers, 2 shelves are included with this oven. Coiled style heating elements and circulating fan are located under the floor pan. Heated air is circulated horizontally across the chamber. Exhaust port, adjustable fresh air inlet and fused disconnect are mounted on the left-hand side. The door limit switch cuts power to fan and elements when the door is open. Oven has been tested and is ready to ship.

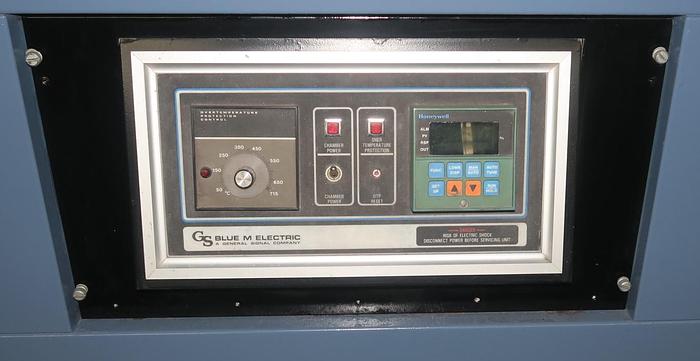

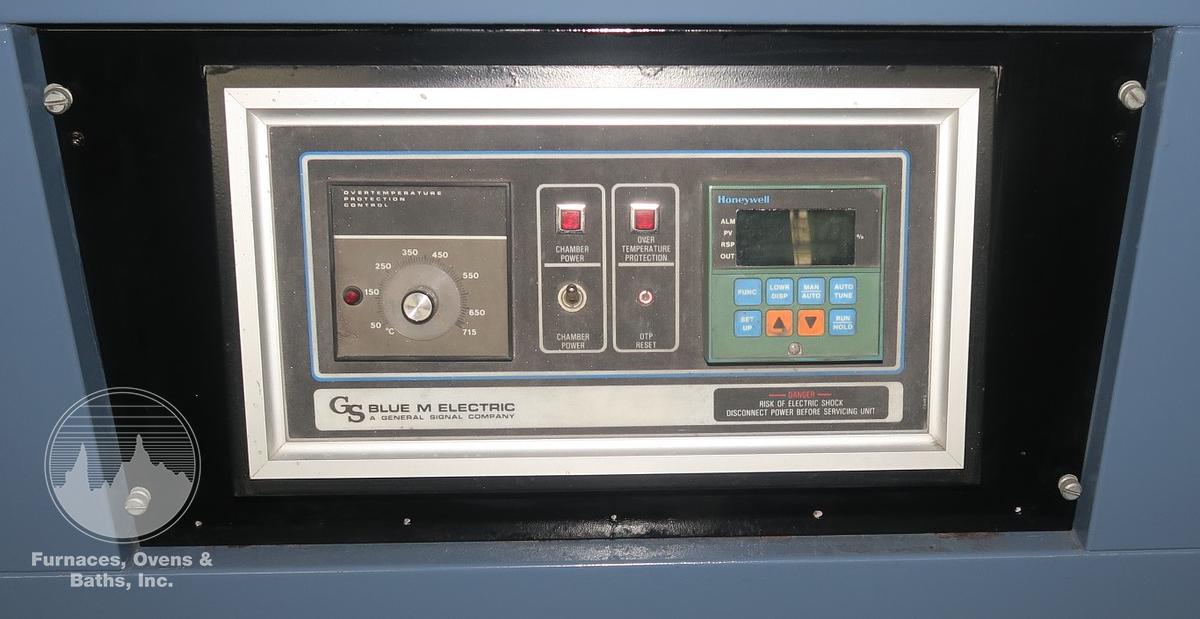

Controls are mounted and wired in a convenient slide out console located directly under the work chamber. There is a Honeywell UDC digital temperature controller and a Partlow analog high limit. "CRYDOM" solid state relays and high limit contactor. Flush mounted to the face of the enclosure includes a toggle switch for power on/off, OTP reset and indicating lights.
Specifications
Manufacturer | Blue M |
Model | CW-8880G |
Condition | Used |
Serial Number | CW-857, B.O.M. Number: F1-00025 |
Stock Number | 7704 |
Work Area | 38"W x 25"H x 20"L |
Maximum Temperature | 1300-F |
Power Requirements | 480/3/60/20 Amps |
Overall Dimensions | 77" wide x 72" high x 39" long |
