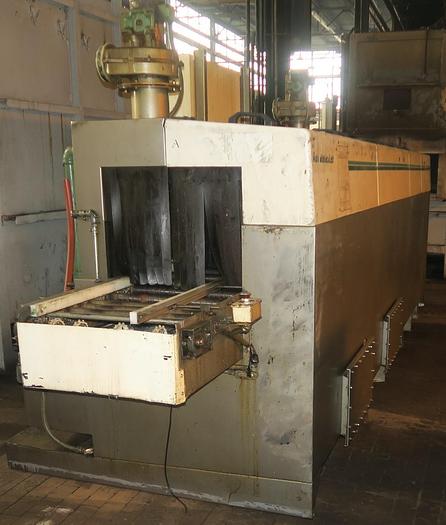

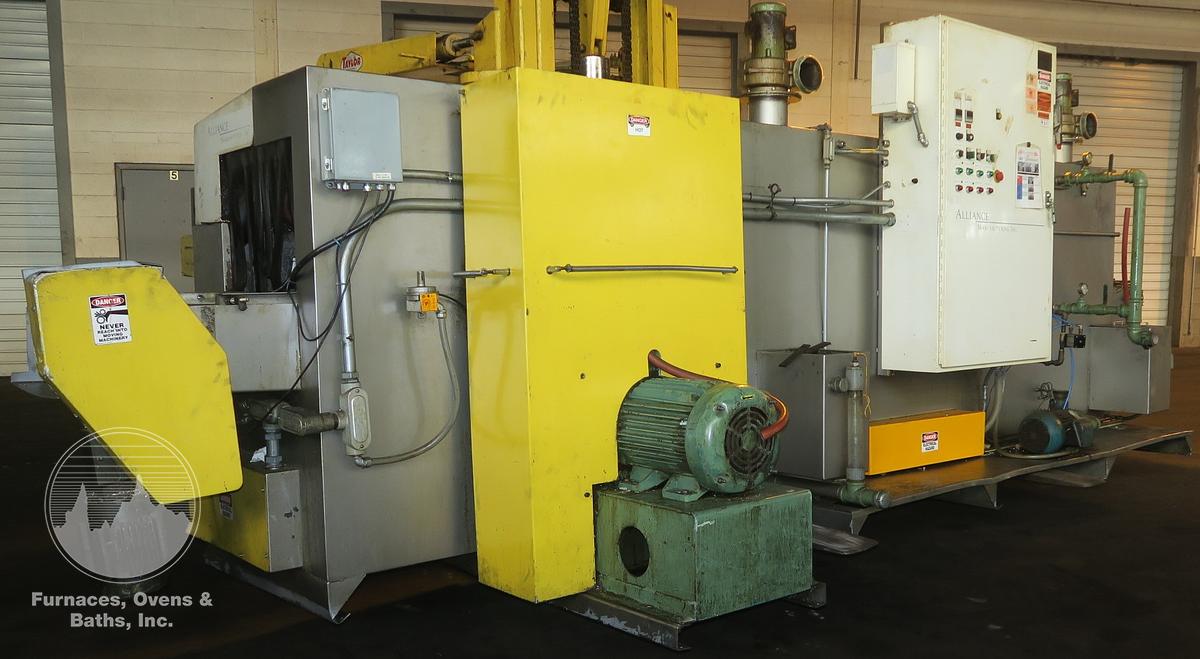

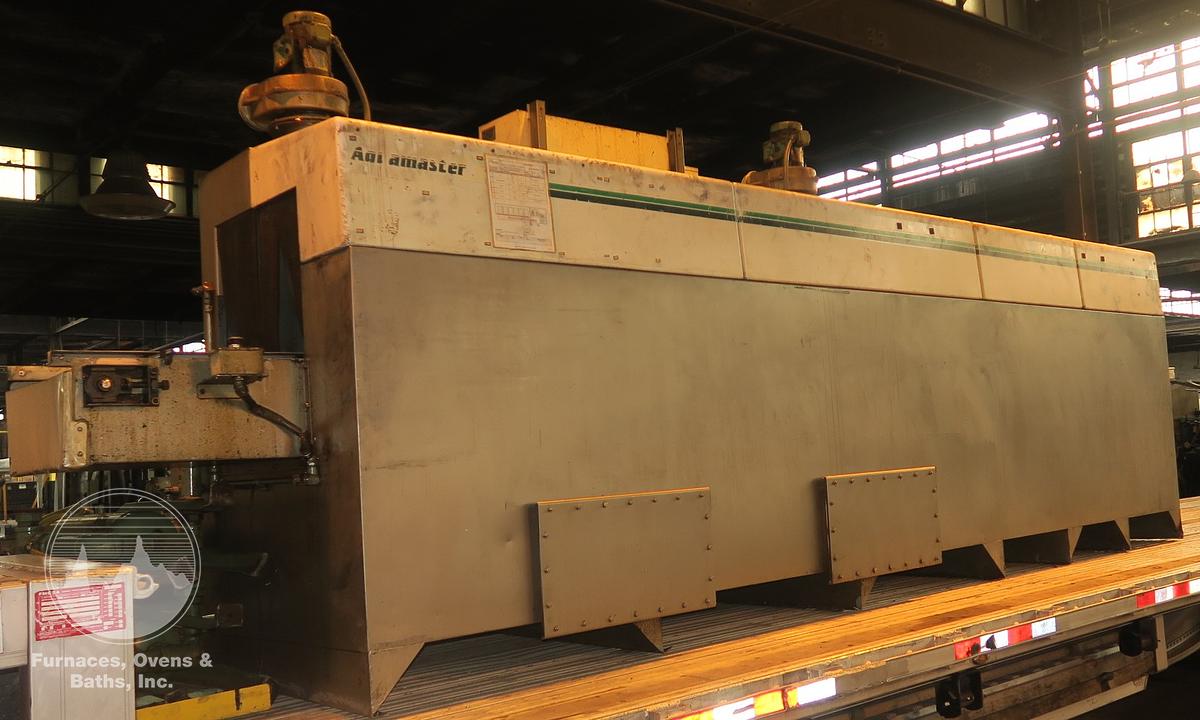

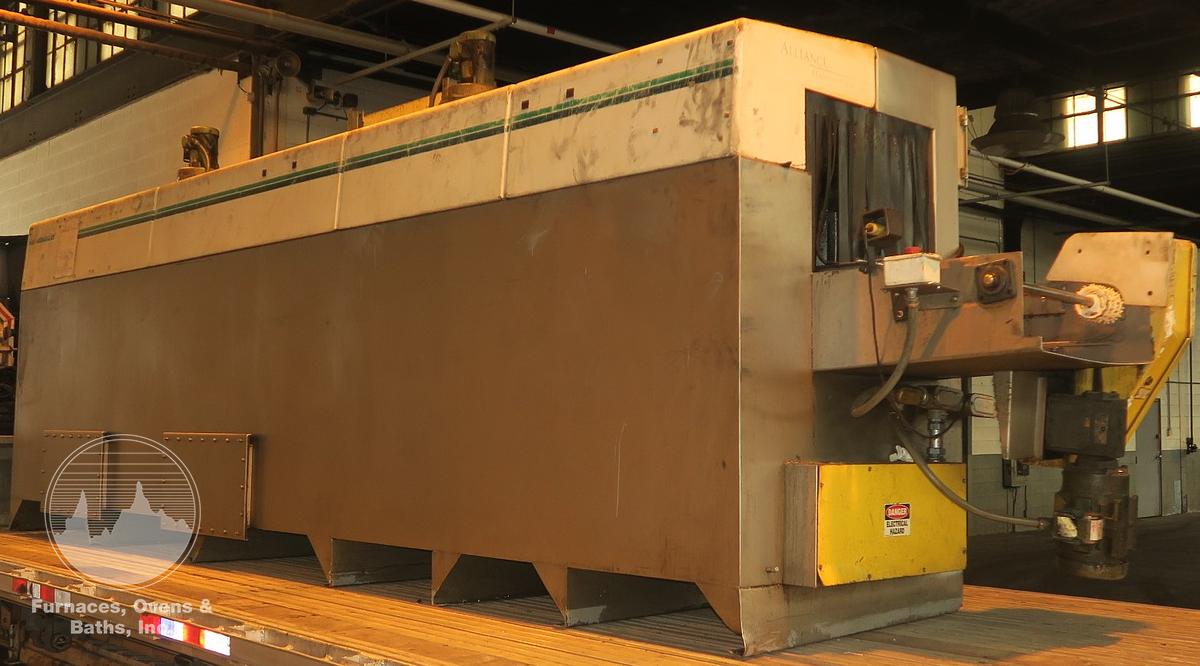

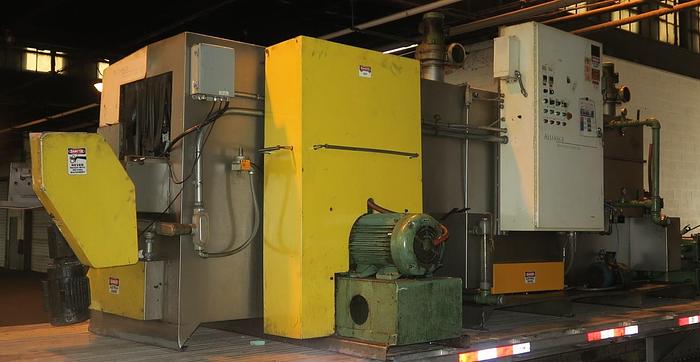

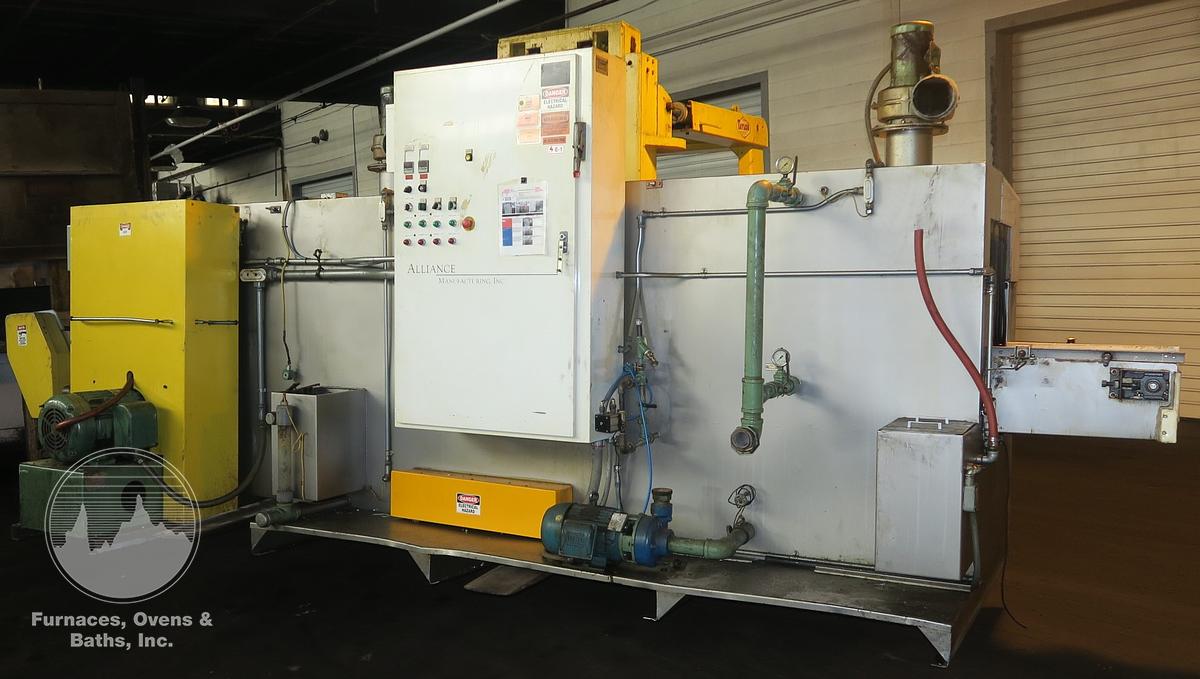

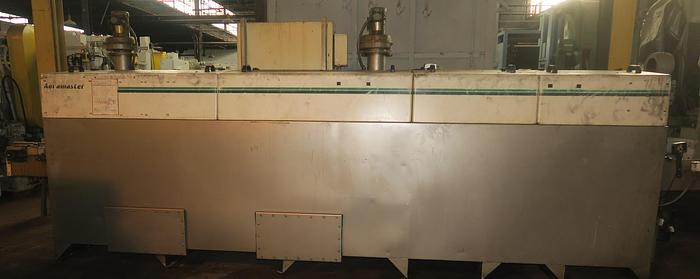

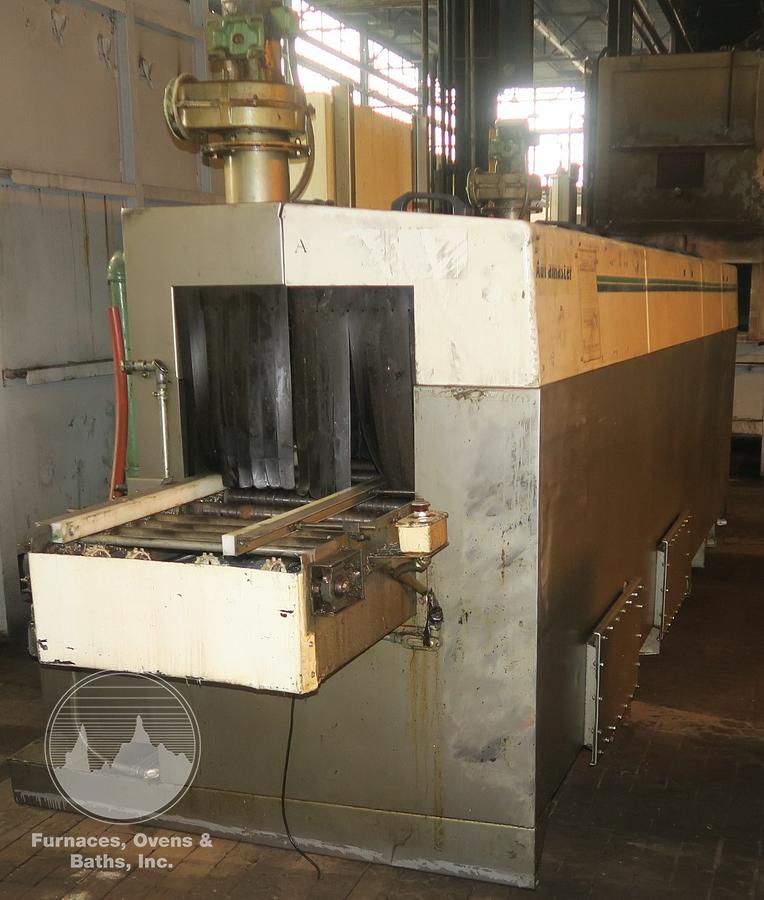

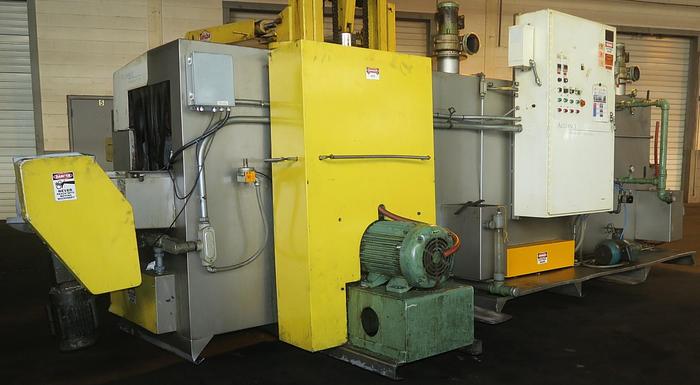

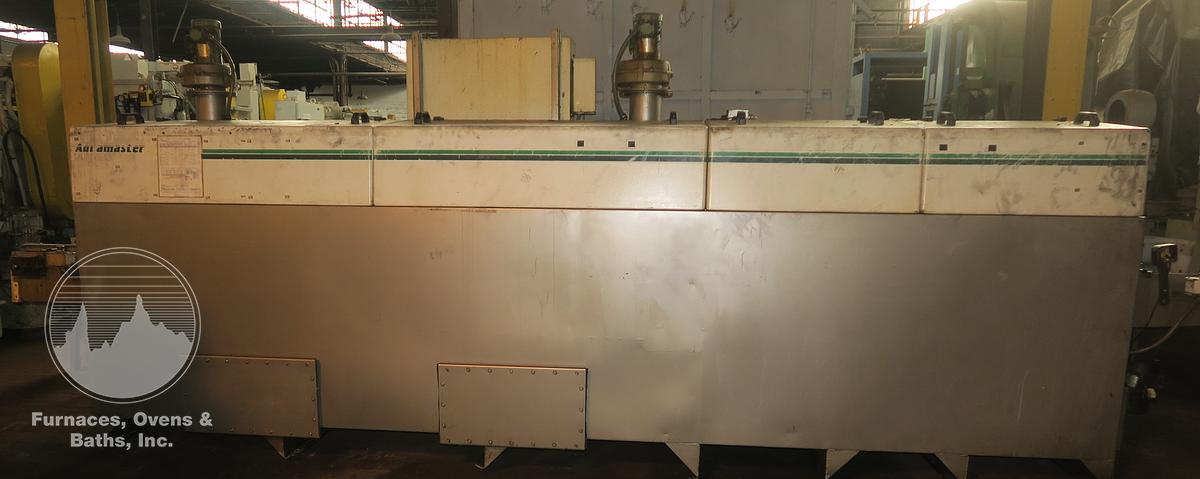

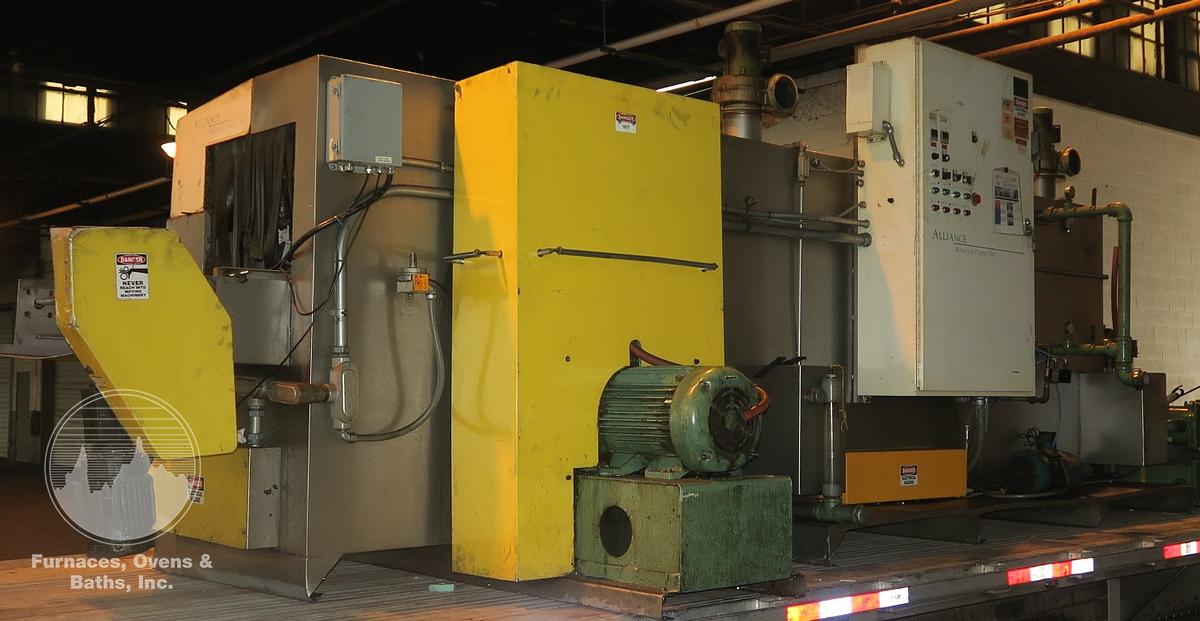

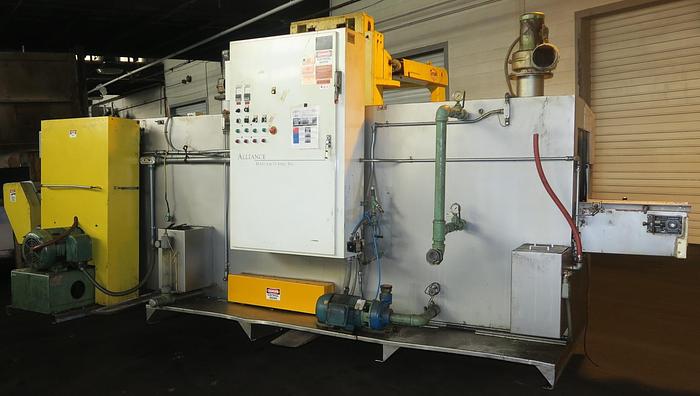

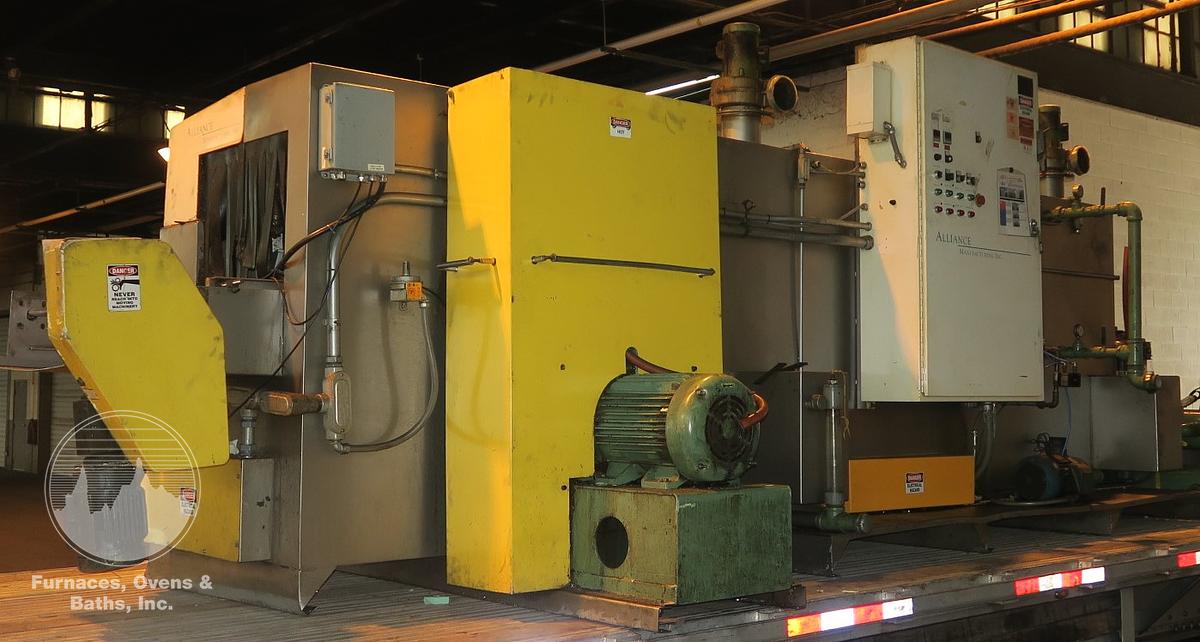

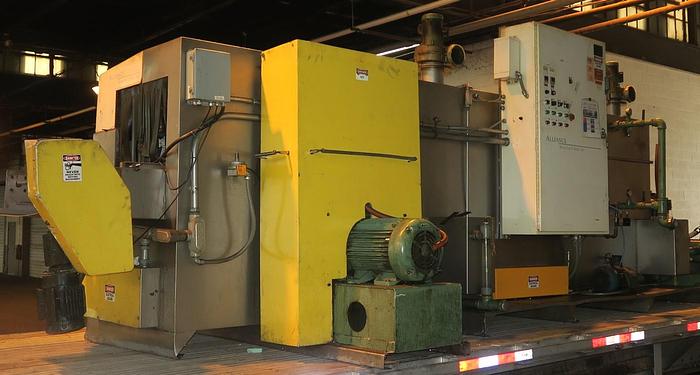

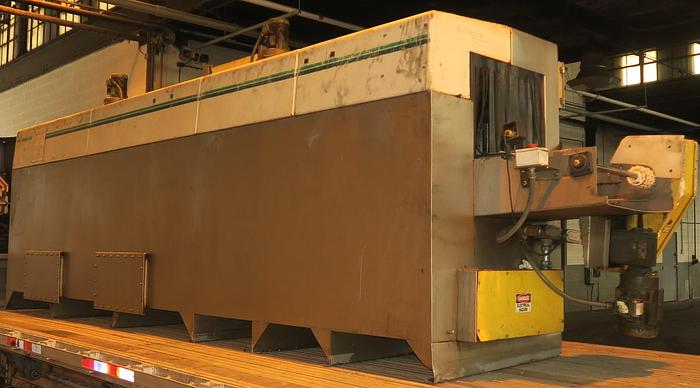

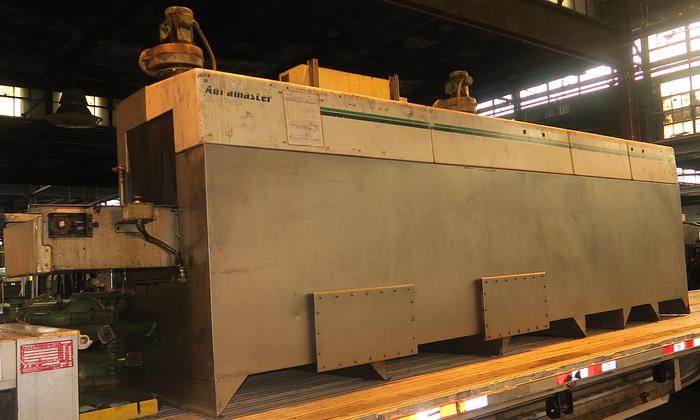

24"W x 18" High Alliance Manufacturing Aquamaster - CB - 2400E, Electric, Wash and Heated Blow-Off, NEW BELT

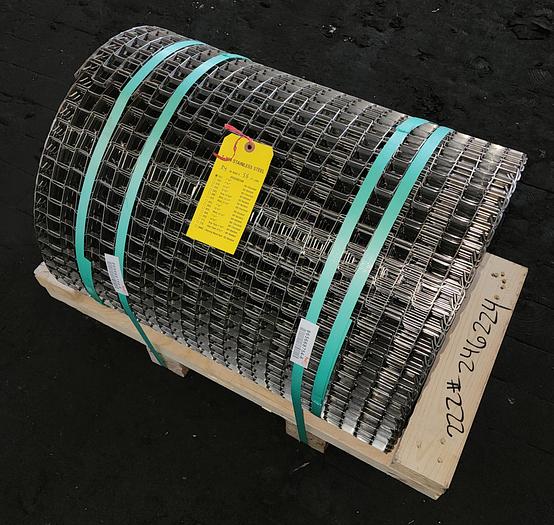

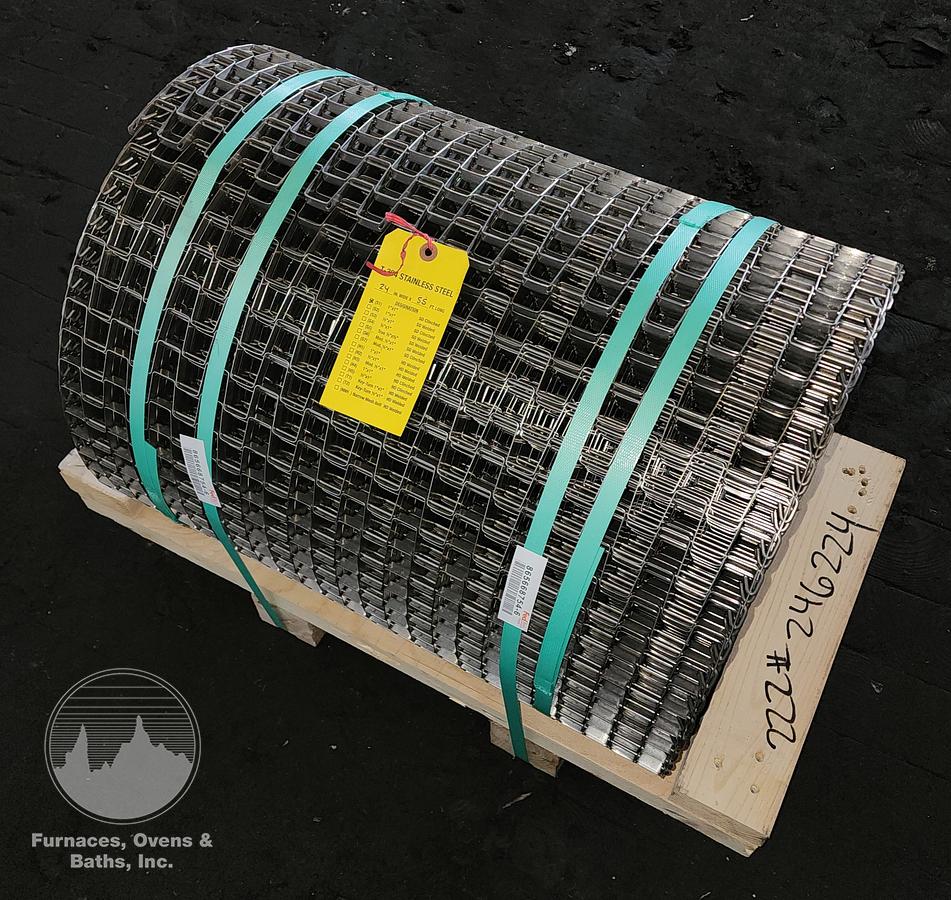

****NOTE: NEW SS 1" x 1", 24" wide Flat Wire Belt is included*****

Module Aquamaster CB-2400E

Conveyor tunnel capacity 24" W X 18" H

Load/unload height 38.00 inches (nominal)

Wash Spray zone length 6 feet

Tank capacity 365 gallons

Tank construction 12 gauge, Type 304 stainless steel

Pump brand/type Scot model 17, cast iron

Pump GPM/pressure 100 GPM @ 30 PSI

Pump HP/RPM 5 HP/ 3,500 RPM

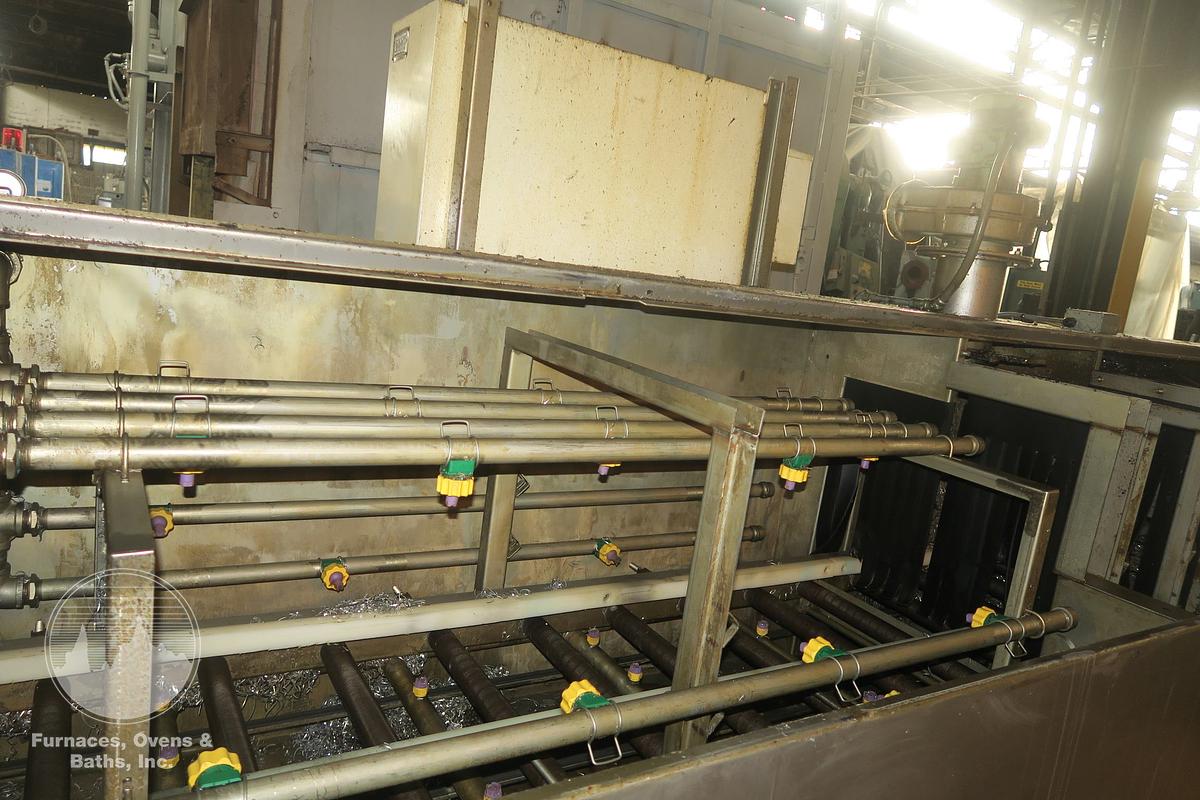

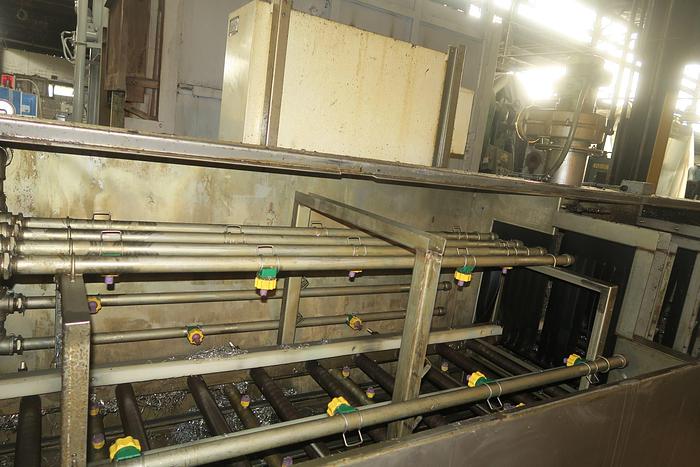

Nozzles: Top/Sides/Bottom

Overflow 1-1/2" NPT (male)

Drain 2" NPT (male)

Fill inlet 1/2" NPT (female)

Fill solenoid 1/2" ASCO

Level control Gems, 3-position float type

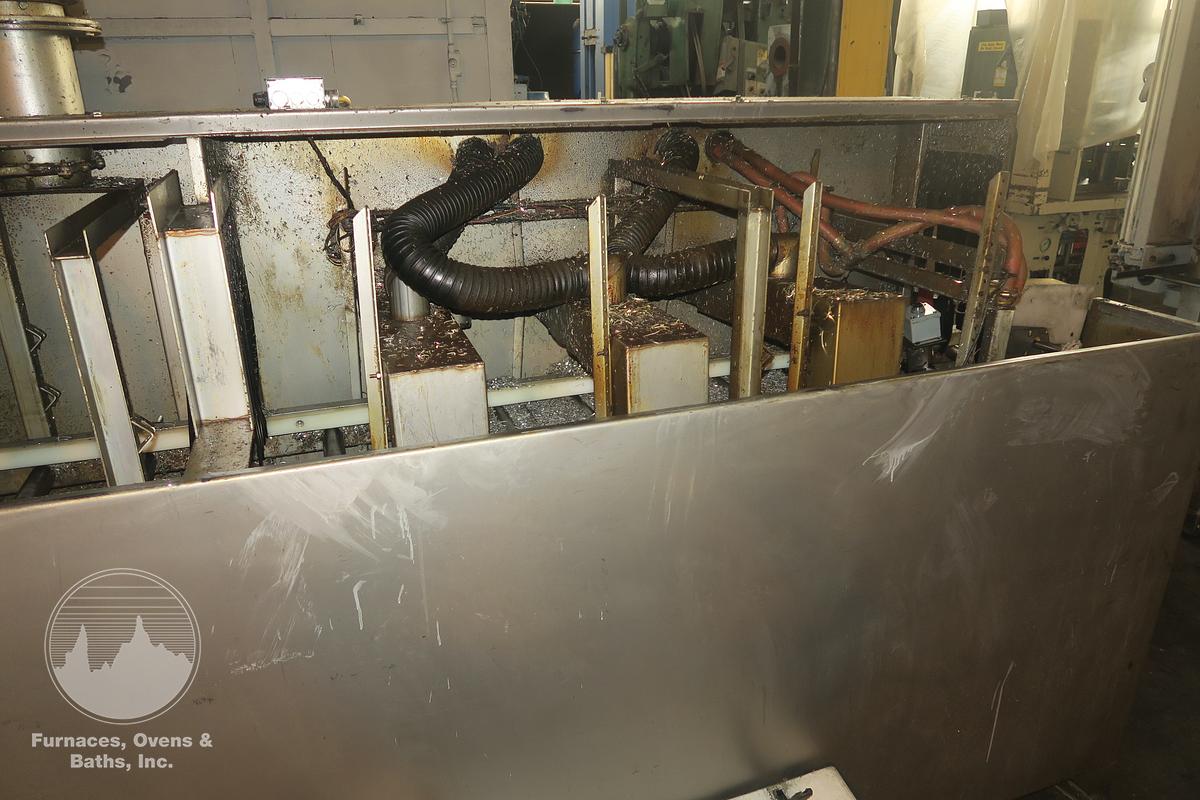

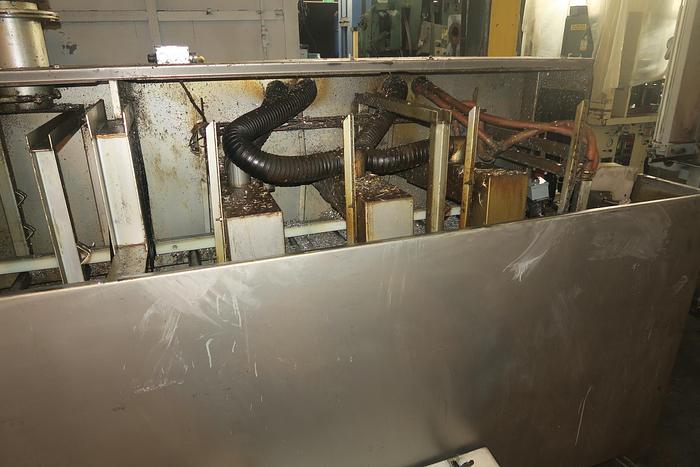

Solution heat/capacity Electric, 90 Kw (5 @ 18 kw), Watlow Firebar immersion heaters

Blowoff (Heated)

Blowoff length 6 feet

Blowoff construction 12 gauge, Type 304 stainless steel

Insulation thickness 1" upper and lower

Blower brand/type New York pressure blower/1910S25

Blower HP/RPM 25 HP/3,500 RPM

Blower capacity 3,165 CFM @ 18" SP

High velocity air knives (4) Top and Side, (3) Lower Top, (6) Bottom

Air heat capacity Electric, 48 kw, Watlow Firebar air heaters, (8 @ 6 KW)

Conveyor Belt type 24" / 1" x 1", flat wire, galvanized

Conveyor rollers 1.90" O.D., galvanized

Drive brand/model Leeson, Gearmotor

Drive HP / speed range 1/4 HP / 0-11 FPM

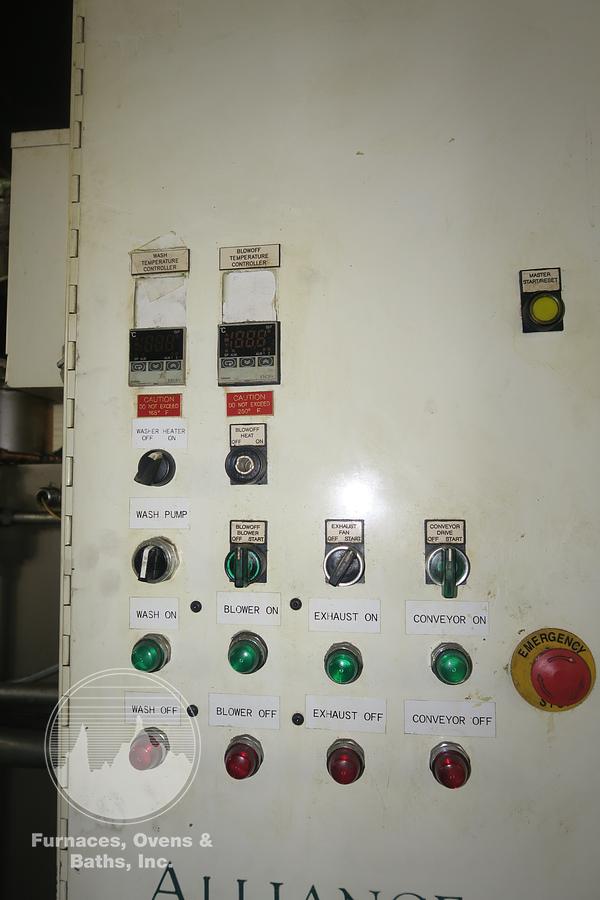

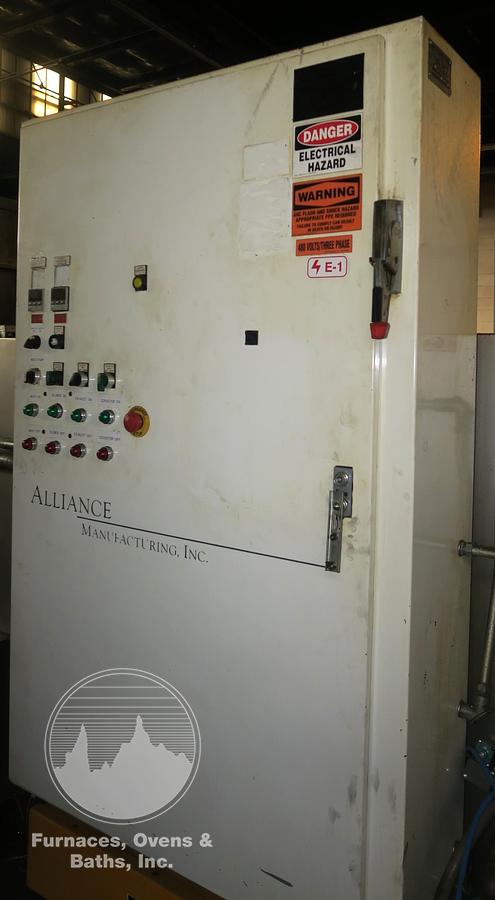

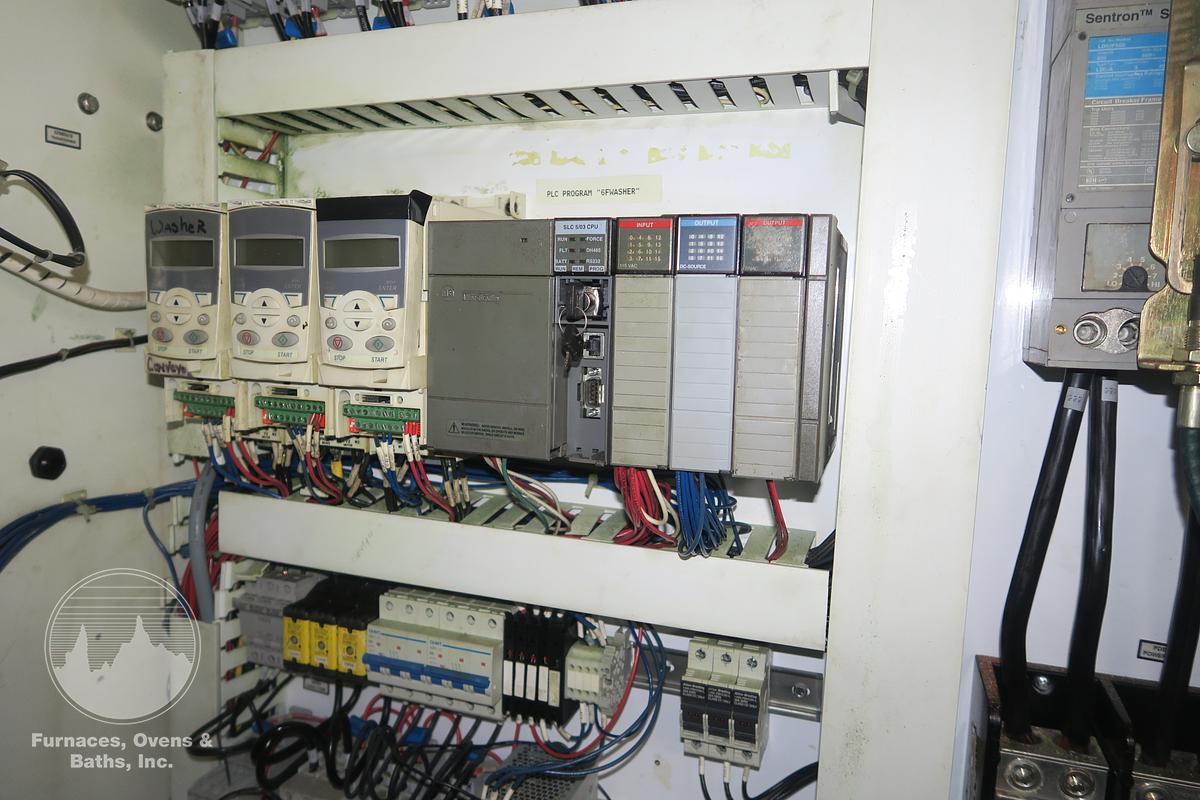

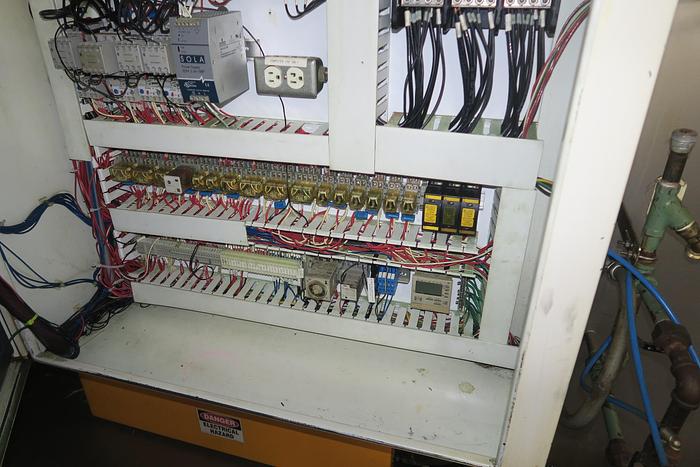

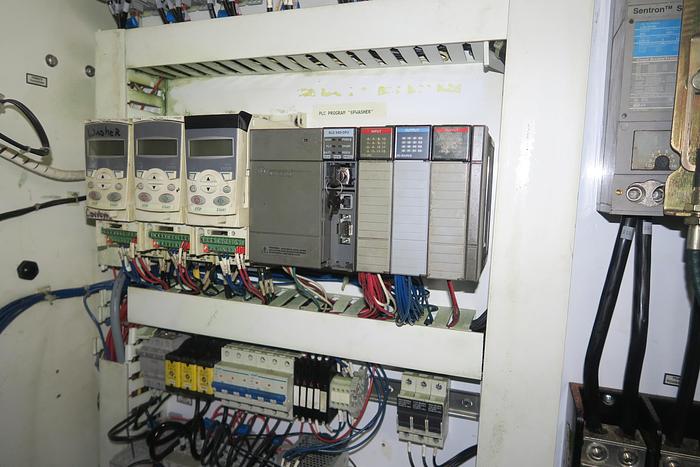

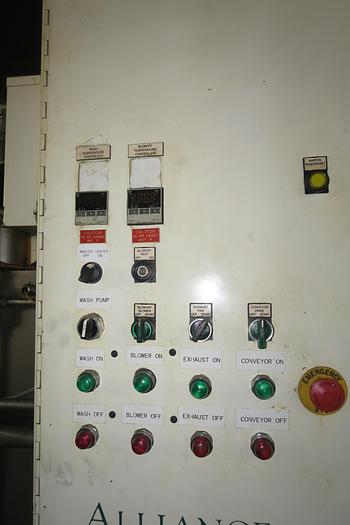

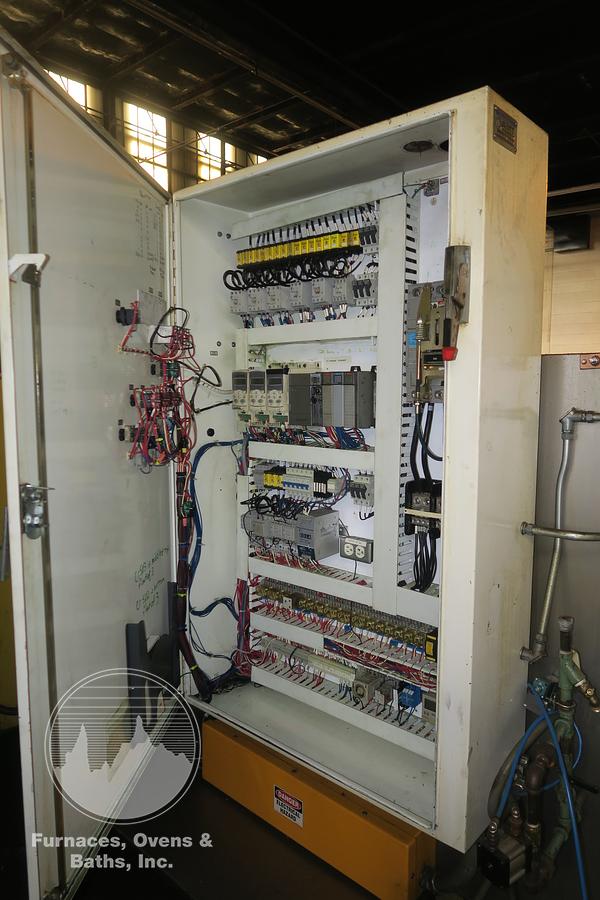

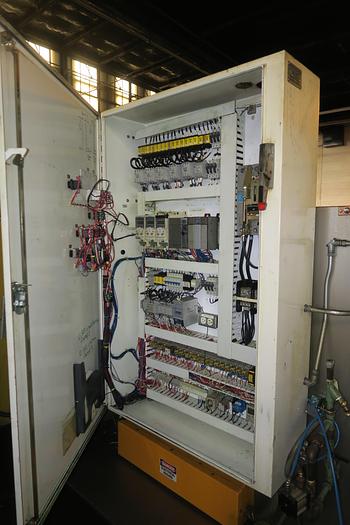

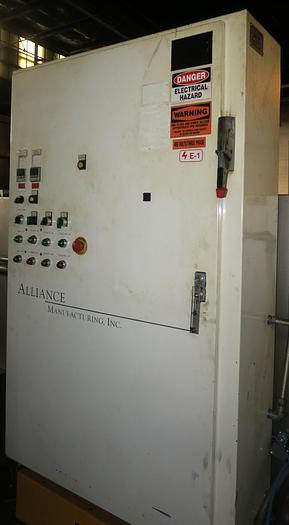

Controls

Motor starters/type Allen Bradley, IEC

Temperature controls Omron, digital

Switches Allen Bradley

Voltage 480V/3PH/60HZ

Amp draw 219 FLA

Disconnect size/type 300 amp, circuit breaker

Accessories

Exhaust fan brand/rating Cincinnati, 1 HP, 700 CFM @ 3" sp

Solution heat auto-timer Programmable 7-day multi-timer

Micro filtration Pump discharge, 100 micron

Product sensor - load Photo-eye/hard timer controls pump and blower

Bolt-on clean-out door provides tank bottom access for desludging

Oil coalescer

See layout drawing
