25"W x 20"H x 20"L Blue M Dual Chamber, 662°F, Electric

25"W x 20"H x 20"L Blue M Dual Chamber, 662°F, Electric

Contact us for price

orCall 248-343-1421

Description

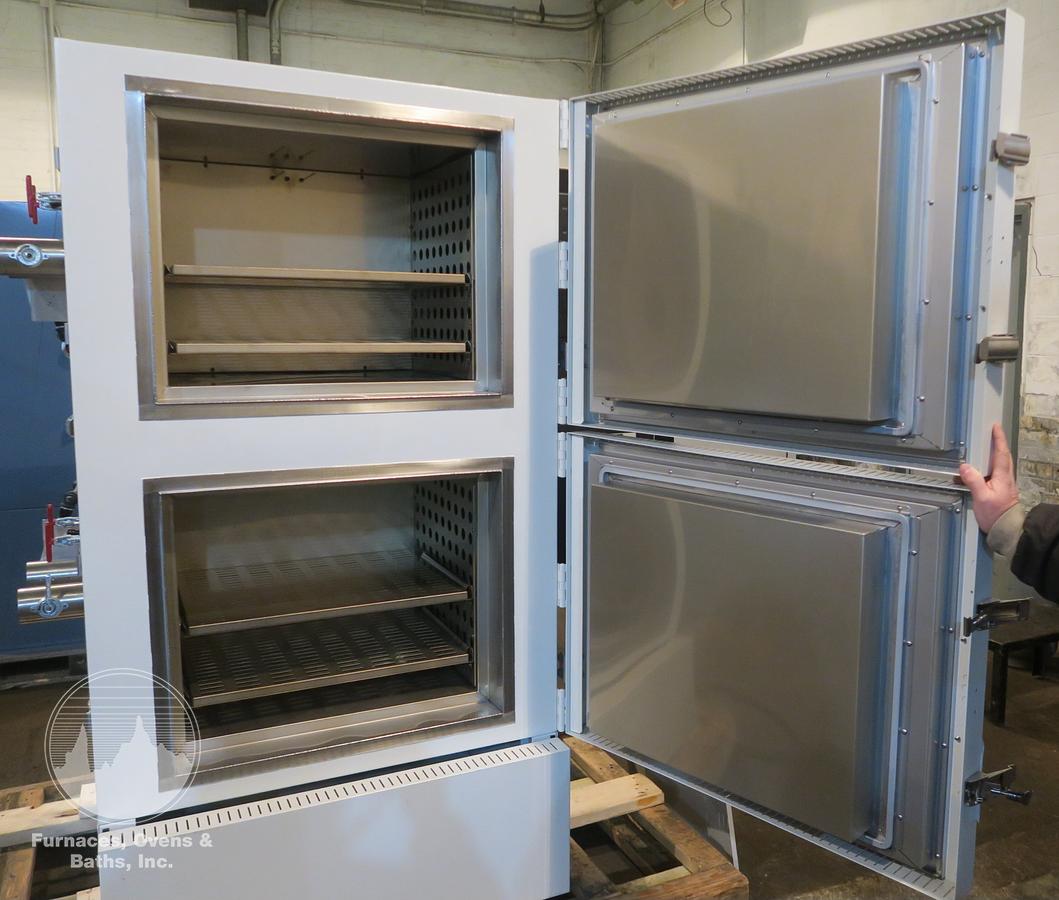

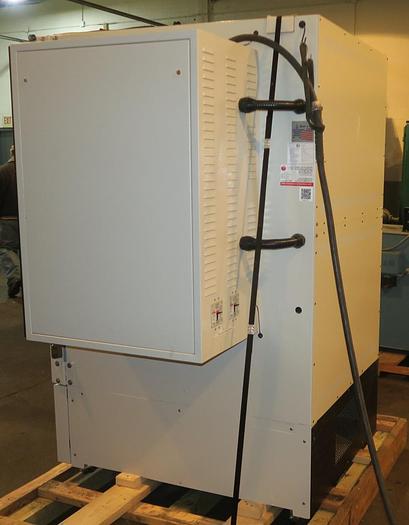

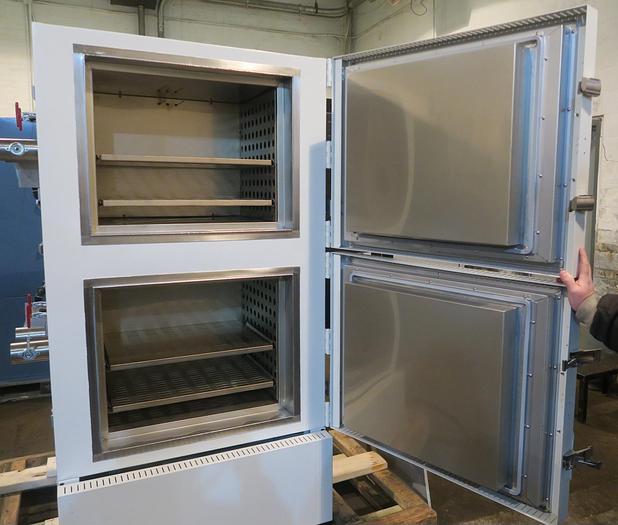

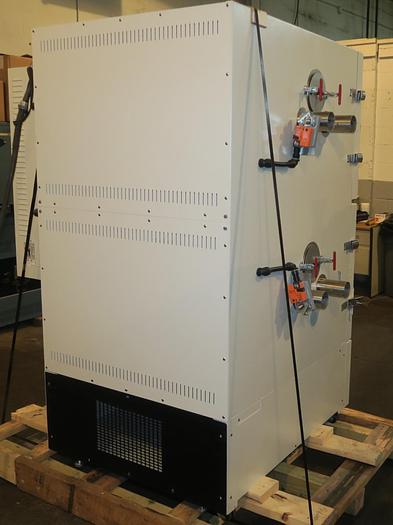

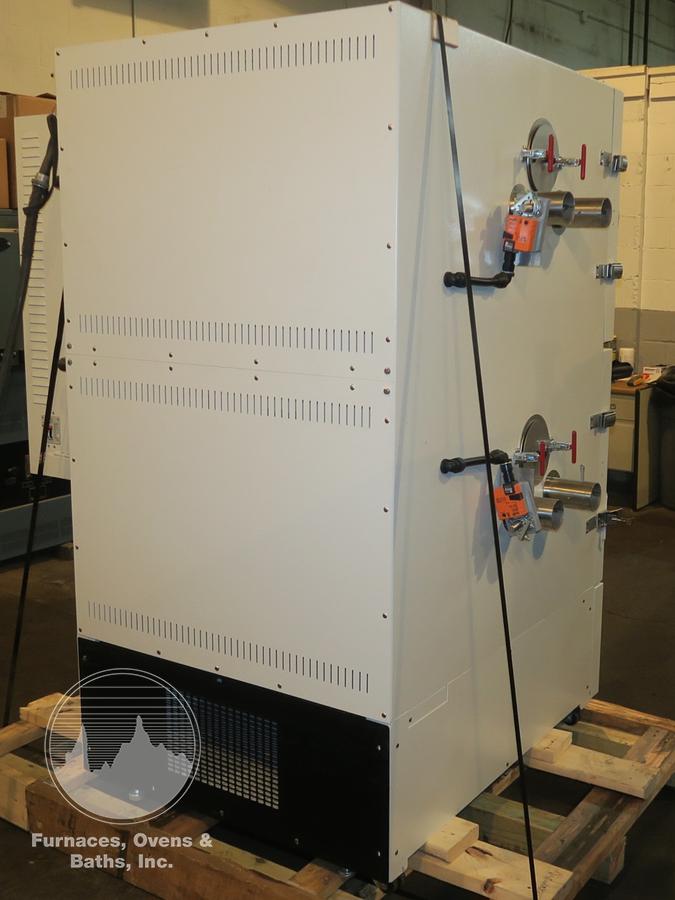

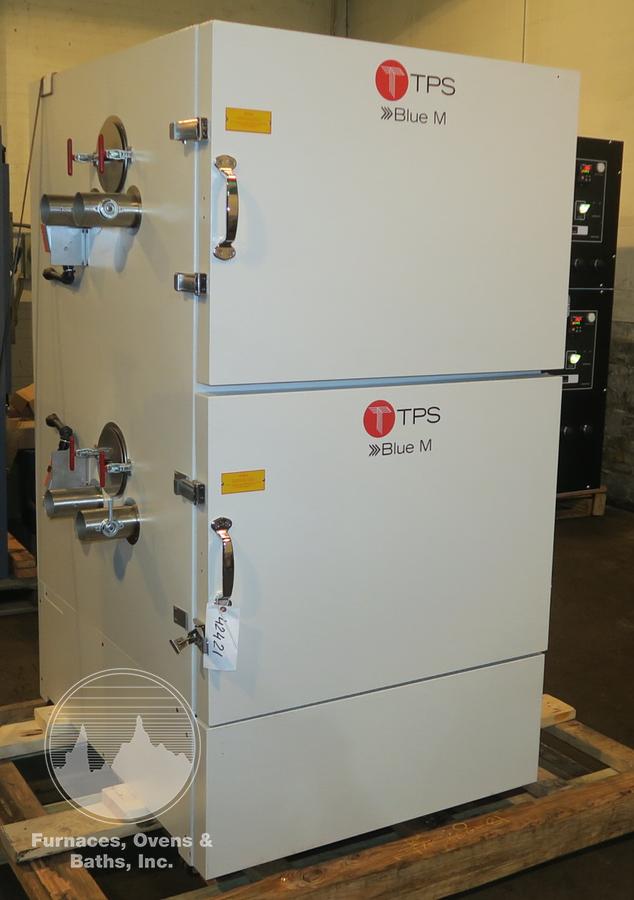

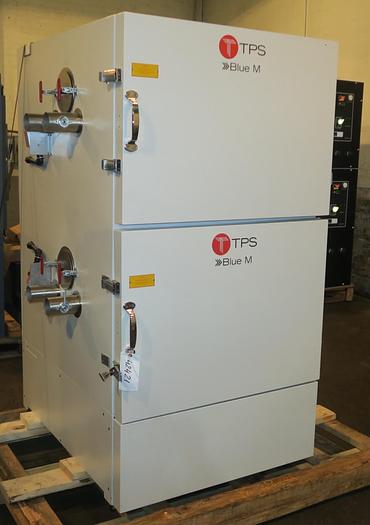

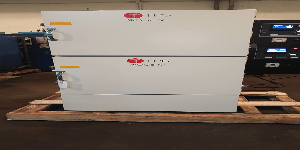

Dual chamber over/under design with a 2 point cam action door latch and silicon rubber gasket on each door which provides a good door seal. Stainless Steel interior with perforated air duct side wall panels. Two (2) adjustable shelf brackets and two (2) shelves are included with each chamber. Coiled style heating elements and direct driven circulating fan are located behind the work area in both top and bottom chamber. Heated air is circulated in a horizontal pattern across each chamber. Motorized fresh air inlets, exhaust ports and 6" diameter access ports are located on the left-hand side of the oven. Oven is LIKE NEW. Tested and ready to ship. See video.

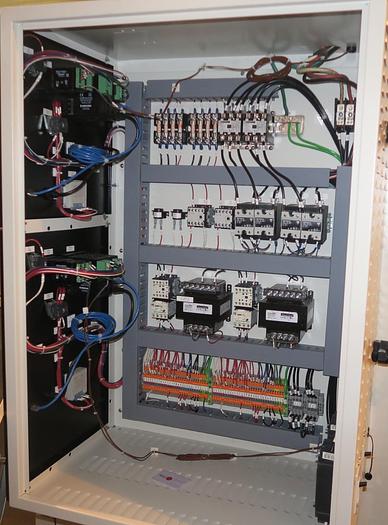

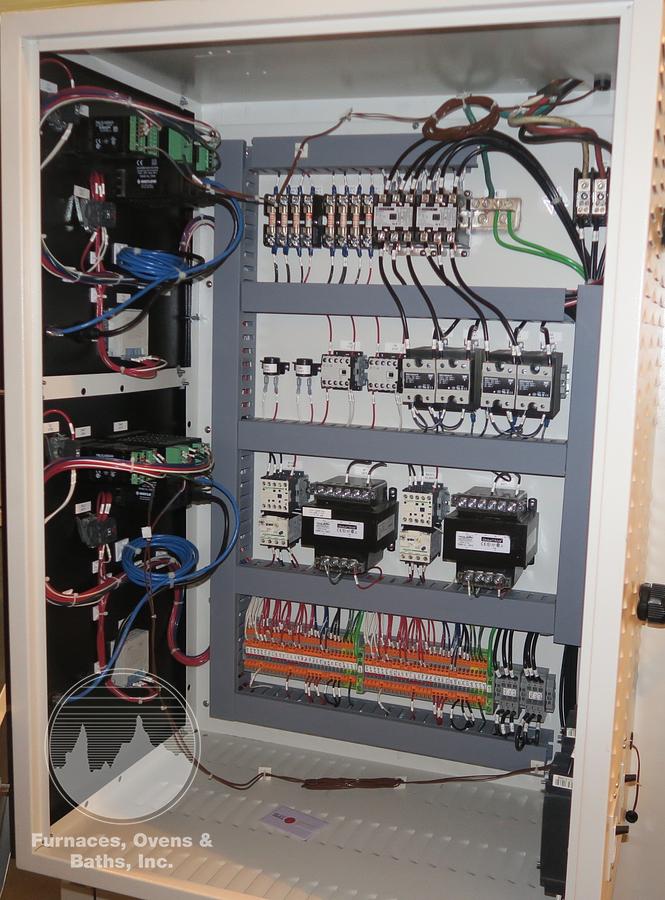

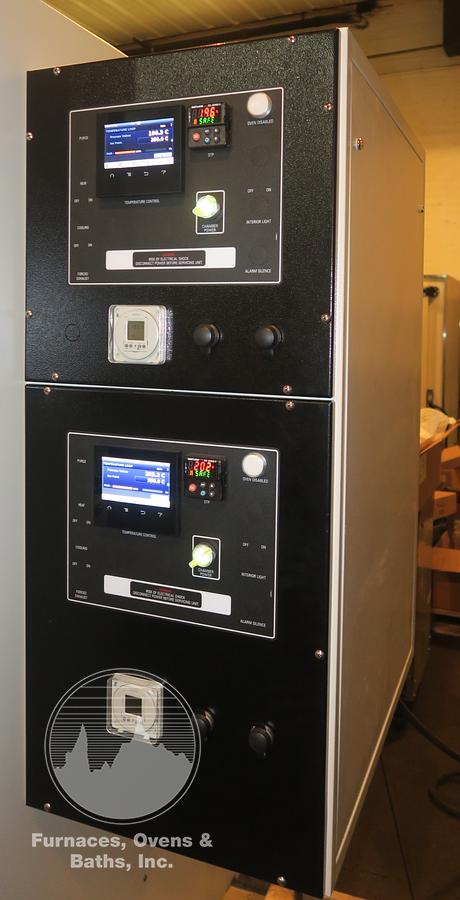

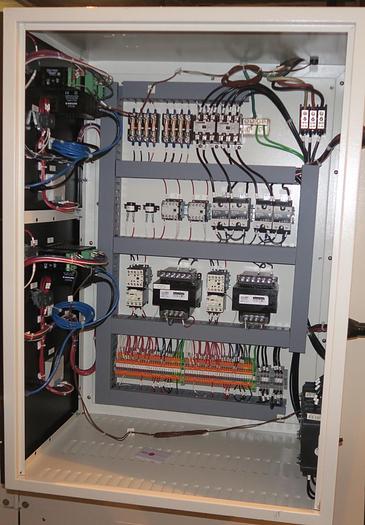

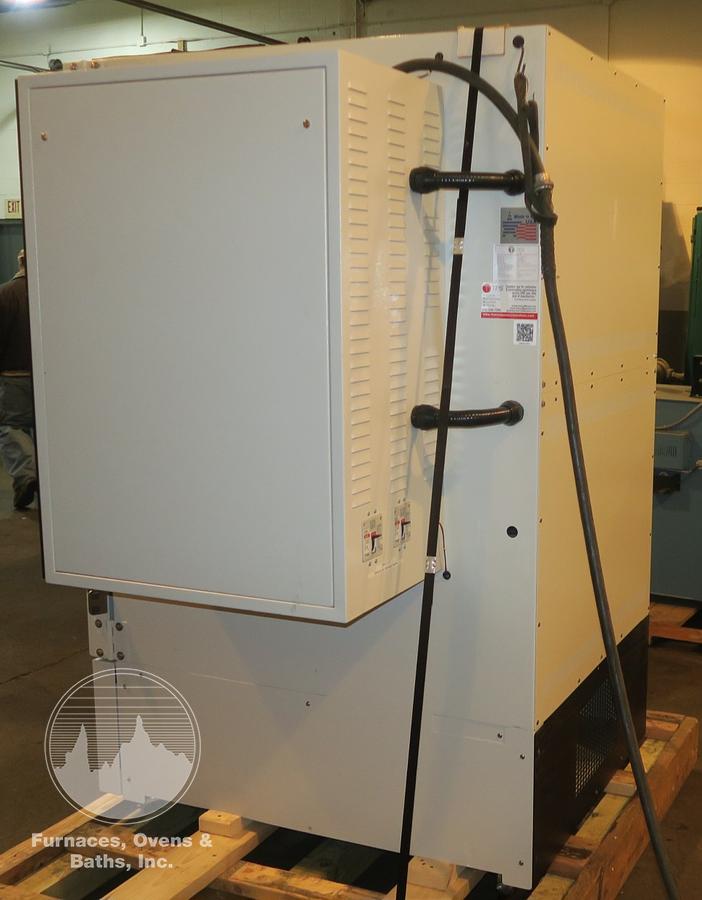

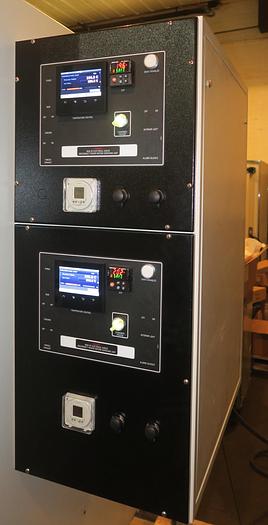

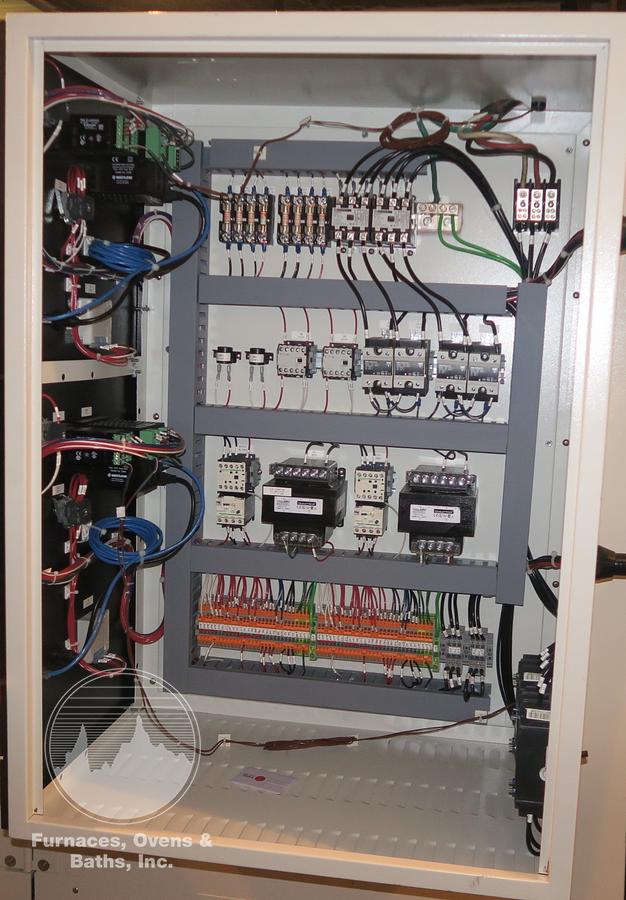

Controls are located in a right hand side mounted control cabinet which includes a Watlow F4T touchscreen digital programmable temperature control with USB/Ethernet Ports and Watlow EZ-ZONE digital high limit for each chamber. Power switch with indicating light for on/off are flush mounted to the face of the control cabinet for each chamber. Also mounted in the same cabinet includes a 24/7 digital process timer. Solid state power relays, high limit contactor, motor starter, fuses, relays etc. are mounted inside the control cabinet.

Specifications

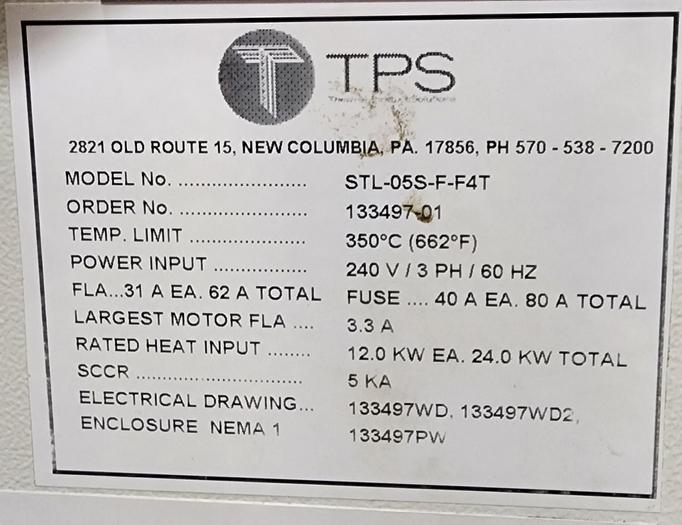

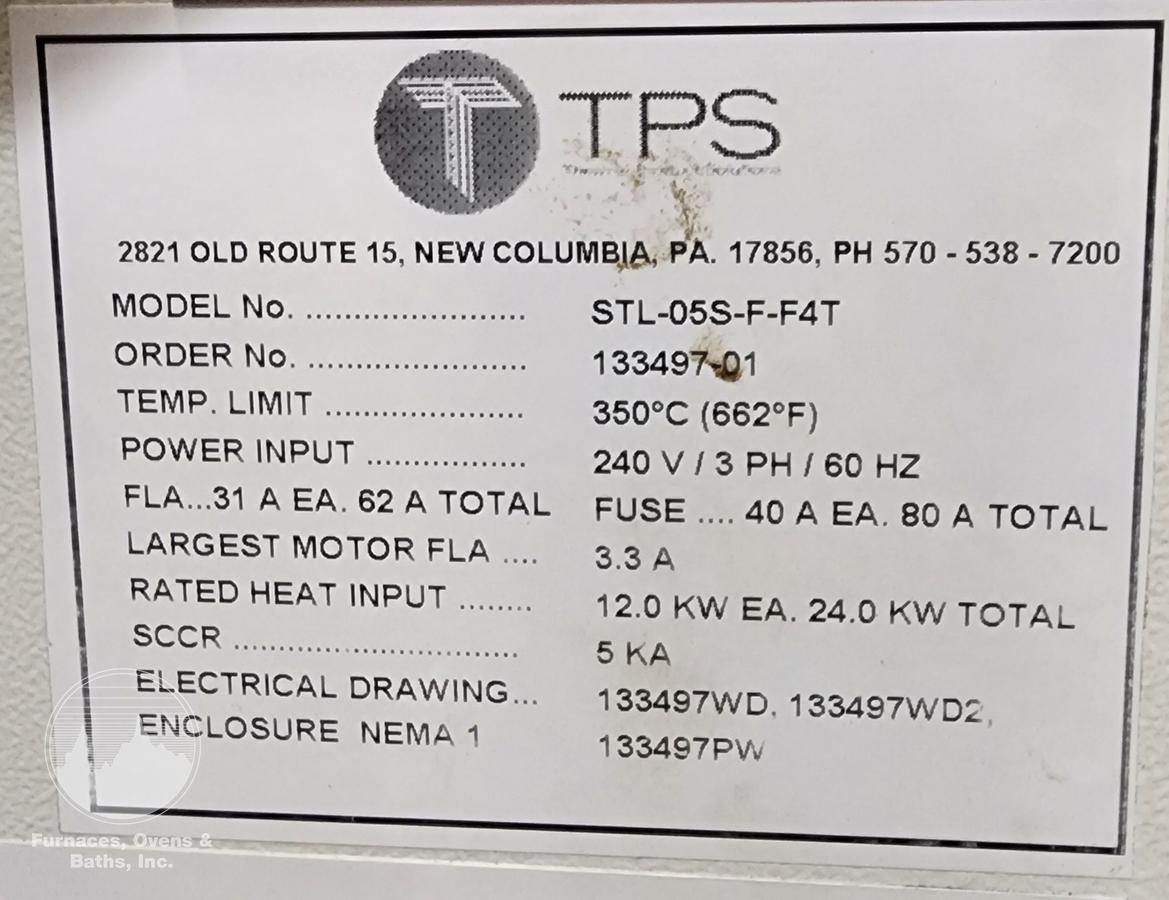

ManufacturerBlue M
ModelSTL-05-S-F-F4T
Year2019
ConditionUsed
Serial Number133497-01
Stock Number7721
Work area25"W x 20"H x 20"L
HeatedElectric
Max temperature662°F
Voltage240/3/60/12 kW Each Chamber/31 Amps x 2
External dimensions57" wide x 90" high x 39" long
