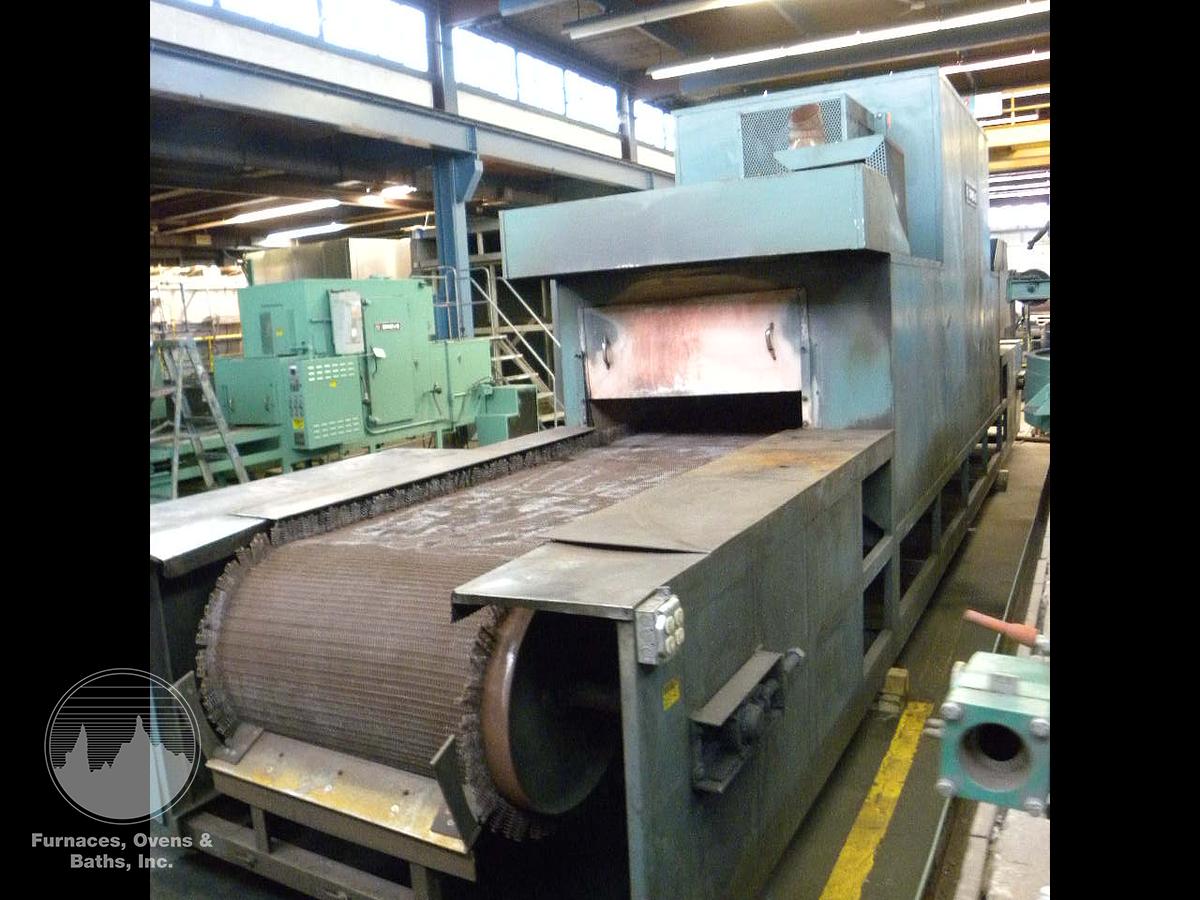

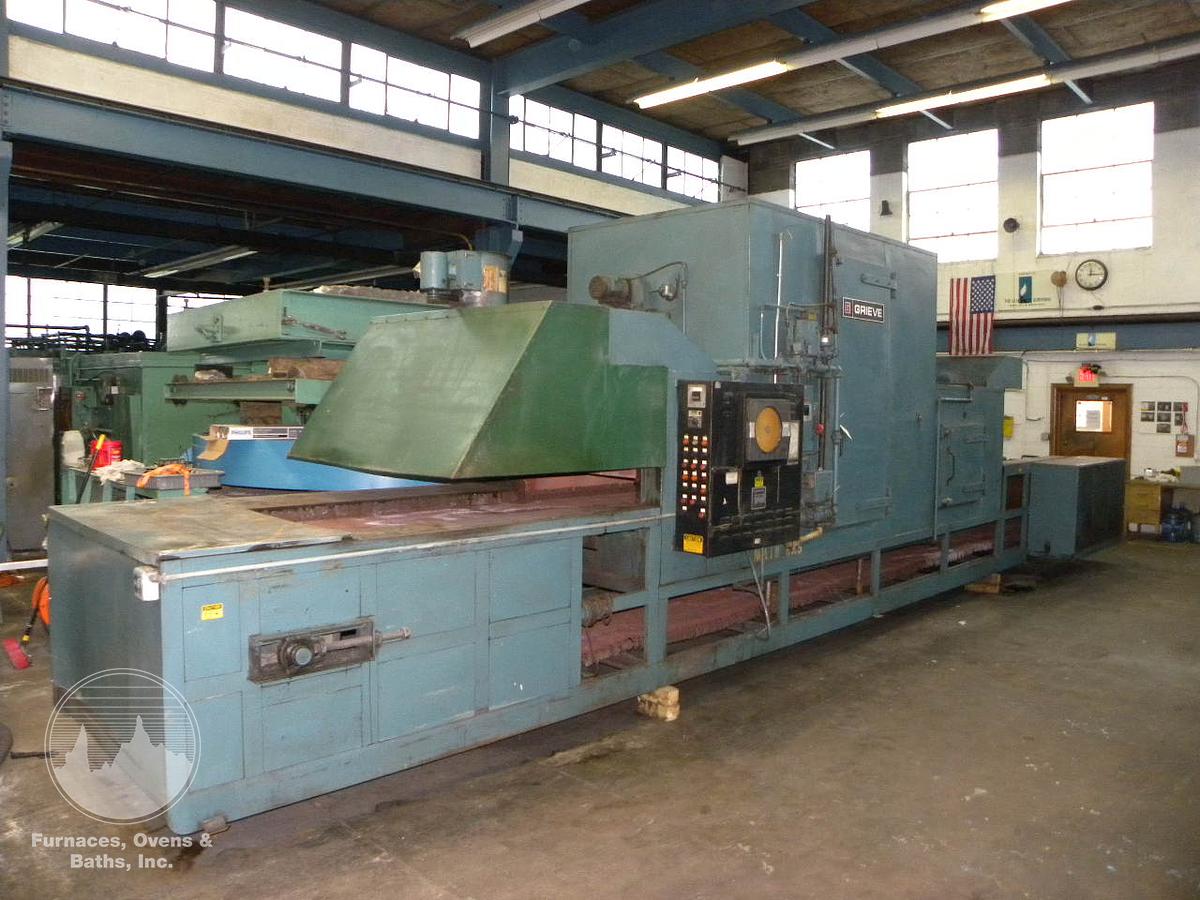

36"W x 17"H x 16'L Grieve Belt Conveyor Oven, Gas Fired, 750-F

Continuous belt conveyor oven with a wire mesh belt. Oven has a 6' long loading area prior to the 16' long heated section. Following the heated section, there is a 7' long unload section. The belt driven circulating fan and Maxon Oven-Pak burner are located above the work area. Heated air is circulated in a top - down pattern over the belt. Top mounted powered exhauster.

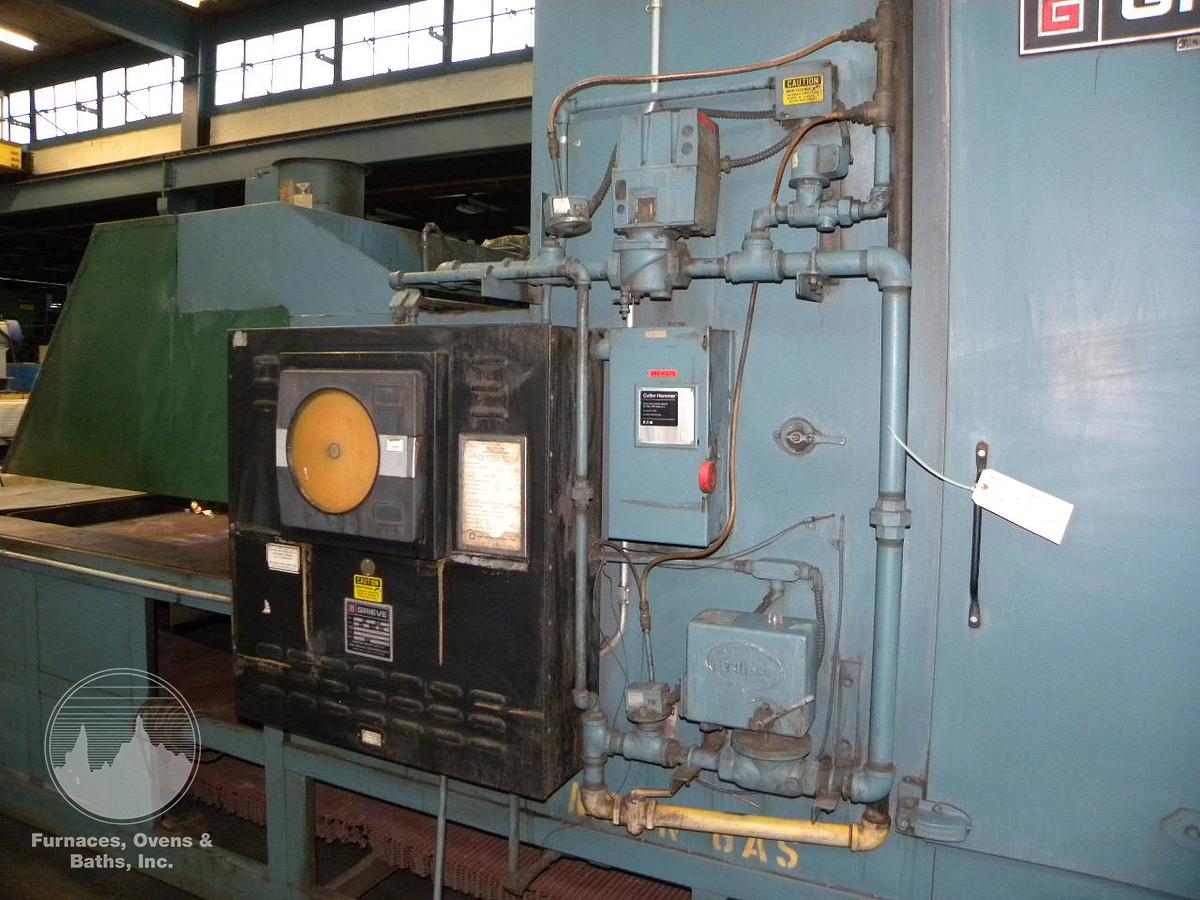

Controls are located in a "UL" rated enclosure attached to the side of the oven. Digital temperature controller and high limit. Control switches with indicating lights for the circulating fan, exhaust fan, conveyor and heat are flush mounted in the enclosure. Motor starters, control and high limit contactors, fuses, relays are mounted inside the enclosure.
