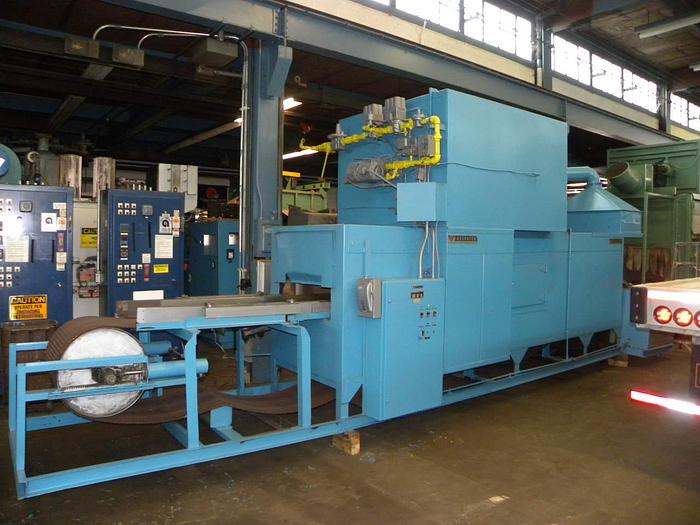

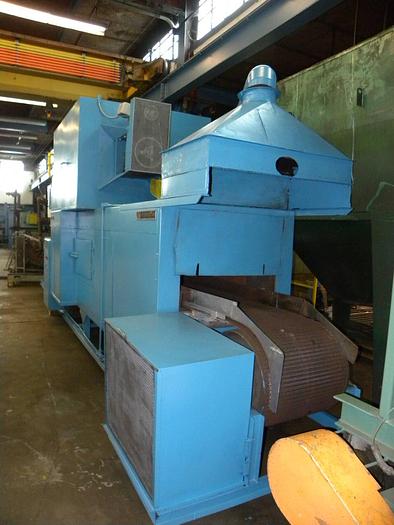

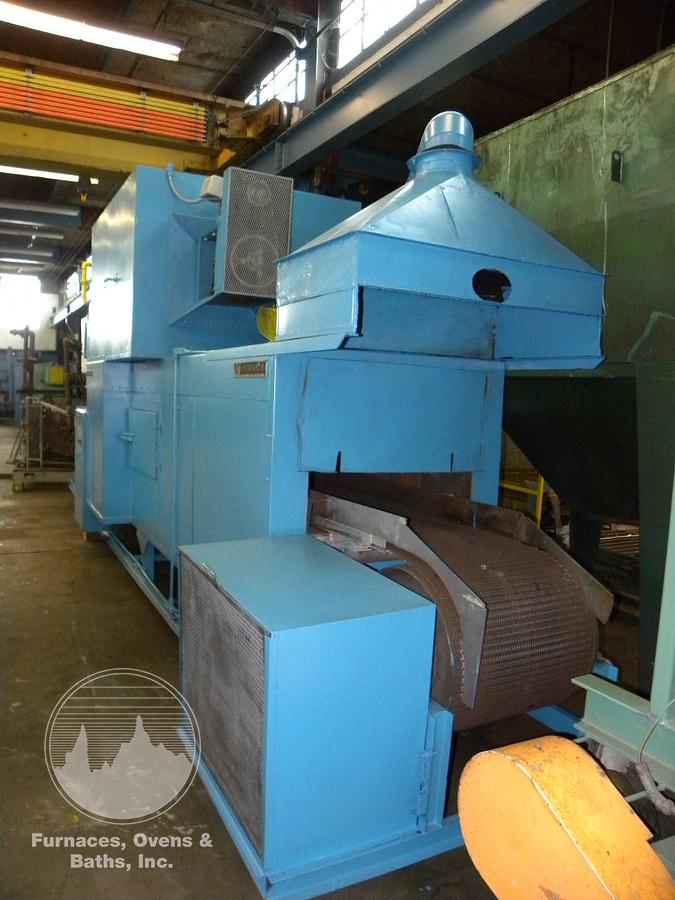

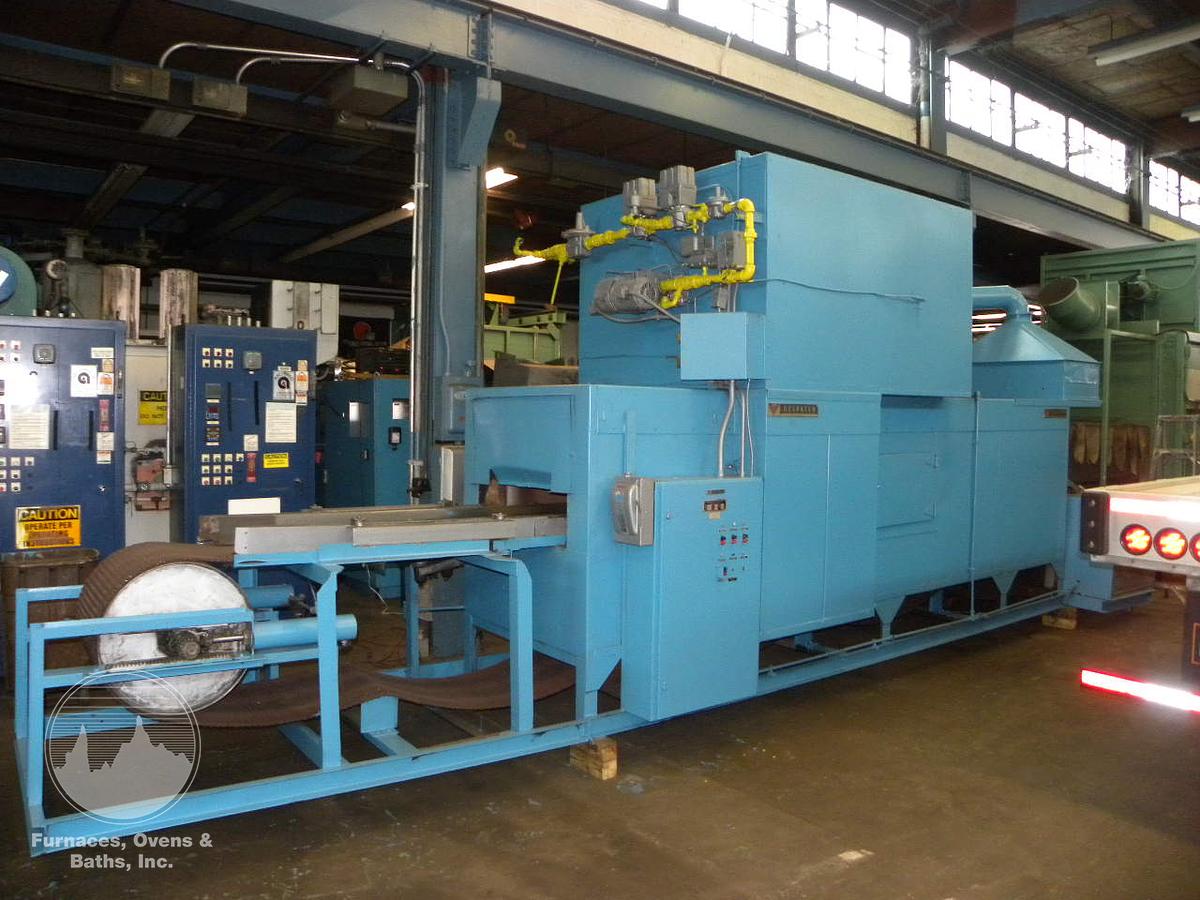

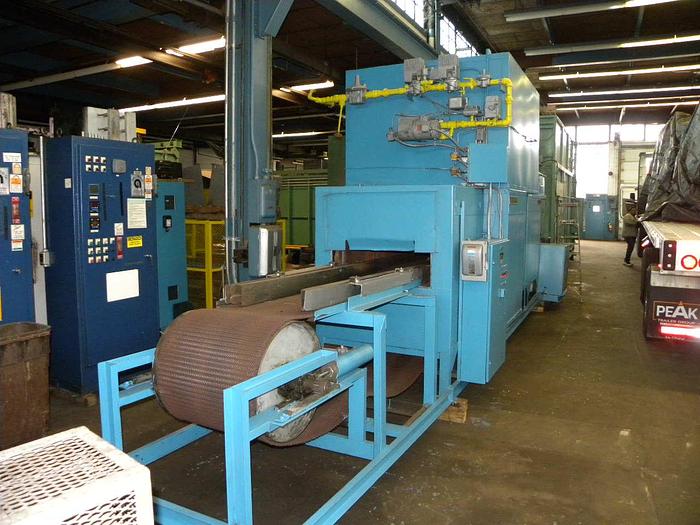

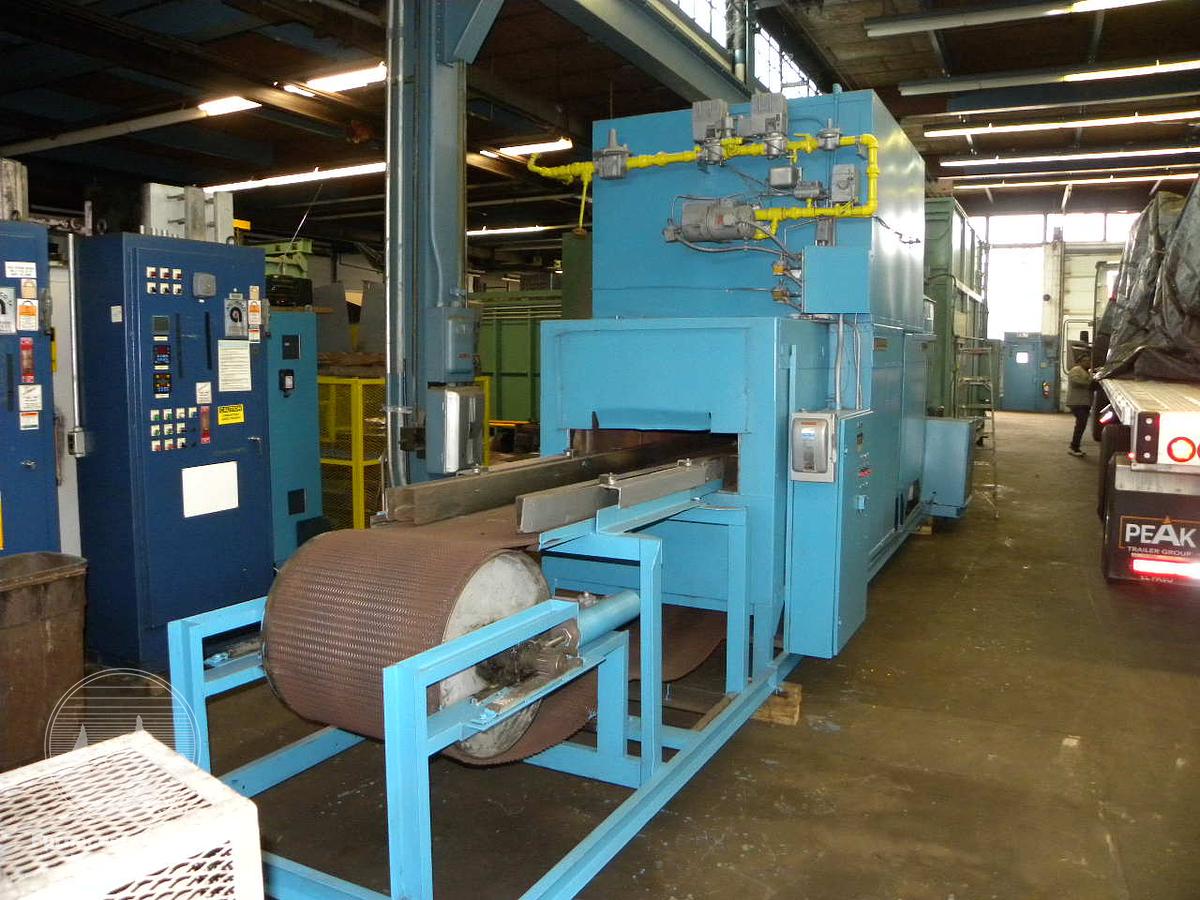

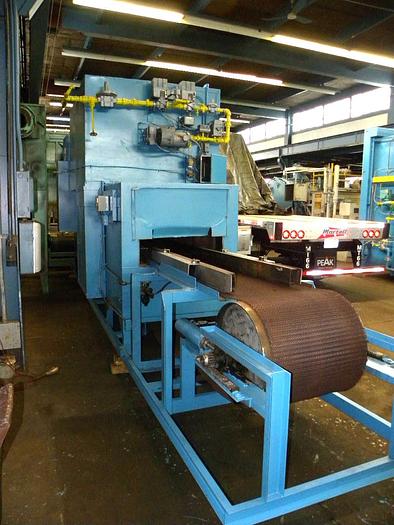

24"W x 14"H x 15'L Despatch PCE-2-45 Conveyor Oven, Gas Fired, 850-F

Continuous variable speed belt conveyor oven with a wire mesh belt. Oven has a 7' long loading area prior to the 15' long heated section. Following the heated section is a 3' long unload table. The belt driven circulating fan and Eclipse AH package burner are located above the work area. Heated air is circulated in a top - down pattern over the belt. Adjustable louvers are located in the top and bottom air plenum for good uniform heating. Top mounted powered exhauster.

Controls are located in an enclosure attached to the side of the oven. Omron digital temperature controller and high limit safety control. Control switches for the circulating fan, exhaust fan, and conveyor are flush mounted in the enclosure. Motor starters, relays etc. are mounted inside the enclosure.
