108"W x 84"H x 164"L, Lewco, 500°F, Gas Fired, UNUSED Built in 2021
Sold
108"W x 84"H x 164"L, Lewco, 500°F, Gas Fired, UNUSED Built in 2021
Description

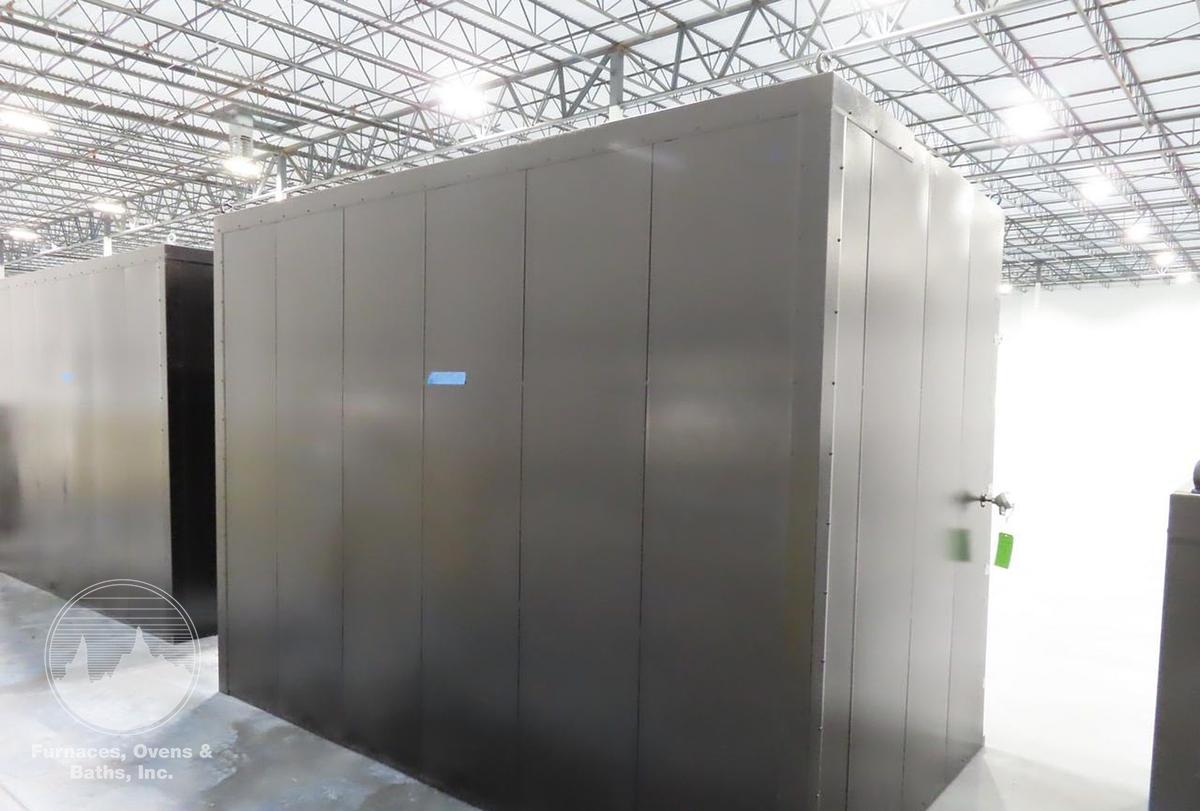

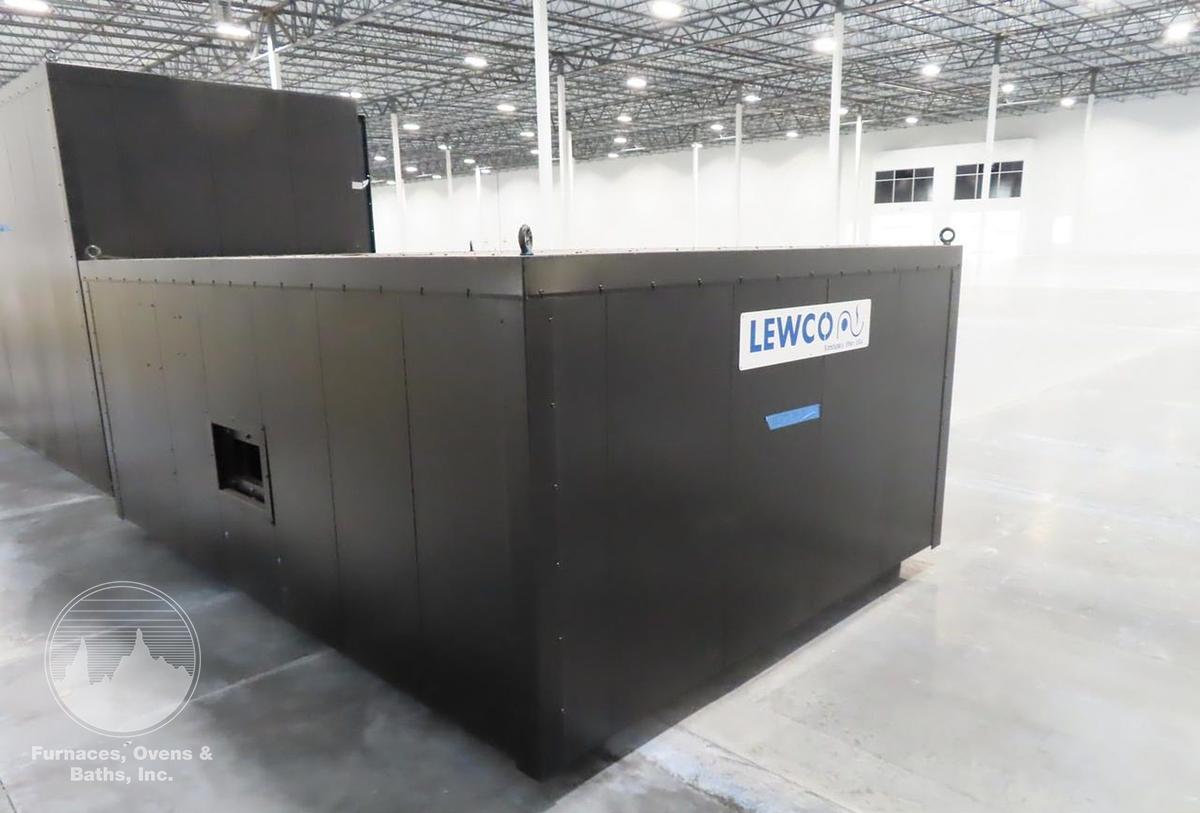

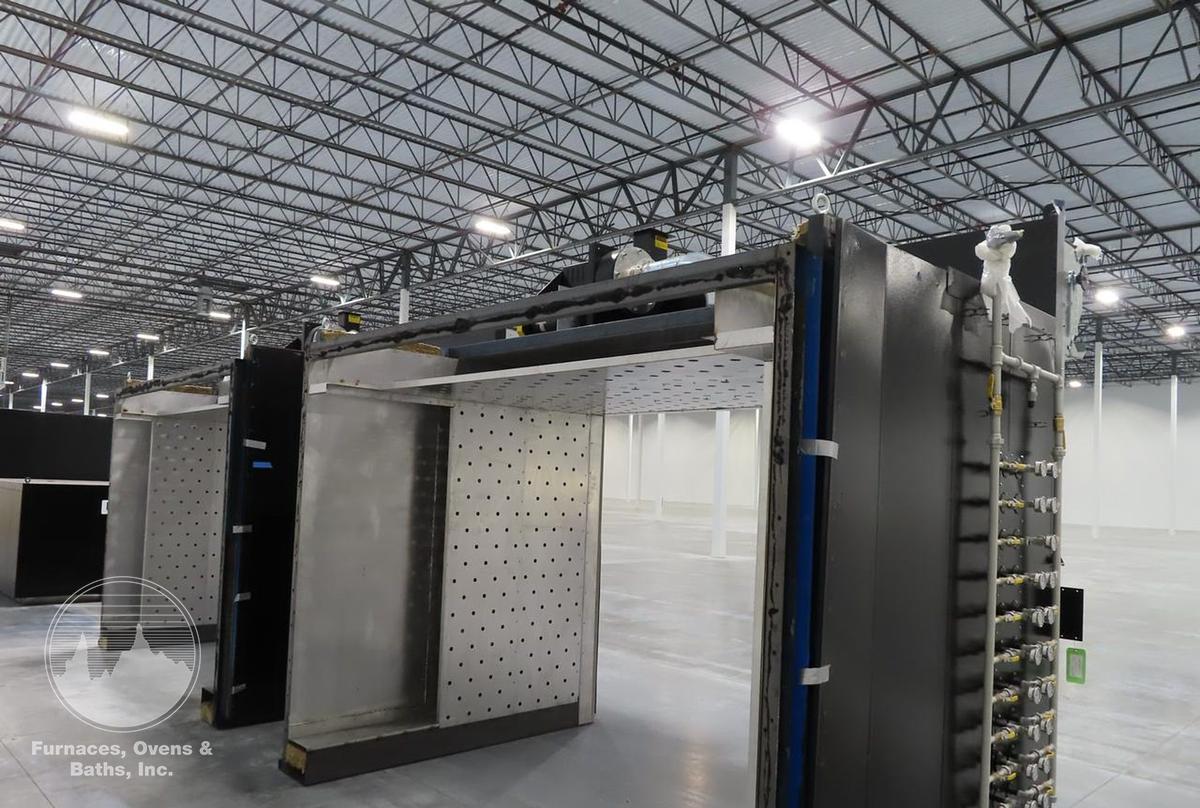

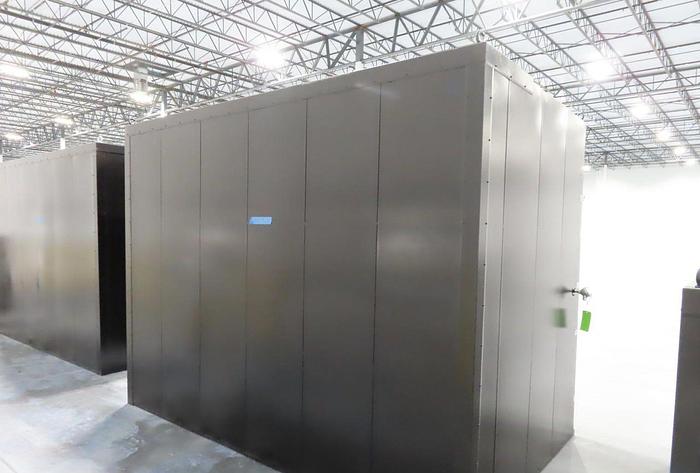

Lewco design walk-in oven with roll-up door, top mounted heater box, powered exhauster, 16,000 CFM/15 HP recirculating fan. Oven includes vacuum port manifold for vacuum bag composite cure. Combination horizontal and vertical air flow. 4" insulated floor with grooves.
Free standing control panel with PLC/HMI touchscreen controls and Eurotherm digital temperature controls and Nanodac electronic recorder.
Specifications
| Manufacturer | Lewco |
| Model | NS-SWT05FD-108-164-84 |
| Year | 2021 |
| Condition | Used |
| Serial Number | S26670-002-01 |
| Stock Number | 7741 |
| Work Area | 108"W x 84"H x 164"L |
| Maximum Temperature | 500°F |
| Fuel | Natural Gas - 700,000 BTU's @ 2 psi |
| Power Required | 480/3/60/27 FLA |
| Overall Dimensions | 12'2" wide x 13' high x 18' long |
