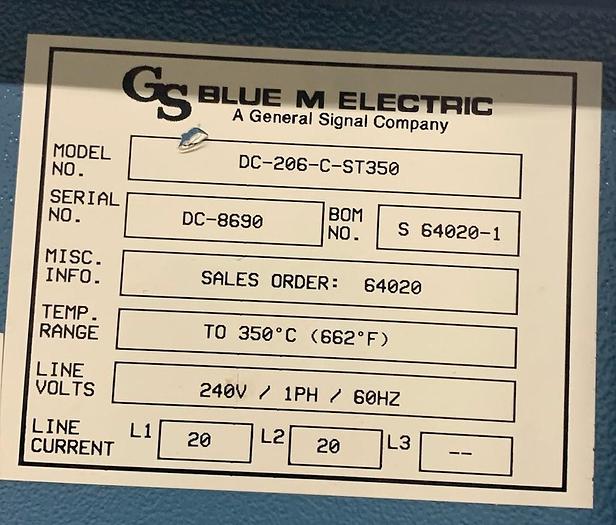

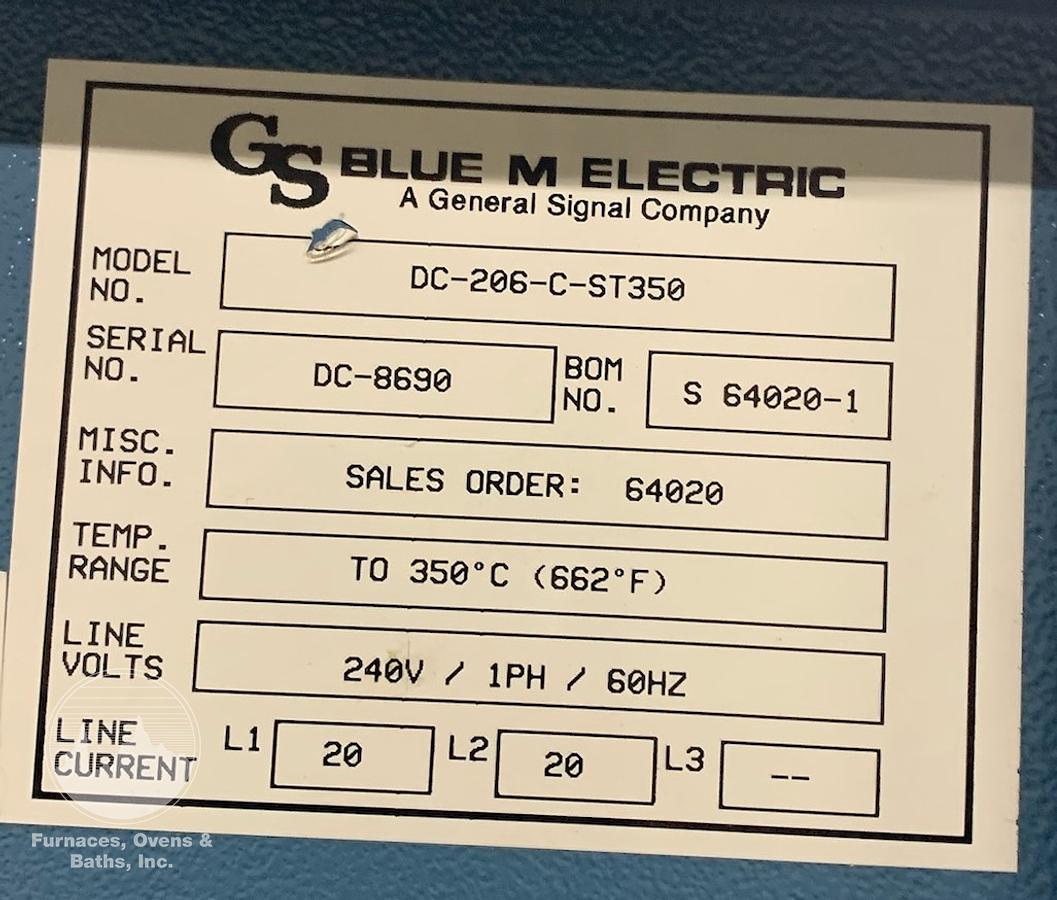

20''W x 20"H x 18"L Blue M DC-206-C-ST350 Cabinet Oven, 350-C/662-F, 240V Single Phase

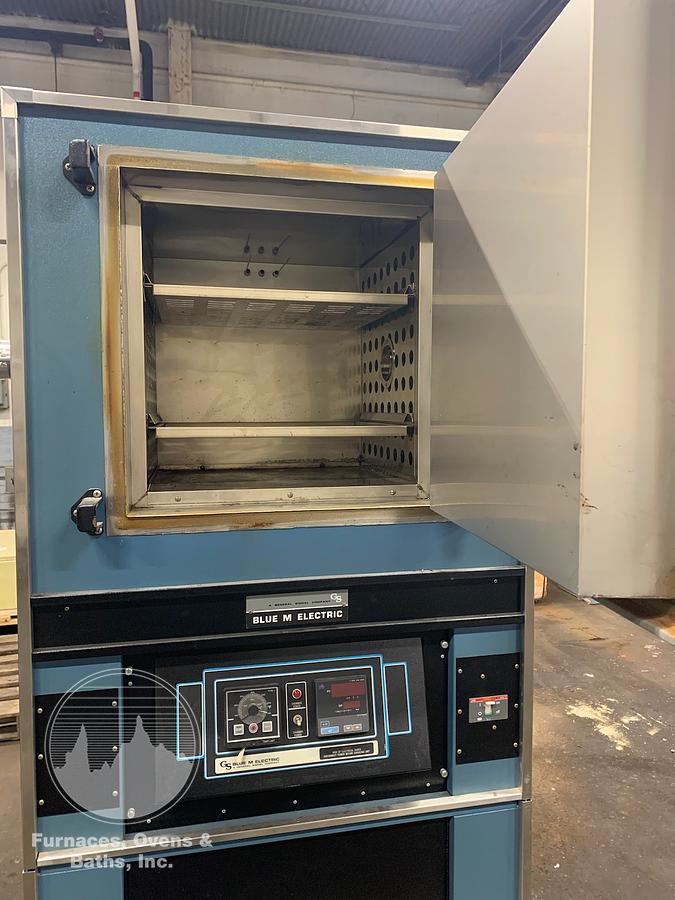

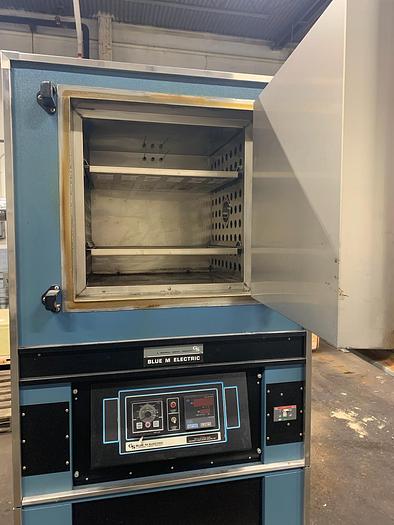

Single door with 2 point cam action latch and a silicon rubber gasket for a good tight door seal. Stainless steel interior with 2 shelf brackets, two (2) shelves are supplied. Direct driven circulating fan and coiled style heating elements are located under the floor pan. Heated air is circulated horizontally across the chamber. Chamber vent port for exhausting and adjustable fresh air inlet is located on the left hand side.

Controls are mounted in a slide out console located directly under the work area. Blue M/Yokogawa digital programmable temperature controller, Blue M/Partlow analog high limit and control power switch with indicating light are flush mounted in the front panel of the console. A main power circuit breaker are also mounted on the front of the oven.
