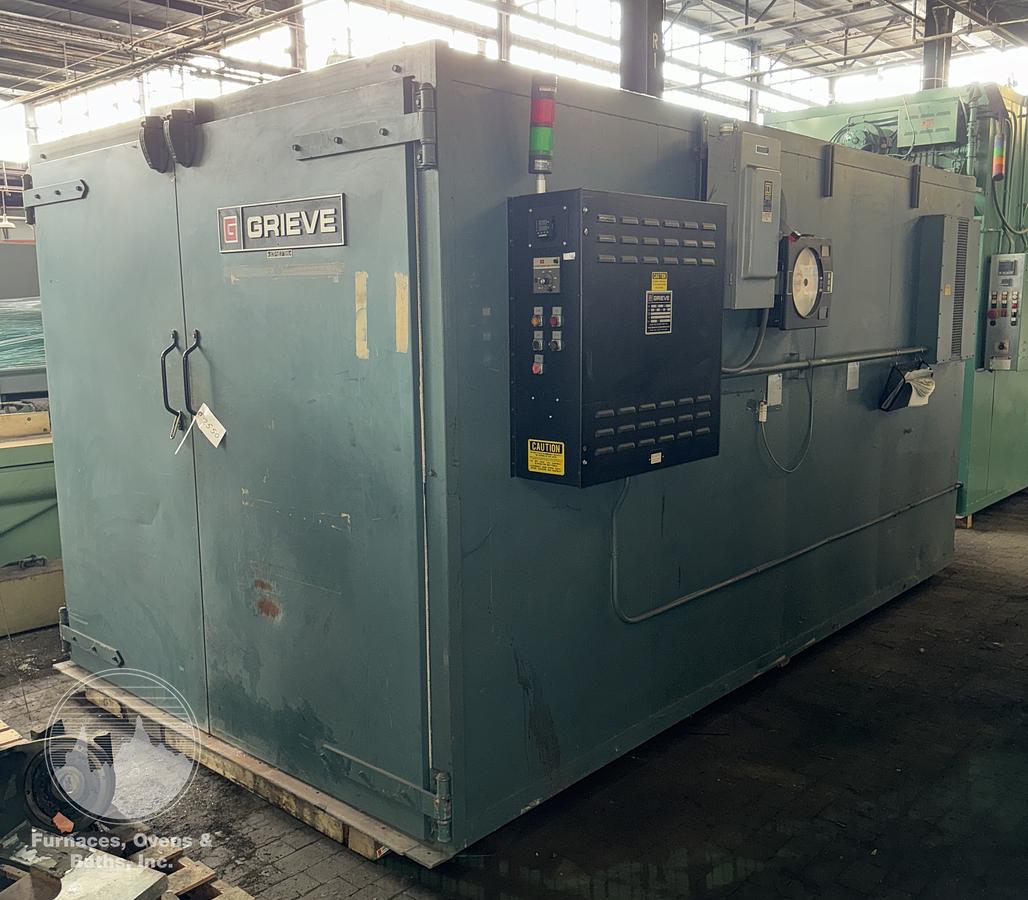

72"W x 72"H x 120"L, Grieve B4-500 Electric Walk-In Oven, 500°F
![Used 72"W x 72"H x 120"L, Grieve B4-500 Electric Walk-In Oven, 500°F](https://i.machineryhost.com/f0873a91b499e265ff6d78ff6e8985a0/346c12bdfff8255c164b67db8bc4d7b1/large-used-72-w-x-72-h-x-120-l-grieve-b4-500-electric-walk-in-oven-500-f.jpg)
72"W x 72"H x 120"L, Grieve B4-500 Electric Walk-In Oven, 500°F
Description

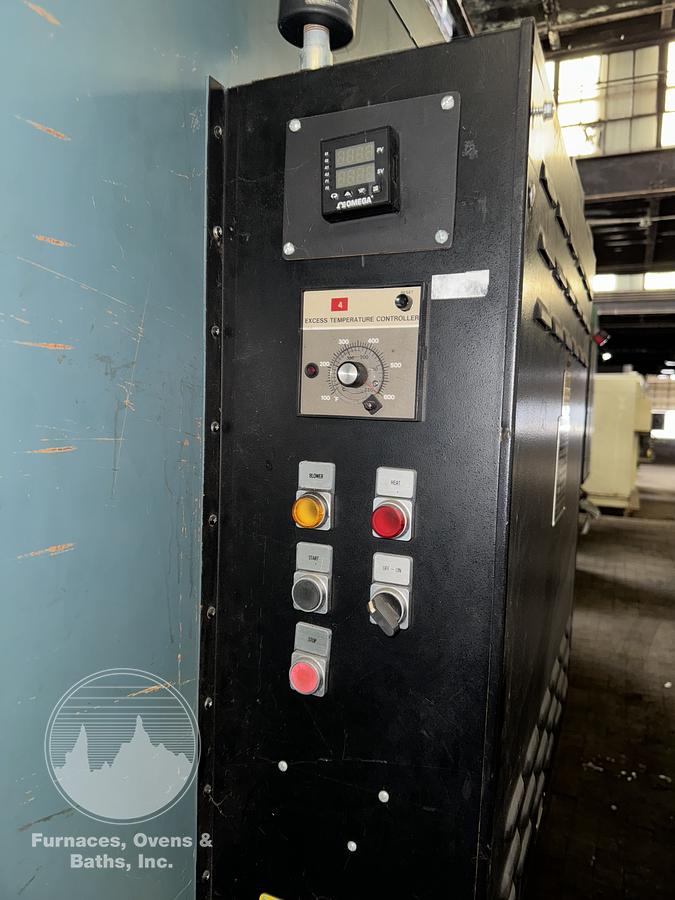

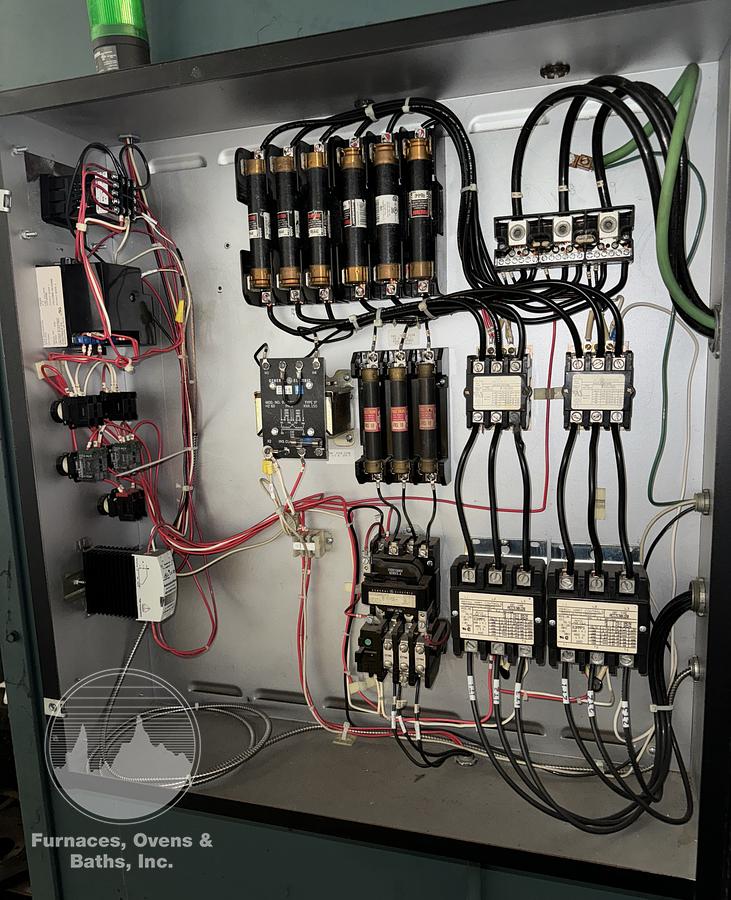

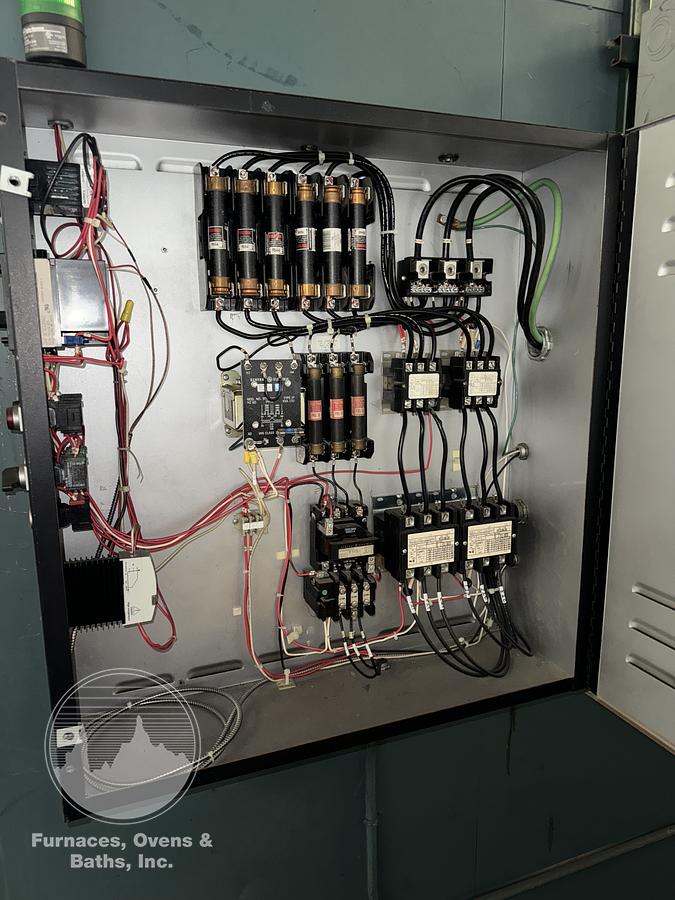

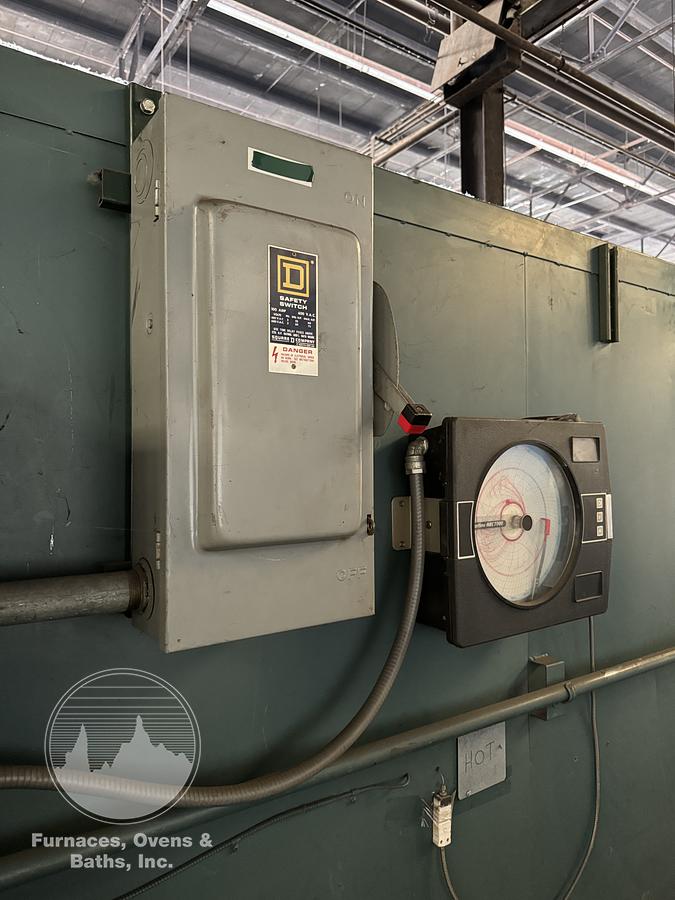

Controls are located in an enclosure attached to the side of the oven. There is a digital temperature controller, analog high-limit and a Partlow circular chart recorder. Control switches for the main power and circulating fan are flush mounted in the enclosure. This oven includes a side mounted fused disconnect.

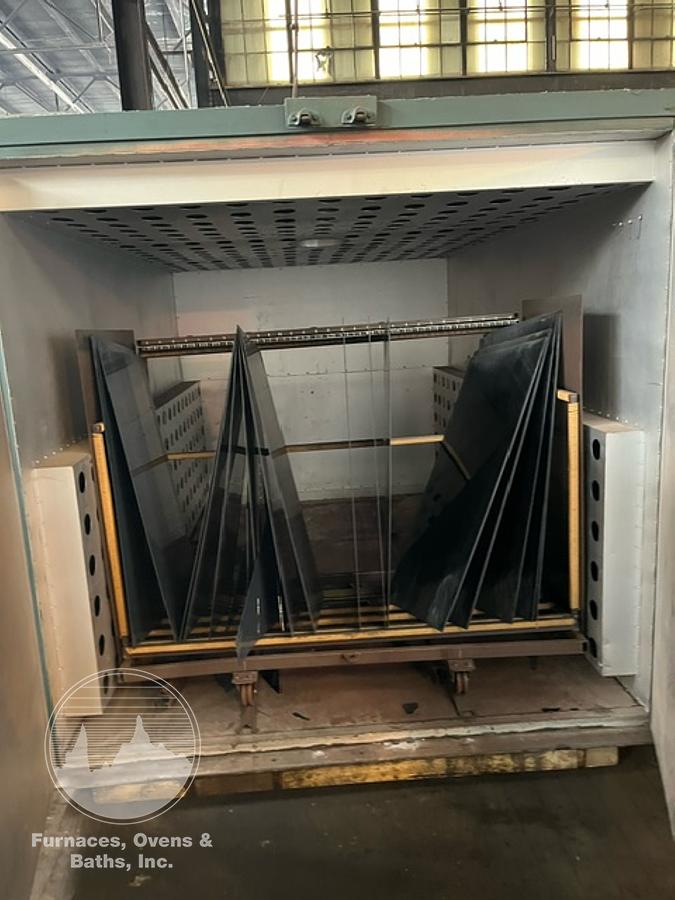

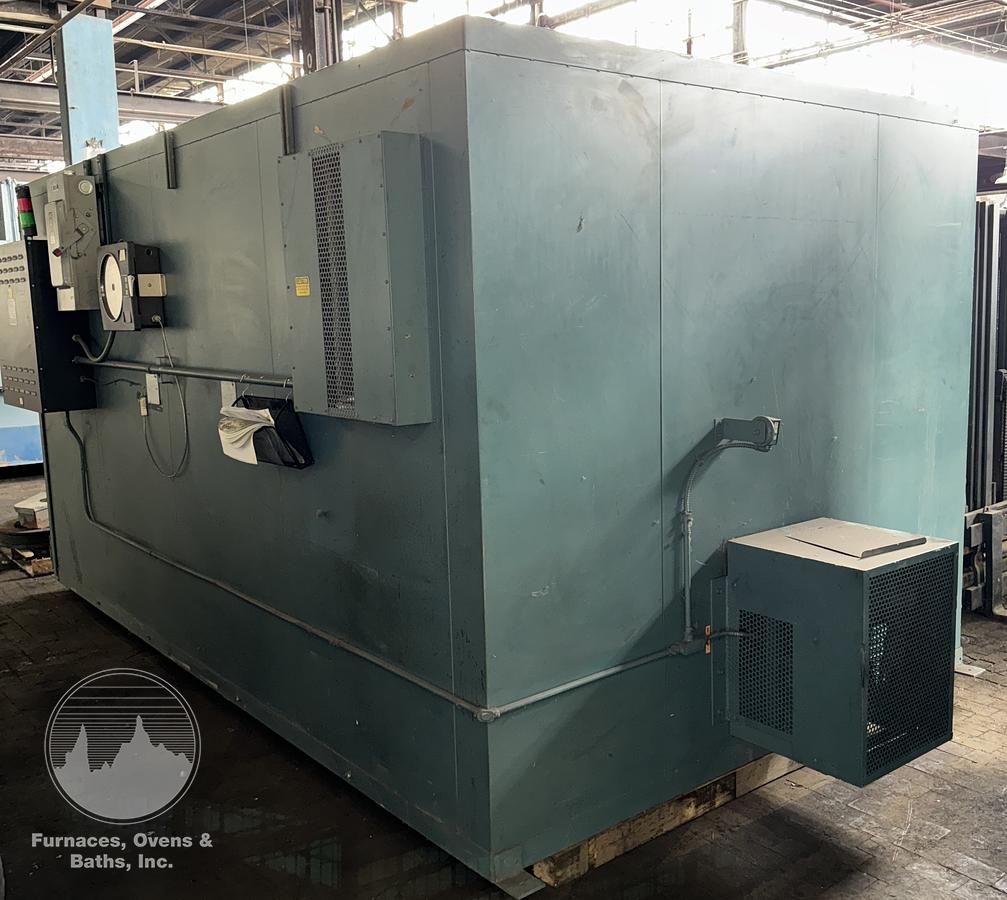

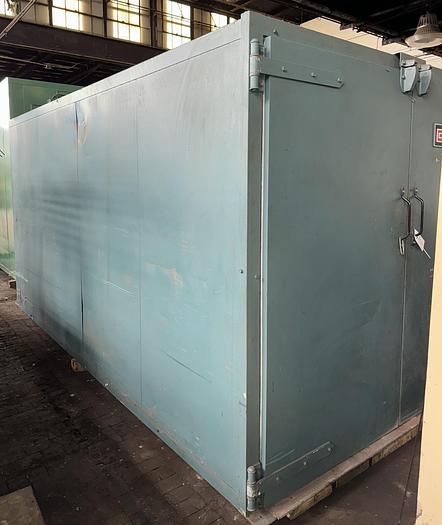

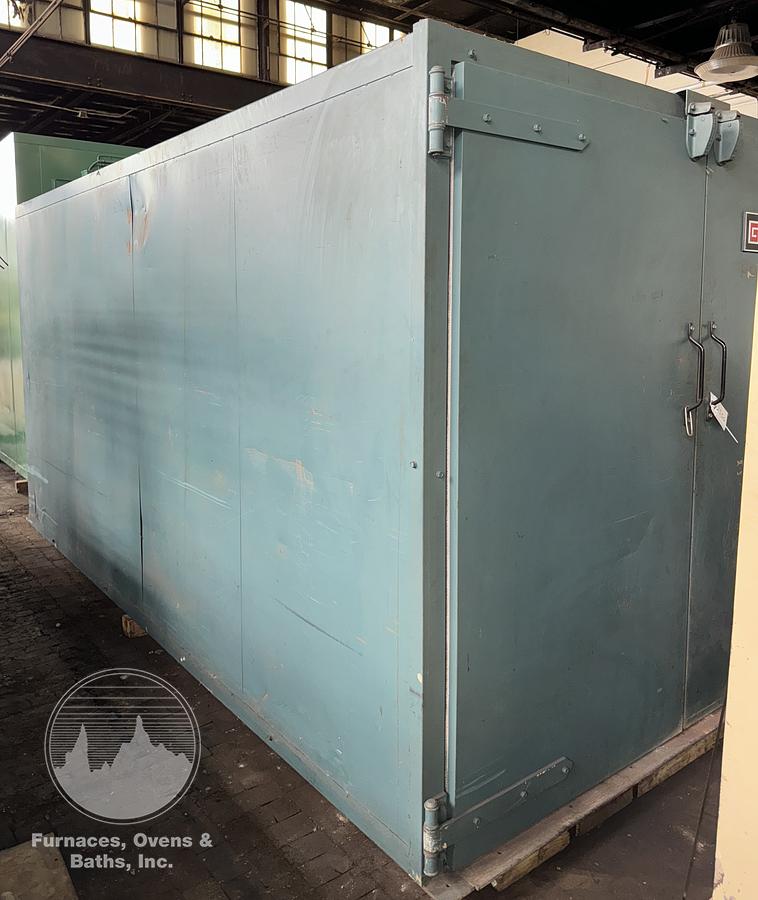

Double doors on one end. Doors have a woven fiberglass gasket and a spring tension latch for a good door seal. Aluminized steel interior with a steel plate floor. Punched louvered air duct panels on both side walls and the roof. Heating elements are located behind the work area. Belt driven circulating fan is mounted through the rear wall. Heated air is circulated out both side wall air ducts and returns through the roof creating a combination airflow pattern for good uniform heating. An exhaust vent is located on top of the oven. Ovens includes a roll-in cart. Oven will be tested prior to shipping.
Specifications
Manufacturer | Grieve |
Model | B4-500 |
Condition | Used |

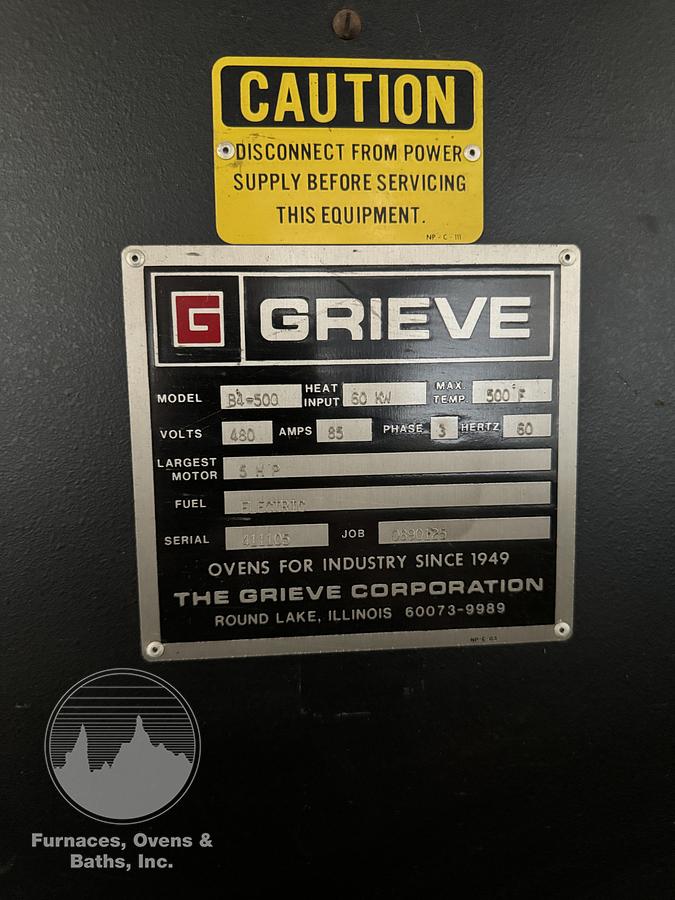

Serial Number | 411105, JOB #0890125 |
Stock Number | 7807 |
Work area | 72"W x 72"H x 120"L |
Heated | Electric |
Max temperature | 500°F |
Voltage | 480/3/60/65 Amps/60 kW |
External dimensions | 106" wide x 96" high x 15' long - 6000 pounds |
Availability | Immediate |
