37"W x 37"H x 25”L, Despatch Industries RAD2-19 Cabinet Oven, 650-F, Electric

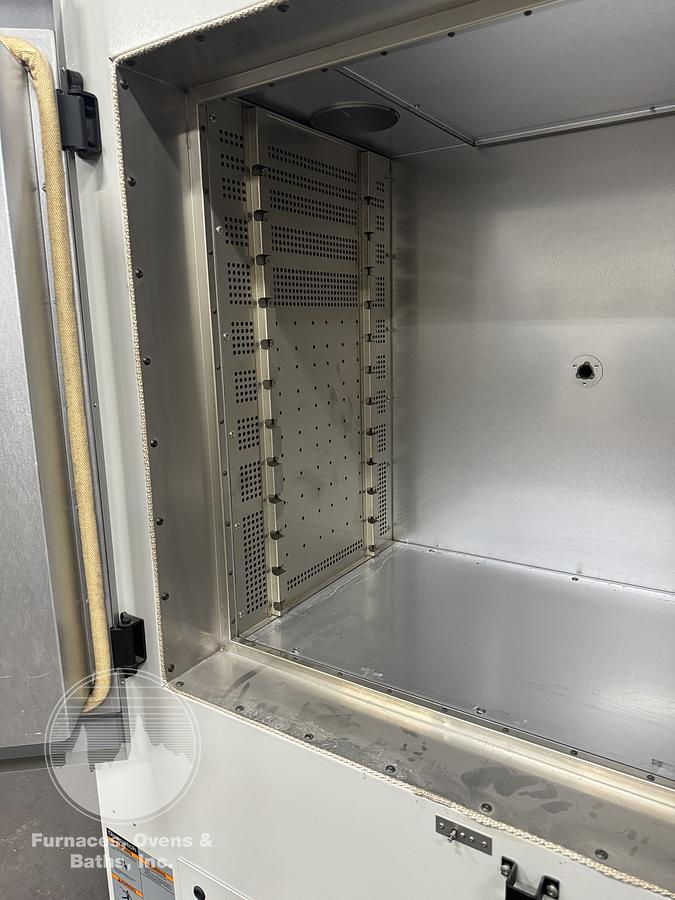

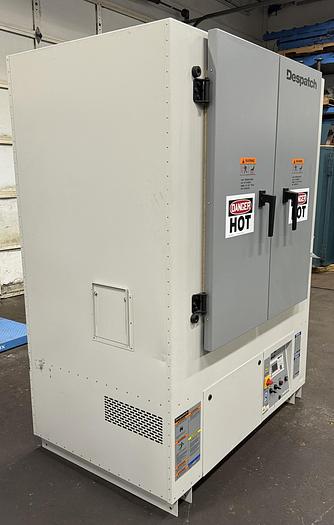

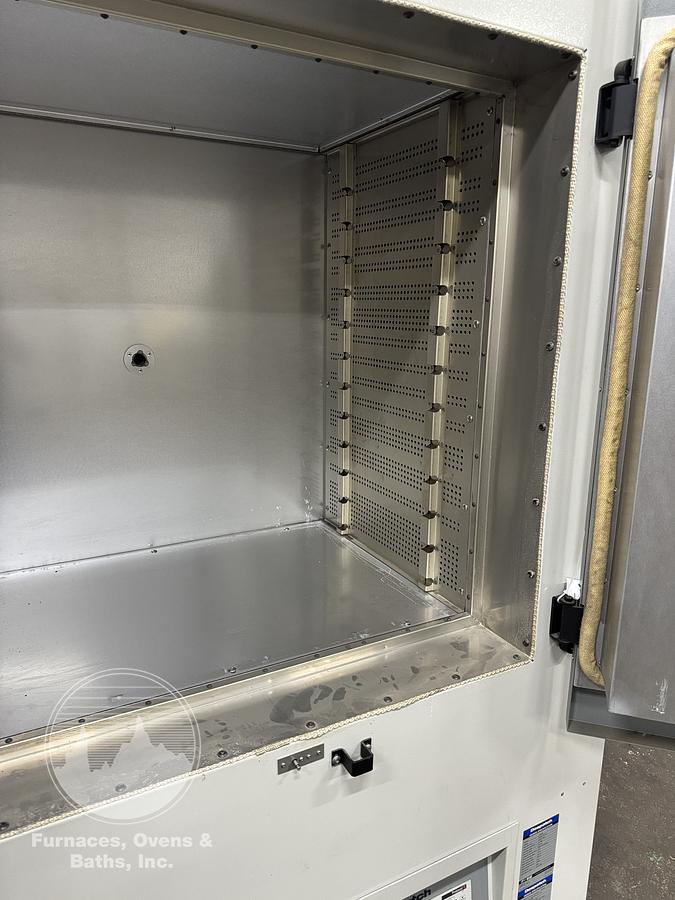

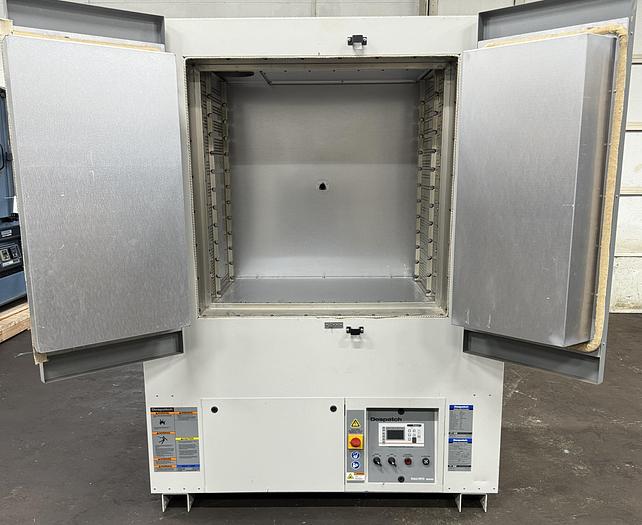

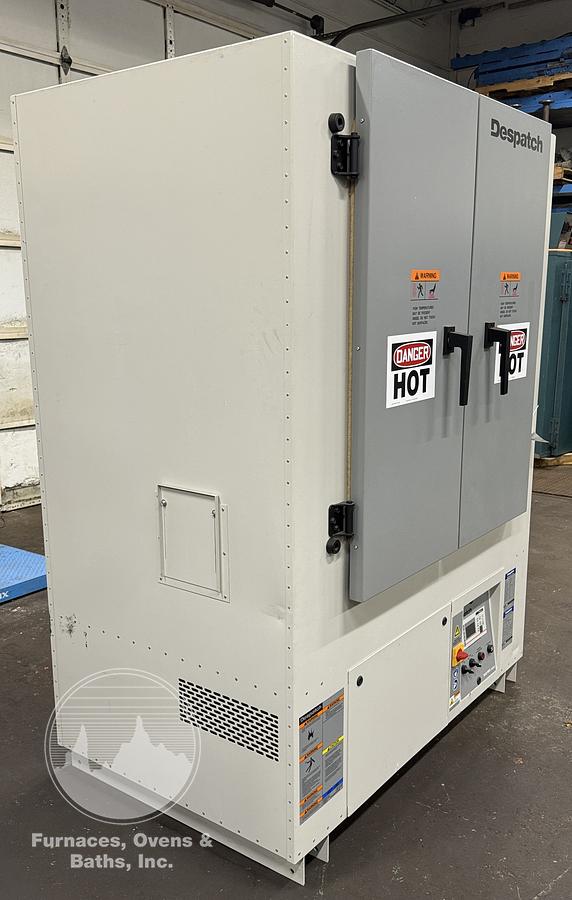

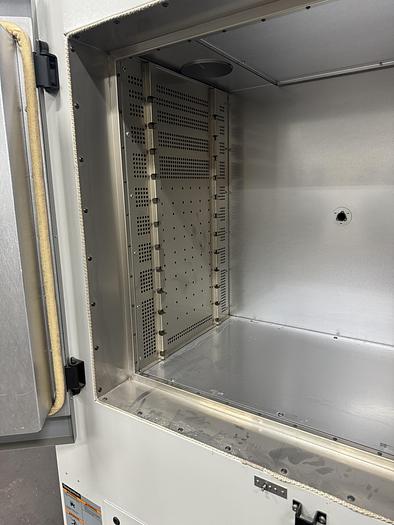

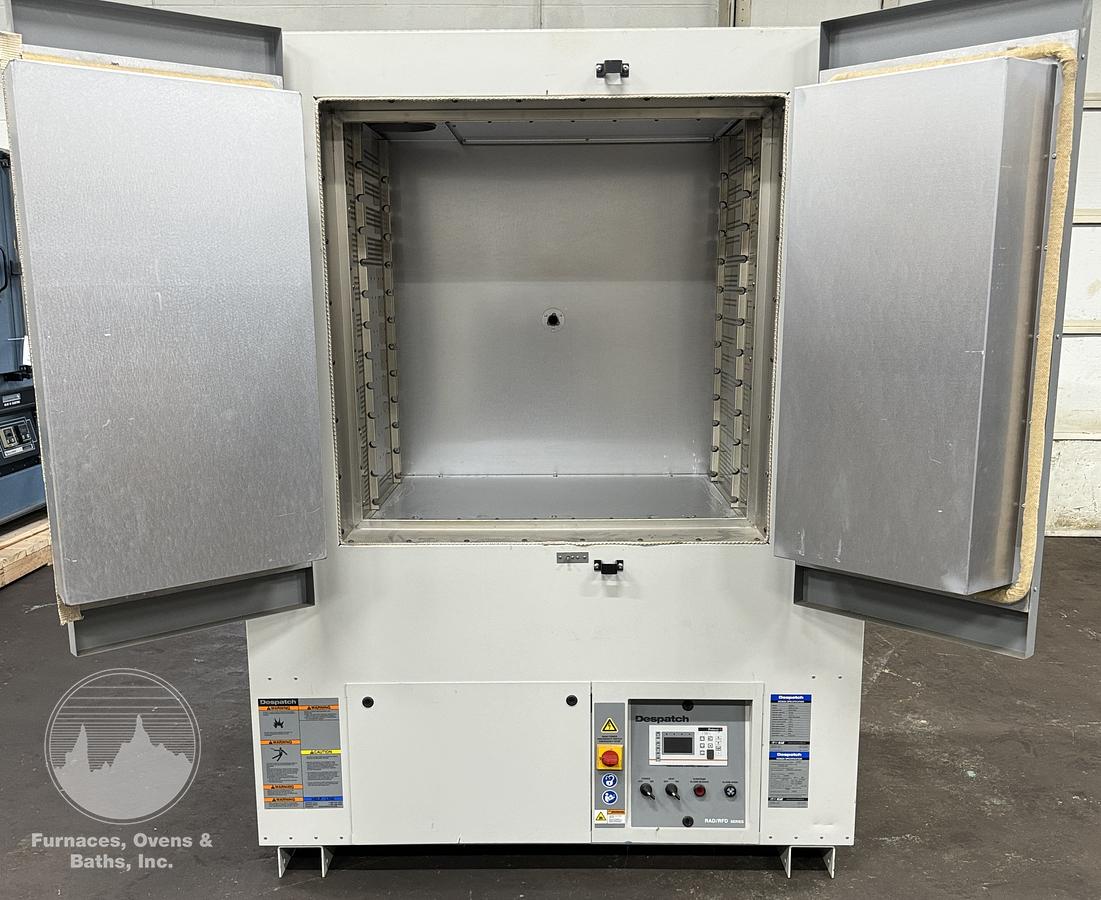

Double doors with high temperature ceramic fiber gaskets and cam action door locks which provides a good door seal. Combination of stainless steel and Aluminized steel interior. Eleven (11) shelf brackets on 3" centers. Heating elements and direct driven circulating fan are located under the work area. Heated air is circulated horizontally across the work chamber for good uniform heating. A fresh air inlet is located on the left-hand side and a dampened exhaust vent is on top of the oven. This oven has a door limit switch which shuts off power to the heating elements and circulating fan. Oven will be tested prior to shipping. Oven is in EXCELLENT TO LIKE NEW CONDITION!

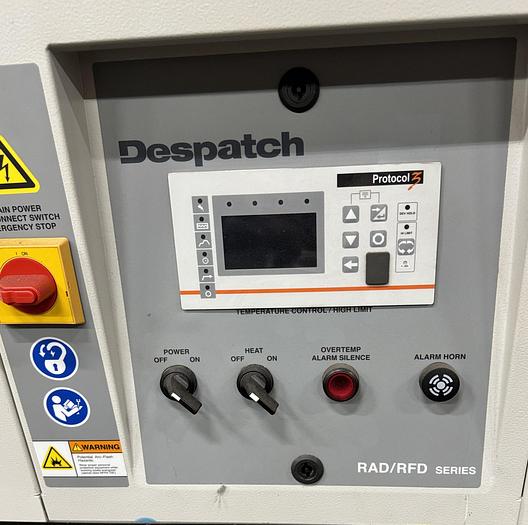

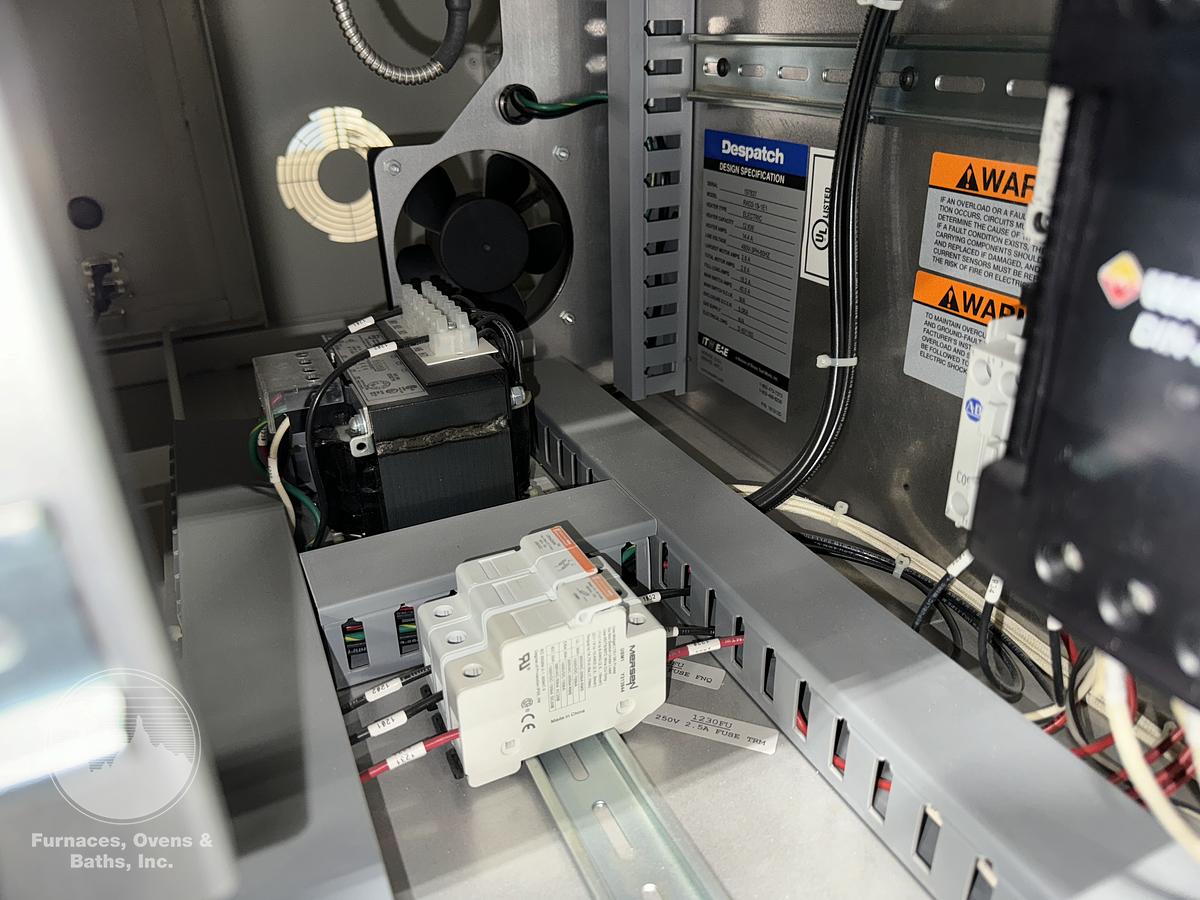

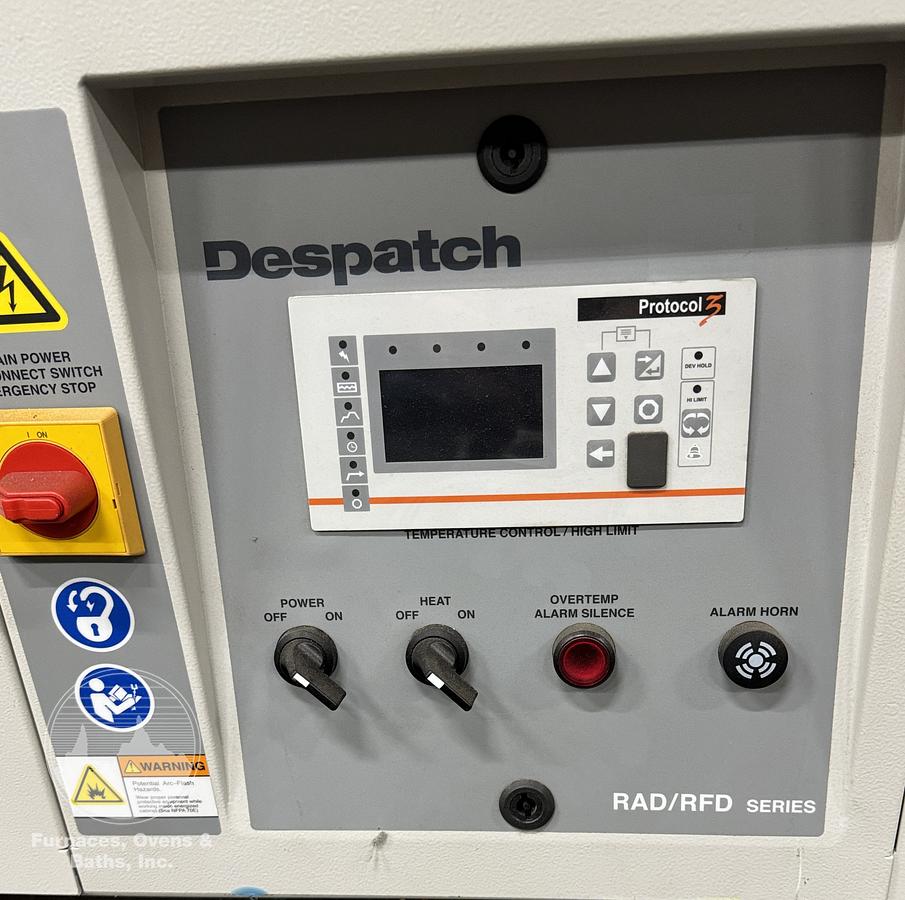

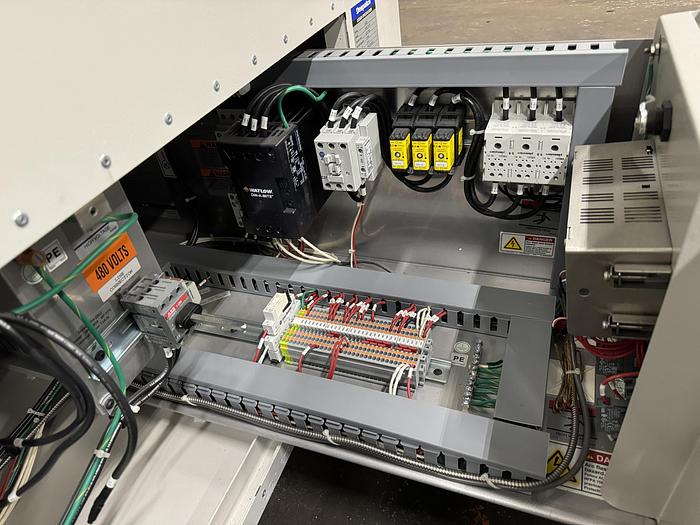

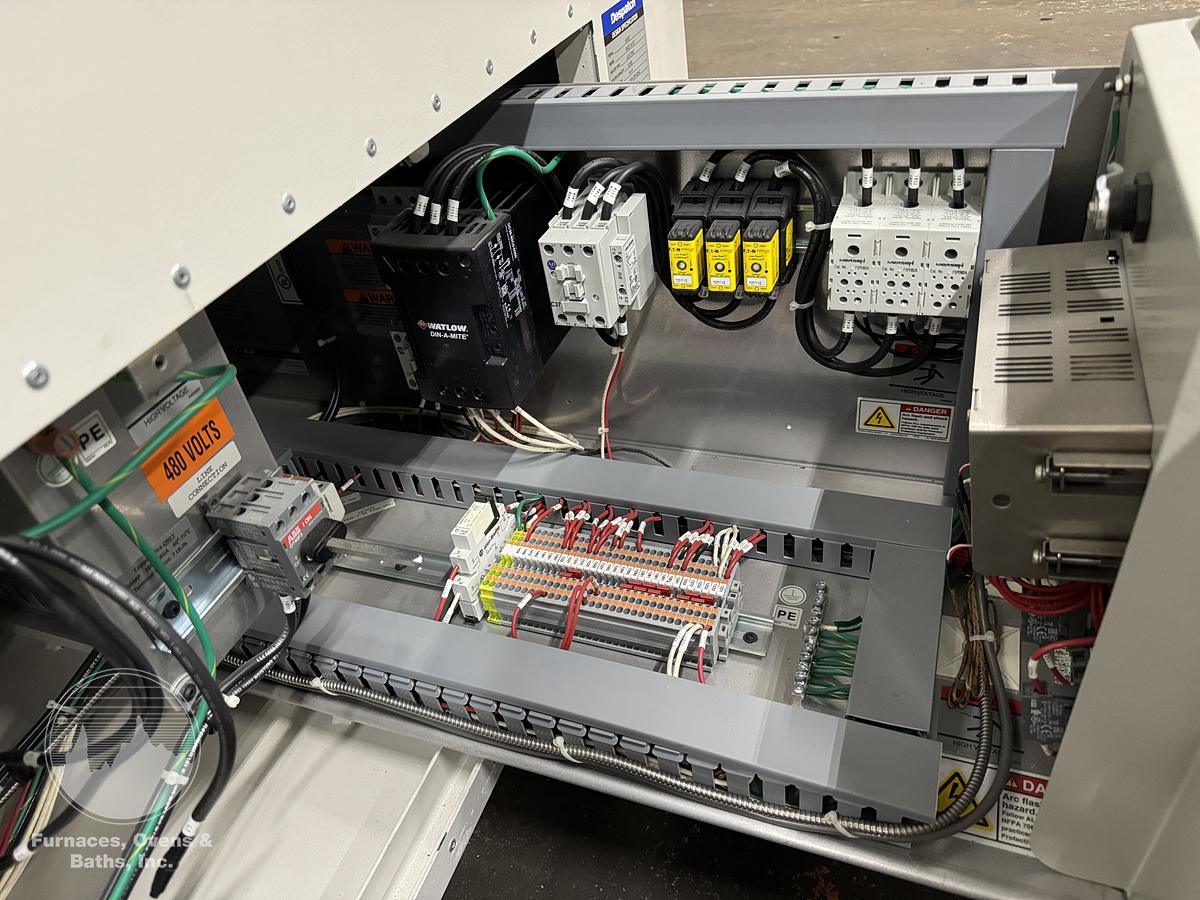

Controls are mounted and wired in a slide out control cabinet under the heating area. There is a Despatch Protocol 3 digital control which operates as a dual functioning controller/high limit. This Protocol 3 provides three primary operating modes with the 1st being manual in which the oven operates continuously at fixed temperature until turned off. 2nd is timer mode in which oven operates at a fixed temperature for a specified time then shuts off. 3rd is profile mode in which temperature increases or decreases as defined by 255 segments with 64 ramp and soak profiles. Control switches for power on/off, heat on/off are flush mounted in the front panel. Button for over-temp alarm silence and alarm horn are flush mounted as well. Watllow Din-A- Mite SCR power controller for heating elements, high limit contactor, motor starters, fuses etc. are also located inside the control cabinet.
