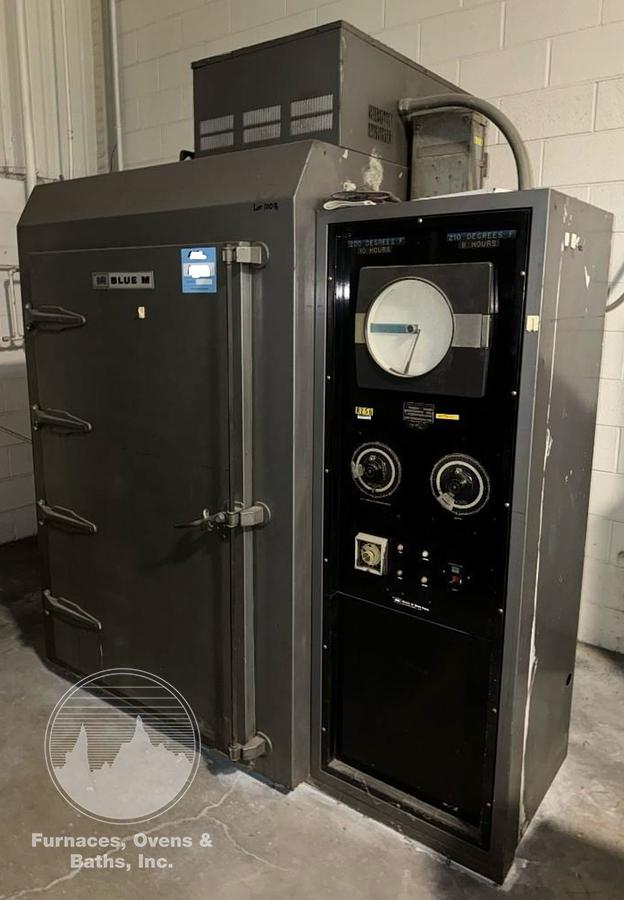

36"W x 60"H x 48"L Blue M Truck Oven EM-606GXX, 600°F, Electric

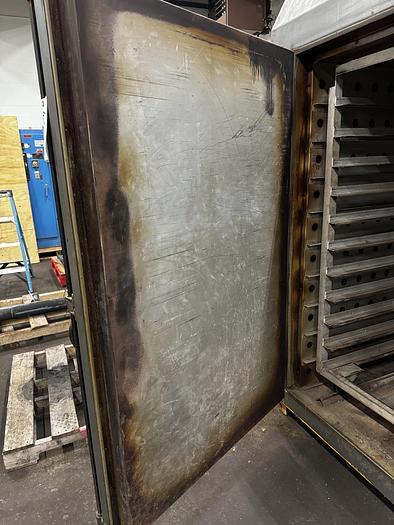

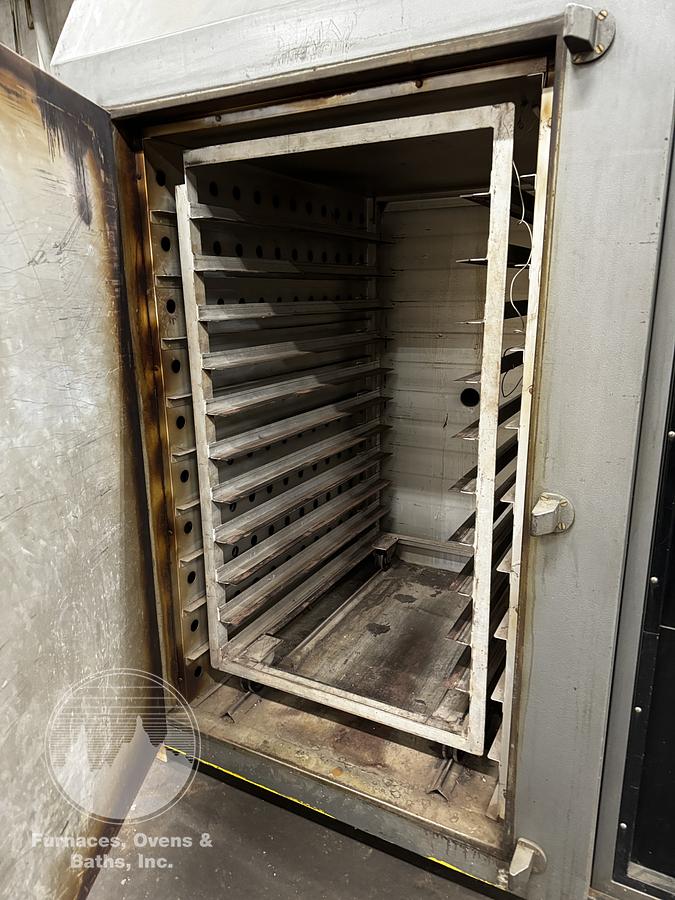

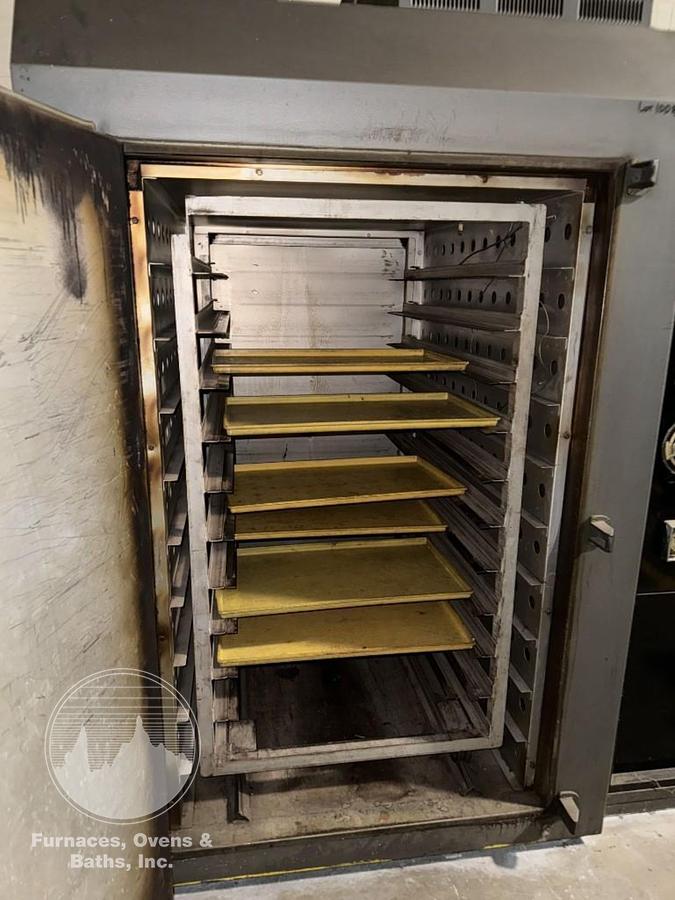

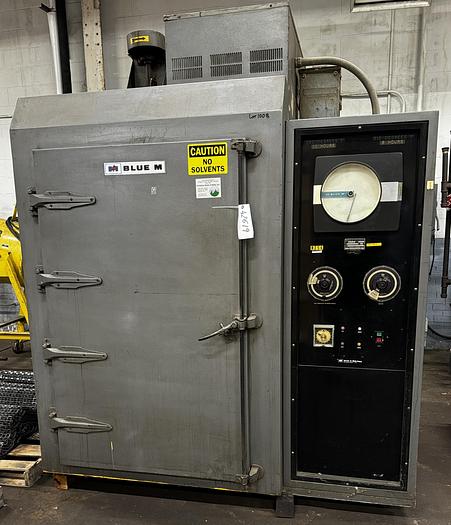

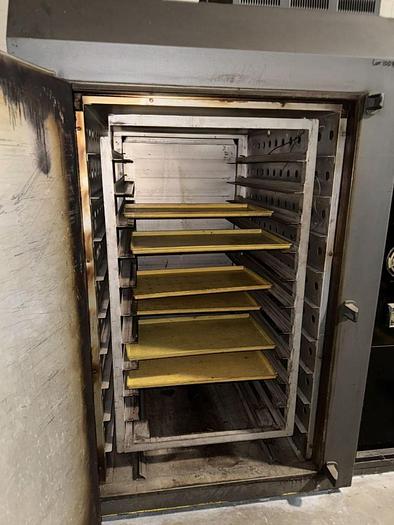

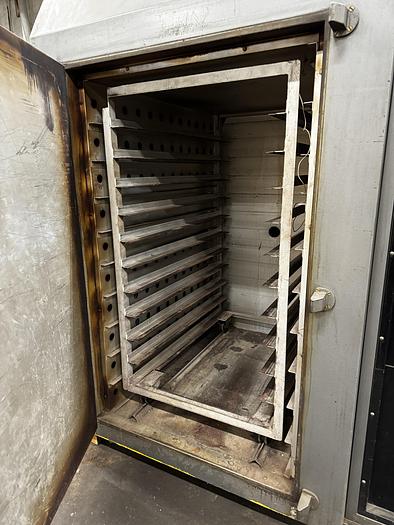

Single door with a silicon rubber gasket. Door has a positive seal 3 point cam action latch. Aluminized steel interior with insulated floor with cart tracks. Tracks are angle iron on 24" centers. A cart with 11 shelf brackets on 4-1/2” centers is supplied with this oven. Oven has no shelves. Direct driven circulating fan and coiled style heating elements are located above the work chamber. Heated air is circulated in a horizontal air flow pattern across the chamber for good uniform heating. An adjustable fresh air inlet and an exhaust vent are located on the left-hand side. Oven will be tested prior to shipping. Controls upgrade is available at an additional cost.

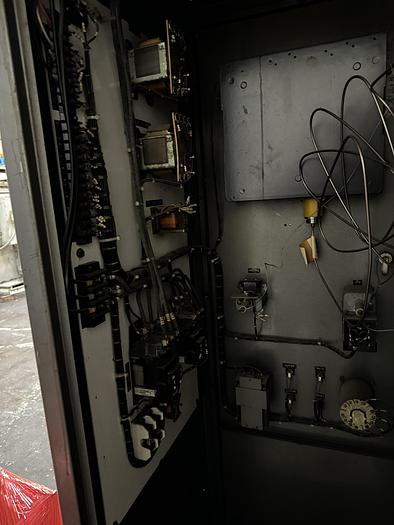

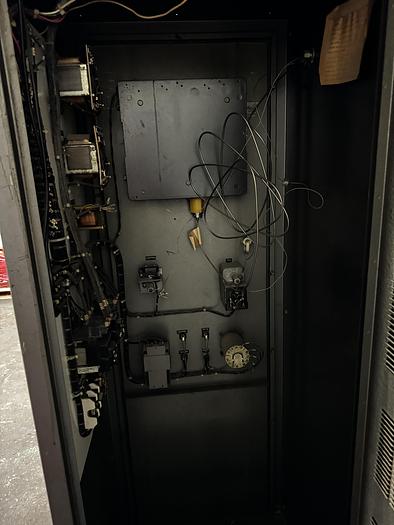

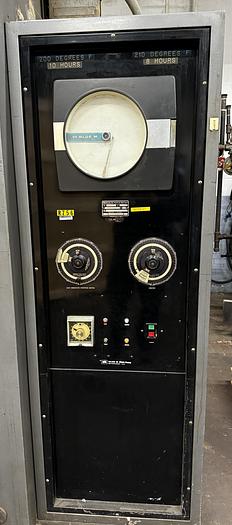

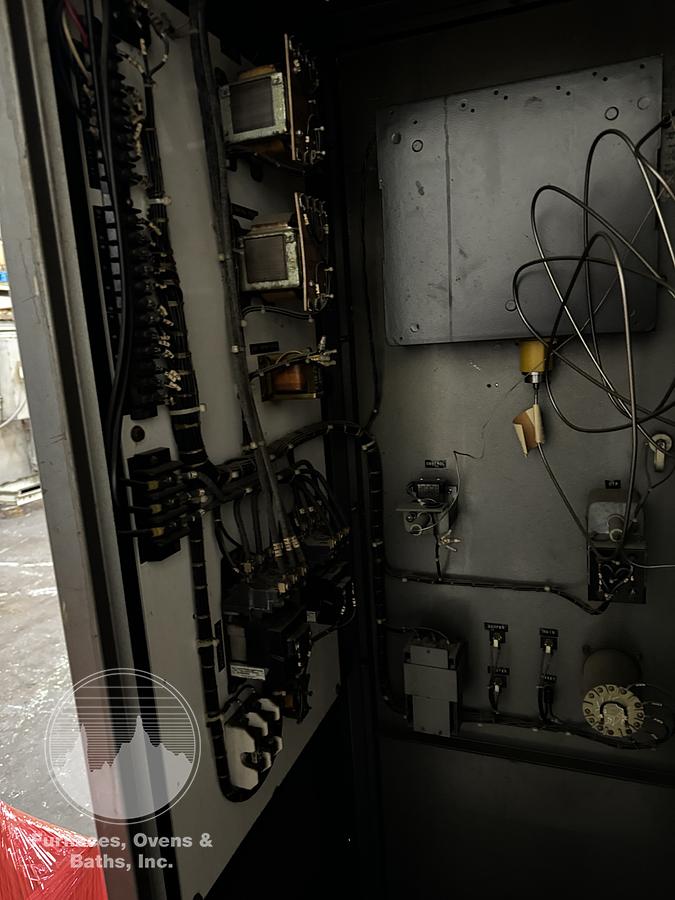

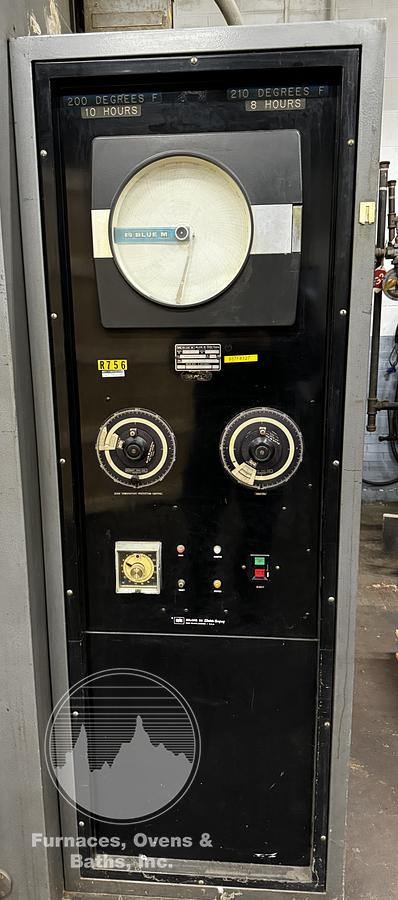

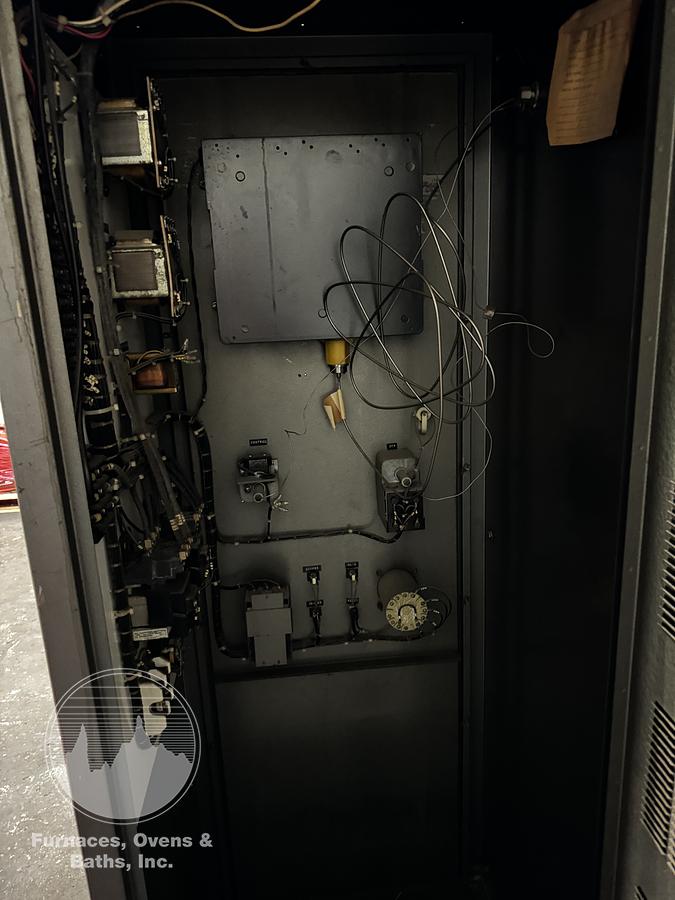

Controls are located in a large enclosure attached to the right-hand side. Includes a Blue M analog temperature control and high limit with control switches are flush mounted in the enclosure. Mechanical contactors control power to heating elements. Motor starter, fuses, relays etc. are mounted inside the enclosure. Fused disconnect mounted on the right side of enclosure. Also, this oven has an Eagle Signal mechanical timer (0 to 30 Hours) and a Partlow circular chart recorder.
