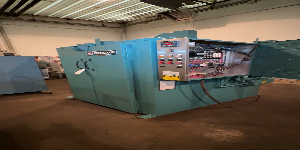

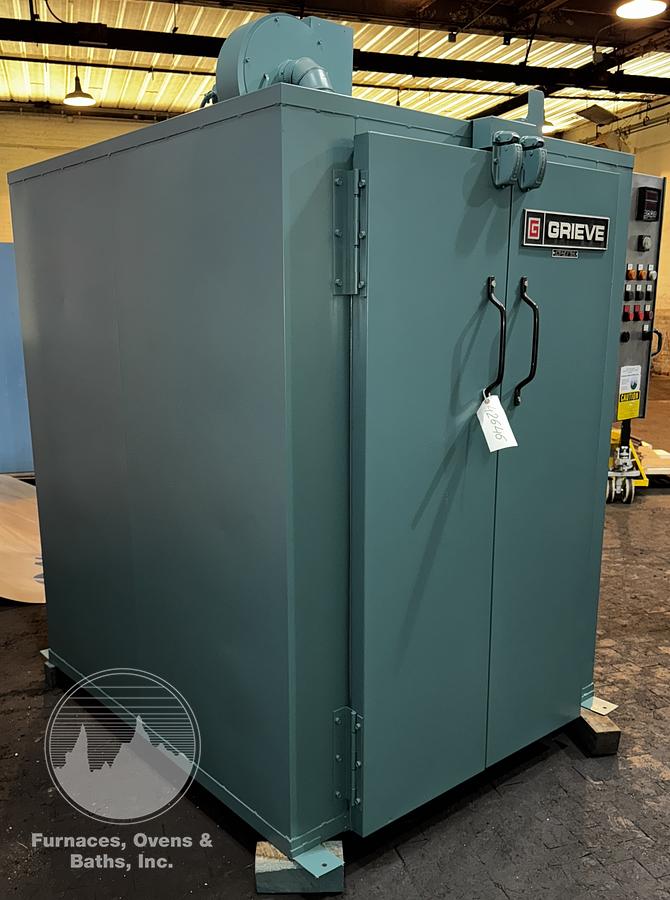

36"W x 60"H x 36"L Grieve TA-500, 500°F, Gas Fired, Class A

36"W x 60"H x 36"L Grieve TA-500, 500°F, Gas Fired, Class A

Contact us for price

orCall 248-343-1421

Description

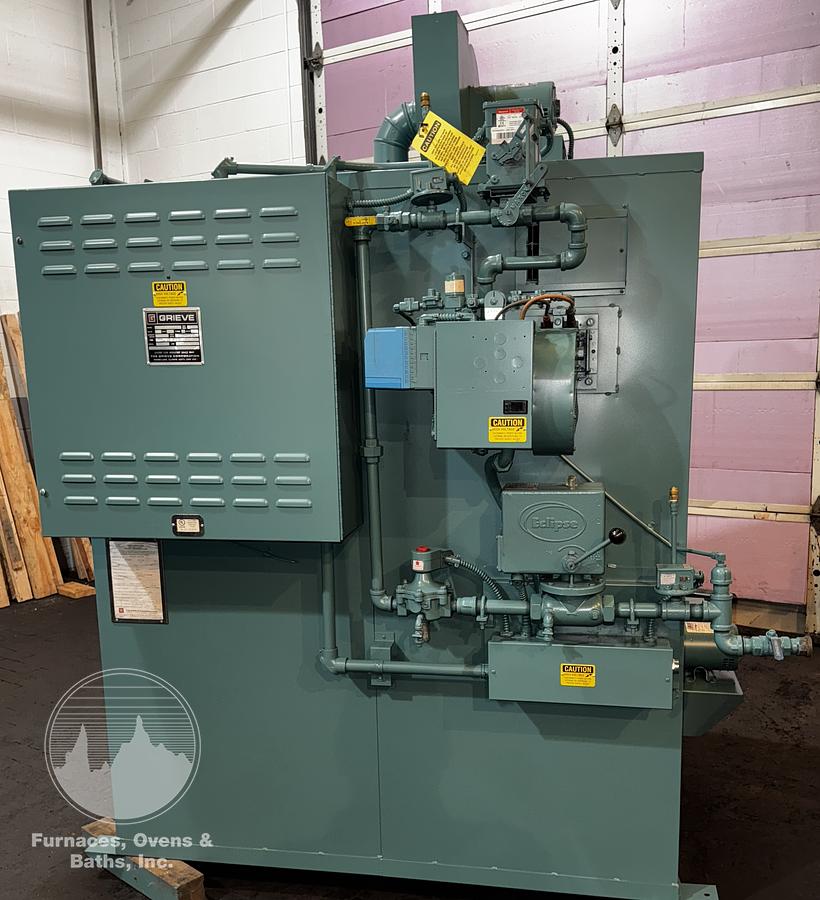

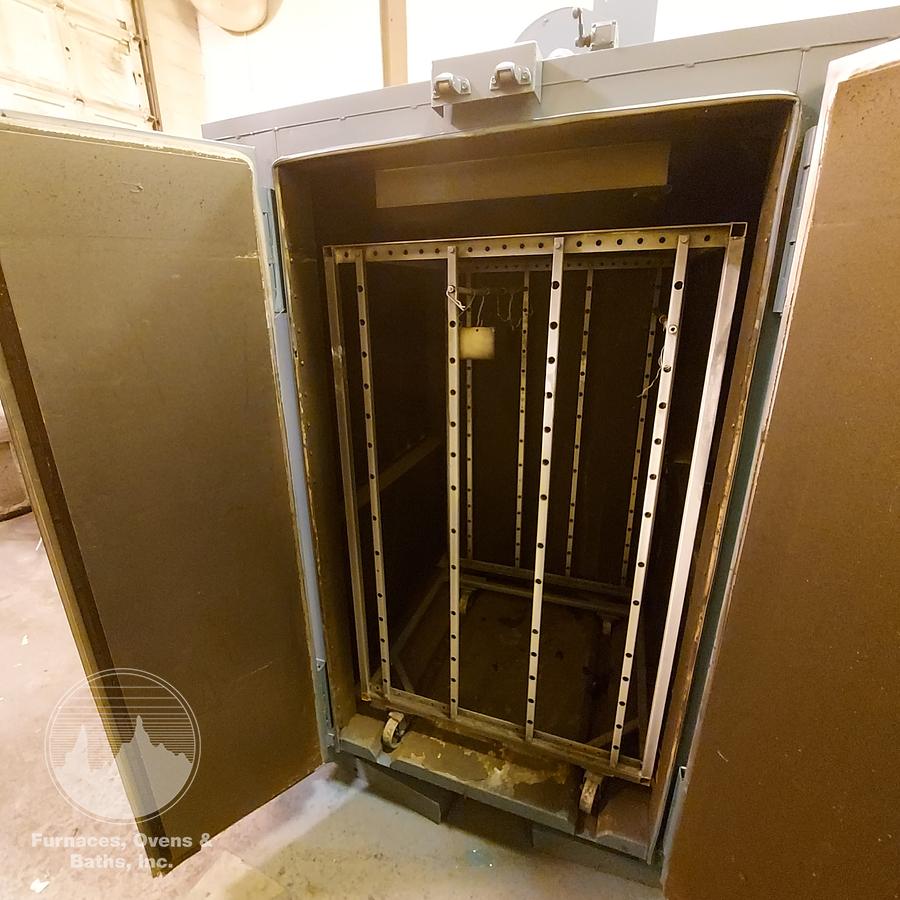

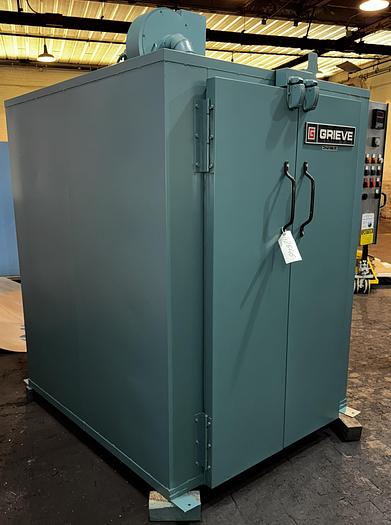

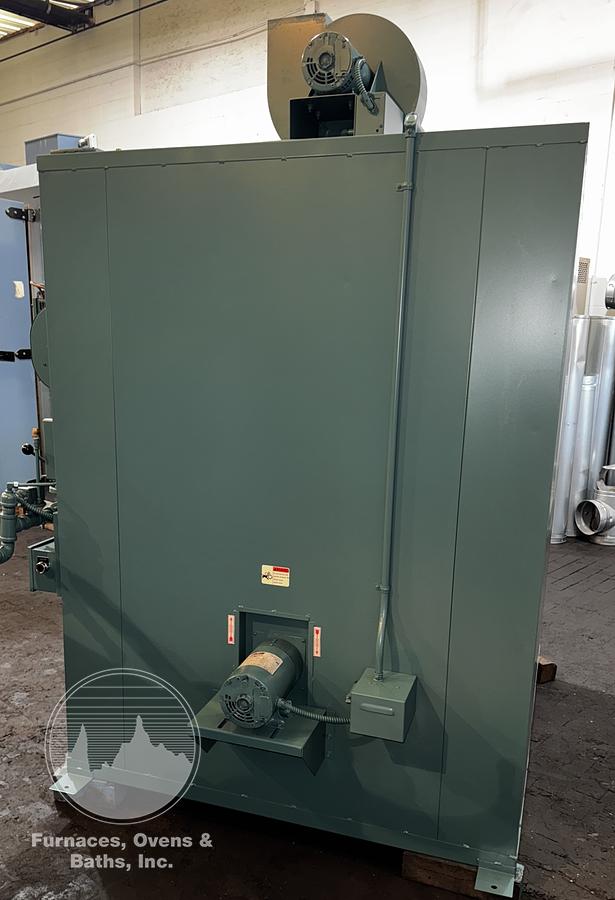

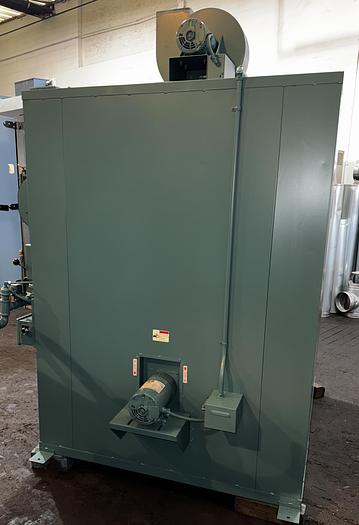

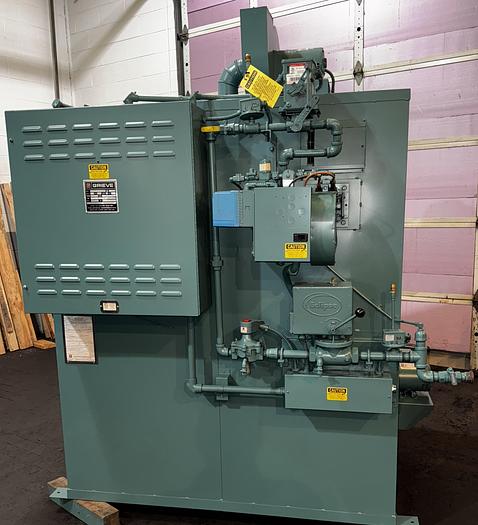

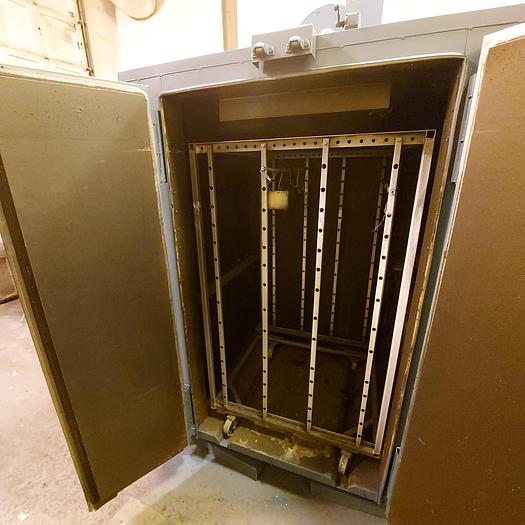

Double doors with silicone rubber gasket, "Brixon" spring tension latches and door limit switch. Aluminized steel interior wih insulated floor. The floor has 2" wide cart tracks on 24" centers, a cart is supplied with this oven. The package burner and gas train are located on the right-hand side. Package burner has Honeywell flame safety and spark ignition. Direct driven circulating fan is mounted through the rear wall. Heated air is circulated in a combination vertical and horizontal pattern across the chamber. Powered exhaust fan on top of the oven. Fresh air inlet is located on the right-hand side above the burner chamber. Oven electrics will be tested prior to shipping. Manual and drawings are included with this oven.

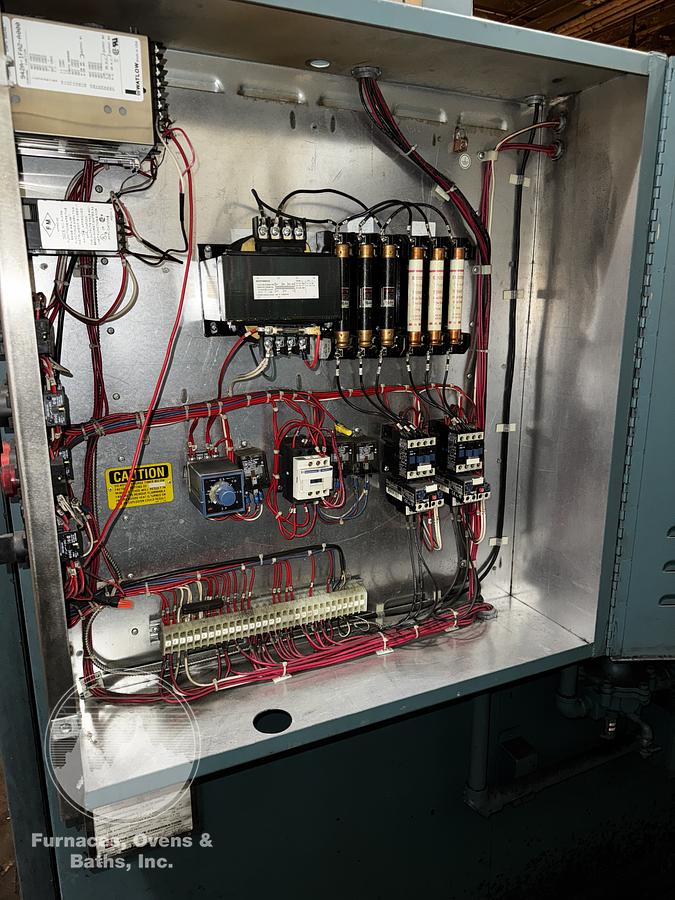

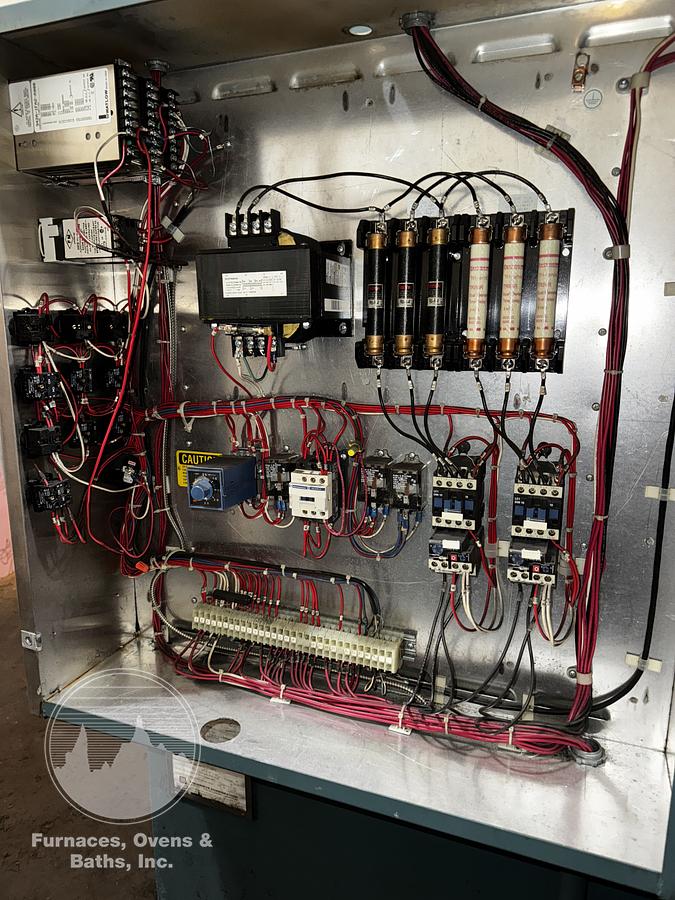

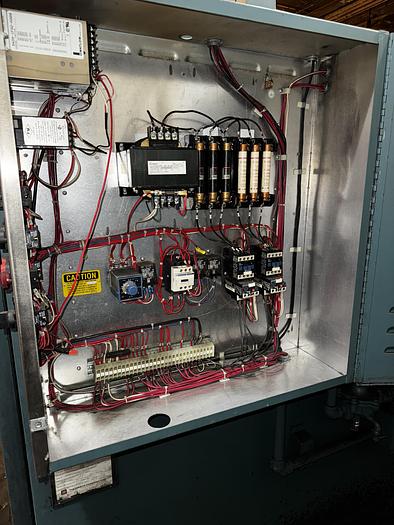

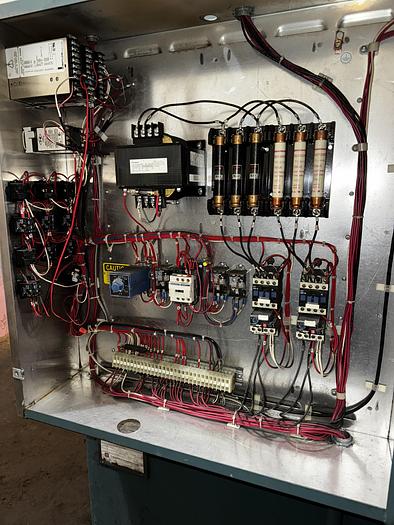

Controls are located in a "UL" rated enclosure attached to the right-hand side of the oven and includes a Watlow series 942 ramping digital temperature controller and a Love analog high limit control. Push buttons and switches with indicating lights for exhauster, blower, purge and pilot are flush mounted on the front of the enclosure. Motor starters, fuses, purge timer etc. are mounted inside the enclosure.



Specifications

ManufacturerGrieve
ModelTA-500
Year2001
ConditionUsed

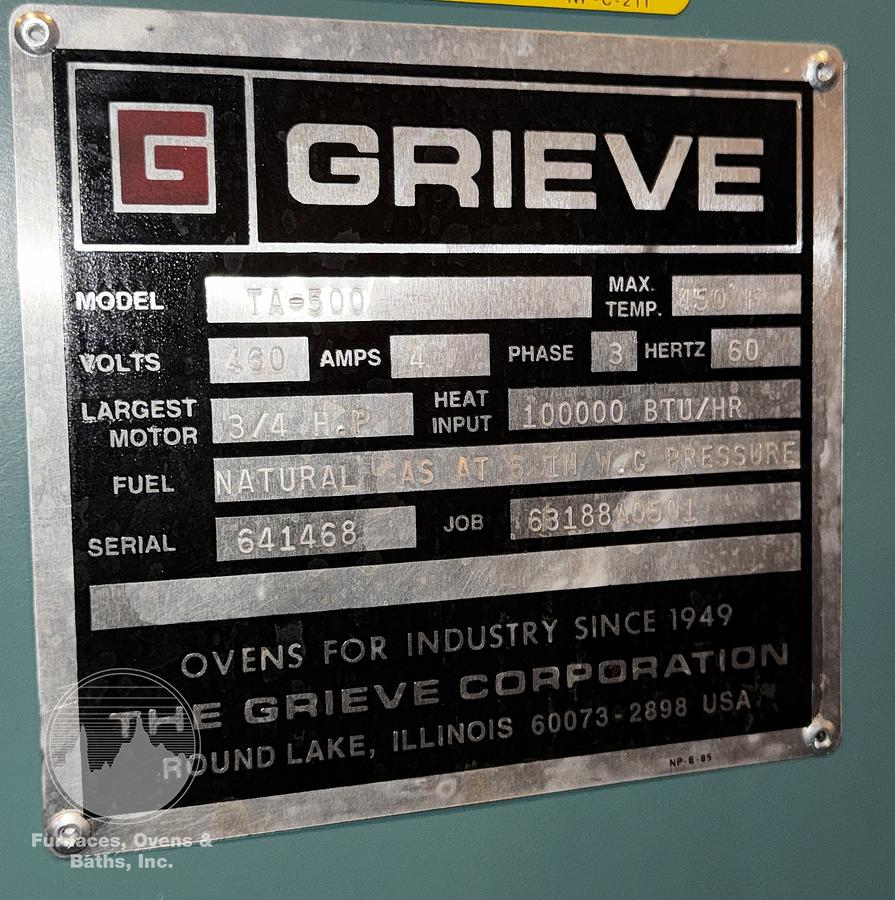

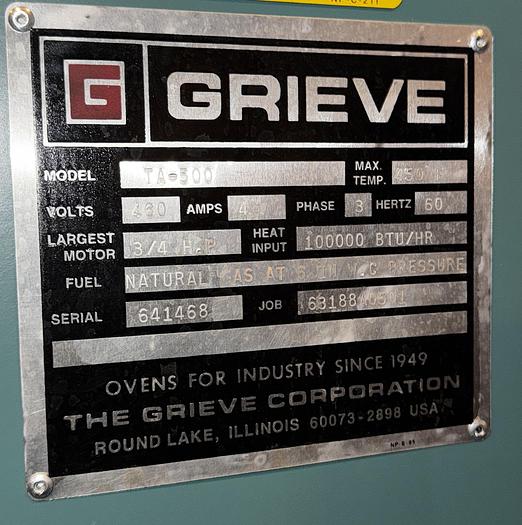

Serial Number641468, JOB #63188A0501
Stock Number7828
Work area36"W x 60"H x 36"L
HeatedNatural Gas - 100,000 BTU's/Hour @ 6" W.C.

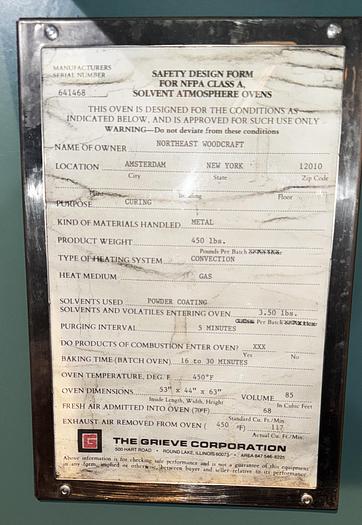

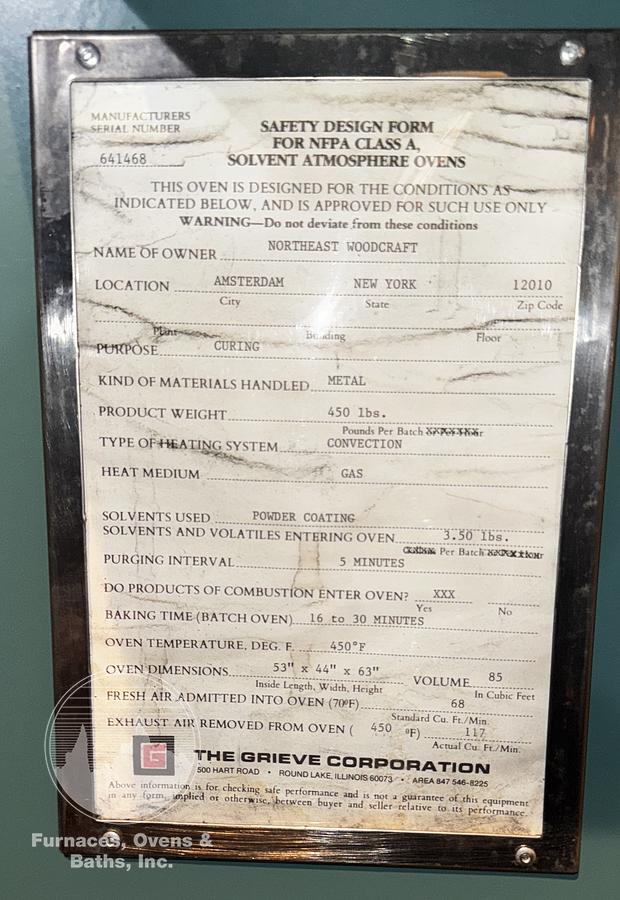

Max temperature450°F w/Solvents, 500°F w/o Solvents
Voltage208V/3/60
External dimensions64” wide x 90” high x 75” long
