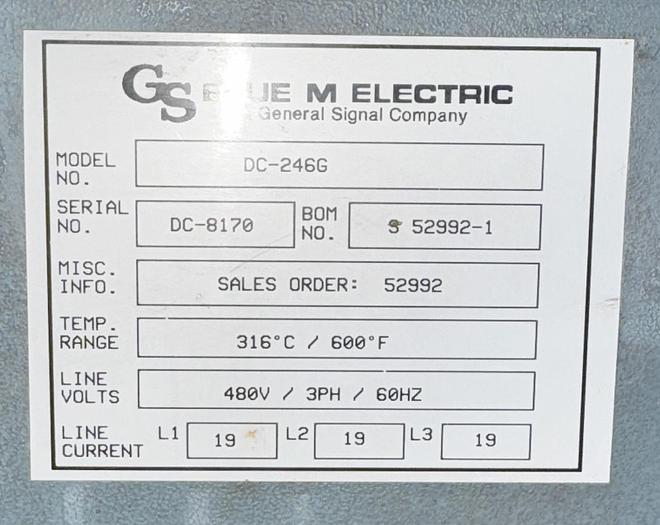

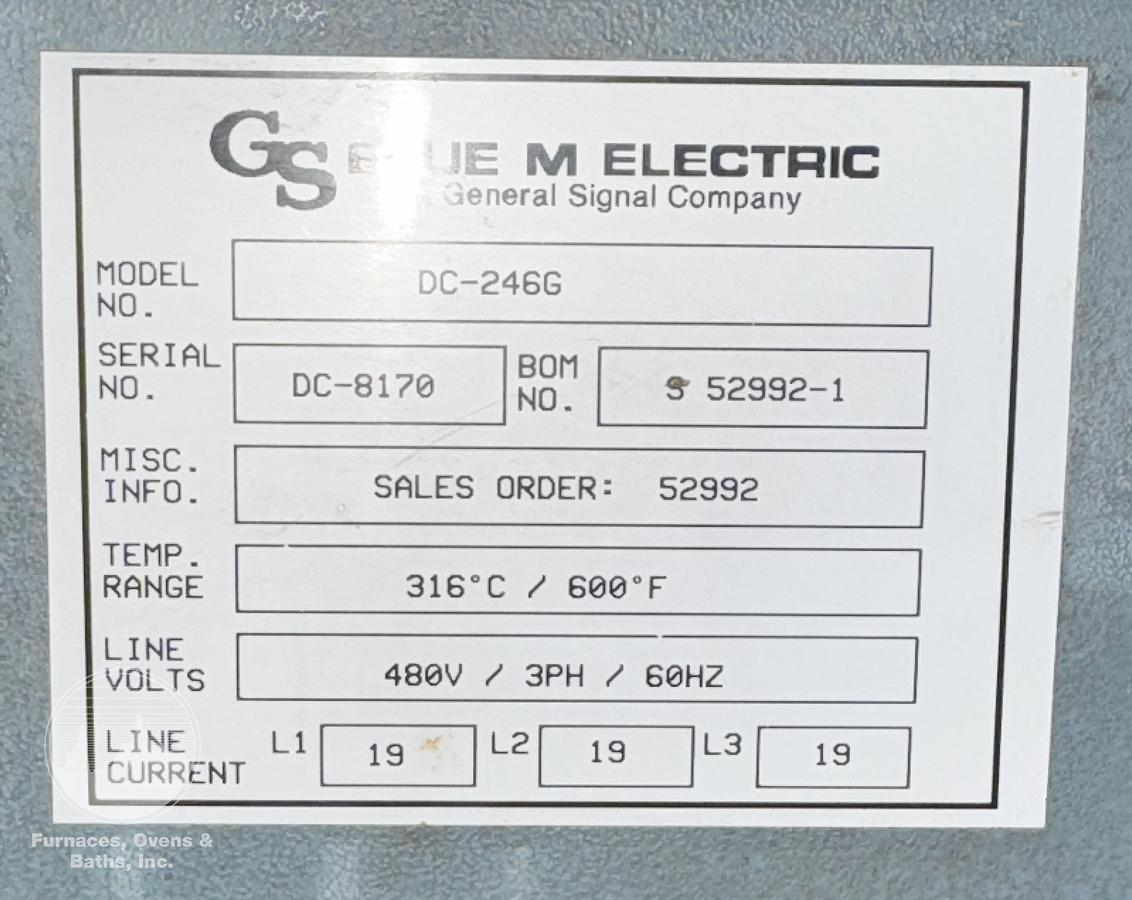

36"W x 48"H x 24"L, Blue M DC-246G Cabinet Oven, 600°F, Stainless Interior

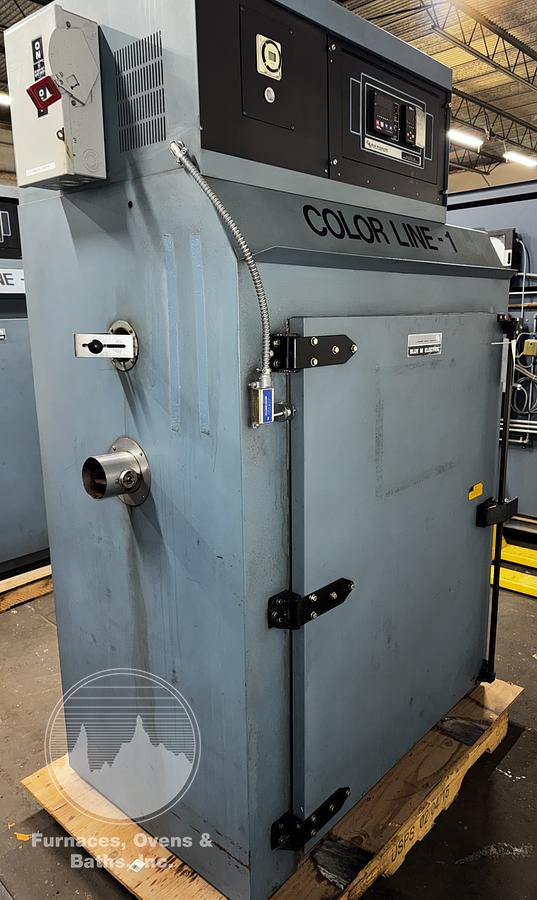

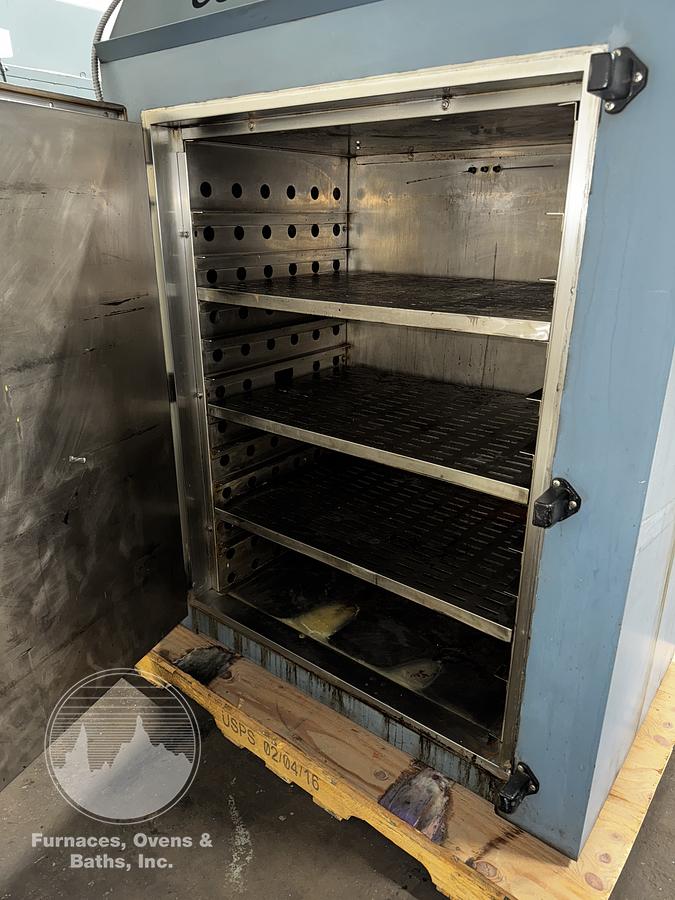

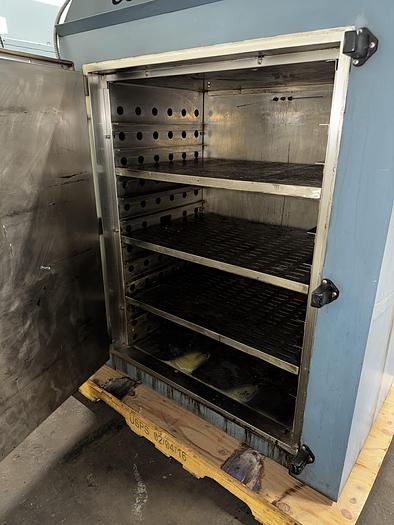

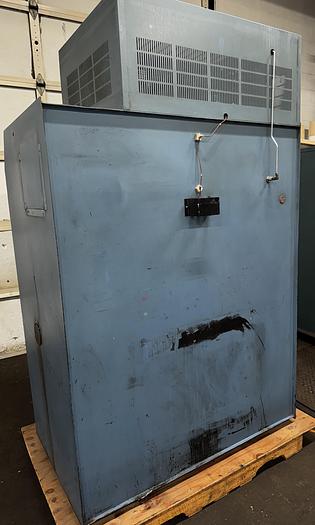

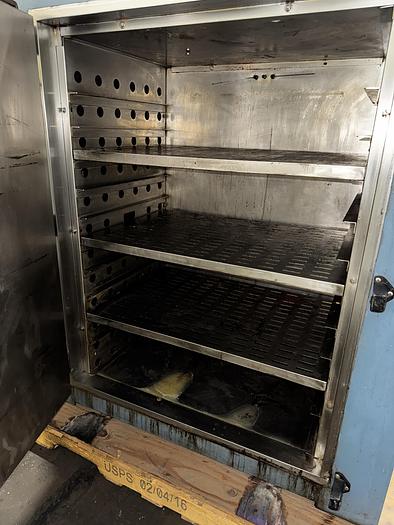

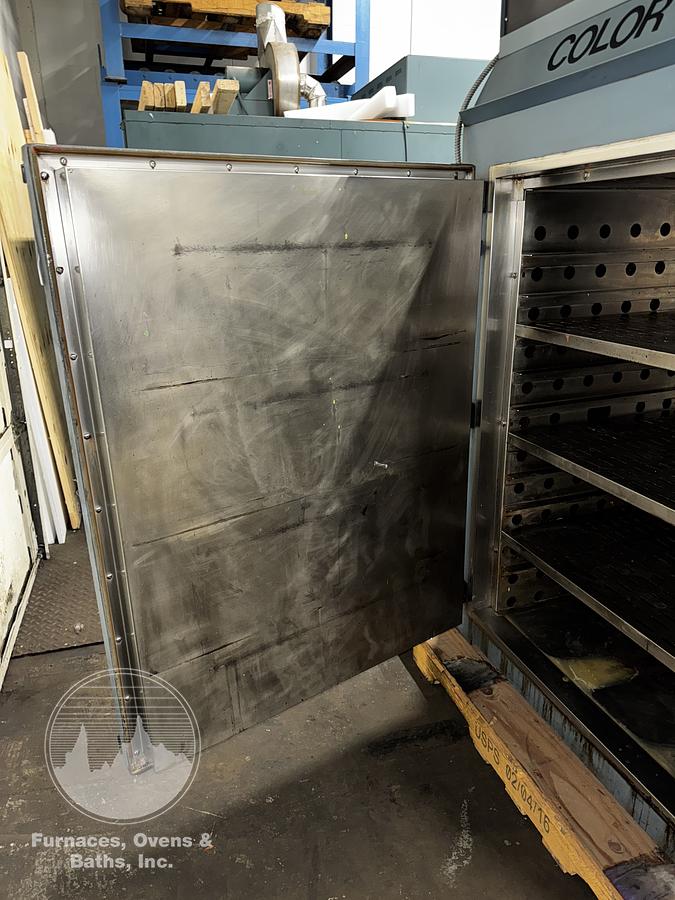

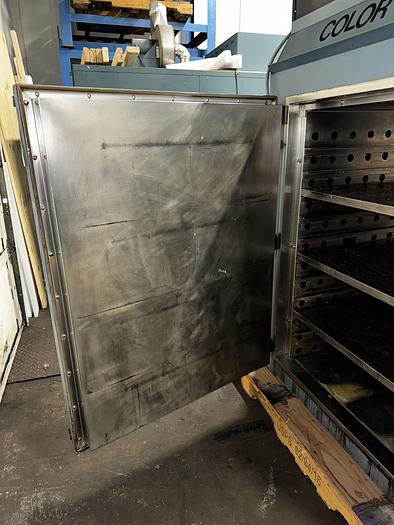

Single door, floor model cabinet oven with 3-point cam action latch with silicon rubber door gasket for a good seal. Oven has a door limit switch which cuts power to the heating elements when the door is open. Stainless steel interior with perforated air duct side wall panels. Coiled style heating elements and direct driven circulating fan are above the work area. Heated air is circulated in a horizontal pattern across the chamber. Adjustable fresh air inlet and exhaust port is located on the left-hand side. Chamber access port is located on the right-hand side. Three (3) shelves are included with this oven. Oven will accept ten (10) shelves. Shelves are on 4" centers. Oven will be tested prior to shipping

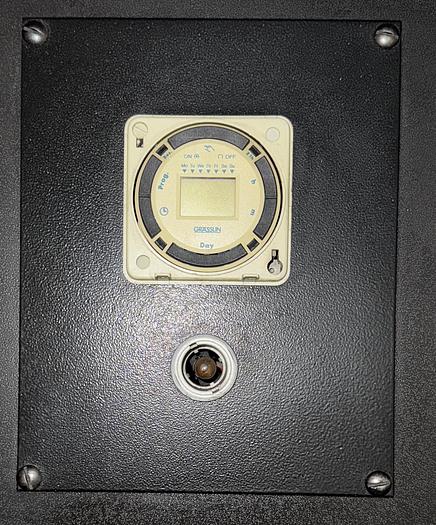

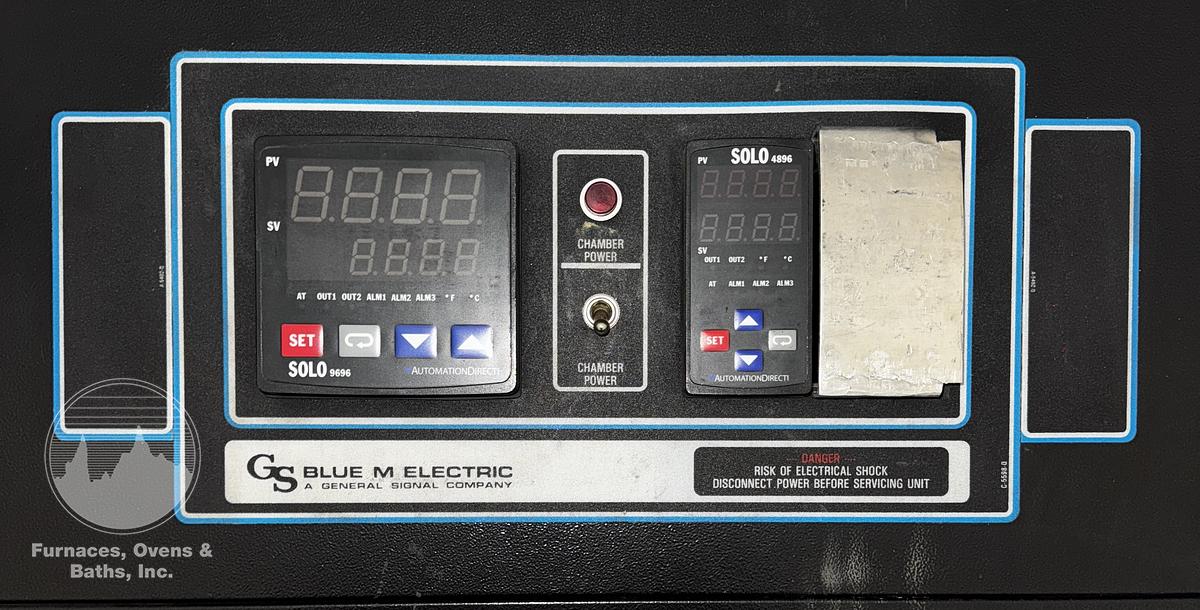

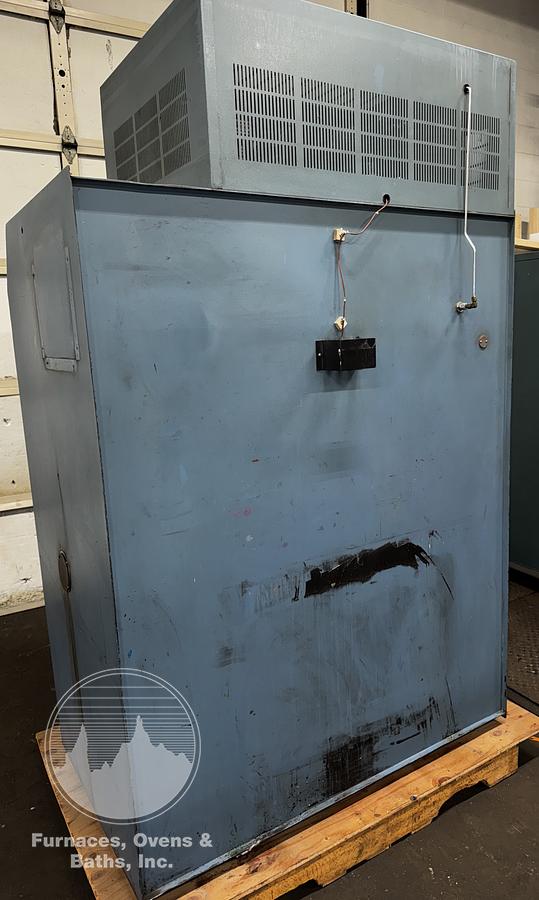

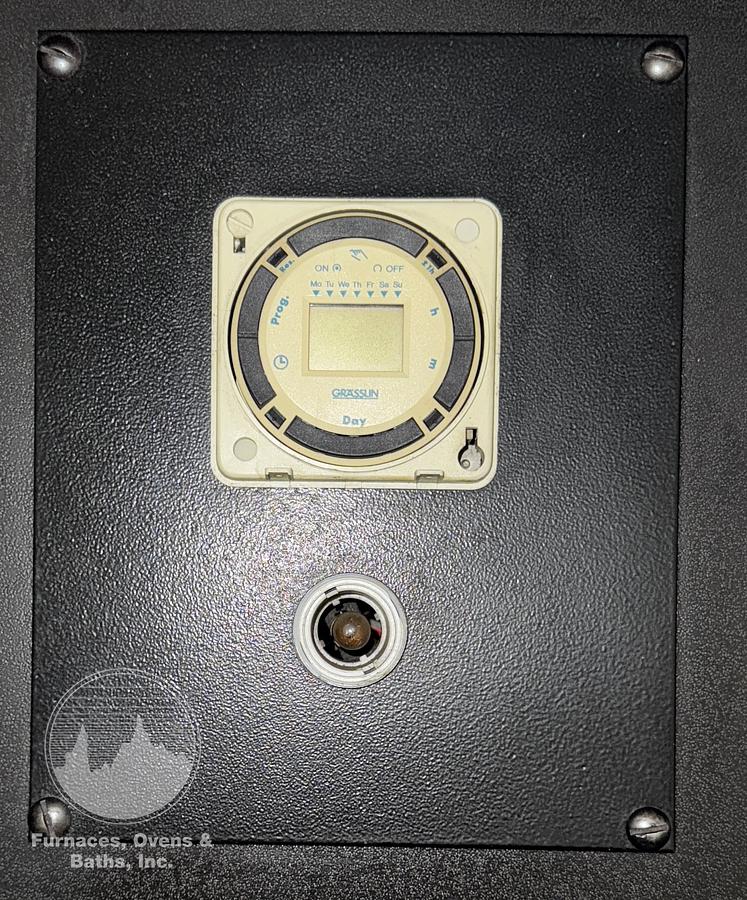

Controls are located in a convenient slide out console located above the work area. This console includes an Automation direct “SOLO 9696”digital temperature control and a Automation Direct “SOLO 4896” digital high limit. A power toggle switch with indicating light for on/off is flush mounted in the face of the console. Solid state power relays, high limit contactor, motor starer, fuses, relays etc. are mounted to the console base. Fused disconnect is mounted on the left-hand side of the oven. This oven has a 7-day, 24 hour digital timer.
