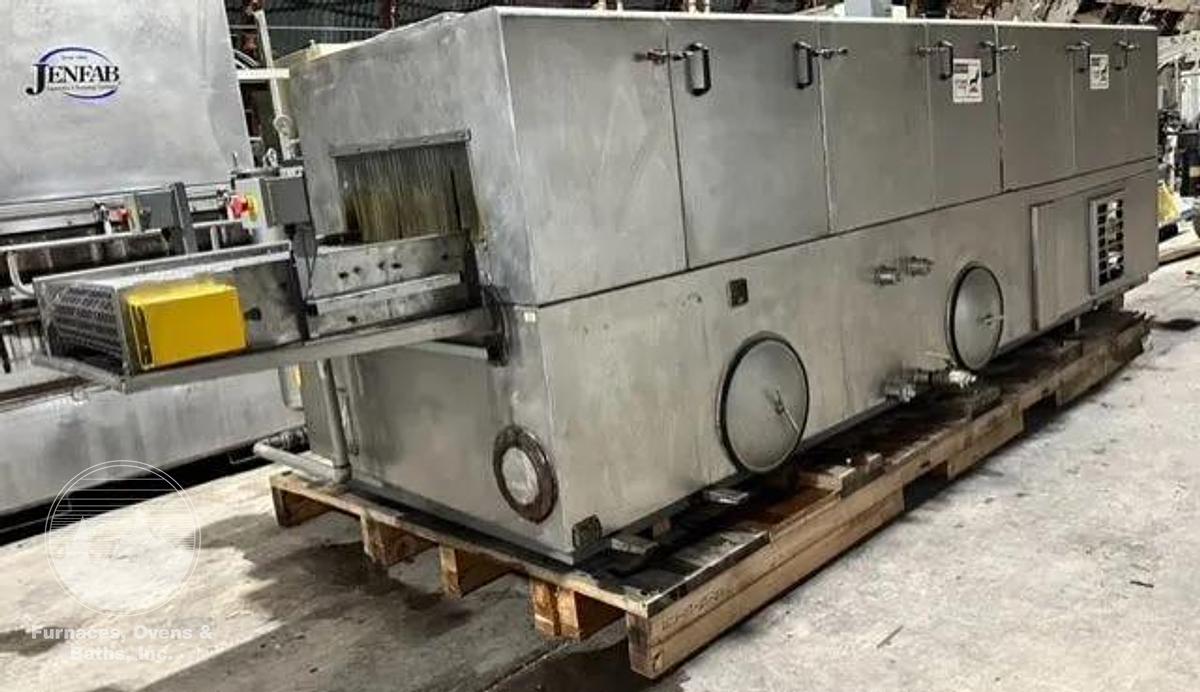

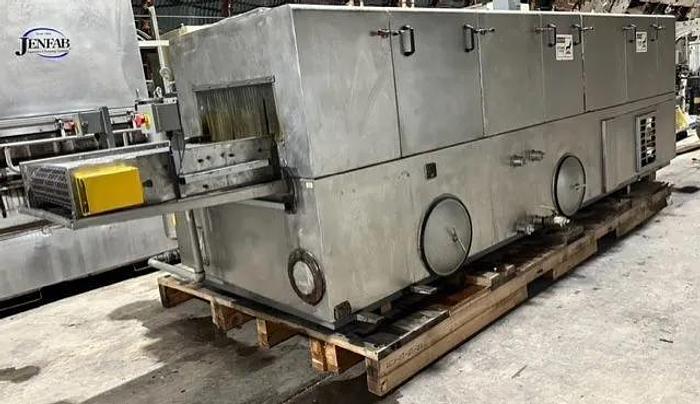

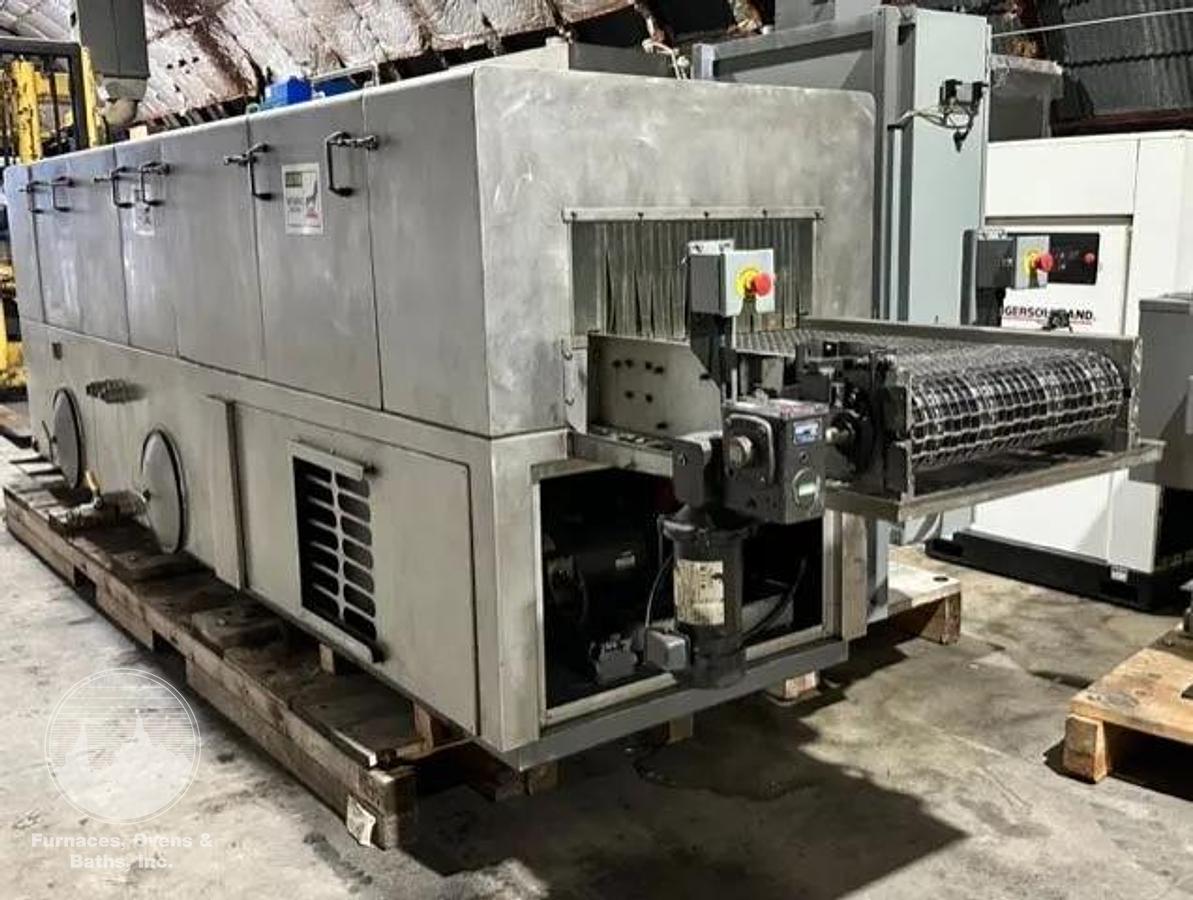

24”W x 10” High Star Cleaning Systems Stainless Steel Conveyor Belt Washer

3 Stage Stainless Steel Pass Thru Parts Washer

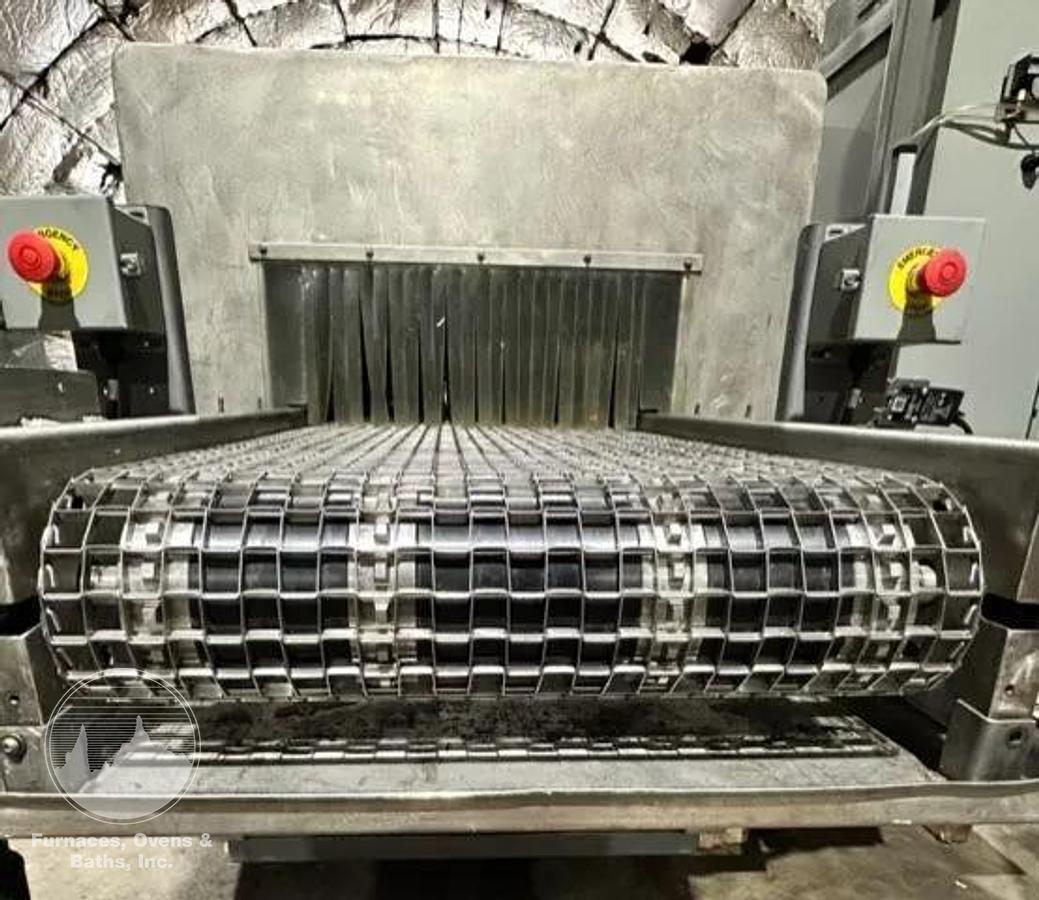

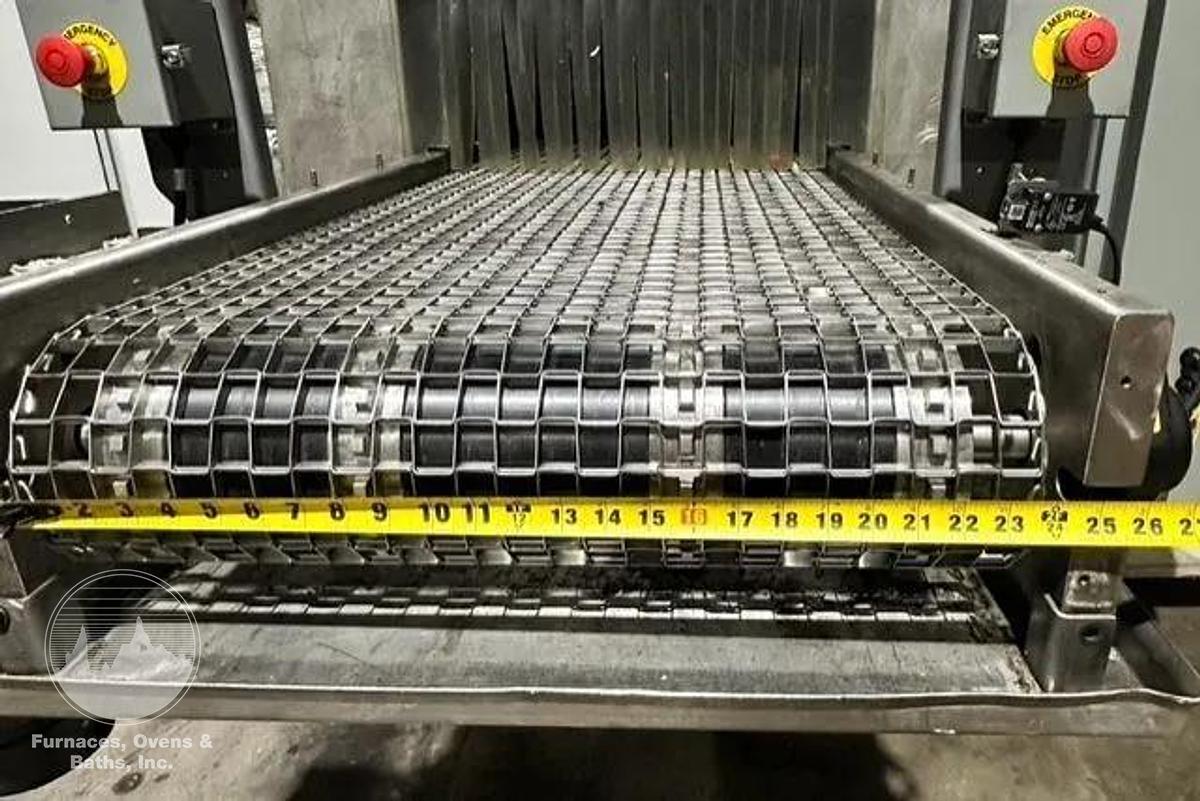

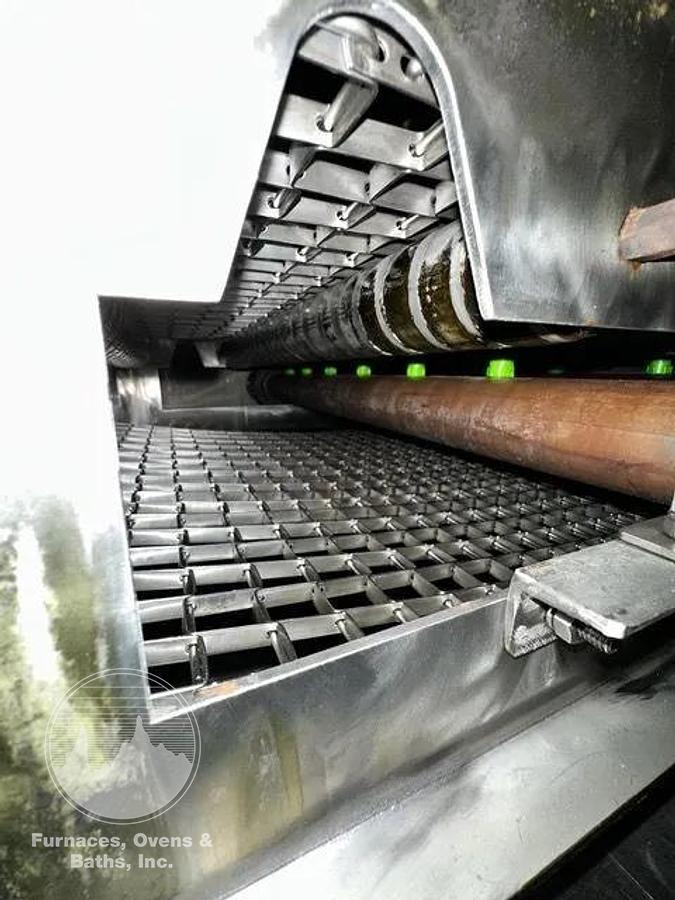

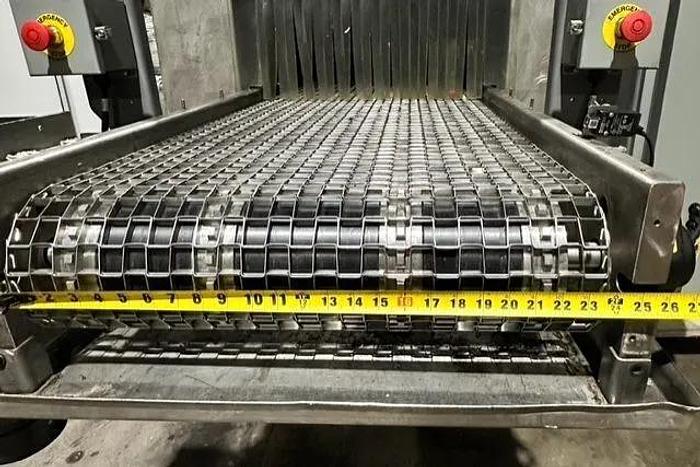

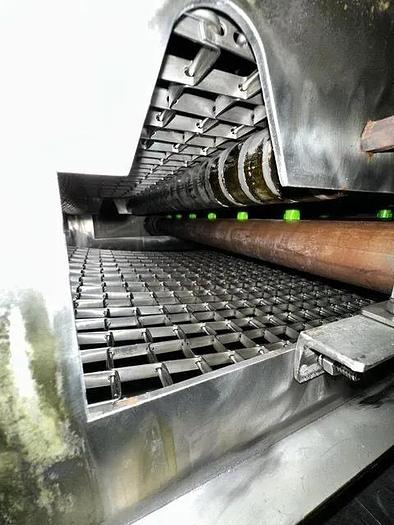

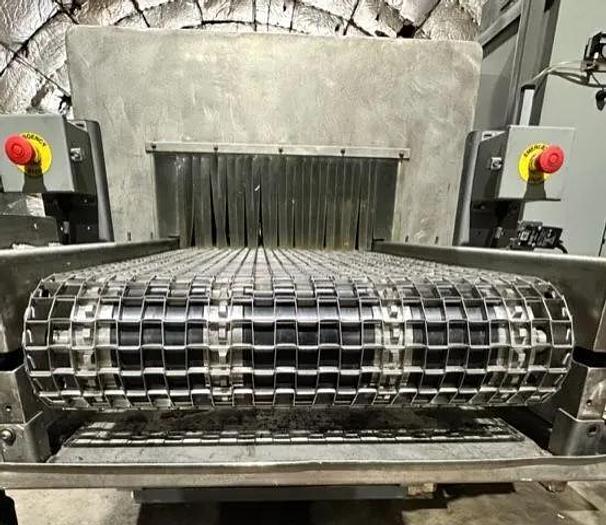

24" Wide Belt 1"x1" Mesh

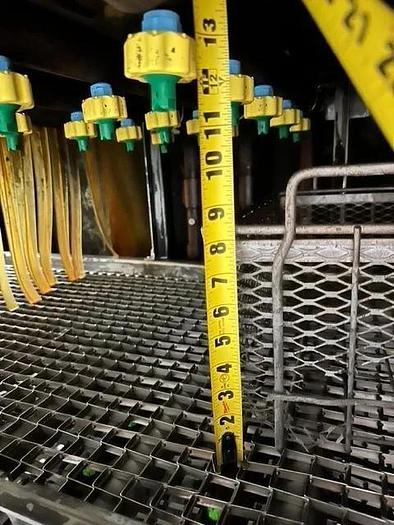

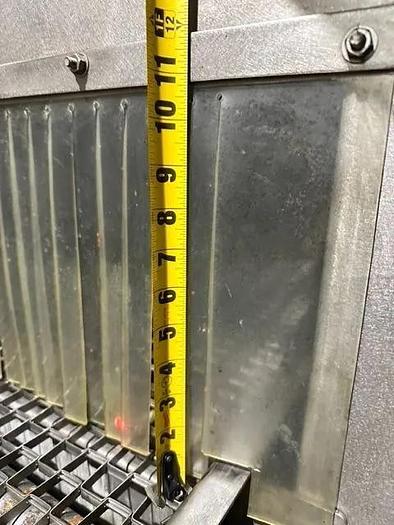

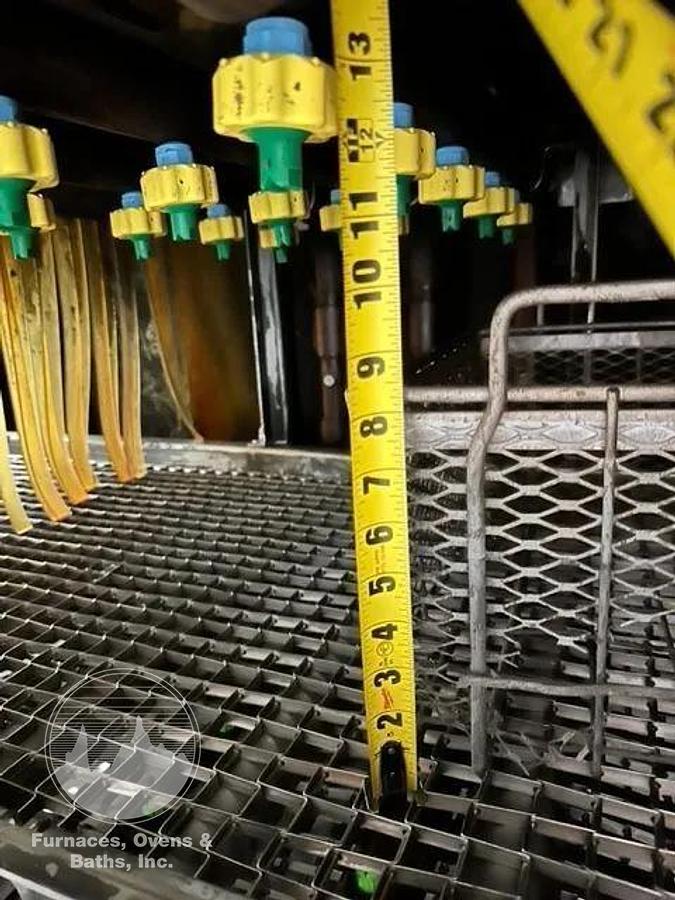

10" Part Height (Plenty of room inside to raise another 6" w/modification)

Stages

Entrance, to 18" Vestibule, 36" Rinse, 24" Rinse, 60" Heated Blow-Off, Exit

Access Covers-both sides of tunnel to each stage.

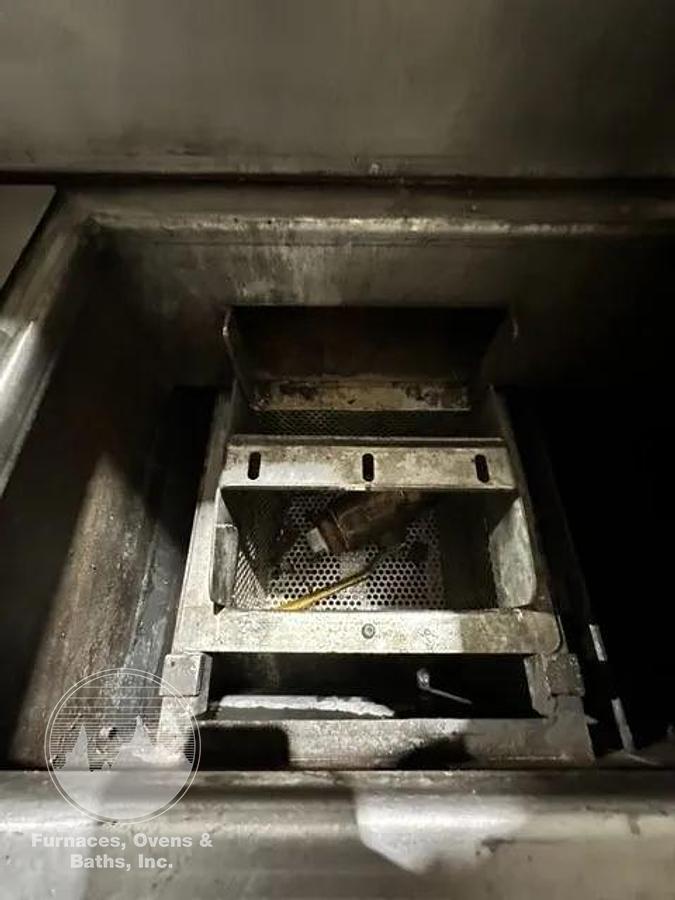

Access covers to chip baskets

Clean out doors

EQUIPPED WITH:

5HP Gusher Wash Pump,

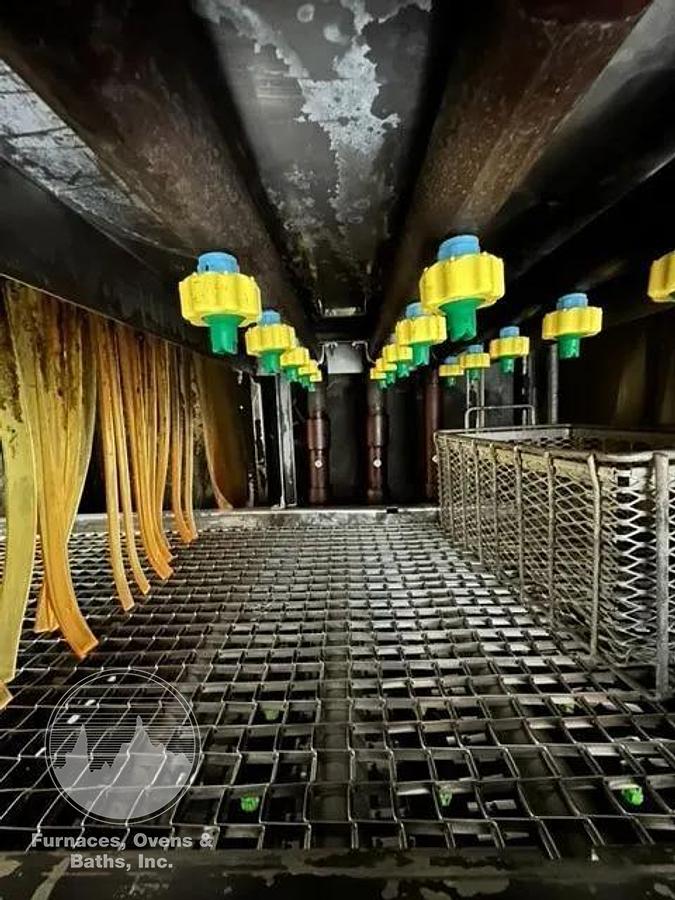

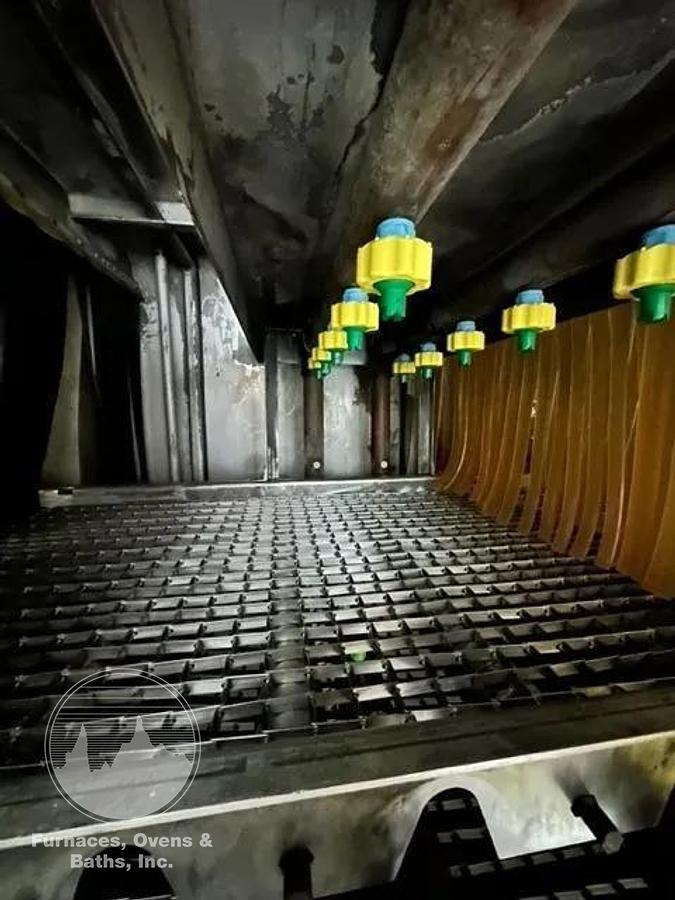

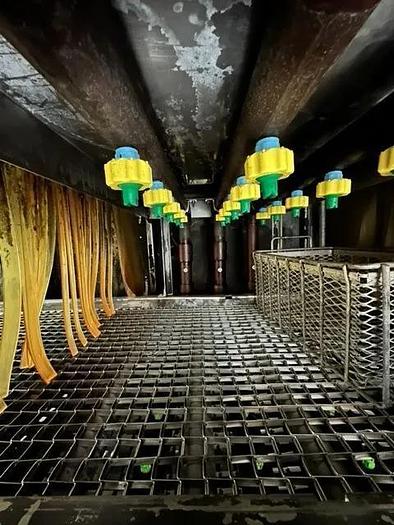

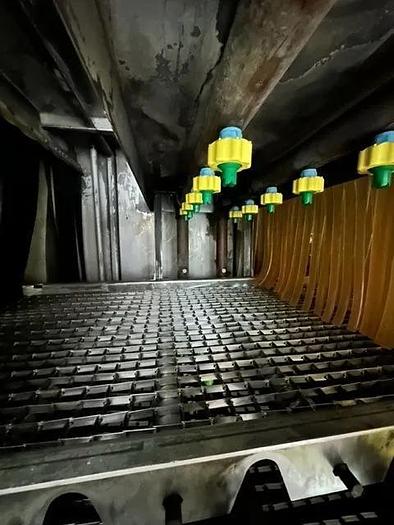

(3) Headers-Top, Bottom, Sides, Quick Disconnect Nozzles

Wash Level Float, Wash Fill Solenoid,

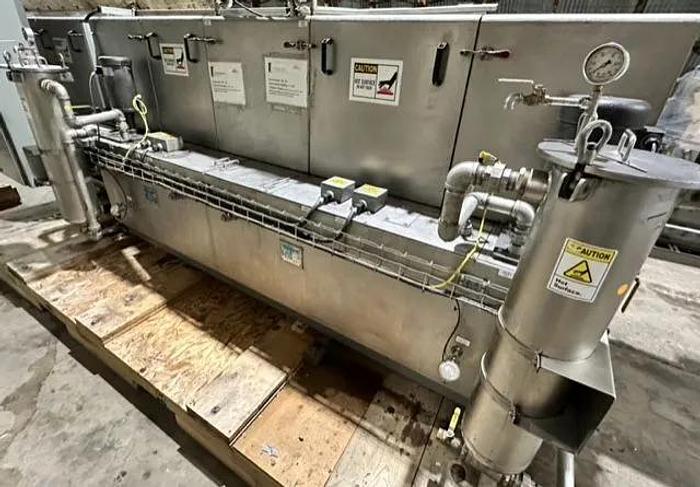

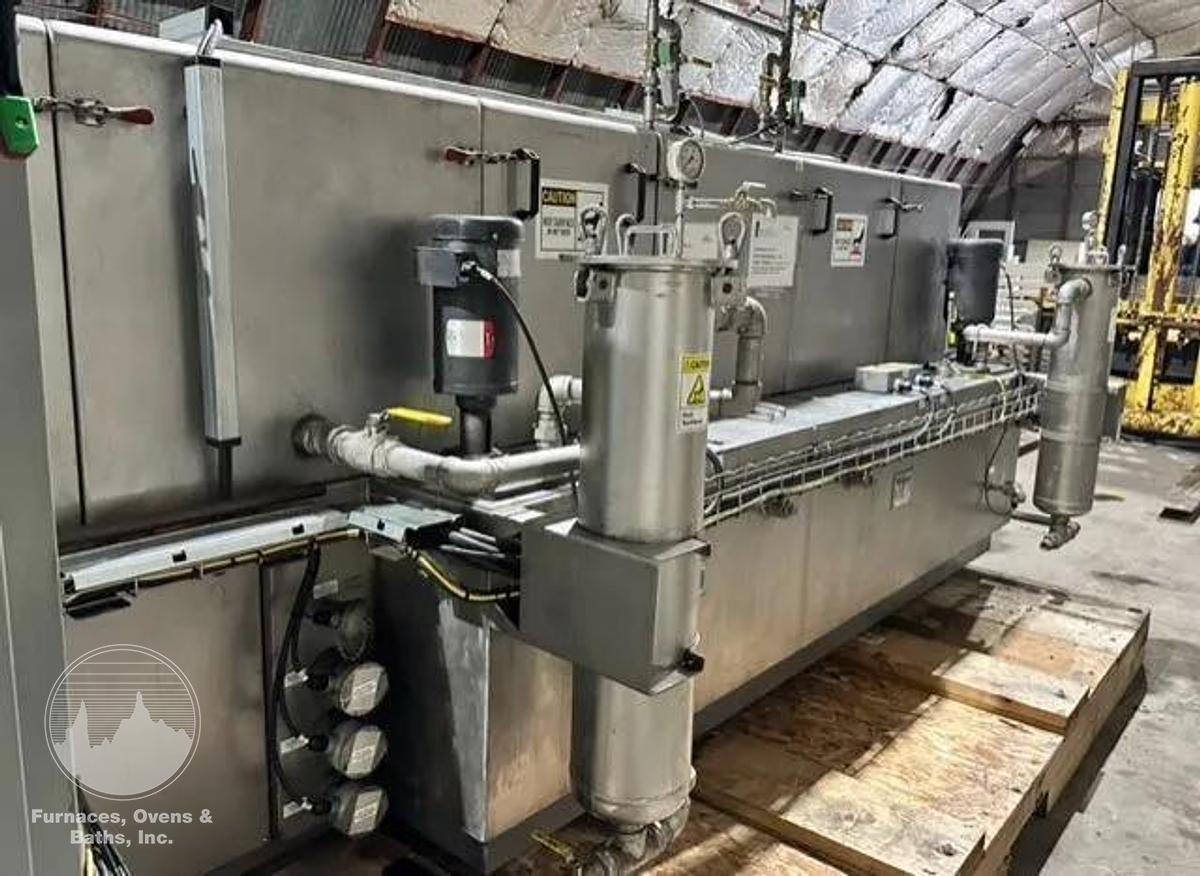

Stainless Filter,

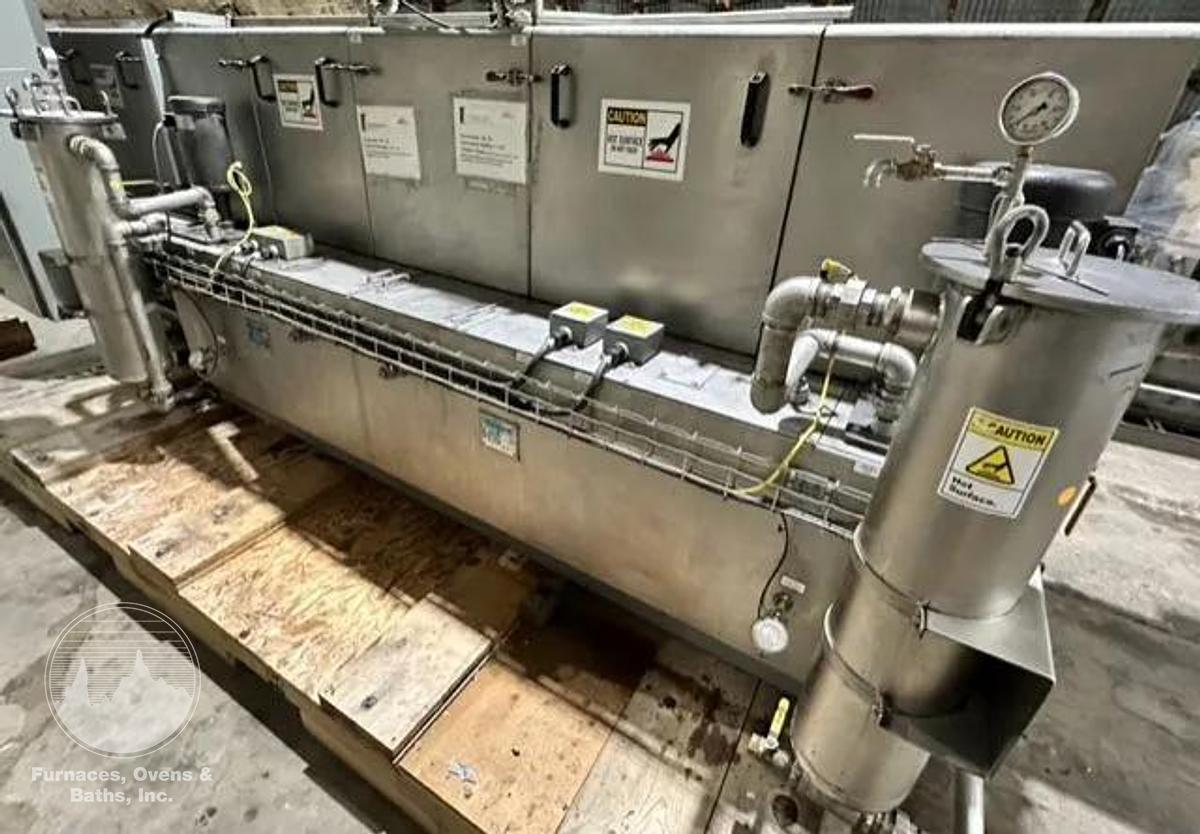

320 Gallon Wash Tank,

J Thermocouple Electric Heat

3HP Gusher Rinse Pump

(2) Headers-Top, Bottom, Sides, Quick Disconnect Nozzles

Rinse level Float, Rinse Fill Solenoid,

Stainless Filter,

215 Gallon Rinse Tank,

J Thermocouple Electric heat

20HP Sonic Systems Centrifugal Blower

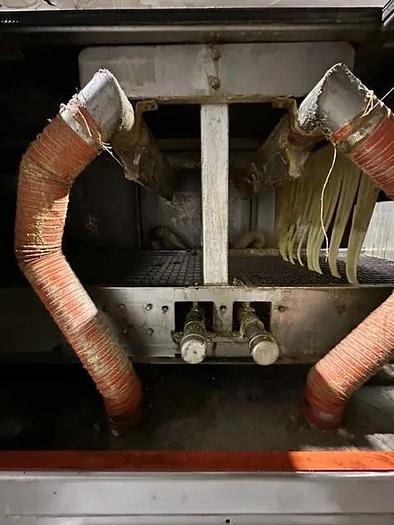

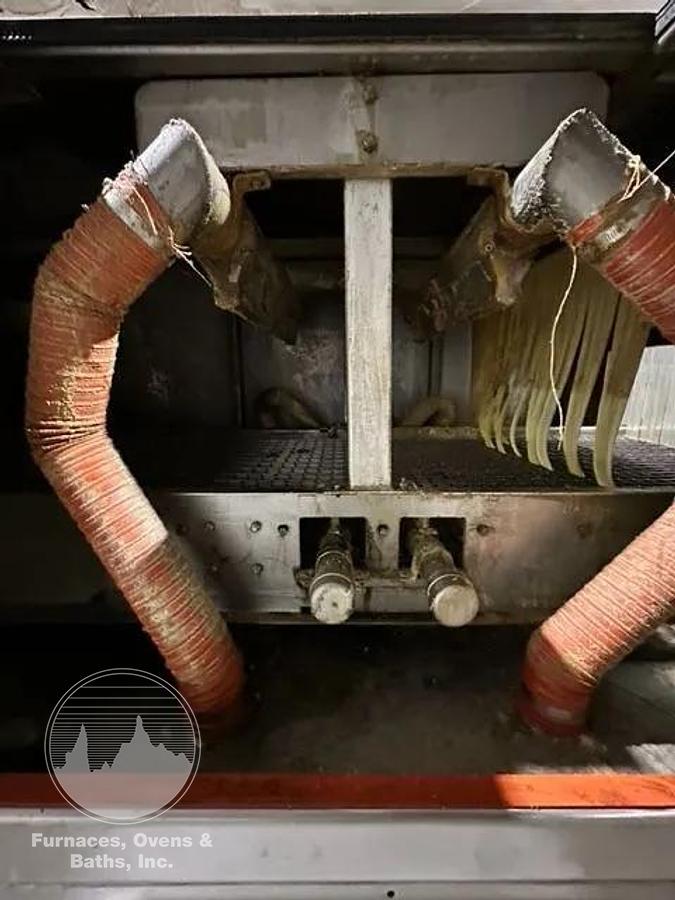

Air Knives Above and Below Belt

2700KW Electric Heat, J Thermocouple

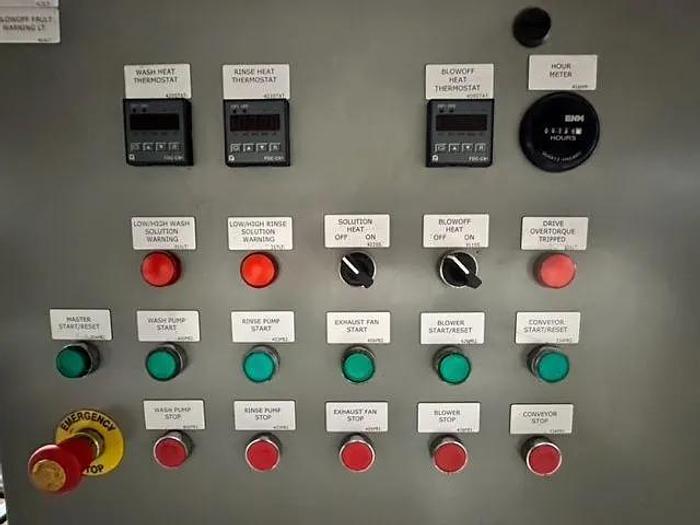

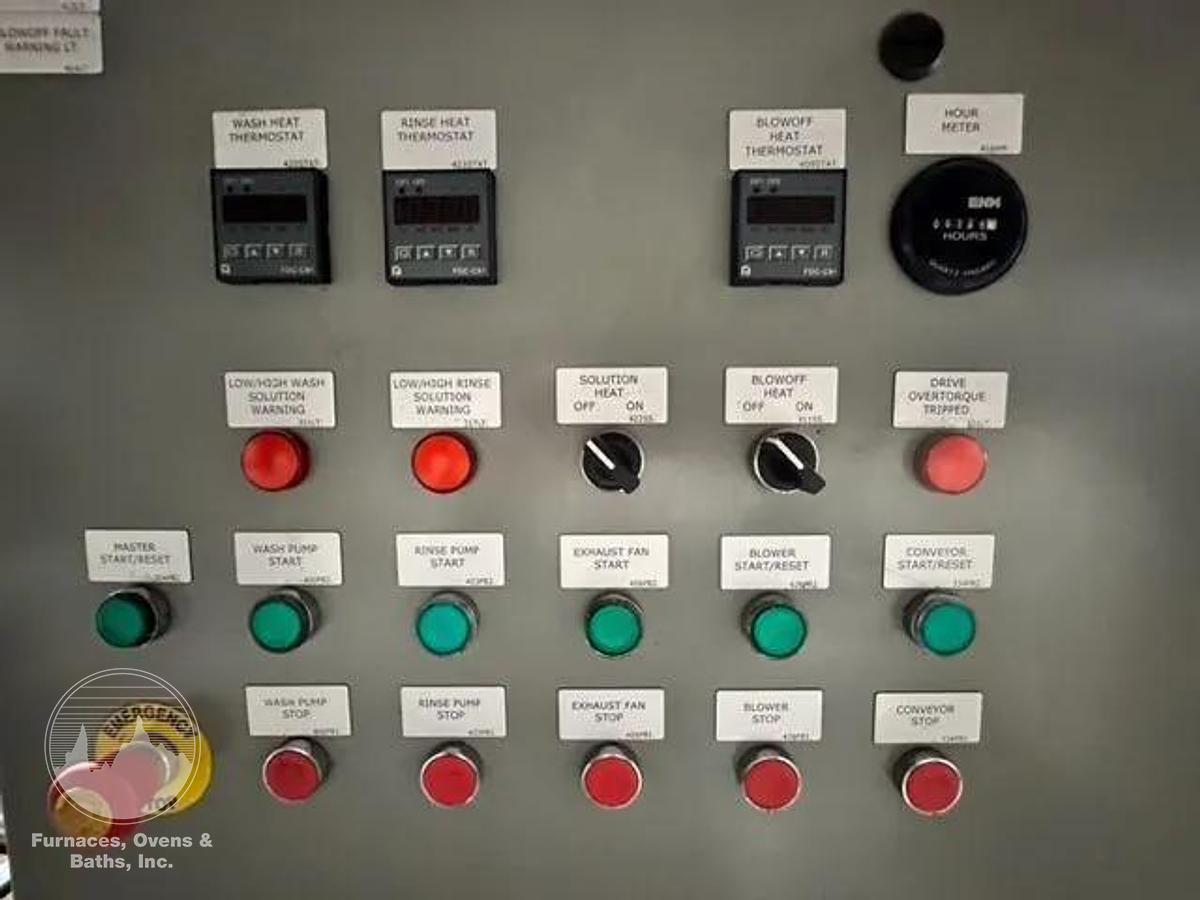

Wash heat thermostat,

Rinse heat thermostat

Blow-Off heat thermostat

Hour Meter 765 Hours

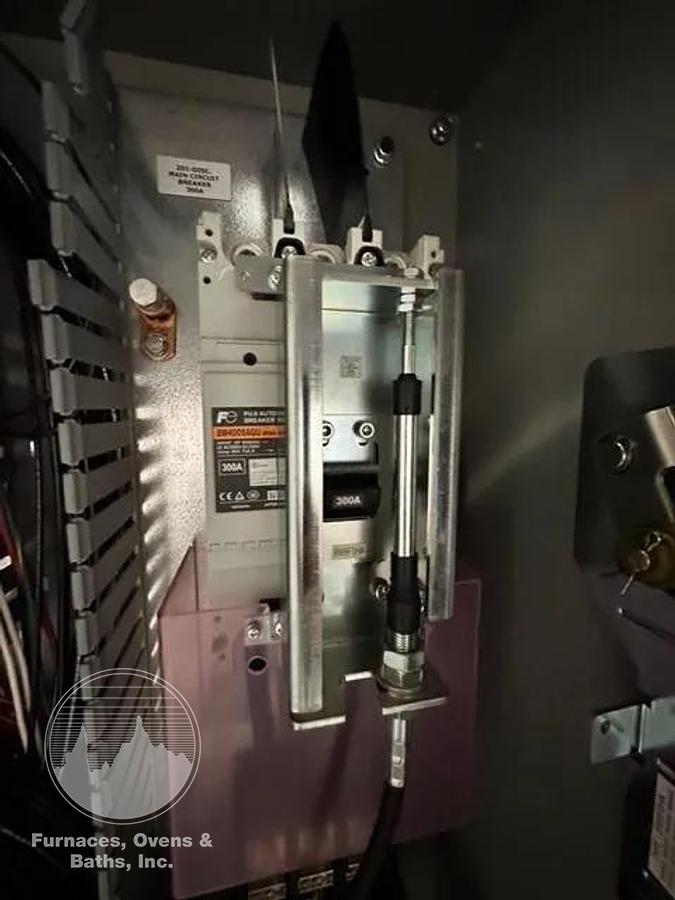

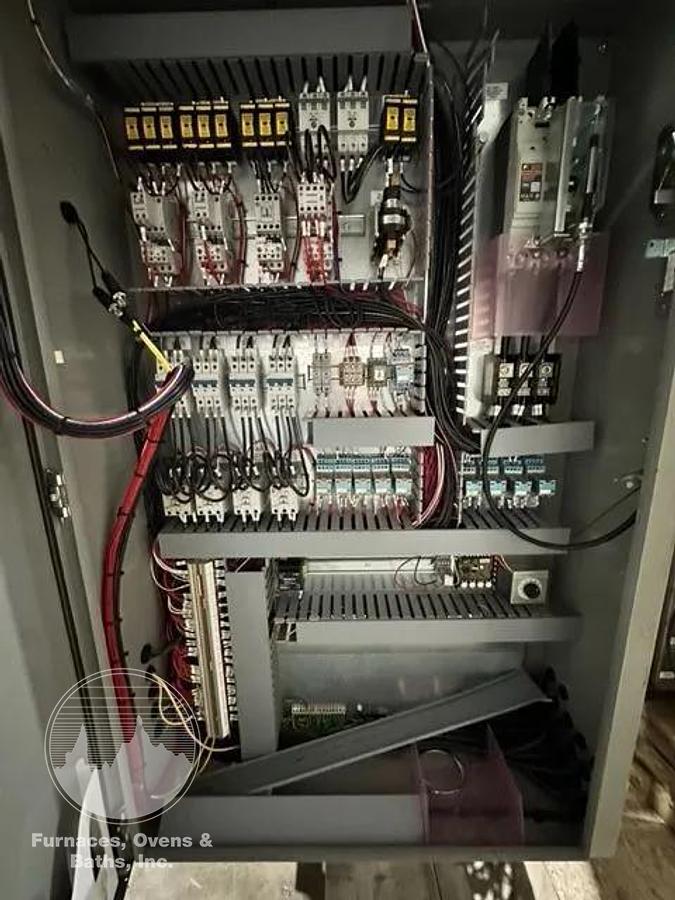

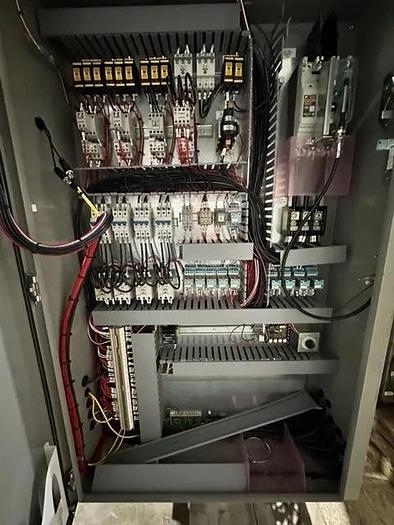

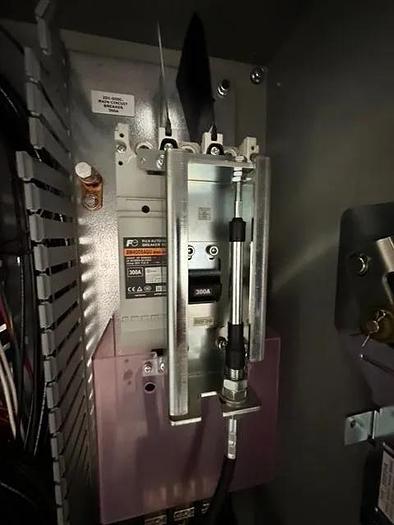

300 Amp Disconnect

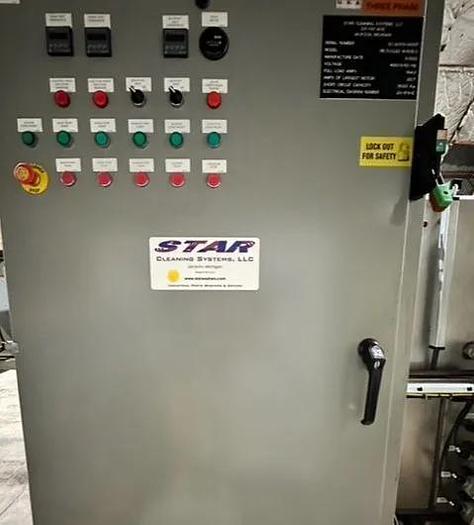

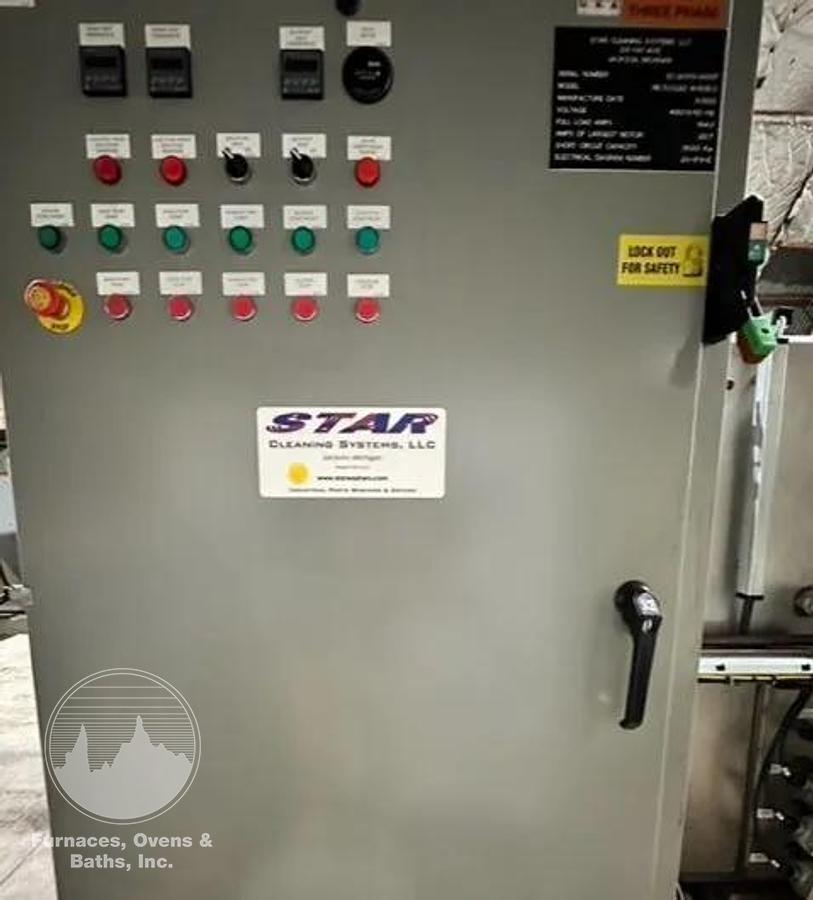

Master Start/Reset Button

Wash Pump Start Button/ Stop Button

Rinse Pump Start Button / Stop Button

Exhaust Fan Start Button/ Stop Button

Blower Start-Reset Button / Stop Button

Conveyor Start-Reset Button / Stop Button

Drive Overtorque Tripped Light

Solution Heat Off/ON Switch

BlowOff Heat Off/On Switch

Emergency Stop Buttons on both ends of washer

Low/High Wash/Rinse Solution Warning Lights
