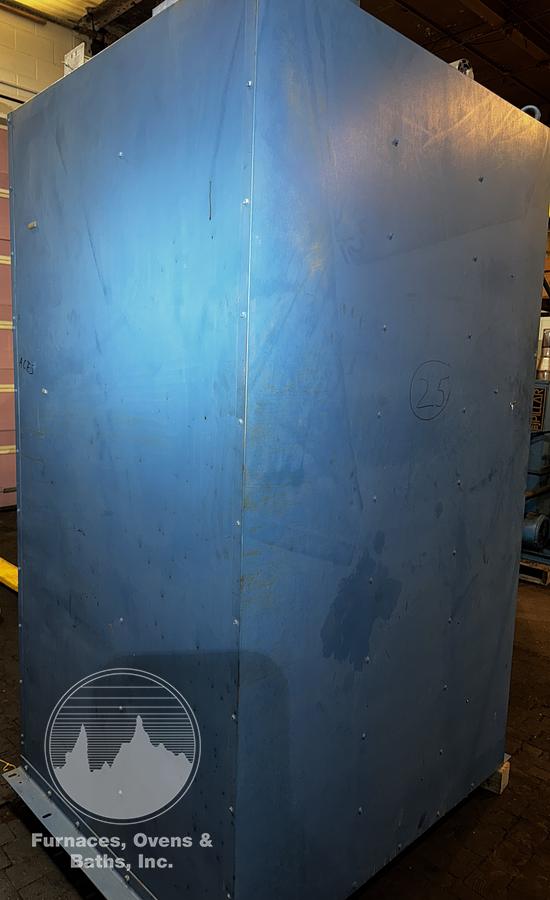

36"W x 60"H x 36"L, Gruenberg C45H450, Electric Cabinet Oven, 450°F

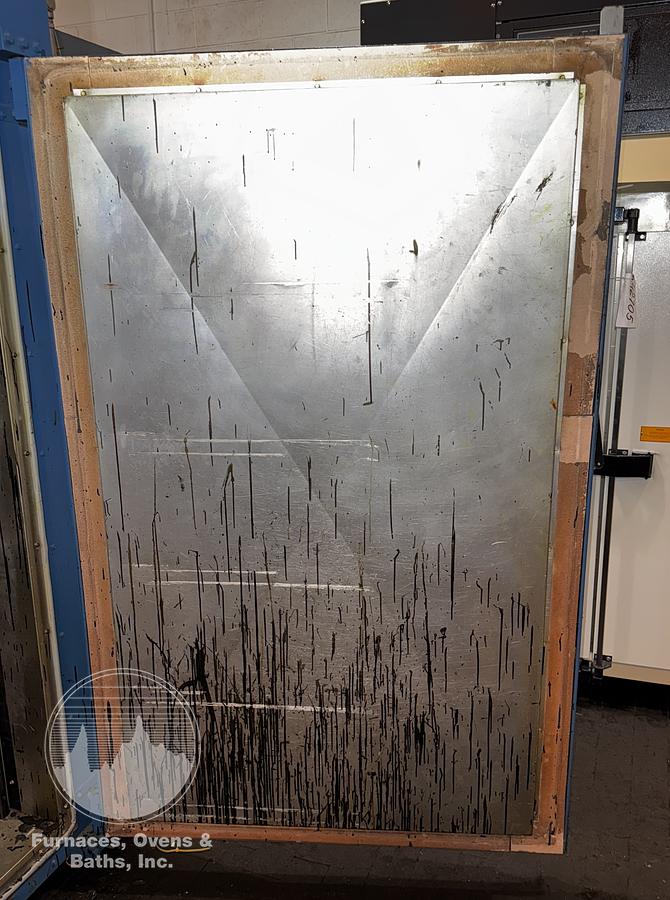

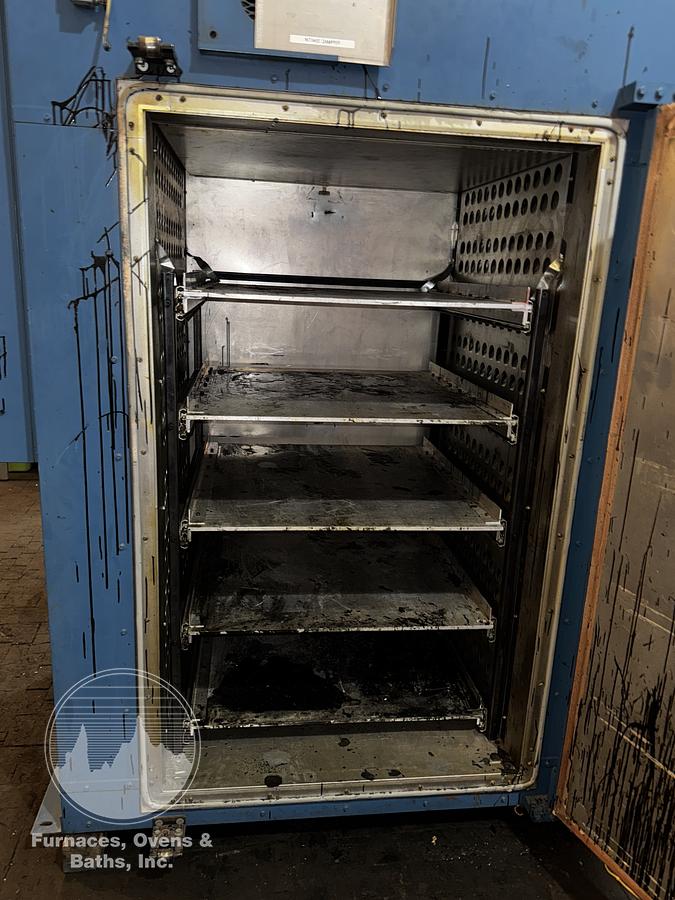

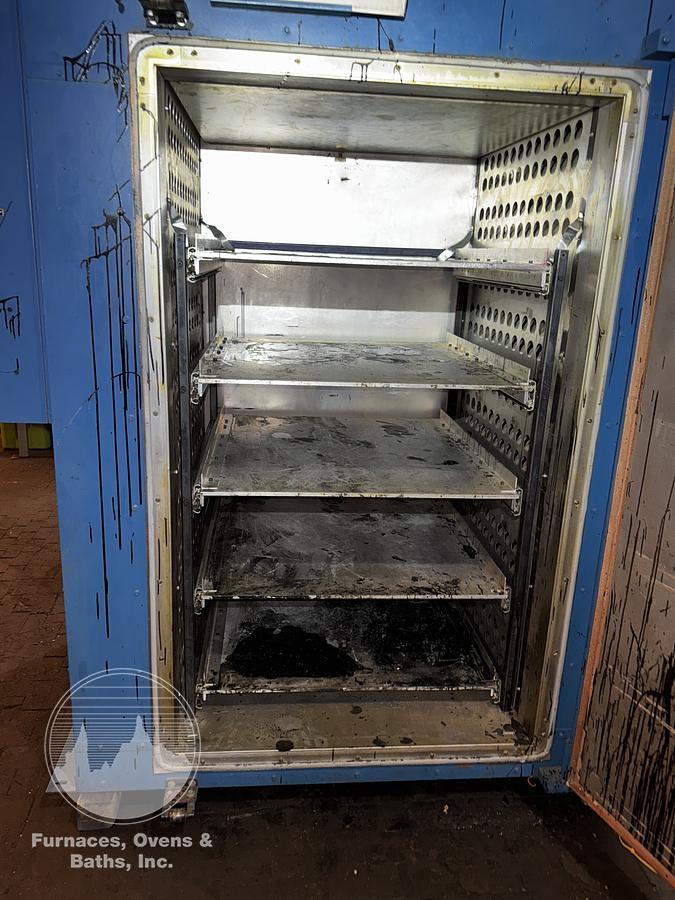

Single door with locking spring tension latches and dual silicon rubber gasket for an excellent door seal. Aluminized steel interior with an insulated floor. Adjustable perforated air duct panels are located on both sides. Tubular style heating elements and belt driven circulating fan are located above the work chamber. Heated air is circulated in a horizontal pattern across the work area for good uniform heating. A fresh air inlet with slide damper is located on the front wall. An exhaust vent with adjustable damper is on top.

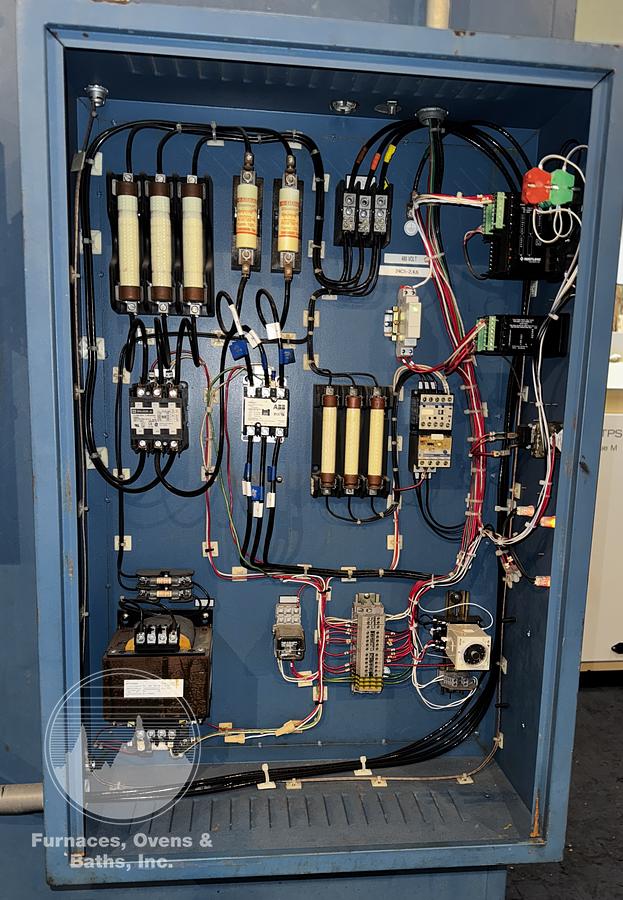

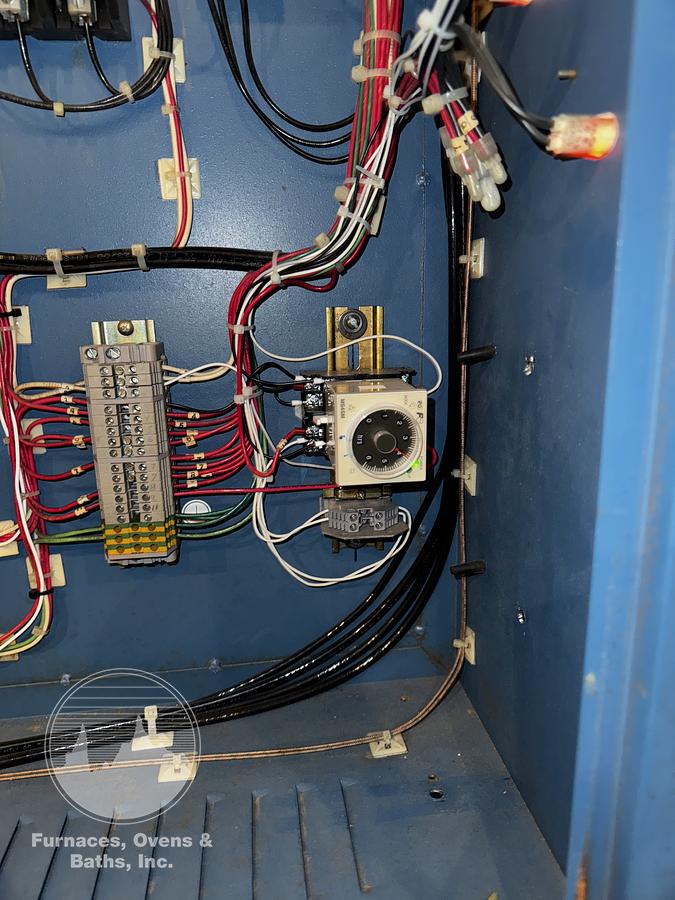

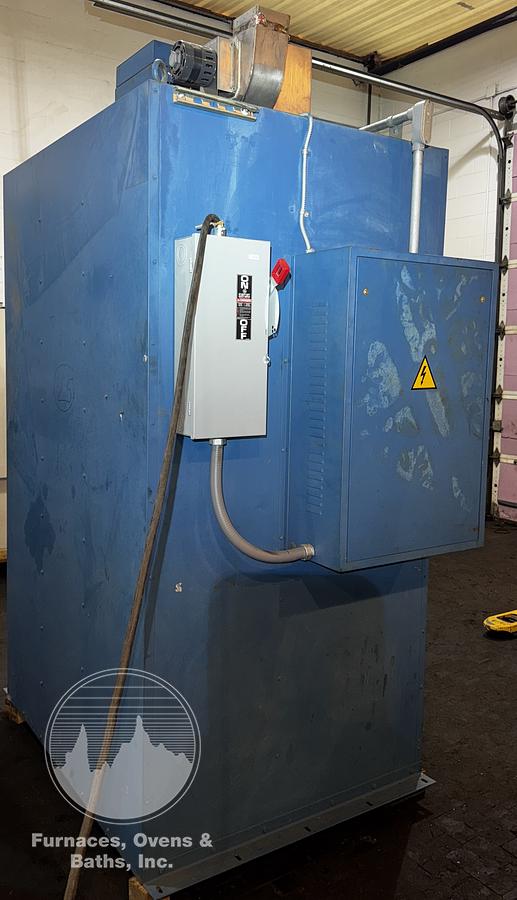

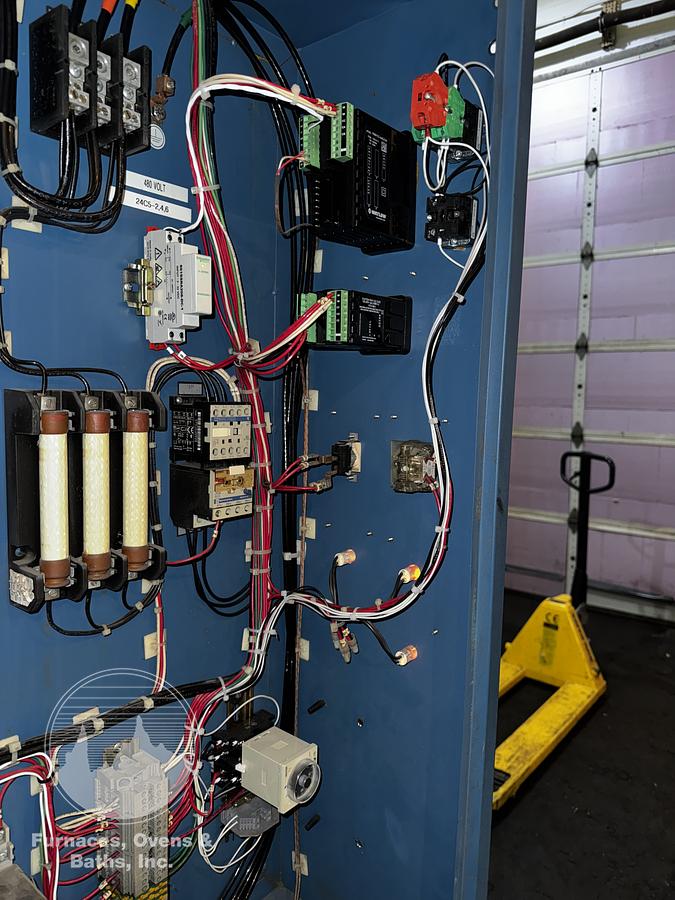

Controls are located in an enclosure attached to the left-hand side of the oven. Watlow digital temperature controller and Watlow digital high limit. High limit contactor, Watlow solid state "Din-A-Mite" power relay, motor starter, fuses, relay etc. are mounted and wired inside the enclosure.
