36"W x 48"H x 36"L, Gruenberg T45H360, Electric Truck Oven, 450°F
36"W x 48"H x 36"L, Gruenberg T45H360, Electric Truck Oven, 450°F
Contact us for price
Description

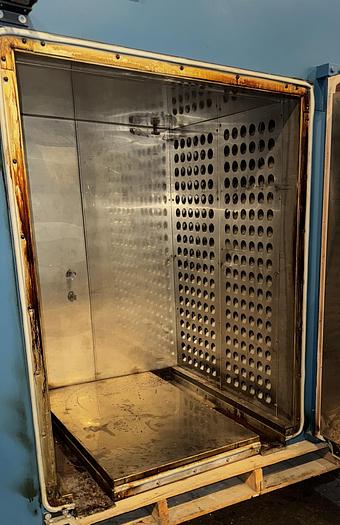

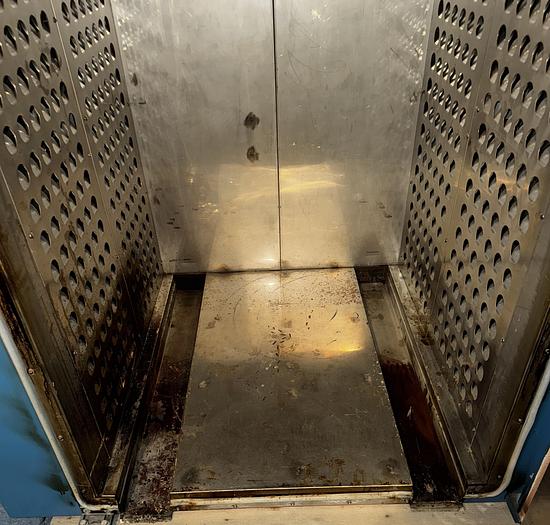

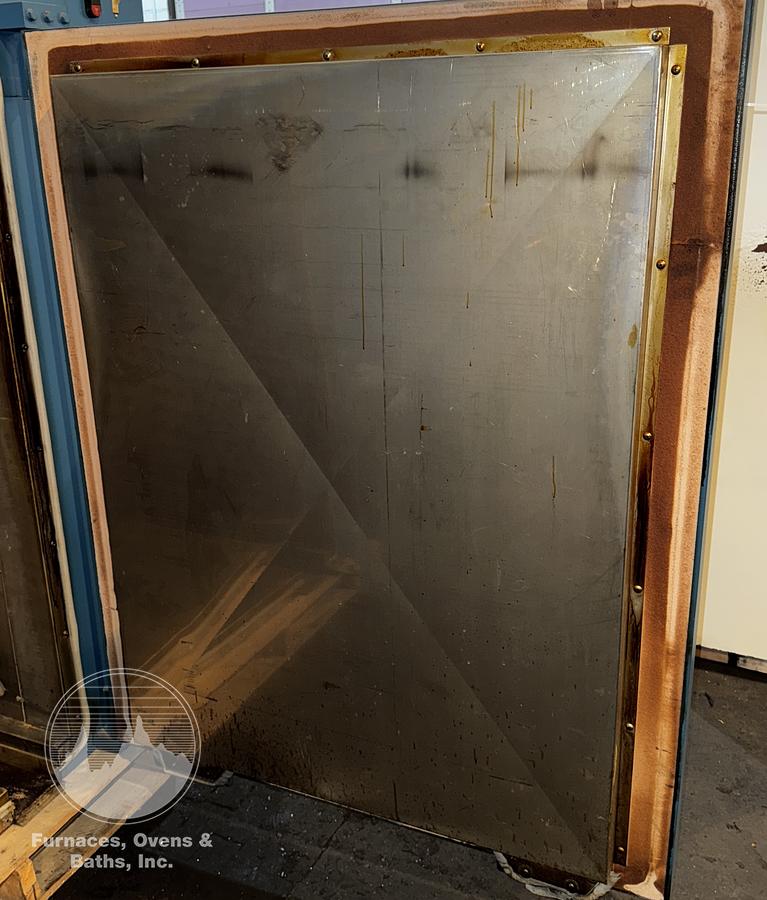

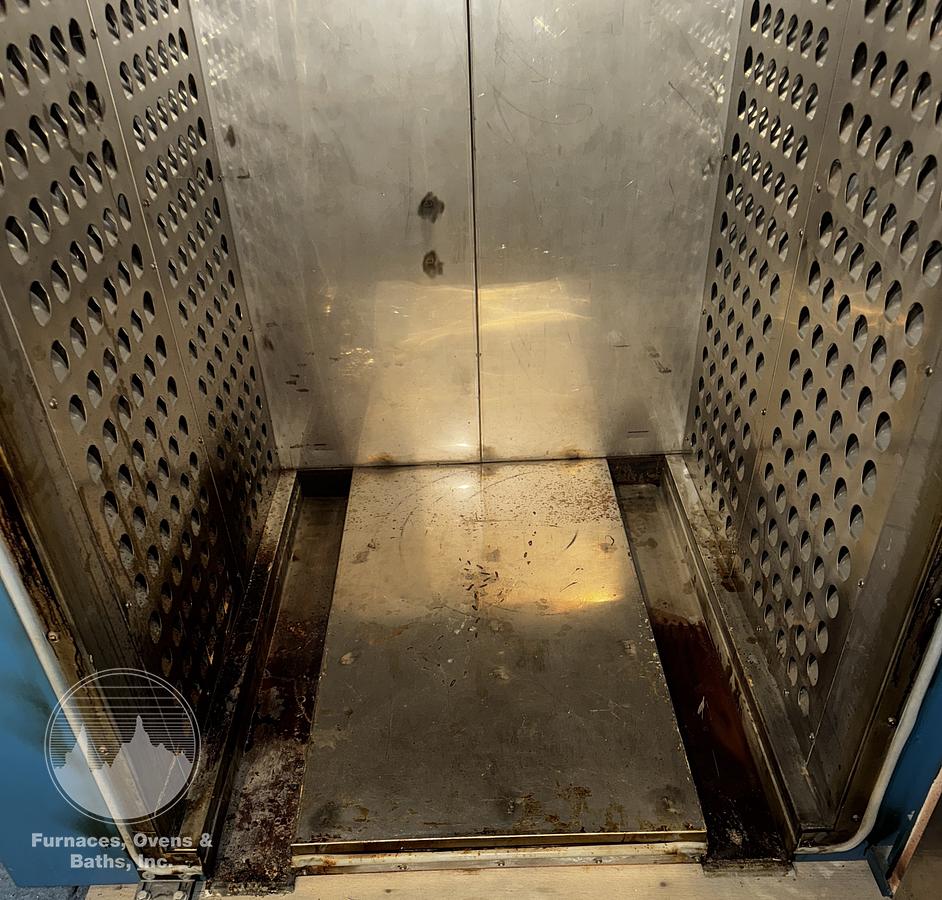

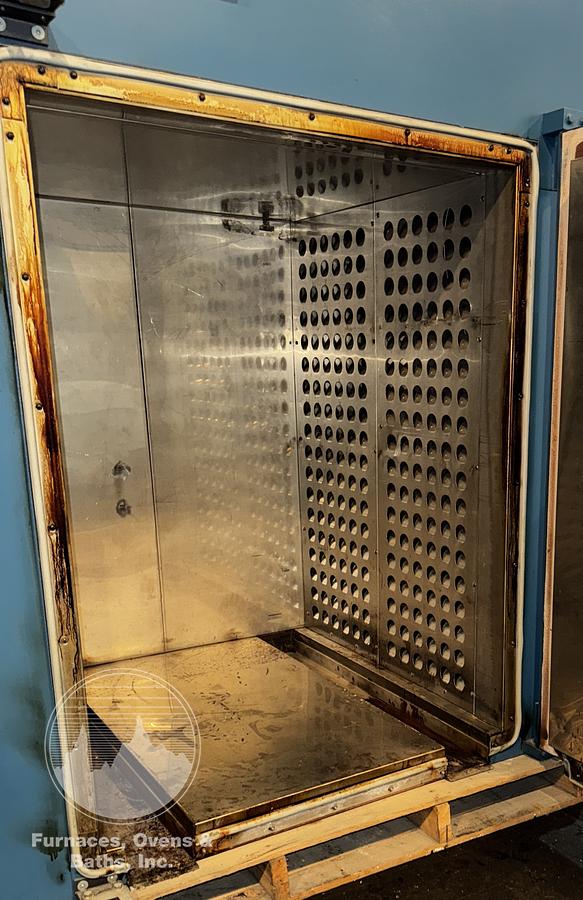

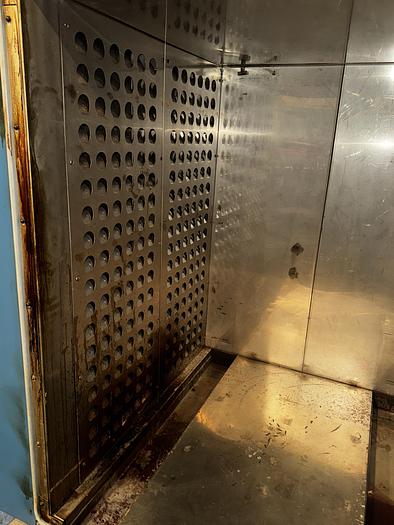

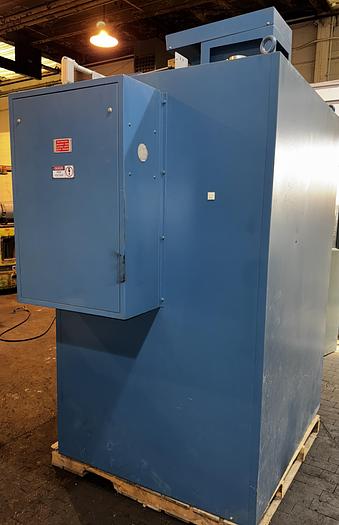

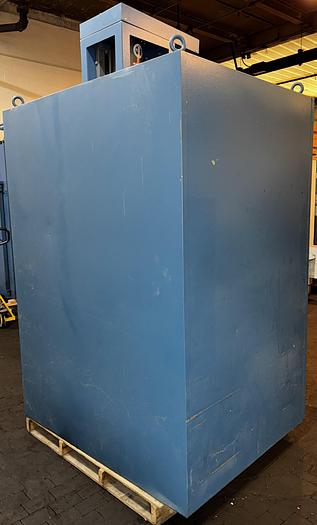

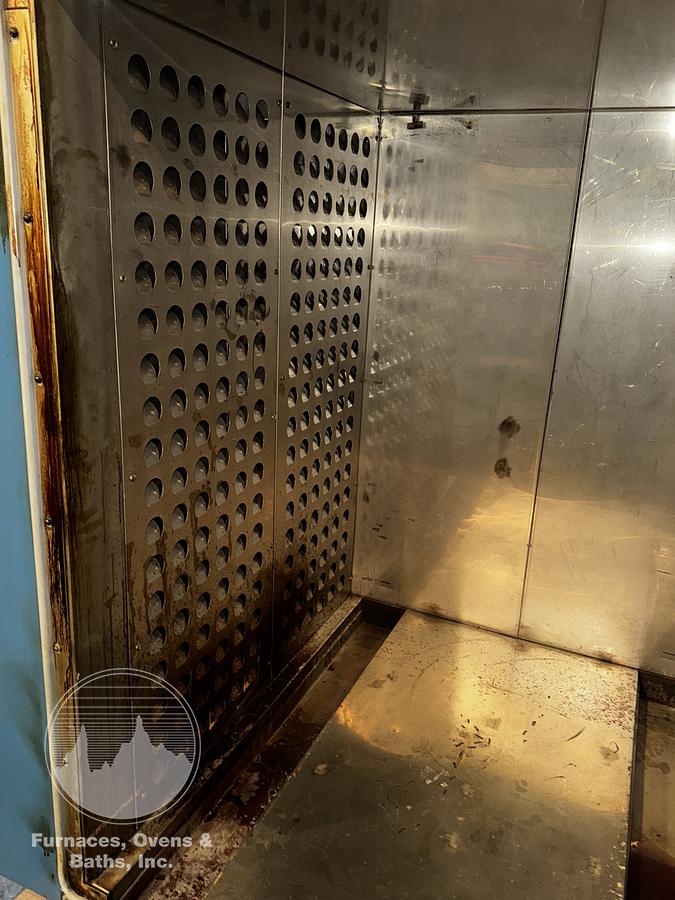

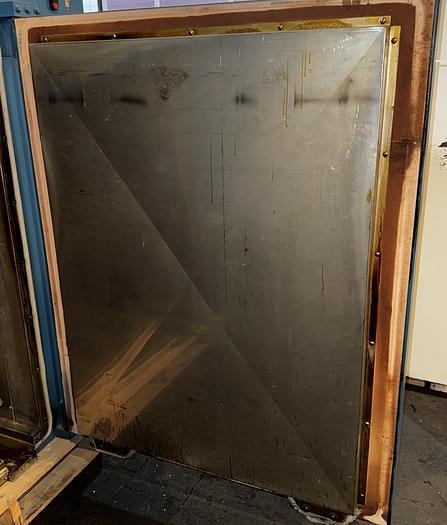

Single door with locking cam tension latches and silicon rubber gasket for an excellent door seal. Stainless steel interior with insulated floor and cart tracks. No cart is supplied with this oven. Cart tracks are on 28” centers x 5” wide. Perforated air duct panels are located on both sides. Tubular style heating elements and belt driven circulating fan are located above the work chamber. Heated air is circulated in a horizontal pattern across the work area for good uniform heating. A fresh air inlet with slide damper is located on the front wall. An exhaust vent with adjustable damper is on top. Oven has been tested and is ready to ship. See video. Manual and drawings are included with this oven.

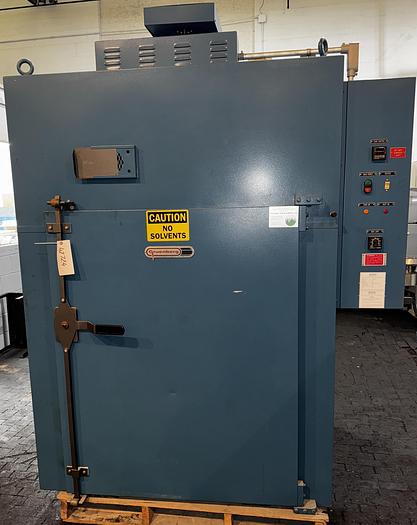

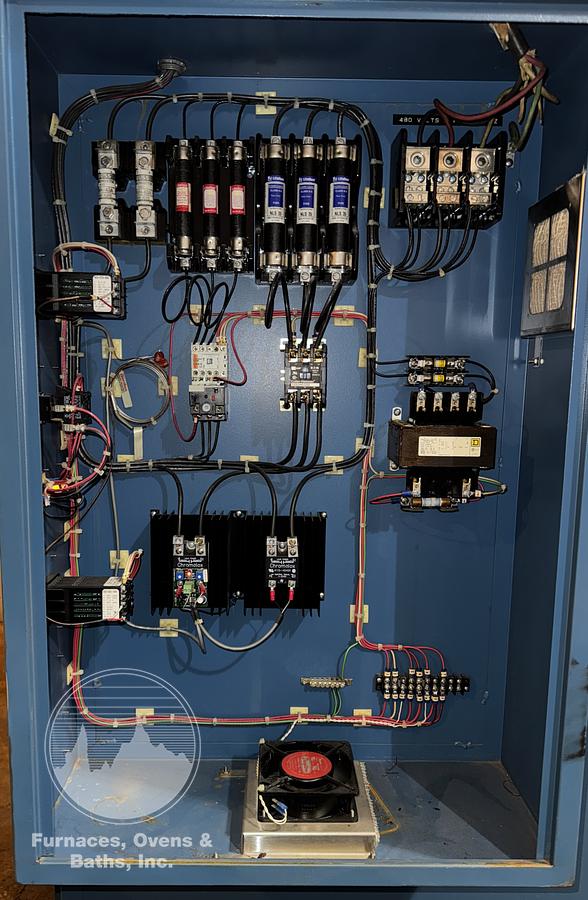

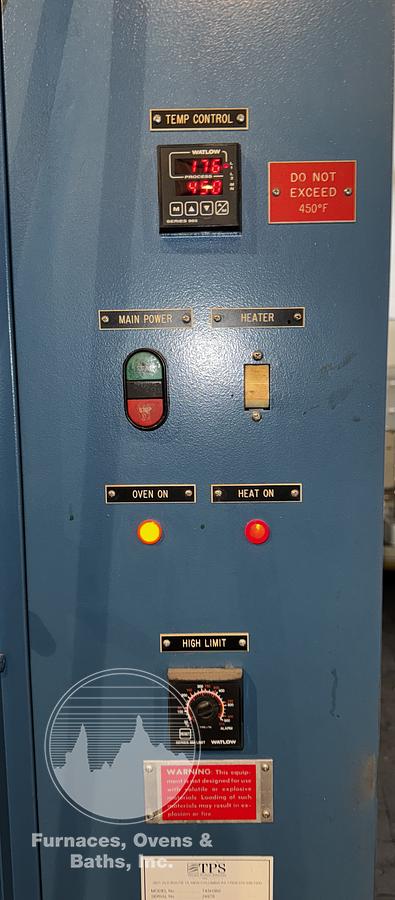

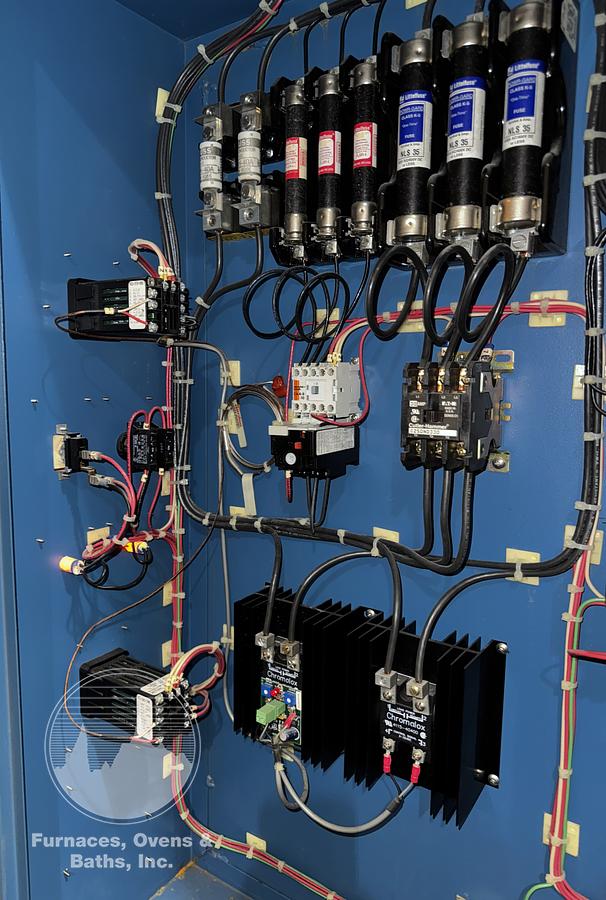

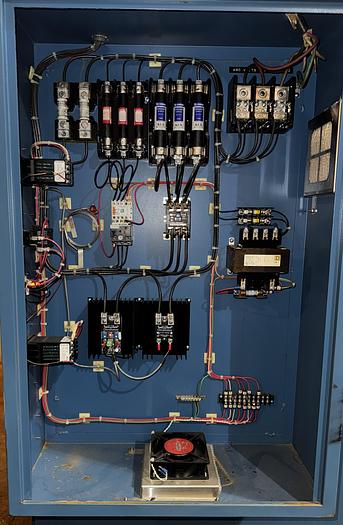

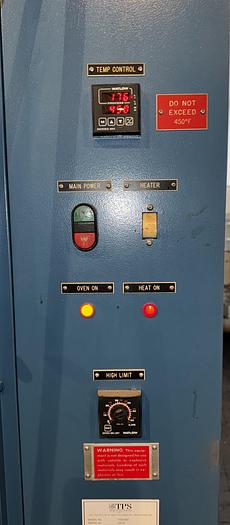

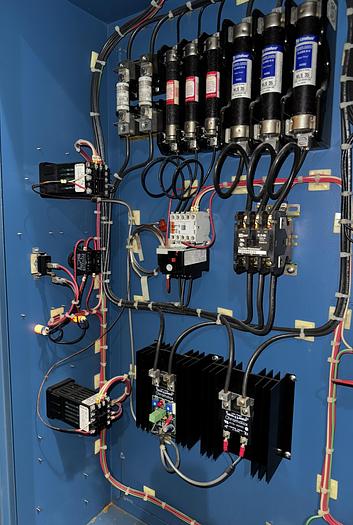

Controls are located in an enclosure attached to the right-hand side of the oven. Watlow series 965 digital temperature controller and a Watlow series 365 high limit. High limit contactor, Chromalox solid state power relay, motor starter, fuses, relay etc. are mounted and wired inside the enclosure.
Specifications
Manufacturer | Gruenberg |
Model | T45H360 |
Condition | Used |
Serial Number | 24978 |
Stock Number | 7837 |
Work area | 36"W x 48"H x 36"L |
Heated | Electric |
Max temperature | 450°F |

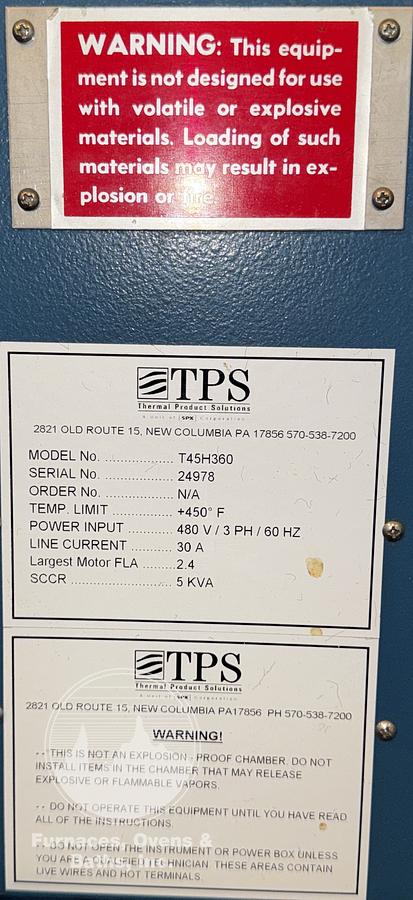

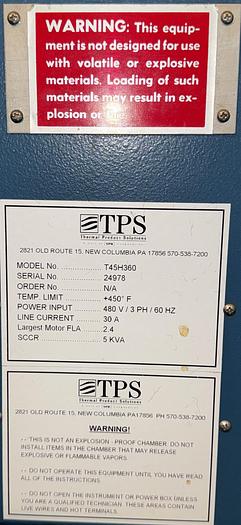

Voltage | 480/3/60/30 FLA |
External dimensions | 66" wide x 92" high x 50" long |
Availability | Immediate |
