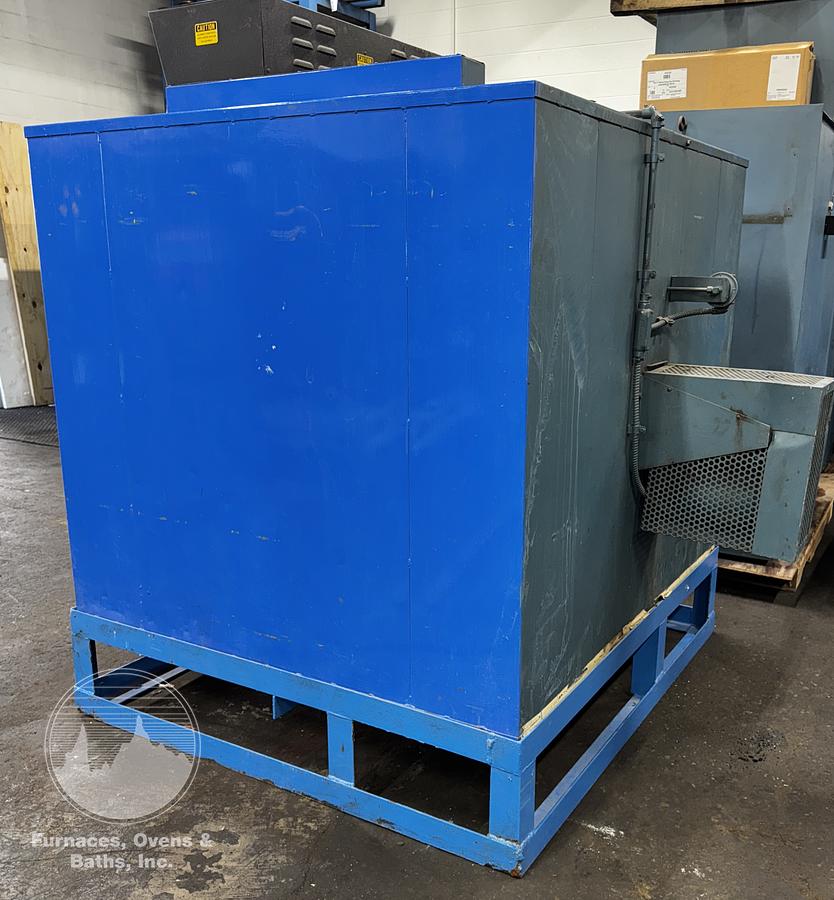

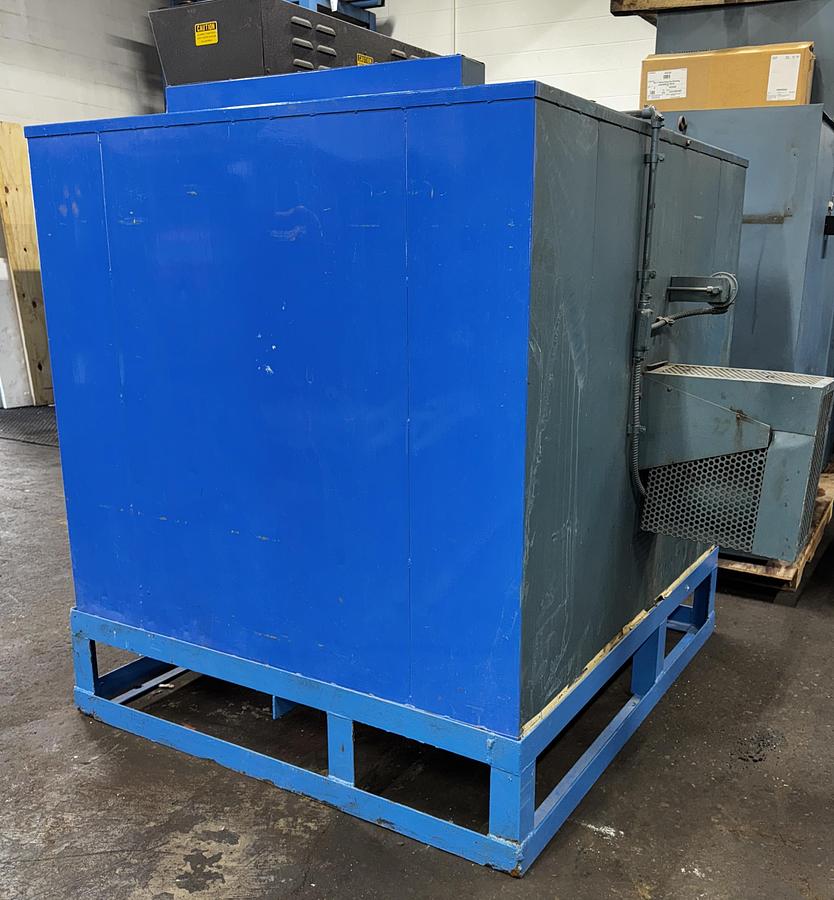

36"W x 36"H x 36"L, Grieve AB-1000, Electric, 1000°F

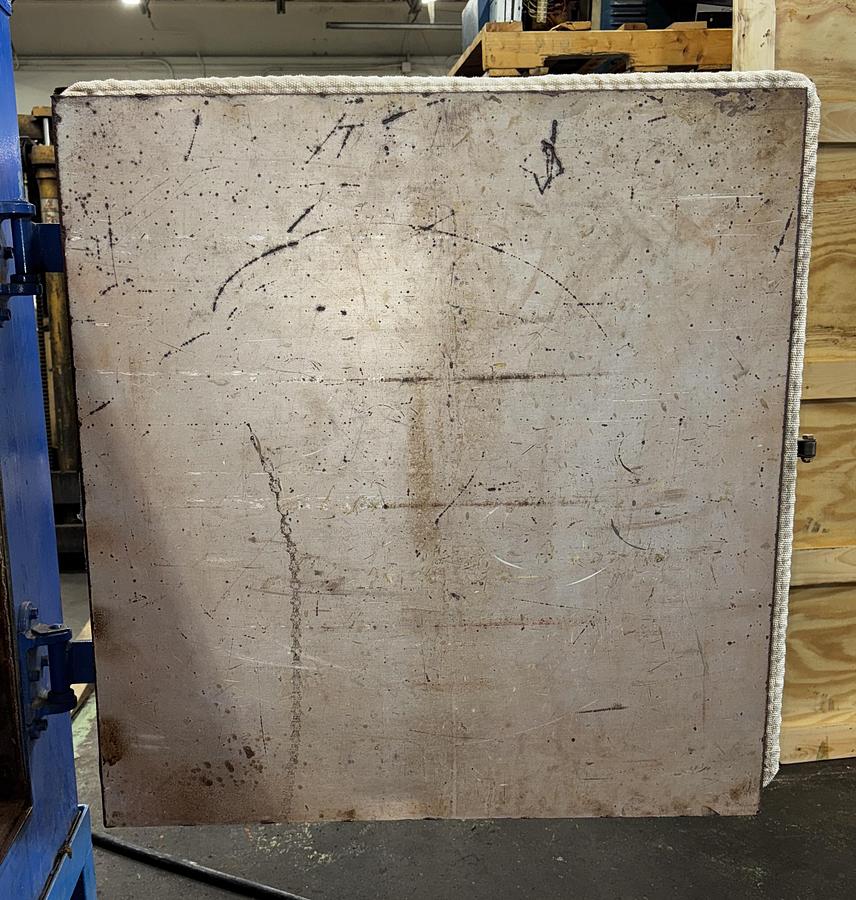

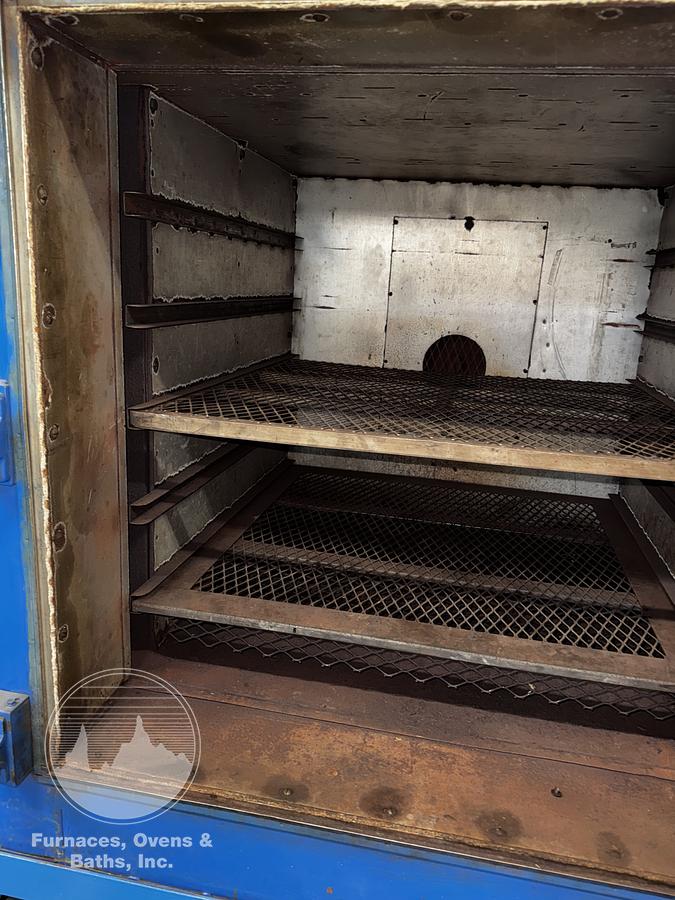

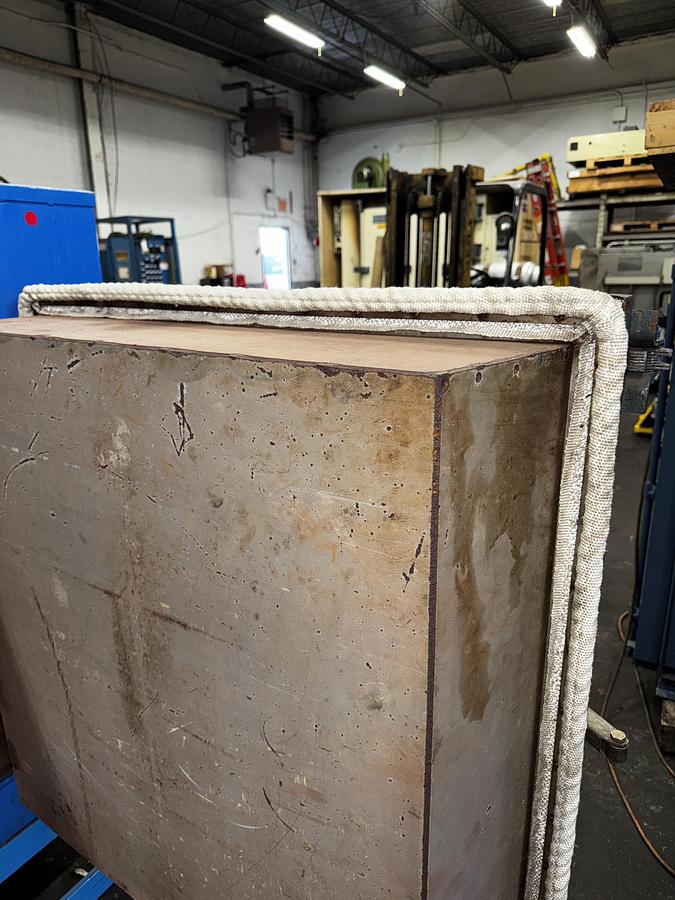

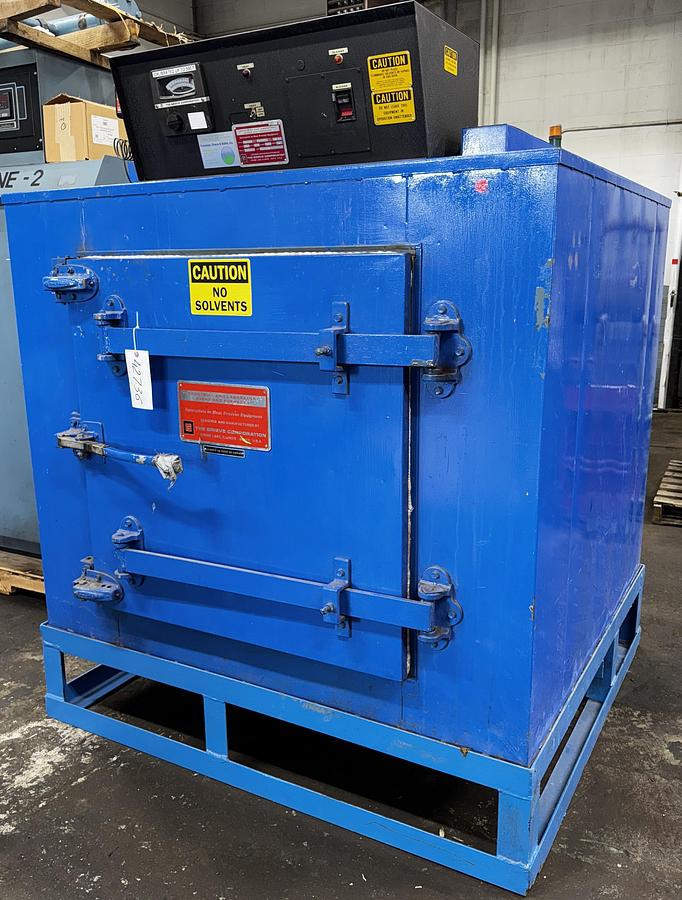

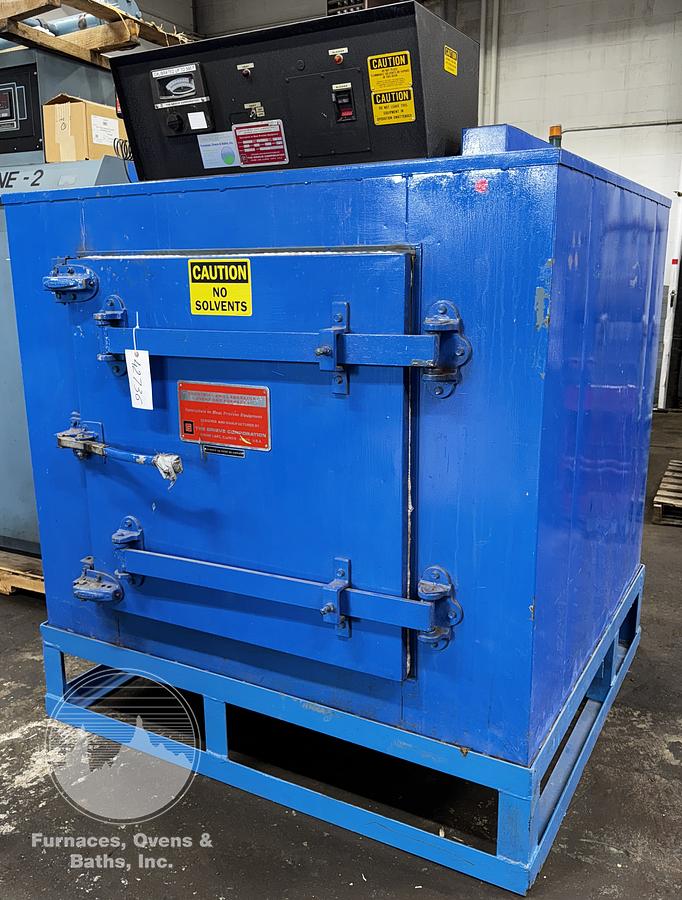

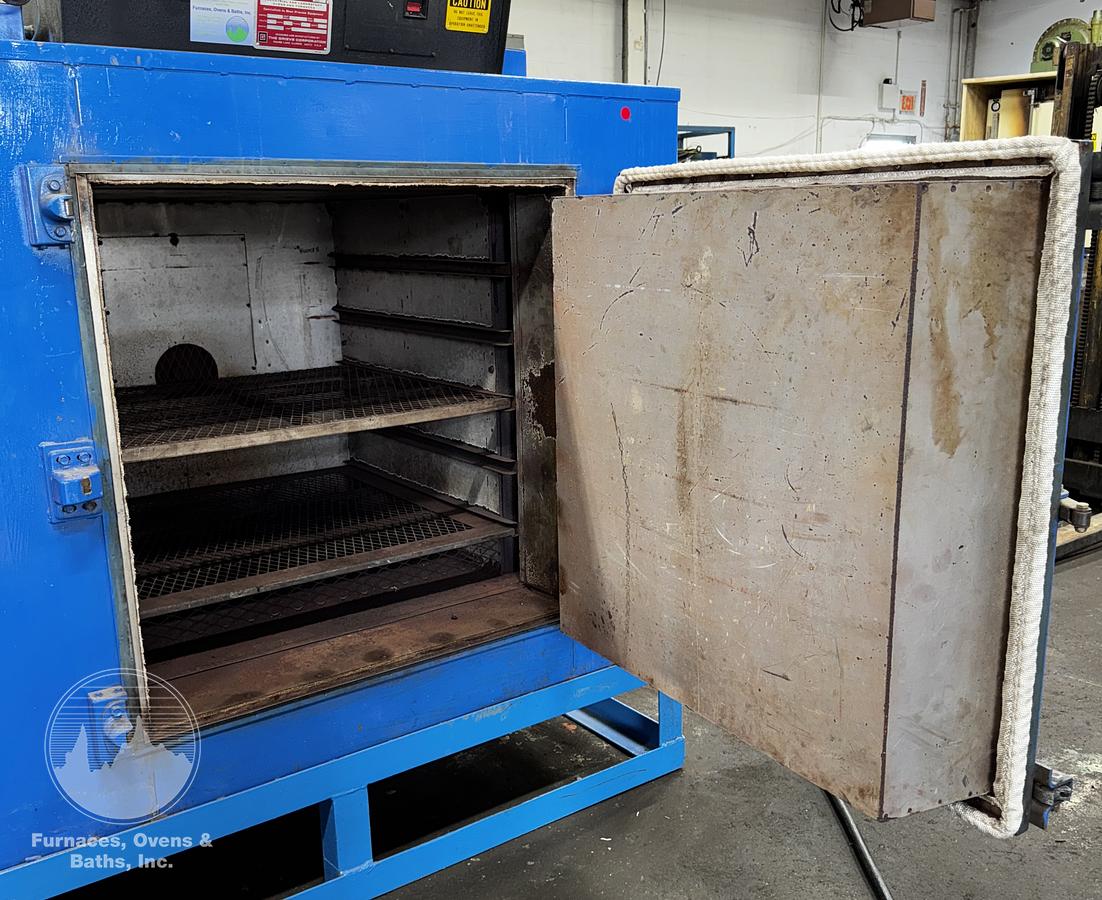

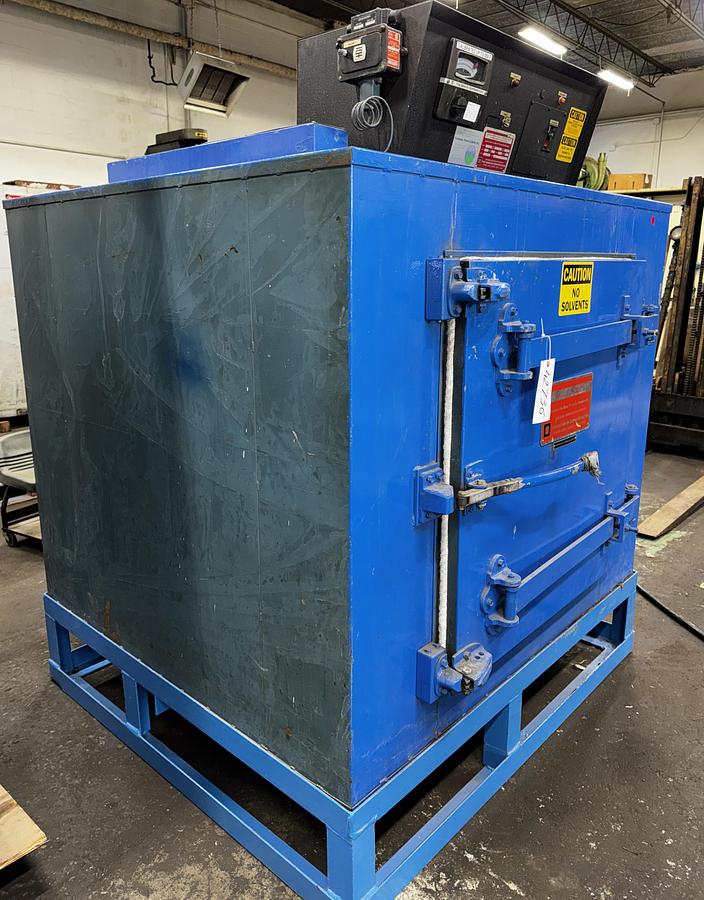

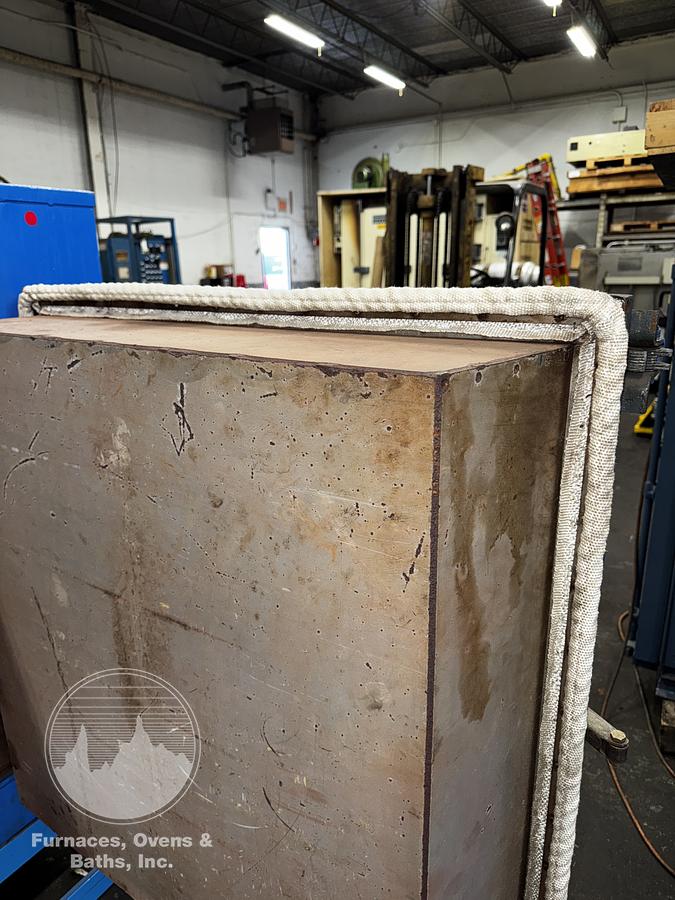

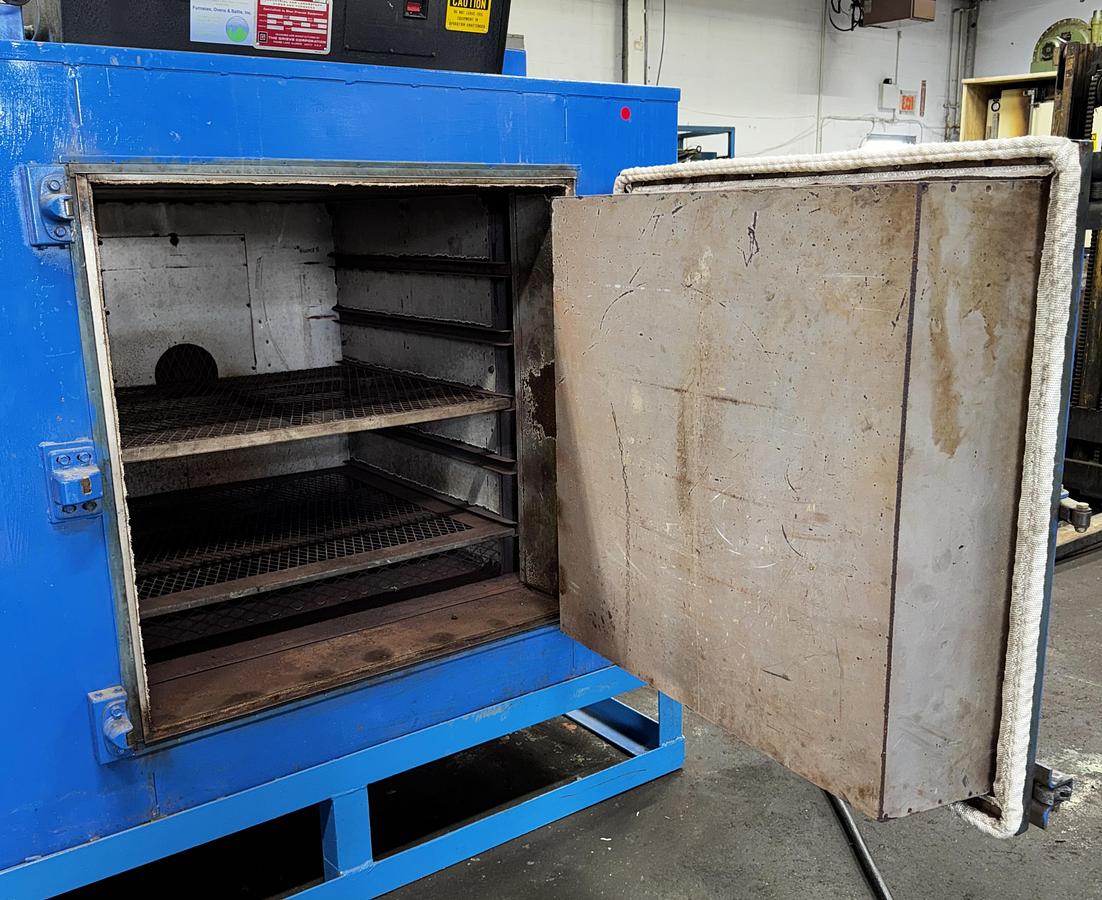

Single door with high temperature ceramic fiber door gasket with three (3) "Brixon" spring tension latches for a good door seal. Aluminized steel interior with 5 shelf brackets, 2 shelves are included with this oven. Incoloy sheath tubular heating elements are located on each sidewall. Direct driven circulating fan is located behind the work chamber. Heated air is circulated across the heating elements and distributed through the chamber in a horizontal front to back pattern for good uniform heating. An air flow safety switch cuts power to the heating elements if the blower is not operating. An adjustable fresh air inlet is located at the fan shaft. Manual and drawing is included with this oven. Oven will be tested prior to shipping.

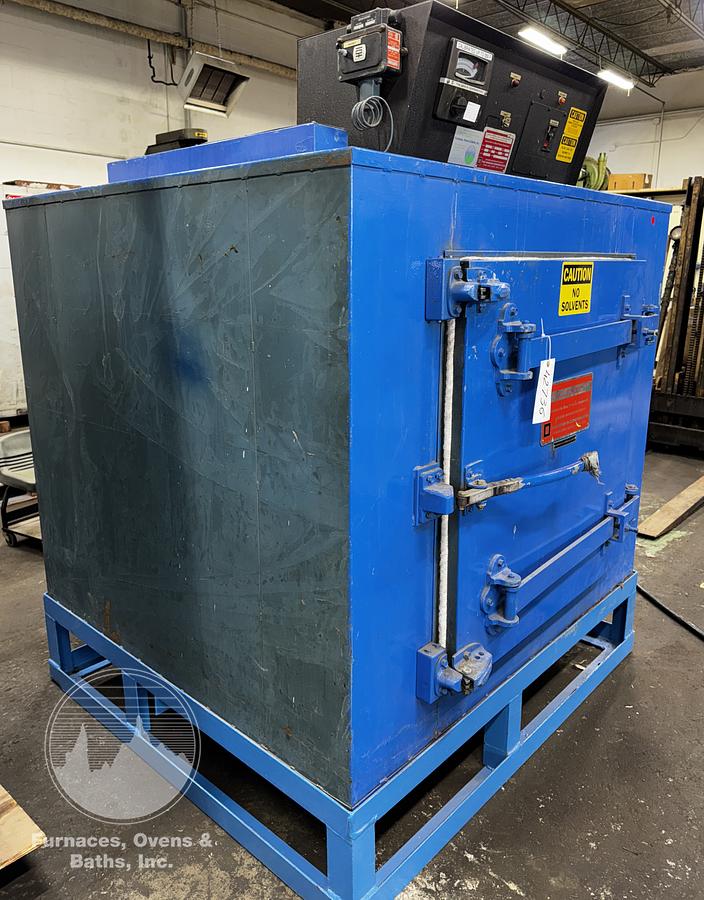

Controls are located in a top mounted "UL" rated control cabinet which houses a Partlow analog temperature controller and a Partlow analog high limit. Controll switches with indicating lights for the, circulating fan and heat are flush mounted in the face of the control cabinet. Contactors, motor starters, fuses, relays etc. are mounted inside the control cabinet.
