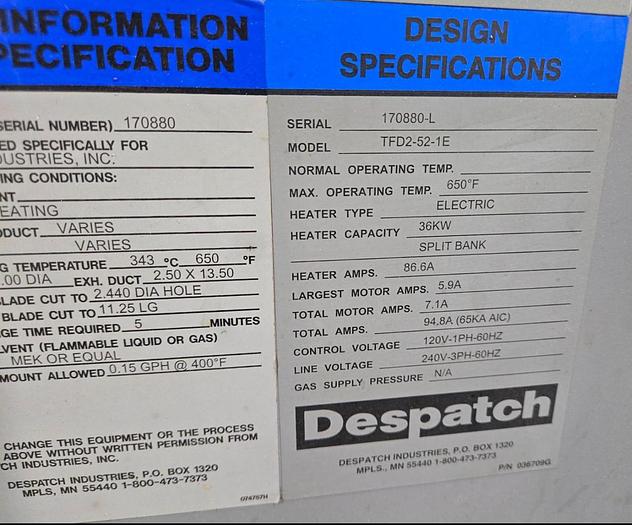

38"W x 63"H x 38”L, Despatch Industries TFD2-52-1E Truck Oven, 650-F, Electric, Class A

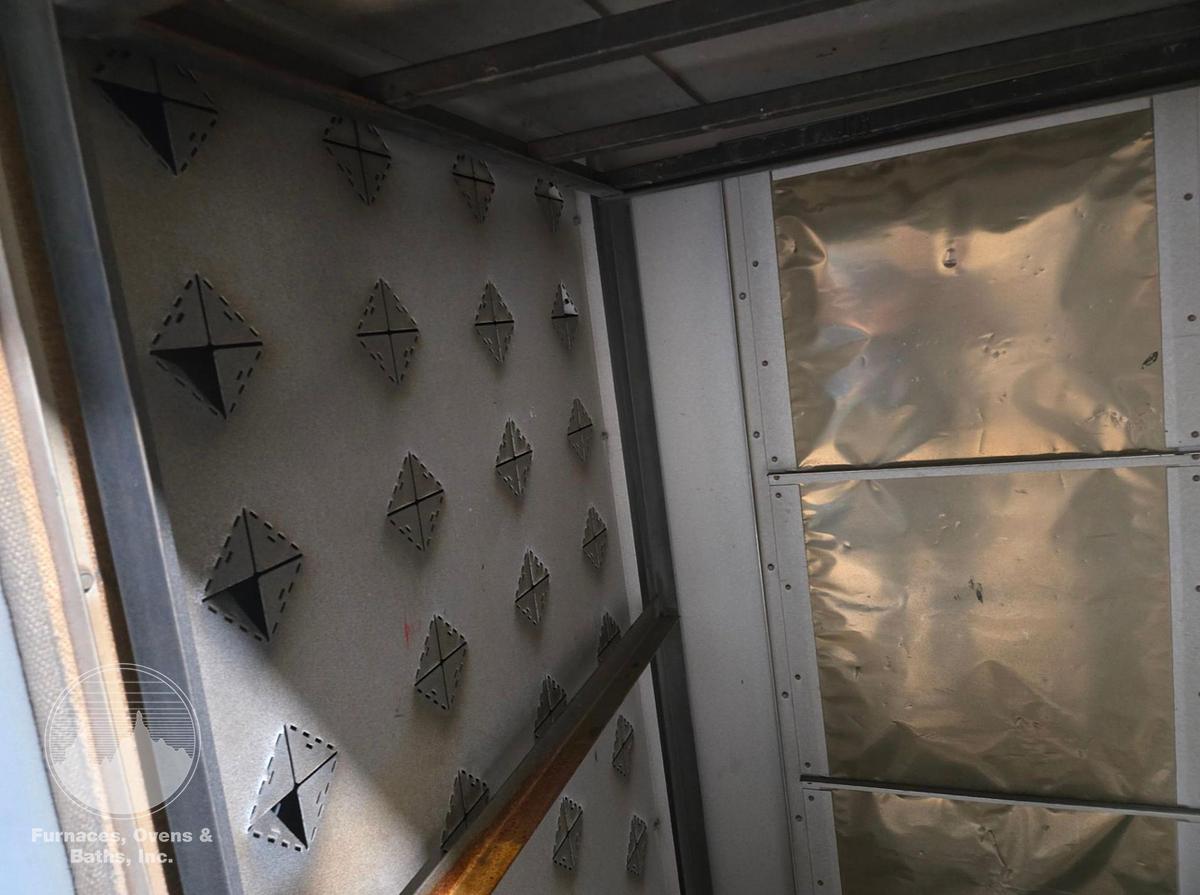

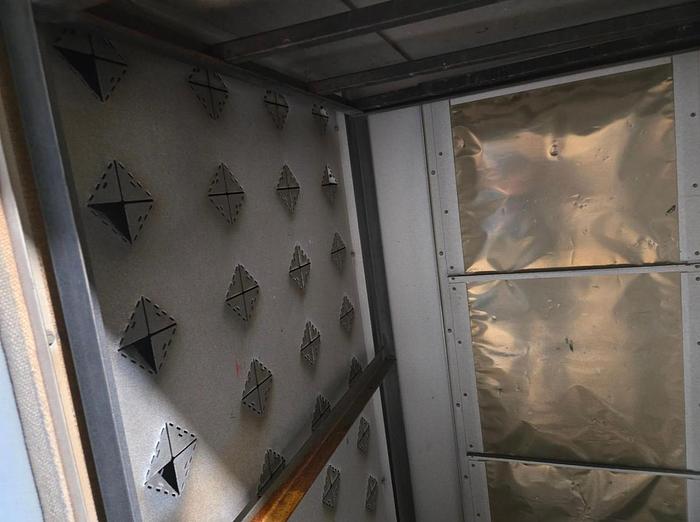

Oven is designed to meet NFPA 86 requirements for applications that include flammable solvents or large amounts of moisture removal. Complete with pressure relief panel in rear wall, purge timer and powered exhaust fan. Single door with woven fiberglass gasket and cam action positive seal latch. Aluminized steel interior with an insulated floor with cart tracks on 24" centers, cart is included with this oven. Coiled style heating elements and direct driven circulating fan are located above the work chamber. Heated air is circulated in a horizontal pattern across the work area through punched air duct louvers for good uniform heating . A fresh air inlet is located on the left side wall. A powered exhaust fan is on top of the oven. Solvent rated - .15 GPH - MEK or equiv.

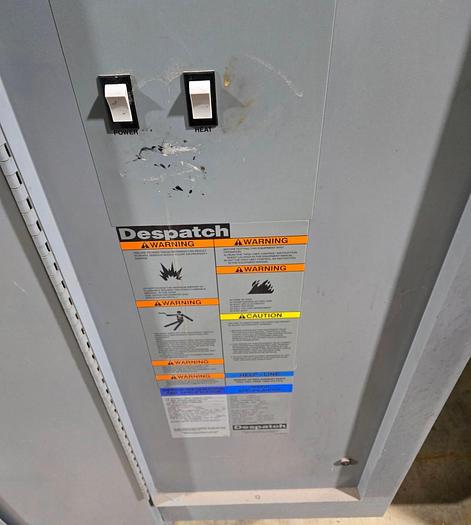

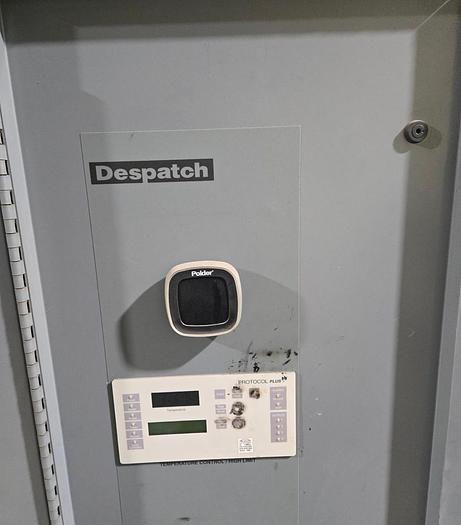

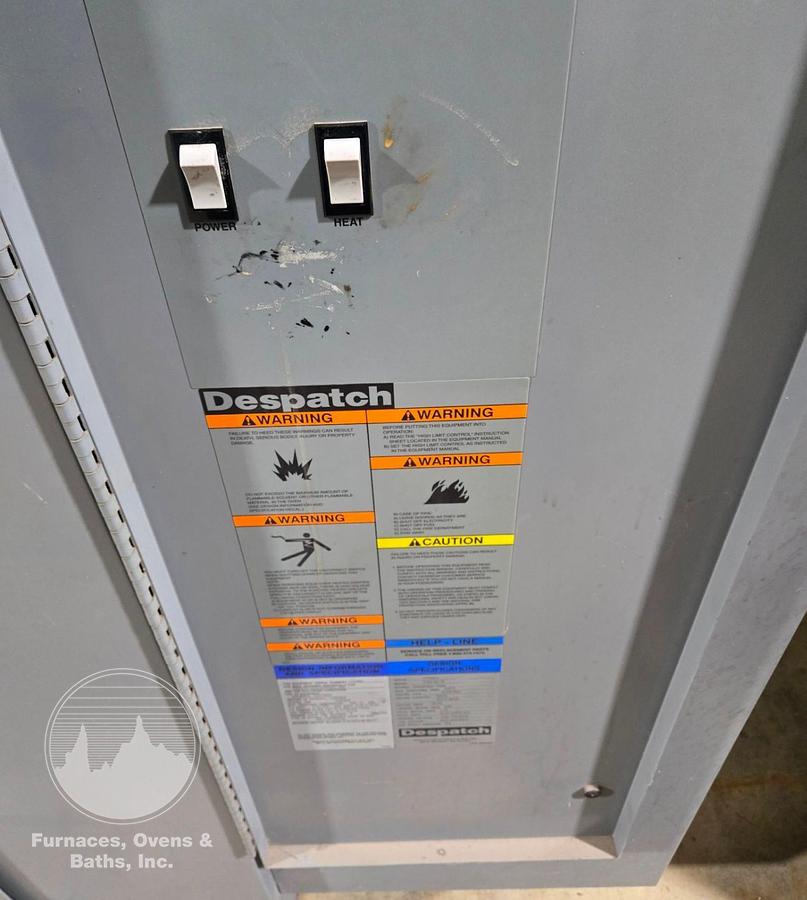

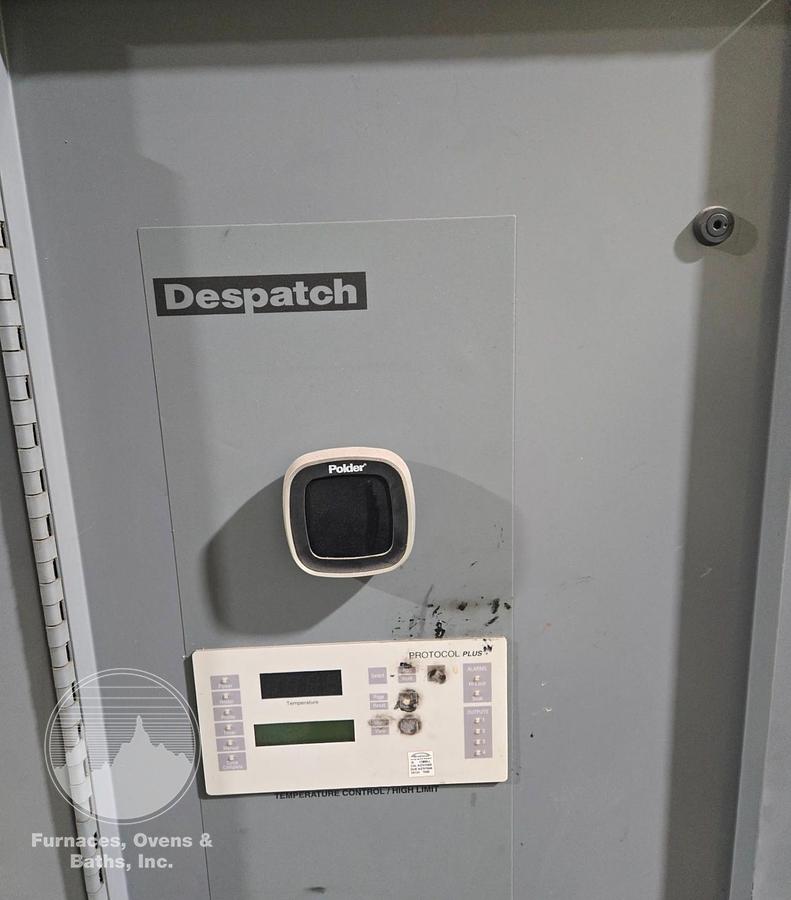

Controls are mounted and wired in a UL rated control cabinet with disconnect attached to the right-hand side of the oven. There is a Despatch Protocol plus digital control which operates as a dual functioning controller/high limit. This Protocol plus provides three primary operating modes with the 1st being manual in which the oven operates continuously at fixed temperature until turned off. 2nd is timer mode in which oven operates at a fixed temperature for a specified time then shuts off. 3rd is profile mode in which temperature increases or decreases as defined by segments with ramp and soak profiles. Control switches for power on/off, heat on/off are flush mounted in the front panel. Watlow solid state relays for heating elements, high limit contactor, purge timer, motor starters, fuses etc. are also located inside the control cabinet.
